    Home / Air treatment / Industrial filtration / SF and SPF sterile filters / SPF filters / SPFI1 sintered pre-filters / Sintered pre-filter SPFI1-150 – 14 bar, G 2", 21,000 l/min 1 micron sintered stainless steel · 14 bar

    Sintered pre-filter SPFI1-150 – 14 bar, G 2", 21,000 l/min 1 micron sintered stainless steel · 14 bar

    Code: SPFI1-150
    Not rated Rating details
    Omega Air SPFI1-150
    €3 521,51 / pcs €2 910,34 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options
    With a G 2" connection and a flow of 21,000 l/min at 7 bar, the SPFI1-150 sintered pre-filter traps solid particles larger than 1 µm. Working pressure up to 14 bar, polished stainless steel 1.4404 housing.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Omega Air PFI1-150V
    Original parts
    €721,10 –3 %
    Spare element PFI1-150V – 1 micron sintered stainless steel for PF, HPF, WFIT, WFIF and SPF filters of size 150
    up to 14 days
    €578,07 excl. VAT
    €699,47

    Spare element PFI1-150V for PF, HPF, WFIT, WFIF and SPF sintered pre-filters of size 150 — sintered stainless steel 1.4404. Replace it at least once every 12 months.

    Code: PFI1-150V
    Omega Air SPFSF-200
    New
    Sterile filter SPFSF-200 – 14 bar, G 3", 40,000 l/min 0.01 micron sterile element · 14 bar
    Stock (1 pcs)
    €3 996,82 excl. VAT
    €4 836,15

    With a G 3" connection and a flow of 40,000 l/min at 7 bar, the SPFSF-200 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-200
    Omega Air SPFSF-018
    New
    Sterile filter SPFSF-018 – 14 bar, G 3/4", 3,750 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €1 389,55 excl. VAT
    €1 681,36

    With a G 3/4" connection and a flow of 3,750 l/min at 7 bar, the SPFSF-018 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-018
    Omega Air SPFSF-030
    New
    Sterile filter SPFSF-030 – 14 bar, G 1", 5,250 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €1 661,60 excl. VAT
    €2 010,54

    With a G 1" connection and a flow of 5,250 l/min at 7 bar, the SPFSF-030 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-030
    Omega Air SPFSF-175
    New
    Sterile filter SPFSF-175 – 14 bar, G 2 1/2", 28,000 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €3 728,30 excl. VAT
    €4 511,24

    With a G 2 1/2" connection and a flow of 28,000 l/min at 7 bar, the SPFSF-175 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the...

    Code: SPFSF-175
    Omega Air SPFSF-047
    New
    Sterile filter SPFSF-047 – 14 bar, G 1 1/4", 7,000 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €1 794,41 excl. VAT
    €2 171,24

    With a G 1 1/4" connection and a flow of 7,000 l/min at 7 bar, the SPFSF-047 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-047
    Omega Air SPFSF-007
    New
    Sterile filter SPFSF-007 – 14 bar, G 3/8", 1,750 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €1 261,56 excl. VAT
    €1 526,49

    With a G 3/8" connection and a flow of 1,750 l/min at 7 bar, the SPFSF-007 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-007
    Omega Air SPFSF-010
    New
    Sterile filter SPFSF-010 – 14 bar, G 1/2", 2,500 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €1 340,91 excl. VAT
    €1 622,50

    With a G 1/2" connection and a flow of 2,500 l/min at 7 bar, the SPFSF-010 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-010
    Omega Air SPFSF-070
    New
    Sterile filter SPFSF-070 – 14 bar, G 1 1/2", 10,000 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €2 258,37 excl. VAT
    €2 732,63

    With a G 1 1/2" connection and a flow of 10,000 l/min at 7 bar, the SPFSF-070 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the...

    Code: SPFSF-070
    Omega Air SPFSF-150
    New
    Sterile filter SPFSF-150 – 14 bar, G 2", 21,000 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €2 862,56 excl. VAT
    €3 463,70

    With a G 2" connection and a flow of 21,000 l/min at 7 bar, the SPFSF-150 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-150
    Omega Air SPFSF-240
    New
    Sterile filter SPFSF-240 – 14 bar, G 3", 60,000 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €5 053,45 excl. VAT
    €6 114,68

    With a G 3" connection and a flow of 60,000 l/min at 7 bar, the SPFSF-240 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-240
    Omega Air SPFSF-094
    New
    Sterile filter SPFSF-094 – 14 bar, G 2", 15,000 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €2 671,96 excl. VAT
    €3 233,07

    With a G 2" connection and a flow of 15,000 l/min at 7 bar, the SPFSF-094 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-094
    Omega Air SPFSF-005
    New
    Sterile filter SPFSF-005 – 14 bar, G 1/4", 1,250 l/min 0.01 micron sterile element · 14 bar
    up to 20 days
    €1 211,44 excl. VAT
    €1 465,84

    With a G 1/4" connection and a flow of 1,250 l/min at 7 bar, the SPFSF-005 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....

    Code: SPFSF-005
    Show all related products Previous product Next product

    Product detailed description

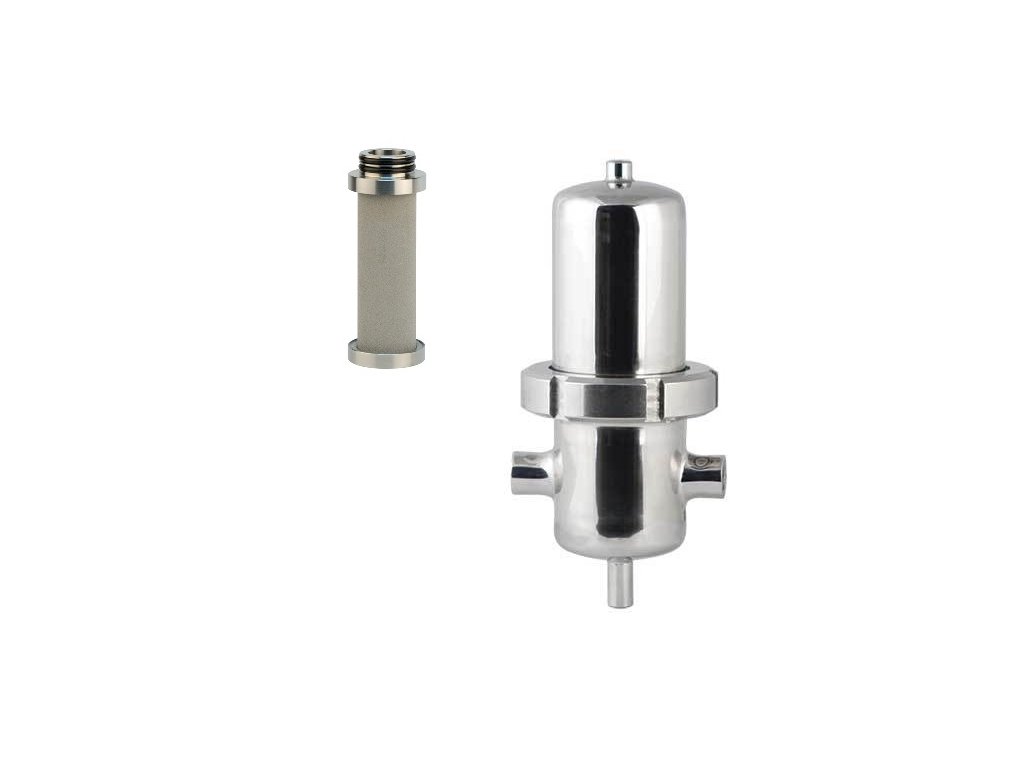

    The SPFI1-150 sintered stainless steel pre-filter traps solid particles larger than 1 µm. It has a G 2" connection, a flow of 21,000 l/min at 7 bar and a working pressure of up to 14 bar.

    It belongs to the range of SPF filters, among the SPFI1 sintered pre-filters: the housing is the same for all stages, only the element differs.

    Specifications

    ParameterValue
    ConnectionG 2" (pipe thread)
    Flow at 7 bar21,000 l/min (1,260 Nm³/h)
    Working pressure14 bar
    Element temperature+1.5 to +150 °C
    Filtration rating1 µm
    Element replacementat least once every 12 months
    ElementPFI1-150V
    Element materialsintered stainless steel 1.4404
    Element designsintered
    Housingstainless steel 1.4404, polished
    Height A592 mm
    Width across the connections B180 mm
    Housing diameter C114.3 mm
    Weight6 kg
    Drain EG 1/4" thread in the bottom

    Housing and dimensions

    Drawing of the SPF filter with dimensions A, B, C and drain E
    A height, B width across the connections, C housing diameter, E drain.

    The housing is made of stainless steel 1.4404, or 1.4301 on request, with the outer surface polished to Ra 0.8 and EPDM seals (FKM or silicone on request). It withstands up to +150 °C; the actual limit depends on the element.

    According to the manufacturer: height A 592 mm, width across the connections B 180 mm, housing diameter C 114.3 mm. Weight 6 kg.

    Flow by pressure

    The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 14 bar it is 1.88:

    Pressure (bar)471014
    Flow (l/min)13,23021,00028,98039,480

    Spare element

    For this filter:
    Spare elementPFI1-150V

    Where to place it

    Filtration stages in the direction of flow, with stage I1 highlighted
    Stages in the direction of flow; I1 is highlighted.

    It goes after the basic mesh, before the SPFM fine pre-filter.

    You will find other sizes among the filters of the same stage.

    Additional parameters

    Category: SPFI1 sintered stainless steel pre-filters up to 14 bar
    Version: Dust filter
    Pressure: 14 bar
    Connecting: 2"
    Dimensions: 592 × 180 × 114.3 mm
    Filtration: 1 µm
    Filter insert: PFI1-150V
    Material: Stainless steel
    Number of inserts: 1
    Working temperature: +1.5 / +150 °C
    Flow: 21,000 l/min
