Vertical low-temperature pressure vessel for fluids 5000 l - 8 bar Ø 1650 × 3118 mm · 1120 kg · connections 3", 2", 3/4" and 3/8"
Code: VVP5000-8 VVG5000-8 Choose variant
Product detailed description
Five cubic metres at 8 bar. It has a diameter of 1650 mm, so it is wider and lower than the 5000-litre vessels for 12 and 16 bar.

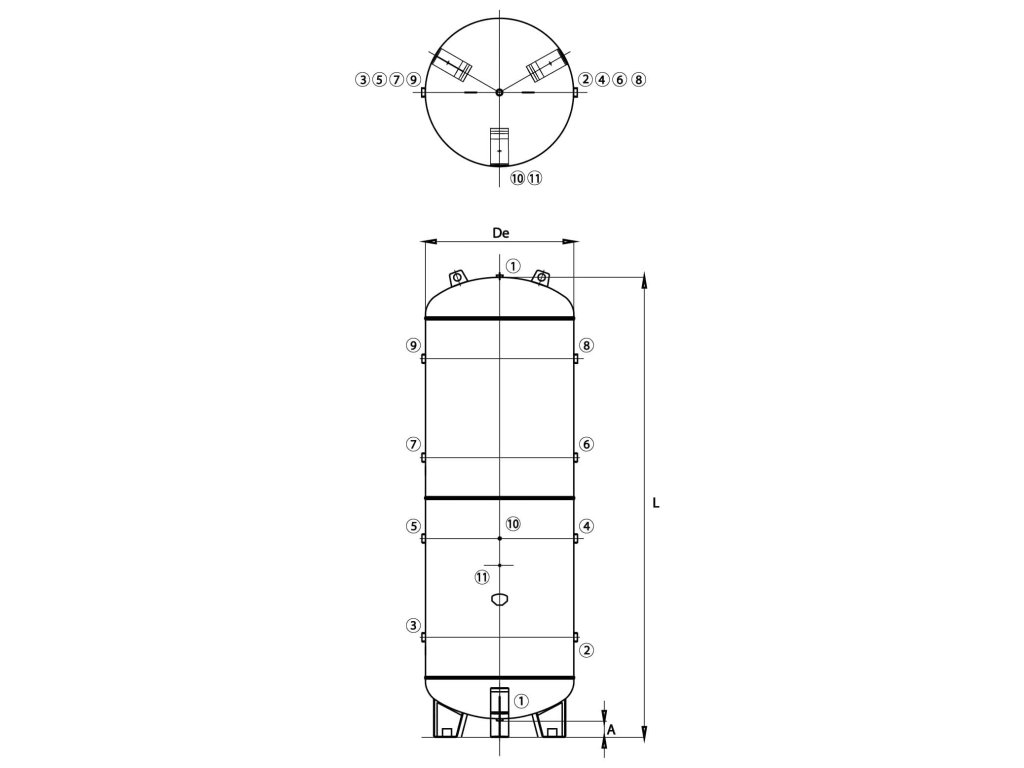

Dimensions and connections
| VVP5000-8 — dimensions and connections | |
|---|---|
| Volume | 5000 l |
| Maximum working pressure | 8 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 1650 mm |
| Height L | 3118 mm |
| Ground clearance A | 175 mm |
| Height of connections 2 and 3 (B) | 1150 mm |
| Height of connections 4 and 5 (C) | 2200 mm |
| Height of connection 11 (F) | 1950 mm |
| Weight | 1120 kg |
| Transport | lying flat, 3500 × 1700 × 1850 mm, 1140 kg |
| Lifting lugs | 2 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 3" |
| Connection 3 | 3" |
| Connection 4 | 3" |
| Connection 5 | 3" |
| Connection 6 | none |
| Connection 7 | none |
| Connection 8 | none |
| Connection 9 | none |
| Connection 10 | 3/4" |
| Connection 11 | 3/8" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP5000-8 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP5000-8 | 1120 kg | – |
| galvanised | VVG5000-8 | 1120 kg | same dimensions and connections |
Typical uses
It suits systems that work at no more than 8 bar, for example as an oxygen or nitrogen reservoir downstream of a generator, or with low-pressure compressors.
Larger 8-bar vessels are VVP8000-8 and VVP10000-8. The same volume for 12 bar is VVP5000-12.
How it is made
Ventilek’s tip
At 8 bar, keep an eye on the source. Neither the compressor nor the generator may deliver more than 8 bar into the vessel. Set the safety valve no higher than this value.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 8 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized |
| Container volume: | 5 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 3" |
| Thread (3): | 3" |
| Thread (4): | 3" |
| Thread (5): | 3" |
| Thread (6): | - |
| Thread (7): | - |
| Thread (8): | - |
| Thread (10): | 3/4" |
| Thread (11): | 3/8" |
| Thread (9): | - |
