Coarse filter CHP1B-010 – 100 bar, G 3/4", 3,250 l/min 15 microns · class 8 · 100 bar
Code: CHP1B-010
Related products
Product detailed description

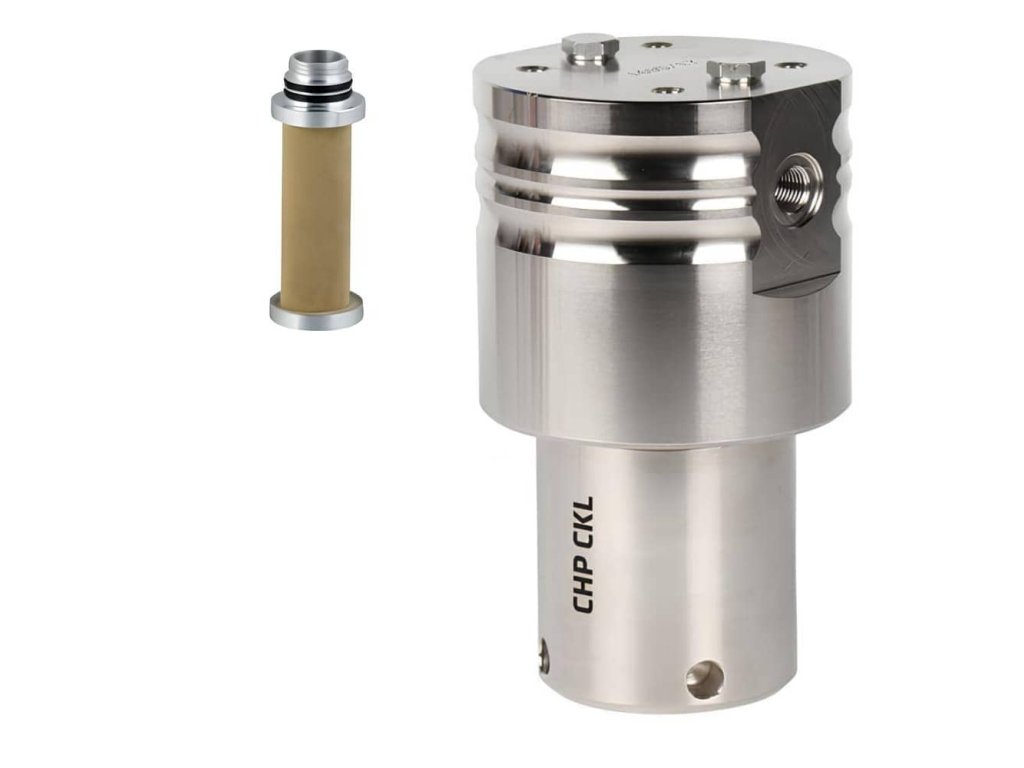

The CHP1B-010 high-pressure coarse filter with a sintered element traps coarse solid contaminants larger than 15 µm and protects the finer stages after it. It has a G 3/4" thread, a flow of 3,250 l/min at 7 bar and a working pressure of up to 100 bar.
It belongs to the range of CHP1 high-pressure filters, among the CHP1B coarse filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 3/4" (female pipe thread) |
| Flow at 7 bar | 3,250 l/min (195 Nm³/h) |
| Working pressure | 100 bar |
| Working temperature | +1.5 to +65 °C |
| Filtration rating | 15 µm |
| ISO 8573-1 class | 8-x-x |
| Element replacement | cleaned in an ultrasonic bath or by blowing out against the direction of flow, replaced as needed |
| Element | CHPB-010V |
| Element material | sintered brass |
| Housing | carbon steel with chemical nickel plating |
| Height A | 254 mm |
| Head width B | 118 mm |
| Maximum width C | 129 mm |
| From the top edge D | 36 mm |
| Weight | 16.1 kg |
| Condensate drain | ordered separately |
| Condensate outlet | G 1/4" opening in the bottom |
Housing and dimensions
The housing is made of ANSI A-105 carbon steel with chemical nickel plating, the fittings and bolts are made of stainless steel 1.4404 and the seals of FKM with a PTFE back-up ring. The air is connected through female pipe threads in the filter head; the condensate leaves through a G 1/4" opening in the bottom.
According to the manufacturer: height A 254 mm, head width B 118 mm, maximum width C 129 mm and from the top edge D 36 mm. Weight 16.1 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure, it is multiplied by the correction factor; from 100 bar it is 12:
| Pressure (bar) | 7 | 25 | 40 | 64 | 100 |
|---|---|---|---|---|---|
| Flow (l/min) | 3,250 | 9,750 | 16,250 | 26,000 | 39,000 |
Element and accessories
| For this filter: | |
|---|---|
| Spare element | CHPB-010V |
| Condensate drain (ordered separately) | TD420M-230VAC, TD420M-24VDC |
| Wall bracket | CHP-WM |
| Water separator before the filter | CHP cyclone separators |
Where to place it
It goes at the start of the filtration, before the CHP1P basic filter or CHP1R dust filter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | CHP1B high-pressure coarse filters with sintered element up to 100 bar |
|---|---|
| Version: | Coarse filter |
| Pressure: | 100 bar |
| Connecting: | 3/4" |
| Dimensions: | 254 × 118 × 129 mm |
| Filtration: | 15 µm |
| Filter insert: | CHPB-010V |
| Material: | Carbon steel |
| Condensate discharge: | Without drain |
| Working temperature: | +1.5 / +65°C |
| Flow: | 3,250 l/min |
| Quality class - solid impurities: | 8 |
