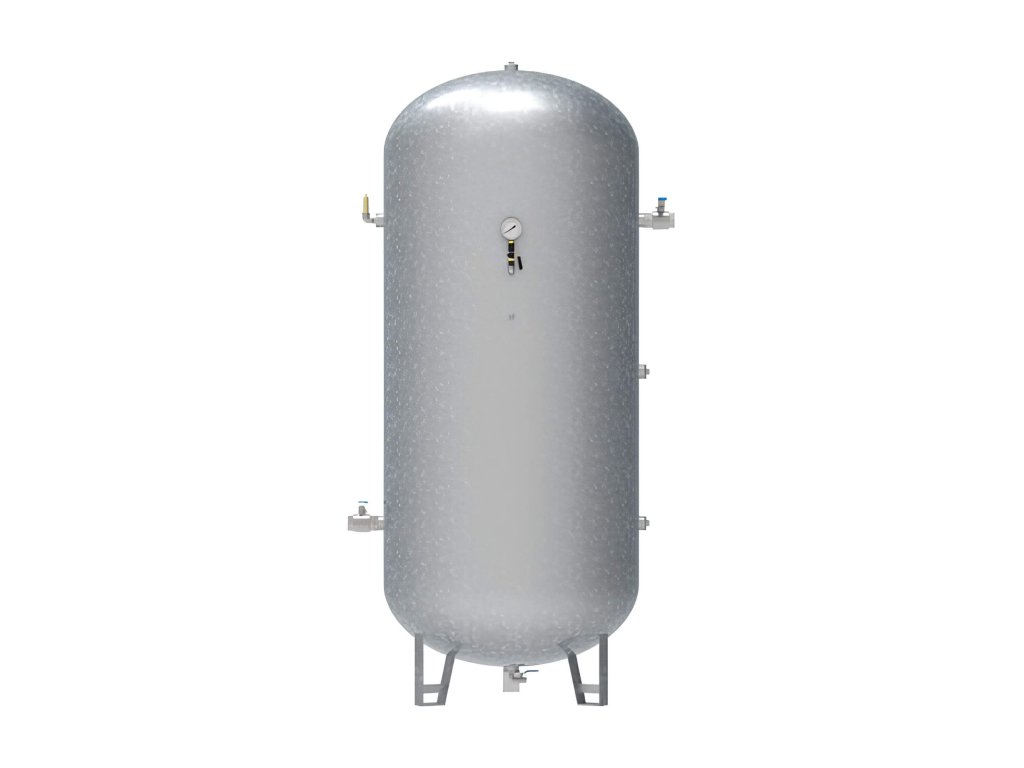

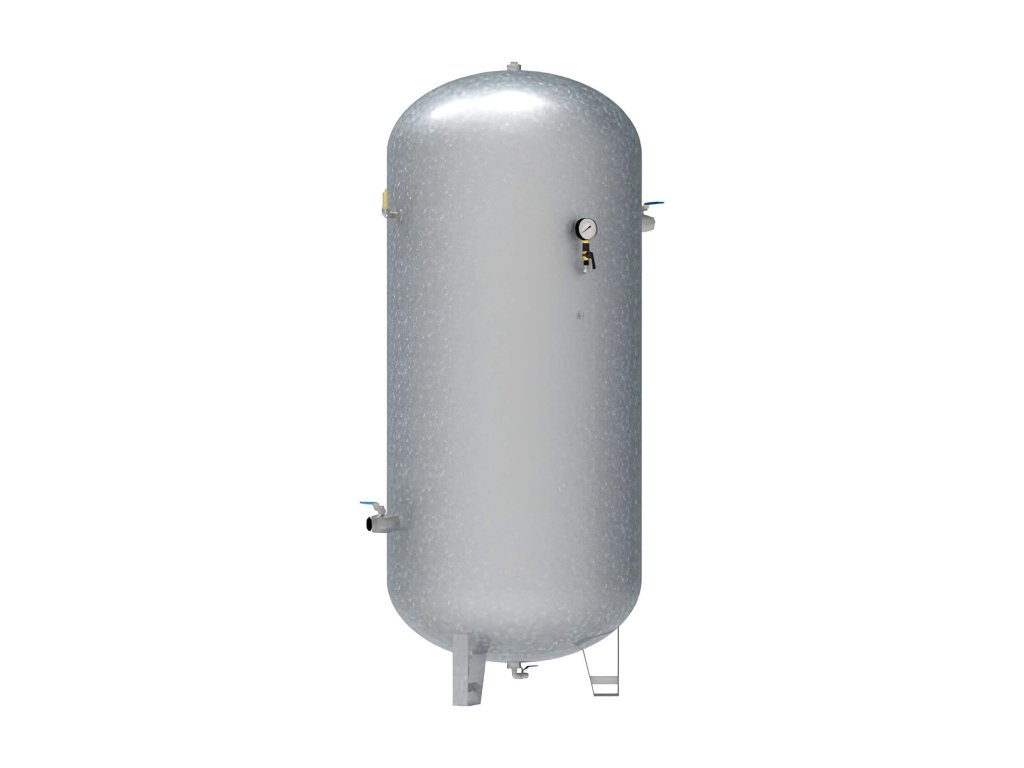

Vertical pressure vessel with fittings 2000 l - 12 bar Ø 1100 × 2513 mm · 395 kg · ball valves 2"
Code: VVP2-2000-12A VVG2-2000-12A Choose variant
Product detailed description
Two thousand litres with a diameter of 1100 mm and a height of 2.51 metres. It is 14 centimetres taller than the 1000-litre assembly, yet has twice the volume.
Dimensions and fittings
| VVP2-2000-12A — dimensions and fittings | |
|---|---|
| Volume | 2000 l |
| Maximum working pressure of the vessel | 12 bar |
| Safety valve set pressure | 10.5 bar |
| For compressors | cut-out pressure up to 10 bar |
| Working temperature | −10 to +50 °C |
| Vessel diameter | 1100 mm |
| Assembly height | 2513 mm |
| Width across valves | 1422 mm |
| Weight | 395 kg (painted), 401 kg (galvanised) |
| Ball valves | 2× 2", DN 50, PN 25 |
| Condensate drain valve | 1/2" |
| Pressure gauge | Ø 100 mm, 0–16 bar |
| Test cock | yes, at the pressure gauge |
| Safety valve | 3/4", 1024 Nm³/h |
| Vessel without fittings | VVP2000-12 (painted), VVG2000-12 (galvanised) |
| Fittings kit | KVP2000-12 (painted), KVG2000-12 (galvanised) |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating / hot-dip galvanised inside and out |
| Vessel directive | 2014/68/EU (PED) |
| Documentation | TÜV certification of the pressure assembly |
| Medium | compressed air |
Versions
| VVP2-2000-12A — versions | ||||
|---|---|---|---|---|
| Version | Order code | Assembly height | Weight | Fittings kit |
| painted RAL 5015 | VVP2-2000-12A | 2513 mm | 395 kg | KVP2000-12 |
| galvanised | VVG2-2000-12A | 2513 mm | 401 kg | KVG2000-12 |
Typical uses
It is suitable as the main air receiver in production with a larger screw compressor or with several compressors on a shared air network. The 2" ball valves suit a larger-bore main air line.
A smaller option is VVP2-1500-12A, and a larger one is VVP2-3000-12A. The same vessel without fittings is VVP2000-12, and the fittings alone come as KVP2000-12.
How it is made
Ventilek’s tip
Two compressors, one vessel. Connect each compressor through its own shut-off valve and non-return valve. You can then take one out of service for maintenance while the other keeps filling the vessel.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Documentation: | PED 68/2014EU + TÜV |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized |
| Container volume: | 2 000 l |
| Directive: | PED - 68/2014EU |
