WOSM-2 cartridge oil-water separator for compressors up to 2.23 m³/min
Code: WOSM-2
Related products
Product detailed description
The WOSM-2 cartridge oil-water separator cleans condensate from compressors with a capacity of up to 2.23 m³/min (in a temperate climate of 25 °C). It captures the oil in the pressure relief chamber, polypropylene fibres and activated carbon – water with a residual oil content below 20 ppm flows out of the outlet.
It belongs to the WOSM separator series. For larger compressors, there are WOS separators.
Technical data
| Parameter | Value |
|---|---|
| Compressor up to (25 °C, 60 % RH) | 2.23 m³/min (2,230 l/min) |
| Compressor up to (15 °C / 40 °C) | 2.54 / 1.28 m³/min |
| Condensate (25 °C) | 1.87 l/h |
| Oil captured (25 °C) | 1,340 g |
| Residual oil in water | < 20 ppm |
| Height A / cartridge D | 816 / 670 mm |
| Head B × C | 106 × 80 mm |
| Free space below cartridge E | 50 mm |
| Weight | 1.8 kg |
| Connection | push-in fittings ⌀ 8 mm |
| Operating temperature | 1.5–45 °C (max. 65 °C) |
| Replacement cartridge | WOSM-2AP |
| Approval | DIBt Z-83.5-31 |
Capacity by climate
Hot and humid conditions produce more condensate, so at 40 °C and 100 % humidity the WOSM-2 can only handle a compressor of up to 1.28 m³/min.
| 15 °C / 60 % | 25 °C / 60 % | 40 °C / 100 % | |
|---|---|---|---|
| compressor up to (m³/min) | 2.54 | 2.23 | 1.28 |
| condensate (l/h) | 1.19 | 1.87 | 3.96 |
| oil captured (g) | 1,520 | 1,340 | 770 |

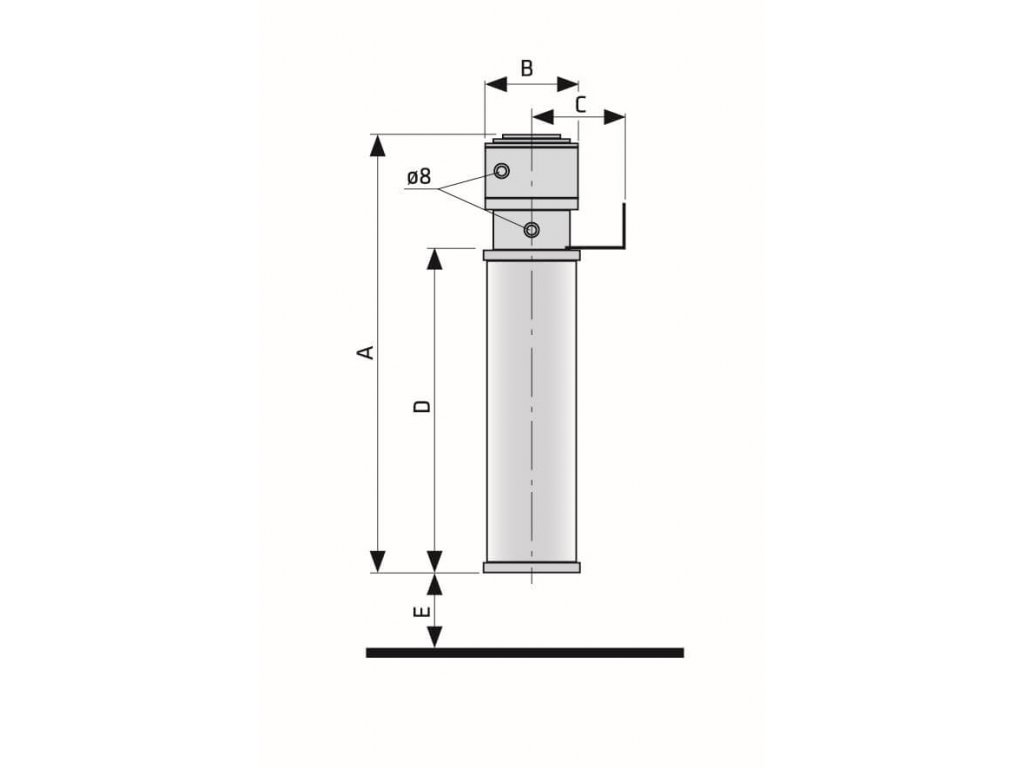

Dimensions
Overall height A 816 mm, cartridge height D 670 mm, head 106 × 80 mm. Leave 50 mm of free space below the cartridge for replacement.
How it works
- Condensate flows through a ⌀ 8 mm push-in fitting into the pressure relief chamber. The cyclone effect and coalescence separate the air, which escapes at the top through a filter, and the condensate settles.
- The condensate flows down into the cartridge and through the polypropylene microfibres. These attract the oil and capture most of it.
- The lower part of the cartridge consists of activated carbon, which captures the remaining oil dissolved in the water.
- The cleaned water with a residual oil content below 20 ppm flows out through the second push-in fitting. The oil stays in the cartridge.
Cartridge replacement
The replacement cartridge for the WOSM-2 is WOSM-2AP. It is replaced after 4,000 compressor operating hours (at an oil carry-over of 2.5 mg/m³), after 12 months at the latest, or when the white fibres have turned completely yellow.
The replacement takes about 30 seconds: unscrew the used cartridge, close it with the yellow cap from the new cartridge and hand it over for disposal as oil-contaminated waste. Screw the new cartridge onto the separator head. No vessels need cleaning.
You can check the quality of the cleaned water at any time with WOS-TP test strips (20 pcs).
Installation
- fix the separator with the bracket to a wall or inside the compressor, in a frost-free location; leave 50 mm of free space below the cartridge for replacement
- route the inlet piping from the drains with a downward slope and make it long and large enough for the condensate to flow into the separator calmly by gravity
- inlet and outlet via ⌀ 8 mm push-in fittings (marked IN and OUT)
- operating temperature 1.5–45 °C, max. 65 °C – above 45 °C the capacity may decrease
- the separator is designed for non-aggressive condensate from air, water and oil – with both mineral and synthetic compressor oil; it does not separate a stable emulsion (milky condensate that does not separate even after a long time)
Condensate is fed into the separator by automatic condensate drains.
Additional parameters
| Category: | Oil-water separators – separating oil from compressor condensate |
|---|---|
| Pressure: | 16 bar |
| Dimensions: | 106 × 80 × 816 mm |
| Weight: | 1.8 kg |
| Air flow: | 2000 l/min |
| Separator type: | WOSM |
| Input: | coupling 6 × 8 mm |
| Exit: | coupling 6 × 8 mm |
| Residual oil: | 20 ppm |
| In stock: | External warehouse |
