Screw compressor MSD - MSD2-75/13
Code: MSD2-75/13Product detailed description

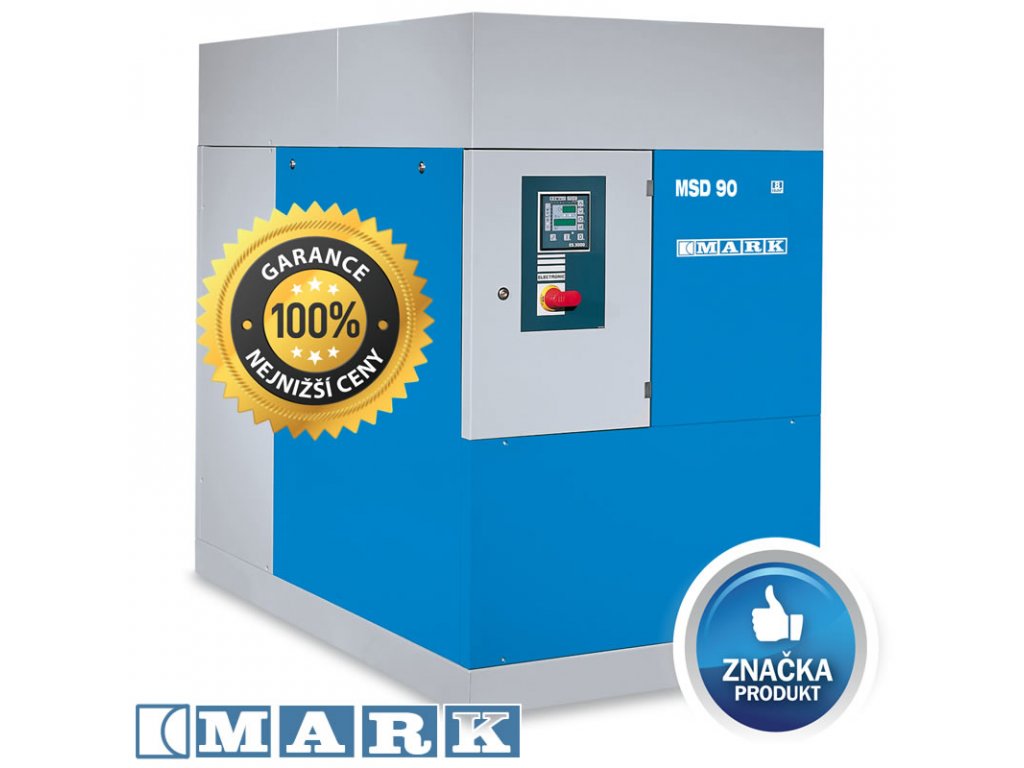

MSD screw compressors (55-75 kW)
- Oil-lubricated screw compressors in a stand-alone version with a delivery pressure of 8 - 10 - 13 bar
- Designed for industrial manufacturing plants and all applications with the need for a continuous supply of compressed air with high quality and emphasis on high machine performance
- Electric motors of 55 - 75 kW with standard electrical voltage 400V/50Hz with increased efficiency IE2 (formerly EFF1) according to EN 60034-30
- V-belt transmission with reliable tensioning system and high-quality belts
- Electronic control unit ES4000 Standard equipped with state-of-the-art programs to eliminate idling and save energy; display of many alarms and warnings
- The ES4000 Standard unit also features a large line digital display and a nice push-button menu operation; many values can be displayed on the display, e.g. number of motor hours, pressure, temperature, service information and other data; many functions such as automatic restart after a fault, network operation, etc.
- Perfect cooling air flow to the fan, which is fitted with a grille for increased safety
- Combined oil-air cooler for low outlet temperature ensuring high quality of the supplied air; separate design for higher durability; cooler is located in the rails and is extremely easy to remove
- Three-stage oil separation thanks to vertically oriented separation vessel and separation filter
- Machine enclosure with soundproofing and easy-to-remove panels for quick access to the machine; convenient hinges allow the machine enclosure to be opened as a door or removed as panels
- Lateral air intake through a filter mat located in the wire housing
- Clear design for easy and quick maintenance, practical service kits, easy oil level reading thanks to external oil sight glass
- Warranty period of 2 years from commissioning by an authorized service, possibility of extending the warranty for 3 and 5 years upon signing a service contract
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Version: | Screw compressor |
| Pressure: | 13 bar |
| Air delivery: | 8,880 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | 2" |
| Motor power: | 75 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Dimensions: | 1 420 × 1 060 × 1 630 mm |
| Weight: | 1,280 kg |
| Warranty: | 2 years (Extension up to 5 years) |
| Gift: | Voucher worth 1000 CZK |
| The item has been sold out… | |
Product rating
Be the first who will post an article to this item!
MARK is an Italian maker of compressors and compressed air treatment products from northern Italy, a member of the Atlas Copco group since 1998. It makes piston compressors in more than 300 models, screw compressors with 2.2 to 160 kW motors and Ecolife and WIS oil-free compressors.
From MARK we offer compressor room equipment: zero-loss LD electronic condensate drains with service kits, the FOD21 oil-water separator and a bypass for MDX refrigeration dryers. The drain removes water from the air receiver, dryer and filter and keeps the compressed air in the line.
Part of the Atlas Copco groupMARK products we offer
LD electronic drains
They drain the water and keep the air. A capacitive sensor opens the valve only when there is condensate in the reservoir and closes it before any air escapes.
- 9 sizes, 2 to 90 l/h
- for receivers, dryers and filters
- service kit for annual maintenance
FOD21 oil-water separator
Oily condensate does not belong in the sewer. The separator removes oil and dirt from the condensate of an oil-lubricated compressor, which greatly reduces the waste to be disposed of.
- for air flow up to 6,480 l/min without a dryer
- 1/2" outlet
- dimensions 470 × 165 × 600 mm
No socket near the compressor, or looking for a timed or float drain? You will find all condensate drains in one category.
All condensate drainsLD drains side by side
| Capacity, flow by installation point and connection | |||||
|---|---|---|---|---|---|
| Type | Capacity | After compressor | On dryer | In filter | Connection |
| LD100 | 2.0 l/h | 180 Nm³/h | 360 Nm³/h | 1,800 Nm³/h | R 1/2" |
| LD101C | 3.3 l/h | 504 Nm³/h | 756 Nm³/h | 3,780 Nm³/h | G 1/2" |
| LD101 | 5.0 l/h | 450 Nm³/h | 900 Nm³/h | 4,500 Nm³/h | G 1/2" |
| LD101L | 5.0 l/h | 450 Nm³/h | 900 Nm³/h | 4,500 Nm³/h | G 1/2" + side G 3/4"/G 1/2" |
| LD200 | 10.0 l/h | 900 Nm³/h | 1,800 Nm³/h | 9,000 Nm³/h | G 1/2" |
| LD200L | 10.0 l/h | 900 Nm³/h | 1,800 Nm³/h | 9,000 Nm³/h | G 1/2" + side G 3/4"/G 1/2" |
| LD202 | 20.0 l/h | 1,800 Nm³/h | 3,600 Nm³/h | 18,000 Nm³/h | G 1/2" |
| LD202L | 20.0 l/h | 1,800 Nm³/h | 3,600 Nm³/h | 18,000 Nm³/h | G 1/2" + side G 3/4"/G 1/2" |
| LD203 | 90.0 l/h | 9,600 Nm³/h | 19,200 Nm³/h | 96,000 Nm³/h | G 1/2" + G 3/4"/G 1/2" |
Capacities apply at 7 bar, 20 °C and 60 % relative humidity. Models with the letter L have an extra side connection.
How to choose and install an LD drain
1. Find the location
Most condensate forms after the compressor, less at the dryer and least in the filter. Use the table column for the point where the drain will go, not the highest number.
2. Allow a reserve
Capacities apply at 7 bar, 20 °C and 60 % humidity. In warmer, more humid conditions there is more condensate, so a larger model pays off.
3. Install
The drain connects from the top with a thread, L models also from the side. The condensate outlet is a 12 mm push-in fitting, and the drain can be mounted vertically or horizontally.
4. Service once a year
At the annual service, replace the filter strainer and seals from the service kit. Use the test button to check that the valve is not blocked.
Frequently asked questions
- How do the L models differ?
- They have an extra side connection G 3/4"/G 1/2". Capacity and flows are the same as on the model without L. They suit places where you cannot reach the vessel from above.
- Does the LD drain need electricity?
- Yes, it runs on 230 V and has IP 65 protection. Where there is no socket near the compressor, a float drain that needs no power will do the job.
- Why electronic rather than timed?
- A timed drain opens the valve at set intervals even when there is nothing to drain, and lets compressed air out every time. The LD opens only when there is something to remove, so you do not lose the air you have produced.
- What is replaced at the annual service?
- The filter strainer and seals. For LD drains there is the LD annual maintenance service kit, for ECDB drains the ECDB-15MK, ECDB-90MK and ECDB-150MK kits.
- What to do with condensate from an oil-lubricated compressor?
- Untreated, it must not go into the sewer; it is disposed of as oil-contaminated waste. The FOD21 separator removes the oil and dirt from it, which greatly reduces the waste to be disposed of.
- What is the MDX-OP bypass for?
- It is a bypass line for MDX400 to MDX1800 refrigeration dryers. You can then replace the filter elements at the dryer without shutting down the air line.
The product sheet of the FOD21 separator can be downloaded from its product page. MARK is a brand of an Italian compressor manufacturer in the Atlas Copco group, certified to ISO 9001 (quality management) and ISO 14001 (environmental management).
