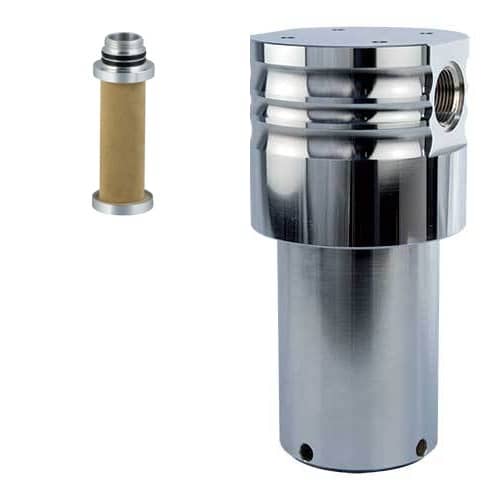

CHP4B high-pressure coarse filters with sintered element up to 420 bar
The CHP4B coarse filter has a sintered brass element and traps solid particles larger than 15 µm. It is the first filtration stage: it removes larger contaminants before they reach the finer stages, which then last longer.
The CHP4B filter comes in 8 sizes with G 1/4" to G 2" threads and flows of 667 to 11,917 l/min at 7 bar; working pressure up to 420 bar. It is one of the stages of the CHP4 high-pressure filters — the housing is the same for all stages, only the element differs.
CHP4B filters by size
The size determines the thread and the flow. Each size has its own spare element.
| CHP4B filters and spare elements by size | ||||||
|---|---|---|---|---|---|---|
| Filter | Thread | l/min at 7 bar | Nm³/h at 7 bar | Height A × width C | Weight | Spare element |
| CHP4B-003 | G 1/4" | 667 | 40 | 182 × 104 mm | 7.6 kg | CHPB-003V |
| CHP4B-005 | G 3/8" | 1,167 | 70 | 182 × 104 mm | 7.6 kg | CHPB-005V |
| CHP4B-007 | G 1/2" | 2,167 | 130 | 230 × 129 mm | 15.3 kg | CHPB-007V |
| CHP4B-010 | G 3/4" | 3,250 | 195 | 254 × 129 mm | 16.1 kg | CHPB-010V |
| CHP4B-018 | G 1" | 4,583 | 275 | 276 × 158 mm | 26.5 kg | CHPB-018V |
| CHP4B-030 | G 1 1/4" | 6,333 | 380 | 328 × 158 mm | 28.6 kg | CHPB-030V |
| CHP4B-047 | G 1 1/2" | 8,250 | 495 | 385 × 216 mm | 65.9 kg | CHPB-047V |
| CHP4B-094 | G 2" | 11,917 | 715 | 460 × 216 mm | 71.4 kg | CHPB-094V |
The flows apply to a pressure of 7 bar and a temperature of +20 °C. Dimensions and weights according to the manufacturer; you will find further data on the product page of each filter.
#showmore#
When to use it
A coarse filter suits the start of the filtration, where larger contaminants from the compressor or the air line enter the air. It does not trap oil or vapours.
The sintered element can be cleaned in an ultrasonic bath or by blowing it out against the direction of flow. How often depends on the operation; when cleaning is no longer enough, replace the element.
Where to place it
At the start of the filtration, before the CHP4P basic filter or CHP4R dust filter.
Flow by pressure
The catalogue flows apply to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure the filter passes more air: from 100 bar, 12 times as much as at 7 bar.
| CHP4B filter flow in l/min by pressure | |||||||
|---|---|---|---|---|---|---|---|
| Size (thread) | 7 bar | 25 bar | 40 bar | 64 bar | 100 bar | 250 bar | 420 bar |
| 003 (G 1/4") | 667 | 2,001 | 3,335 | 5,336 | 8,004 | 8,004 | 8,004 |
| 005 (G 3/8") | 1,167 | 3,501 | 5,835 | 9,336 | 14,004 | 14,004 | 14,004 |
| 007 (G 1/2") | 2,167 | 6,501 | 10,835 | 17,336 | 26,004 | 26,004 | 26,004 |
| 010 (G 3/4") | 3,250 | 9,750 | 16,250 | 26,000 | 39,000 | 39,000 | 39,000 |
| 018 (G 1") | 4,583 | 13,749 | 22,915 | 36,664 | 54,996 | 54,996 | 54,996 |
| 030 (G 1 1/4") | 6,333 | 18,999 | 31,665 | 50,664 | 75,996 | 75,996 | 75,996 |
| 047 (G 1 1/2") | 8,250 | 24,750 | 41,250 | 66,000 | 99,000 | 99,000 | 99,000 |
| 094 (G 2") | 11,917 | 35,751 | 59,585 | 95,336 | 143,004 | 143,004 | 143,004 |
Element, drain and maintenance
The housing holds a single element, a different one for each size — for example CHPB-007V for the CHP4B-007. The same element also fits CHPB filters for a different pressure. Working temperature +1.5 to +65 °C.
The filter is supplied without a condensate drain. The TD420M timed drain up to 420 bar is suitable; it is connected to the G 1/4" opening in the bottom.
Clean the sintered element in an ultrasonic bath or by blowing it out against the direction of flow; when cleaning is no longer enough, replace it.
Accessories for CHP4B filters
The same stage for a different pressure
Stage B also comes in the CHP1B filters up to 100 bar and CHP2B filters up to 250 bar.
Ventilek’s tip
The sintered element can be cleaned. The brass element B does not have to be replaced straight away — it is cleaned in an ultrasonic bath or by blowing it out against the direction of flow.
- What rating does the CHP4B coarse filter have?
- 15 µm, solid particle class 8 according to ISO 8573-1 (manufacturer’s data).
- Does it also trap oil?
- No. For oil, there are the M fine pre-filters and S microfilters.
- How do I look after the element?
- The sintered element is cleaned in an ultrasonic bath or by blowing it out against the direction of flow. When cleaning is no longer enough, it is replaced.
