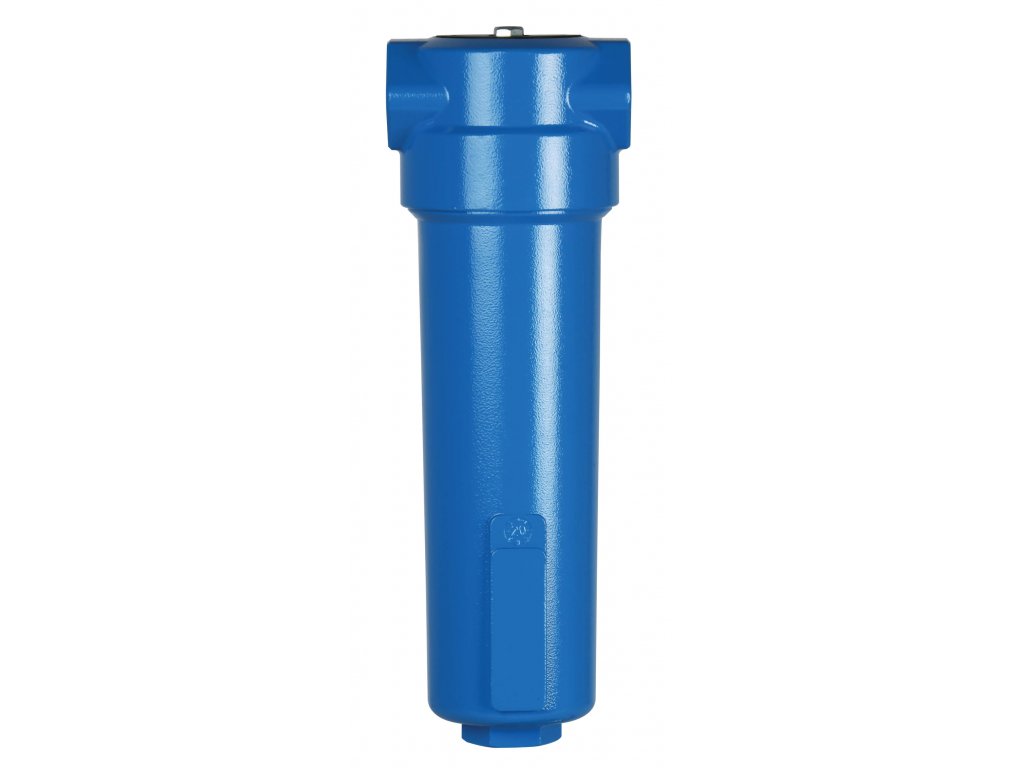

Basic filter AAFP-335 – G 1", 5,583 l/min 3 microns · class 6 · 16 bar
Code: AAFP-335
Related products
Product detailed description
The AAFP-335 basic filter traps solid contaminants and dust particles larger than 3 µm. It has a G 1" thread and a flow of 5,583 l/min at 7 bar, working pressure up to 16 bar.
It belongs to the range of Omega Air AAF filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1" |
| Flow at 7 bar | 5,583 l/min (335 Nm³/h) |
| Working pressure | 16 bar |
| Working temperature | +1.5 to +65 °C |
| Filtration rating | 3 µm |
| ISO 8573-1 class | 6-x-x |
| Pressure drop of a new element | 10 mbar |
| Element replacement | at a pressure drop of 350 mbar, at the latest every 12 months or 4,000 operating hours |
| Condensate drain | AOK16B float drain (automatic) |
| Filter material | acrylic fibres and cellulose |
| Housing | aluminium, cataphoretic coating, X2-COAT protection, AVELOCK element locking |
| Dimensions A × B × C × D | 361 × 125 × 37 × 250 mm |
| Weight | 1.6 kg |
| Spare element | AAFP-335V |
Dimensions
Dimensions A × B × C × D: 361 × 125 × 37 × 250 mm, weight 1.6 kg.
Flow by pressure
The flow applies to a pressure of 7 bar, an ambient temperature of +20 °C and an air inlet temperature of +35 °C. At a different pressure, it changes according to the correction factor:
| Pressure (bar) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow (l/min) | 2,122 | 2,792 | 3,517 | 4,187 | 4,913 | 5,583 | 6,309 | 6,979 | 7,705 | 8,375 | 9,100 | 9,770 | 10,496 | 11,166 | 11,892 |
Spare element and accessories
| For this filter: | |
|---|---|
| Spare element | AAFP-335V |
| Connection kits (2 and 3 filters) | AAF-2XL, AAF-3XL |
| Kits with wall brackets | AAF-W1XL, AAF-W2XL, AAF-W3XL |
| Housing without element | AAF-335T |
| Another condensate drain | drains for filters |
| Clogging indication | indicators and differential pressure gauges |
Where to place it
It goes after the coarse filter or separator, before the AAFR dust filter and the microfilters.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | AAFP basic compressed air filters |
|---|---|
| Version: | Basic filter |
| Pressure: | 16 bar |
| Connecting: | 1" |
| Dimensions: | (A)361 x (B)125 x (C)37 x (D)250 mm |
| Certification: | CE-PED-H, ISO 8573-1 (IUTA) |
| Filtration: | 3 µm |
| Filter insert: | AAFP-335V |
| Material: | Aluminium |
| Condensate discharge: | Automatic |
| Working temperature: | +1.5 / +65°C |
| Flow: | 5,583 l/min |
| Quality class - solid impurities: | 6 |
| In stock: | External warehouse |
