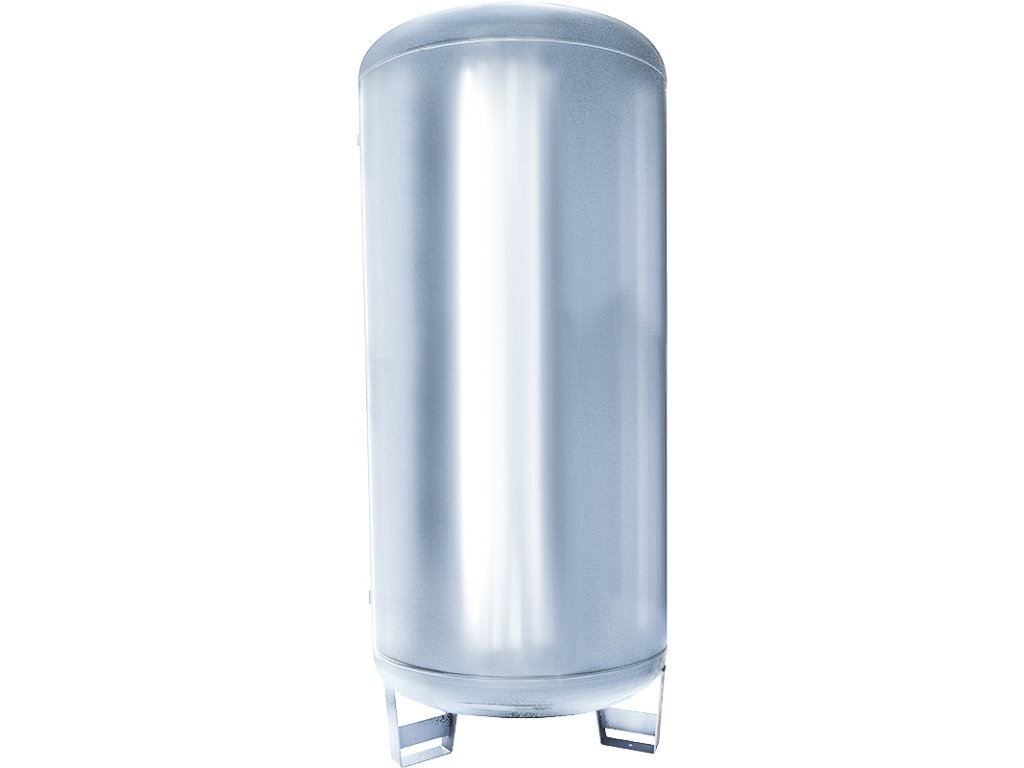

Vertical low-temperature pressure vessel for fluids 10000 l - 12 bar Ø 1650 × 5118 mm · 2015 kg · connections 3", 2", 3/4" and 3/8"
Code: VVP10000-12 VVG10000-12 VVA10000-12 Choose variant
Product detailed description
Ten cubic metres at 12 bar, standing 5.12 metres tall. It is the only ten-cubic-metre vessel that is also made with the ALM internal coating.
Dimensions and connections
| VVP10000-12 — dimensions and connections | |
|---|---|
| Volume | 10000 l |
| Maximum working pressure | 12 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 1650 mm |
| Height L | 5118 mm |
| Ground clearance A | 175 mm |
| Height of connections 2 and 3 (B) | 1150 mm |
| Height of connections 4 and 5 (C) | 2200 mm |
| Height of connections 6 and 7 (D) | 3150 mm |
| Height of connections 8 and 9 (E) | 4250 mm |
| Height of connection 11 (F) | 1950 mm |
| Weight | 2015 kg |
| Transport | lying flat, 5500 × 1700 × 1850 mm, 2035 kg |
| Lifting lugs | 2 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 3" |
| Connection 3 | 3" |
| Connection 4 | 3" |
| Connection 5 | 3" |
| Connection 6 | 3" |
| Connection 7 | 3" |
| Connection 8 | 3" |
| Connection 9 | 3" |
| Connection 10 | 3/4" |
| Connection 11 | 3/8" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP10000-12 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP10000-12 | 2015 kg | – |
| galvanised | VVG10000-12 | 2016 kg | same dimensions and connections |
| with ALM internal coating | VVA10000-12 | 2016 kg | same dimensions and connections |
Typical uses
It serves as the central reservoir of a large compressor station, or as a buffer vessel in a food processing plant with a high air consumption. It weighs over two tonnes.
A smaller option is VVP8000-12, and the 8-bar version is VVP10000-8. The 16-bar version is VVP10000-16.
How it is made
Ventilek’s tip
Keep the valve and gauge within reach. The vessel is over five metres tall. Position the fittings that need checking so that the operator can reach them from the ground or from a platform.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 10 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 3" |
| Thread (3): | 3" |
| Thread (4): | 3" |
| Thread (5): | 3" |
| Thread (6): | 3" |
| Thread (7): | 3" |
| Thread (8): | 3" |
| Thread (10): | 3/4" |
| Thread (11): | 3/8" |
| Thread (9): | 3" |
