Three-piece unit FUTURA CL3823-4F - G 3/8", 0.2–4 bar 3,500 l/min · 5 micron · size 2 · ATEX
Code: CL3823-4F CL3823-4F-AM CL3823-4F-M Choose variant
Related products
Product detailed description

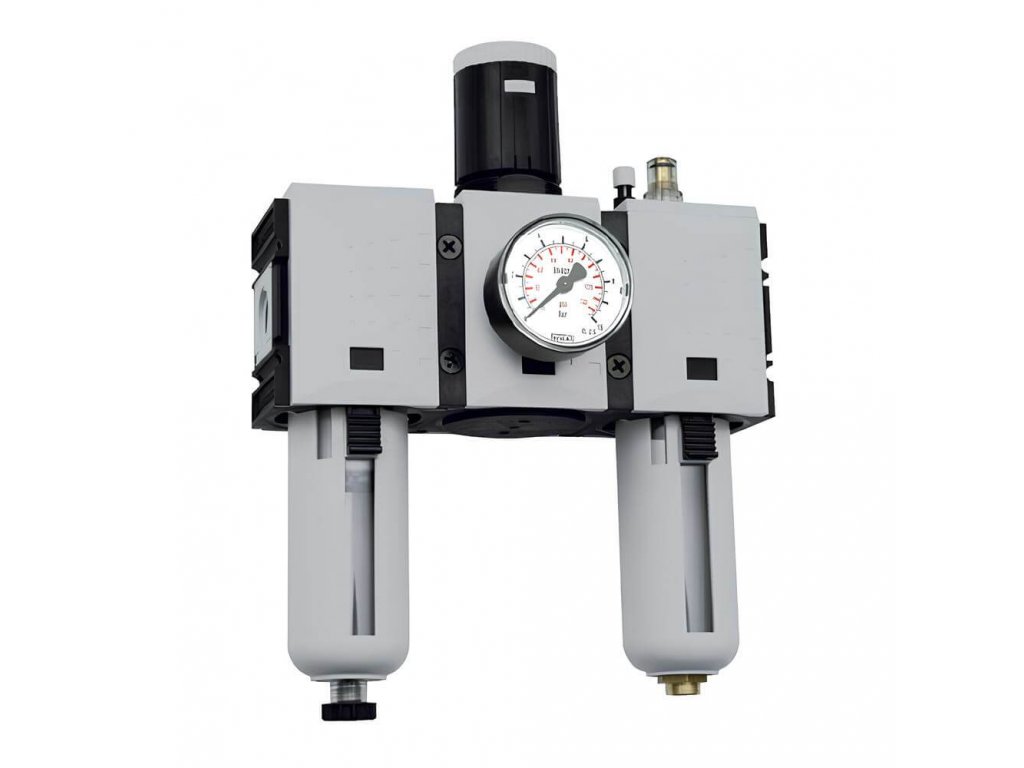

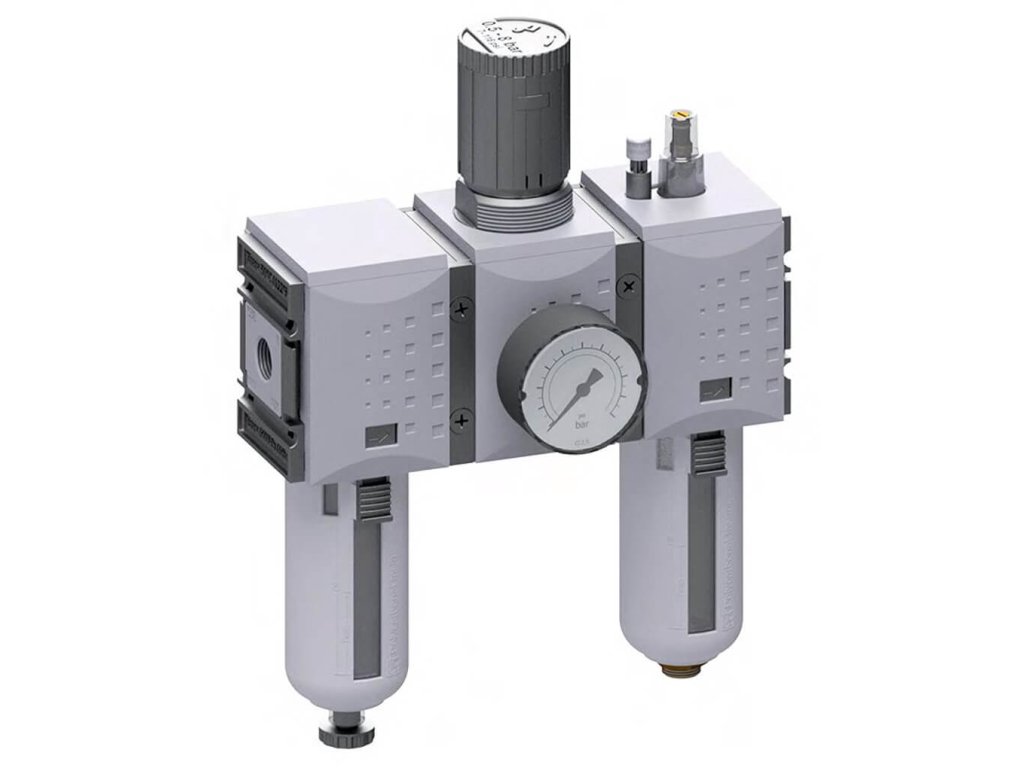

The three-piece unit is assembled from three separate modules: a 5 µm filter, a pressure regulator and a lubricator. It cleans the air, reduces it to the set pressure and adds oil mist to it. The regulator relieves excess outlet pressure by itself.

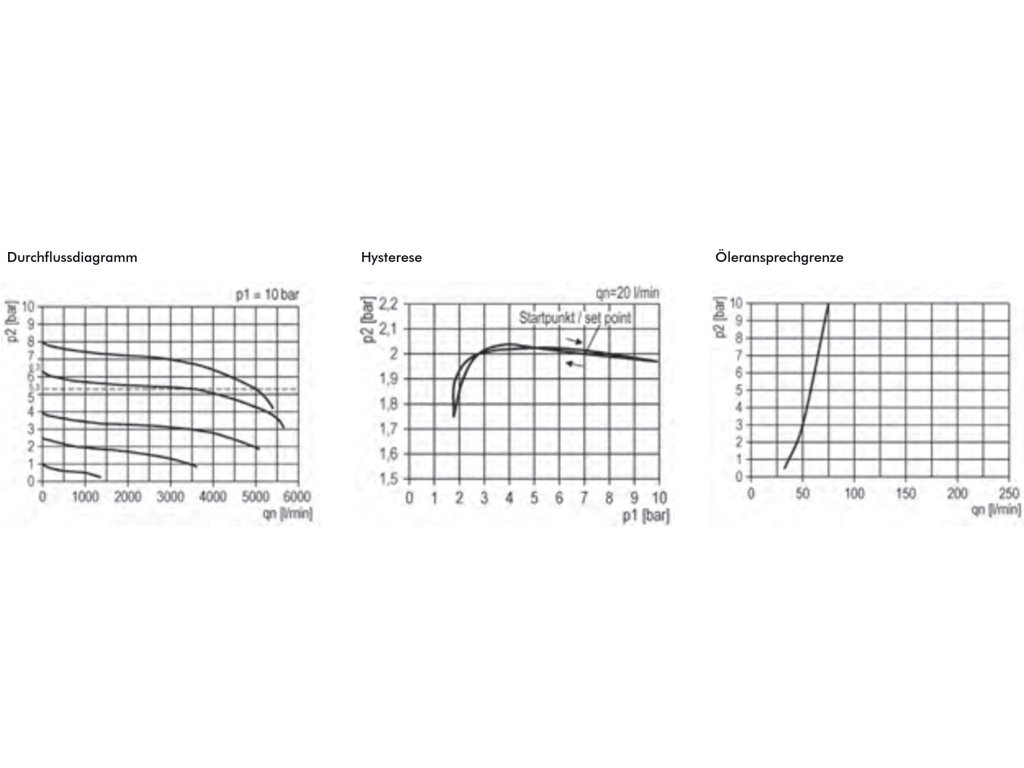

Specifications
| CL3823-4F — specifications | |
|---|---|
| Type | Three-piece unit |
| Connection | G 3/8" female thread |
| Size | 2 (module width 63 mm) |
| Inlet pressure | 1.5–16 bar |
| Setting range | 0.2–4 bar |
| Flow | 3,500 l/min |
| Filter rating | 5 µm |
| Max. condensate volume | 49 cm³ |
| Min. flow for oiling (at 6 bar) | 70 l/min |
| Oil capacity | 80 cm³ |
| Oil dosing | about 1–2 drops per minute at 1,000 l/min |
| Oil filling | manually, or through a G 1/8" hose during operation |
| Bowl | plastic, metal as a variant |
| Condensate drain | semi-automatic, automatic as a variant |
| Pressure gauge | Ø 50 mm, 0–6 bar, included |
| Gauge port | G 1/4" |
| Setting lock | by pushing the knob in, with VHS 20 padlock |
| Relief flow | 70 l/min |

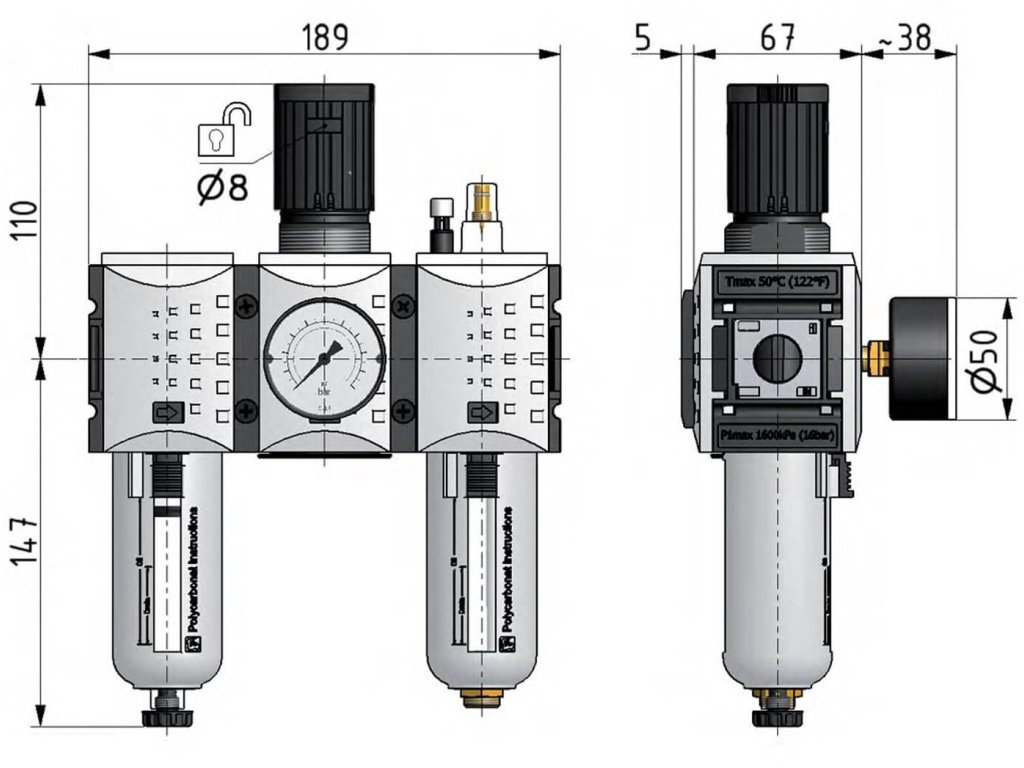

| Width × height | 189 × 257 mm |
| Material | glass-fibre reinforced polyamide body, POM spring cover, NBR diaphragm and seals |
| Working temperature | −10 to +50 °C |
| Medium | compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
Versions
Choose the version at the top of the page. Each version has its own order number.
| Order number | Bowl | Condensate drain |
|---|---|---|
| CL3823-4F | plastic with protective guard | semi-automatic |
| CL3823-4F-AM | plastic with protective guard | automatic |
| CL3823-4F-M | metal with sight glass | semi-automatic |
What it is for
It suits tools and actuators that need clean, lubricated air at a constant pressure. Size 2 is suitable for machines and larger air lines.
Parts for this size: spare filter element FV-2F · replacement bowl BF2F, BFM2F · replacement bowl BOL2F, BOLM2F · bowl sealing ring OR2F · sight dome TROPFOLF · oil SOL, SOLWI, SOLLE · spare diaphragm MEMBRANER12F · spring cover FEDERHAUBE2F · knob FEDERHAUBE2F-RAD · padlock for the knob VHS20 · mounting bracket W2F · connection kit KP2F · connection kit with wall bracket KPW2F · threaded wall brackets WK2-38F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
Branch off oil-free air earlier. For spraying or blow-off, take the air through a manifold module before the lubricator.
Additional parameters
| Category: | FUTURA three-piece air treatment units for ATEX environments up to 16 bar |
|---|---|
| Version: | Complete unit |
| Pressure: | 16 bar |
| Dimensions: | 189 × 257 mm |
| Certification: | ATEX |
| Filtering ability: | 5 µm |
| Filter insert: | Replacement insert 5 µm (FV-2F) |
| Medium: | Compressed air |
| Vessel volume: | Filter - 49 cm³, Oiler - 80 cm³ |
| Condensate discharge: | Semi-automatic, Automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 3,500 l/min |
| Regulatory range: | 0.2 - 4 bar |
| Pressure gauge range: | 0 - 6 bar |
| Included in delivery: | Manometer |
| Product type: | Air treatment unit |
| Thread: | G 3/8" |
| Thread for manometer: | 1/4" |
| Filtration stage: | Basic filter 3–5 µm |
