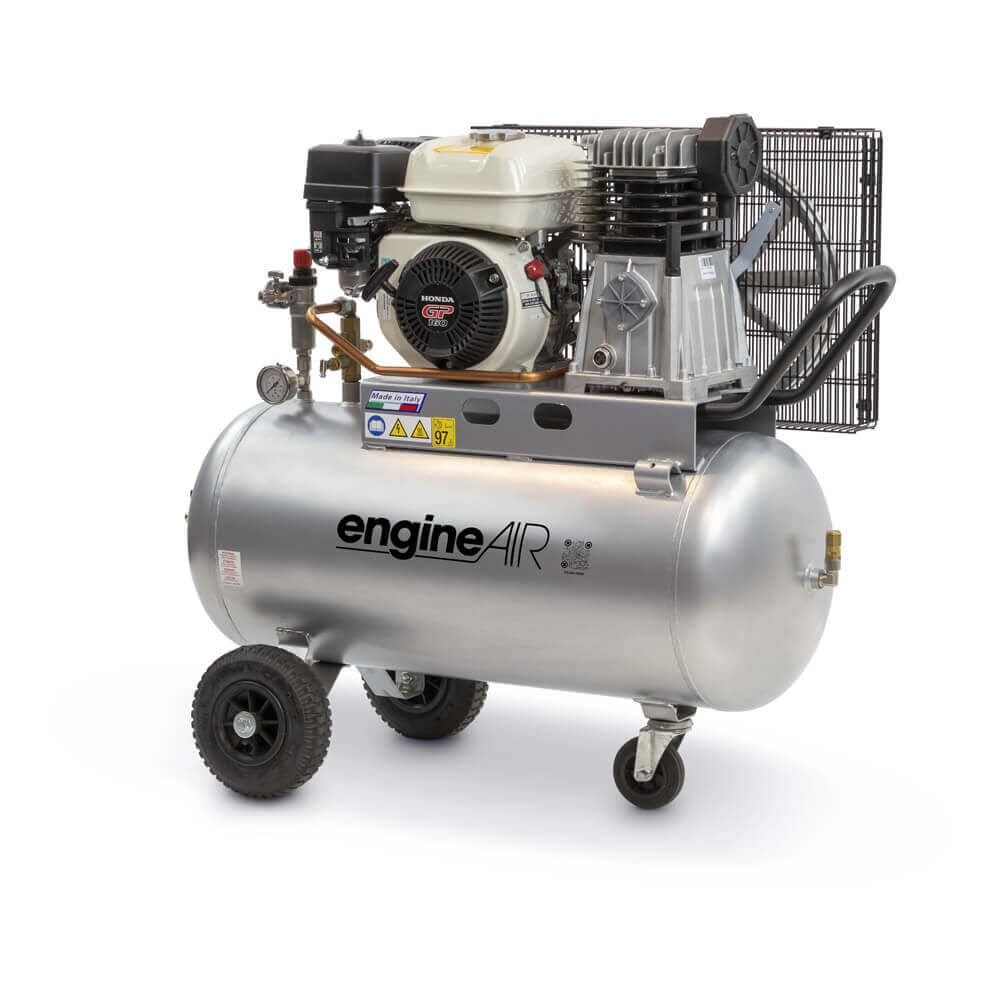

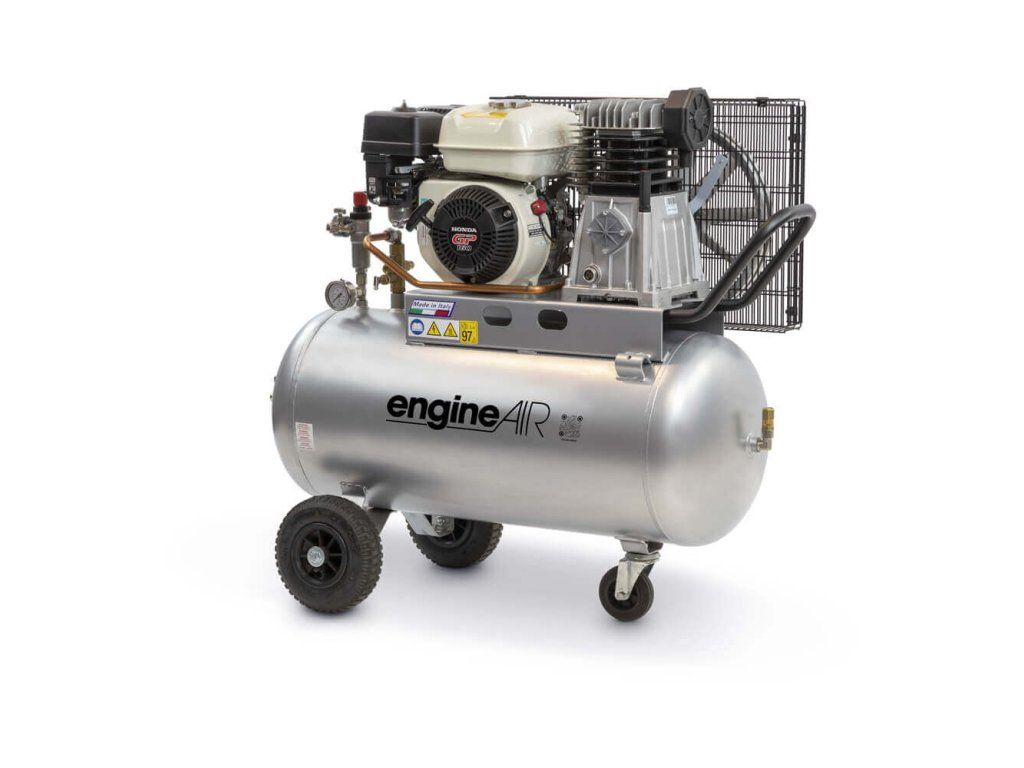

Engine Air EA5-3,5-100CP petrol compressor 3.5 kW, 411 l/min intake, 10 bar, 100 l tank
Code: EA5-3-5-100CP
Related products
Product detailed description
hundred litres · 411 l/minA hundred litres with more output. The EA5-3,5-100CP has the same hundred-litre tank as EA4-3,5-100CP, but the fast-running A39B unit with an intake of 411 l/min. The tank therefore fills faster and the machine weighs 72 kg.
Faster or longer?
The difference against the slow-running version is almost a hundred litres of air a minute. You see it where the draw lasts longer than the tank does — then it is no longer volume that decides, but how much the machine manages to top up.
The price is higher consumption and a decibel more noise. If the machine is to work for many hours every day, the slow-running EA4-3,5-100CP is the more sensible choice.
Machine equipment
What the EA5-3,5-100CP can do
- Honda GP160 petrol engine — serviced everywhere, oil and filter available in any workshop.
- A39B piston pump, single-stage, oil-lubricated, driven by V-belts.
- Manual start by pulling a cord — no battery, so there is nothing to go flat.
- 100 l tank horizontally under the pump unit, working pressure 10 bar.
- Mobile version — wheels and a handle, so you push the machine around a site on your own.
- Pressure regulator and a DN 7.2 quick coupling — click the tool in and go.
- Noise 96 dB(A) sound power according to the rating plate (European directive for machinery working outdoors).
How the EA5-3,5-100CP differs from its siblings
The slow-running counterpart is EA4-3,5-100CP, twice the tank comes with EA5-3,5-200CP, a smaller one with EA5-3,5-50CP. The full overview is in the overview of the whole category.
Ventilek recommends
A combustion-engine compressor does not belong in a closed hall or a cellar — the exhaust has to go outside. Buy one only where there really is no socket; in a workshop an electric compressor will cost less and run far more quietly.
Technical data follow the manufacturer catalogue ABAC General Catalogue 2025, pages 94 to 98; dimensions are taken from the importer. Intake is the volume drawn in, not the volume delivered to the tool. Noise is the sound power level Lwa under the European directive for equipment used outdoors.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Combustion compressor |
| Pressure: | 10 bars |
| Suction power: | 411 l/min |
| Pressure vessel volume: | 100 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 3.5 kW |
| Speeds: | 1070 rpm |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 96 dB - Lwa, 76 dB - Lwp(4m) |
| Dimensions: | 1 110 × 520 × 940 mm |
| Weight: | 72 kg |
| Accessories: | Pressure regulator, Wheels, Quick coupler, Cover |
| Power station: | No |
| Engine: | Gasoline |
| Soundproofed: | No |
| Drive: | V-belts |
| Starting the machine: | Manual |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
