    Home / Hoses / Connecting hoses / Crimped connecting hose 1 1/4" - 1.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

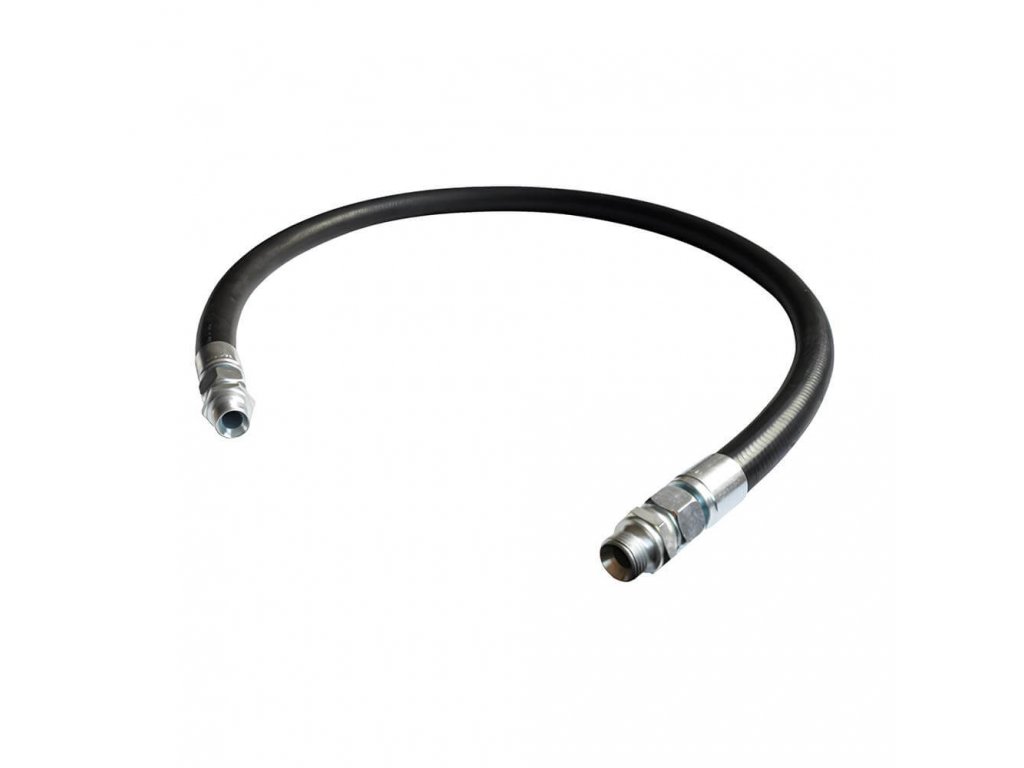

    Crimped connecting hose 1 1/4" - 1.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FP54-1-5
    Not rated Rating details
    €115,71 –3 %
    Pryžová spojovací hadice s přímými koncovkami a adaptérem s vnějším závitem
    €115,71 –3 % €112,24 / pcs €92,76 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options

    A 1 1/4" rubber hose, 1.5 m long, with straight ends for a larger compressor station. It connects the compressor to an air receiver or dryer; working pressure 20 bar, two adaptors supplied.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Tlaková nádoba ležatá 100 l - 11 bar
    FREEFREE €357,76 –3 %
    Horizontal pressure vessel 100 l - 11 bar Ø 370 × 1016 mm · 29 kg · connections 2", 1/2" and 3/8"
    up to 20 days
    €286,80 excl. VAT
    €347,03

    A low horizontal air receiver that fits under a workbench or on a shelf. It is suitable as an additional air reserve for a smaller compressor or for a single machine.

    Code: VHP100-11
    Tlaková nádoba ležatá 1 000 l - 16 bar
    FREEFREE €2 429,13 –3 %
    Horizontal pressure vessel 1000 l - 16 bar Ø 800 × 2158 mm · 253 kg · connections 2", 1", 3/4" and 1/2"
    up to 20 days
    €1 947,31 excl. VAT
    €2 356,25

    A 16-bar horizontal air receiver for compressors that cut out at 13 or 15 bar. Its dimensions match those of the 12-bar version, and it comes in the painted version.

    Code: VHP1000-16
    Vakuová nádoba stojatá 3 000 l, podtlak do −1 bar
    FREEFREE €7 072,72 –3 %
    Vertical vacuum vessel 3000 l, vacuum down to −1 bar Ø 1200 × 2990 mm · 630 kg · connections 2" and 1/2"
    up to 20 days
    €5 669,87 excl. VAT
    €6 860,54

    The largest vertical vacuum vessel, for the central vacuum reserve of an entire production plant. Vacuum down to −1 bar, blue RAL 5015 paint.

    Code: VVP3000-V
    Tlaková nádoba ležatá 2 000 l - 12 bar
    FREEFREE from €3 924,40 –3 %
    Horizontal pressure vessel 2000 l - 12 bar Ø 1100 × 2252 mm · 394 kg · connections 2" and 1/2"
    up to 20 days
    from €3 146,01 excl. VAT
    from €3 806,67

    A horizontal air receiver with twice the volume of the 1000-litre vessel and almost the same length. It comes painted, galvanised or with a food-grade internal coating.

    Code: VHP2000-12
    Tlaková nádoba ležatá 500 l - 16 bar
    FREEFREE €1 625,53 –3 %
    Horizontal pressure vessel 500 l - 16 bar Ø 600 × 1858 mm · 163 kg · connections 2", 1", 1/2" and 3/8"
    up to 20 days
    €1 303,12 excl. VAT
    €1 576,77

    A 16-bar horizontal air receiver with a large air reserve for compressors with a higher working pressure. Its dimensions match those of the 11-bar version, so it can take its...

    Code: VHP500-16
    Tlaková nádoba stojatá 720 l - 11 bar
    FREEFREE from €1 691,11 –3 %
    Vertical pressure vessel 720 l - 11 bar Ø 800 × 1745 mm · 155 kg · connections 2" and 3/8"
    up to 20 days
    from €1 355,68 excl. VAT
    from €1 640,37

    The largest vertical air receiver in this category, with wide main connections for large-diameter pipework. It is suitable as the main air reserve downstream of a larger screw...

    Code: VVP2-720-11
    Tlaková nádoba stojatá 270 l - 32 bar
    New
    FREEFREE from €5 922,37 –3 %
    Vertical pressure vessel 270 l - 32 bar Ø 500 × 1648 mm · 192 kg · connections 2", 1" and 3/8"
    up to 20 days
    from €4 747,69 excl. VAT
    from €5 744,70

    A vertical high-pressure vessel, 270 l at 32 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Four side connections make it easy to connect both...

    Code: VVP270-32
    Nerezová tlaková nádoba ležatá 270 l - 11 bar
    New
    FREEFREE from €6 113,18 –3 %
    Horizontal stainless steel pressure vessel 270 l - 11 bar Ø 500 × 1558 mm · 69 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €4 900,65 excl. VAT
    from €5 929,79

    A horizontal stainless steel pressure vessel, 270 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with a larger top connection for connecting the pipework.

    Code: VHS270-11
    Tlaková nádoba stojatá pro kyslík 4 000 l - 12 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel for oxygen 4000 l - 12 bar Ø 1450 × 2790 mm · 835 kg · connections 3", 2", 3/4" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical pressure vessel for oxygen, 4000 l at 12 bar, for a central oxygen reserve. White RAL 9010 paint, ALM epoxy coating inside.

    Code: VVA4000-12-OX
    Nerezová tlaková nádoba stojatá 500 l - 11 bar
    New
    FREEFREE from €0,05 up to –3 %
    Vertical stainless steel pressure vessel 500 l - 11 bar Ø 600 × 2061 mm · 125 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €0,04 excl. VAT
    from €0,05

    A vertical stainless steel pressure vessel, 500 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with no coating, manufactured to the Pressure Equipment...

    Code: VVX500-11
    vlp 50 tlakova nadoba vzdusnik lakovana lezata
    FREEFREE €147,85 –3 %
    Horizontal pressure vessel 5 l without feet - 11 bar Ø 150 × 370 mm · 5.5 kg · connections 1/2" and 1/4"
    Stock (8 pcs)
    €118,53 excl. VAT
    €143,42

    The smallest air receiver for built-in use, a smooth cylinder without feet. You mount it with clamps in a frame, a cabinet or a small pneumatic device.

    Code: VLP5-11
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem
    Tip
    FREEFREE from €1 850,73 –3 %
    Vertical pressure vessel with fittings 500 l - 11 bar Ø 600 × 2064 mm · 117 kg · ball valves 1"
    up to 14 days
    from €1 483,64 excl. VAT
    from €1 795,21

    A TÜV-certified 500 l vertical air receiver with ball valves, a pressure gauge with a test cock and a safety valve set to 10.5 bar already mounted. The main air reserve...

    Code: VVP2-500-11A
    Tlaková nádoba stojatá 5 000 l - 32 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 5000 l - 32 bar Ø 1450 × 3390 mm · 2280 kg · connections 3", 2", 3/4" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    The largest 32-bar vertical high-pressure vessel: 5000 l for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised.

    Code: VVP5000-32
    vlp 50 tlakova nadoba vzdusnik lakovana lezata
    FREEFREE €290,43 –3 %
    Horizontal pressure vessel 15 l without feet - 11 bar Ø 196 × 522 mm · 8 kg · connections 1/2" and 3/8"
    Stock (3 pcs)
    €232,82 excl. VAT
    €281,71

    An air receiver for built-in use where length is limited: it holds 50% more air than the 10-litre version and is less than two centimetres longer. Without feet, it fits into a...

    Code: VLP15-11
    Tlaková nádoba stojatá 100 l - 11 bar
    FREEFREE from €348,56 –3 %
    Vertical pressure vessel 100 l - 11 bar Ø 370 × 1213 mm · 31 kg · connections 3/4", 1/2" and 3/8"
    up to 20 days
    from €279,43 excl. VAT
    from €338,11

    A vertical air receiver that fits next to the compressor or into a narrow corner. It works well as the main vessel for a piston compressor or as a second air reserve at a remote...

    Code: VVP2-100-11
    Tlaková nádoba ležatá 270 l - 11 bar
    FREEFREE from €737,54 –3 %
    Horizontal pressure vessel 270 l - 11 bar Ø 500 × 1458 mm · 67 kg · connections 2", 1", 1/2" and 3/8"
    Stock (1 pcs)
    from €591,26 excl. VAT
    from €715,42

    A horizontal air receiver with a wider top connection for drawing air off into the network. It comes painted, galvanised or with a food-grade internal coating.

    Code: VHP270-11
    Show all related products Previous product Next product

    Product detailed description

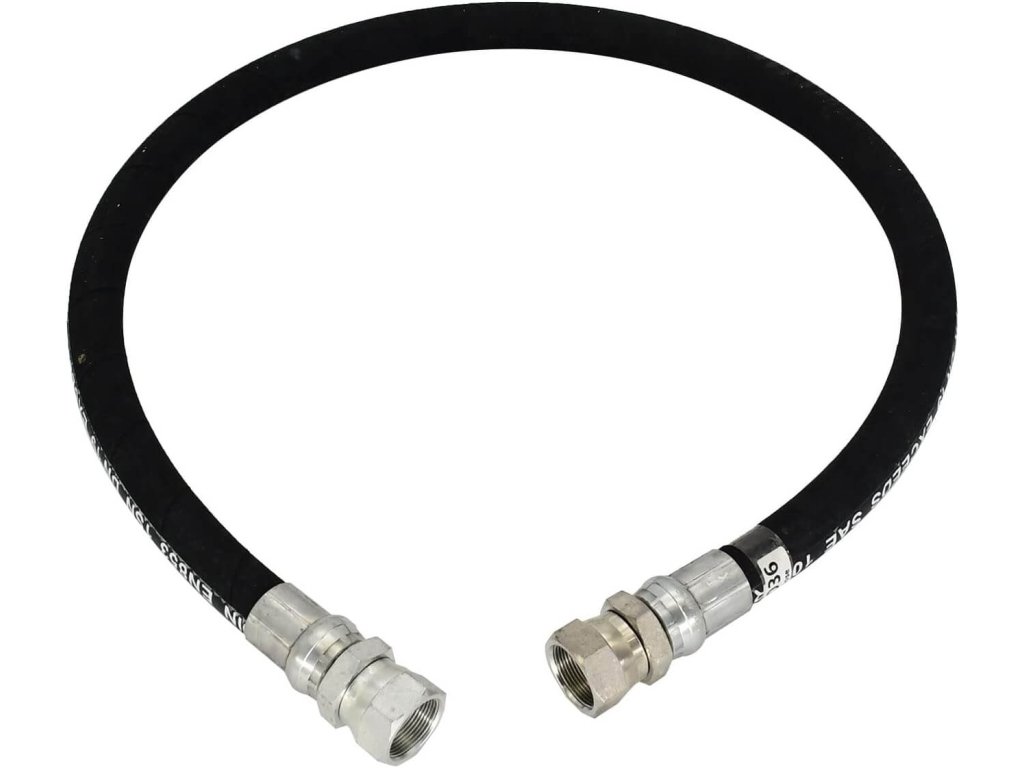

    Straight endsRubber connecting hose with straight ends and a male-thread adaptor

    A 1 1/4" hose with straight ends, 1.5 metres long, for a more powerful compressor placed next to the vessel.

    1 1/4"thread
    DN 32nominal bore
    1.5 mlength
    20 barworking pressure

    Specifications

    FP54-1-5 — specifications
    ThreadG 1 1/4"
    Nominal boreDN 32
    Length1500 mm
    End fittingsboth straight, swivel nut with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 1 1/4" male thread

    Typical uses

    A 1 1/4" hose suits more powerful screw compressors and dryers with a 1 1/4" outlet. It connects them to the air receiver or to the start of the pipework in a loose curve.

    The next length up is FP54-2-0, and the version with a 90° elbow is FPL54-1-5.

    Ventilek’s tip

    Bore to match the compressor outlet. Choose a hose with the same thread as the compressor outlet. Narrowing down to a smaller bore would restrict the flow.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight endings
    Lightness: DN 32
    Temperature: -40/+100 °C
    Threads: 1 1/4"
