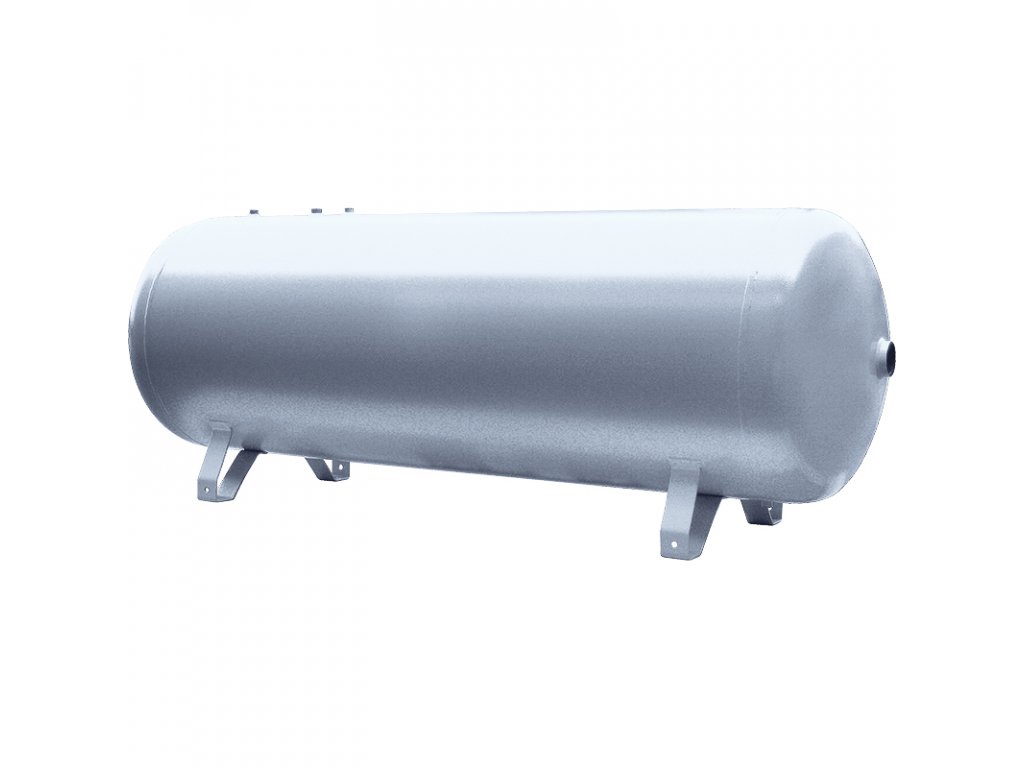

Horizontal pressure vessel 270 l - 11 bar Ø 500 × 1458 mm · 67 kg · connections 2", 1", 1/2" and 3/8"
Code: VHP270-11 VHG270-11 VHA270-11 Choose variant
Related products
Product detailed description
Two hundred and seventy litres in a horizontal design, the smallest horizontal vessel made in all three versions. On top, it has a 1" connection k, suitable for drawing air off into the network.
Dimensions and connections
| VHP270-11 — dimensions and connections | |
|---|---|
| Volume | 270 l |
| Maximum working pressure | 11 bar |
| Working temperature | −10 to +120 °C |
| Diameter De | 500 mm |
| Length A | 1458 mm |
| Axis height H | 315 mm |
| Ground clearance H1 | 65 mm |
| Foot spacing B | 800 mm |
| Foot distance from shell end C | 175 mm |
| Width across feet E | 455 mm |
| Hole spacing in the feet F | 402 mm |
| Weight | 67 kg |
| Connection x | 2" (2×) |
| Connection y | 3/8" |
| Connection k | 1" |
| Connection j | 1/2" |
| Connection z | 3/8" |
| Connection positions a / b / c | 50 / 130 / 50 mm |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/29/EU (SPVD) |
| Medium | compressed air, nitrogen |
Versions
| VHP270-11 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VHP270-11 | 67 kg | – |
| galvanised | VHG270-11 | 70 kg | same dimensions and connections |
| with ALM internal coating | VHA270-11 | 67 kg | same dimensions and connections |
Typical uses
It works well as the main air receiver downstream of a smaller screw compressor where the vessel has to be low, for example under a staircase or on a platform. The galvanised version copes with a damp compressor room, and the ALM version with food processing.
A smaller option is VHP200-11, and a larger one is VHP500-11. The same volume for 16 bar is VHP270-16, and in a vertical design VVP2-270-11.
How it is made
Ventilek’s tip
Use the top connection k as the outlet. Air drawn off at the top carries less water than air taken from the bottom of the vessel.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Recumbent with pedestals |
| Pressure: | 11 bars |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 270 l |
| Directive: | SPVD - 29/2014EU |
| Thread (J): | 1/2" |
| Thread (k): | 1" |
| Thread (X): | 2" |
| Thread (Y): | 3/8" |
| Thread (Z): | 3/8" |
| In stock: | External warehouse |
