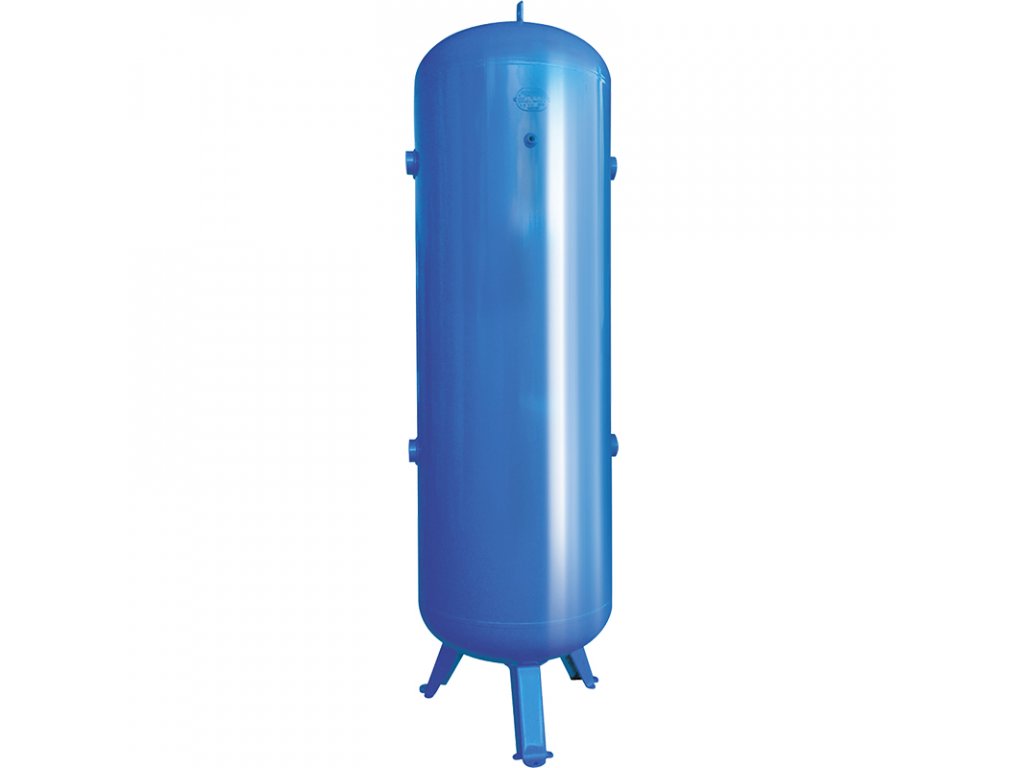

Vertical low-temperature pressure vessel for fluids 2000 l - 16 bar Ø 1000 × 2740 mm · 450 kg · connections 2" and 1/2"
Code: VVP2000-16-G1 VVG2000-16-G1 VVA2000-16-G1 Choose variant
Related products
Product detailed description
Two cubic metres at 16 bar in a slimmer design. Compared with the 12-bar version, its diameter is 100 mm smaller and it is 25 centimetres taller.

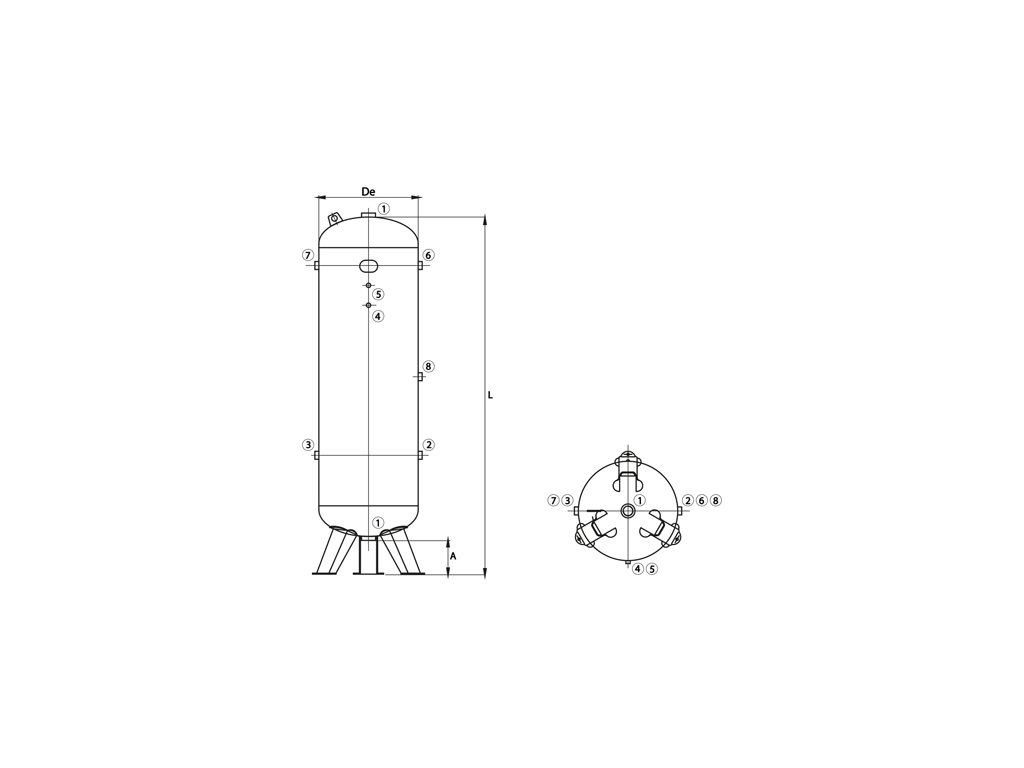

Dimensions and connections
| VVP2000-16-G1 — dimensions and connections | |
|---|---|
| Volume | 2000 l |
| Maximum working pressure | 16 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 1000 mm |
| Height L | 2740 mm |
| Ground clearance A | 170 mm |
| Height of connections 2 and 3 (B) | 800 mm |
| Height of connections 6 and 7 (C) | 2130 mm |
| Weight | 450 kg |
| Transport | lying flat, 3000 × 1200 × 1200 mm, 470 kg |
| Lifting lugs | 1 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 1/2" |
| Connection 5 | 1/2" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP2000-16-G1 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP2000-16-G1 | 450 kg | – |
| galvanised | VVG2000-16-G1 | 455 kg | same dimensions and connections |
| with ALM internal coating | VVA2000-16-G1 | 452 kg | same dimensions and connections |
Typical uses
It serves as the main air receiver downstream of a compressor rated at 13 or 15 bar in production with a high air demand. The slim design takes up less floor space but needs a taller room or canopy.
A smaller 16-bar vessel is VVP1500-16-G1, and a larger one is VVP3000-16-G1. The same volume for 12 bar is VVP2000-12-G1.
How it is made
Ventilek’s tip
Cool hot air first. The vessel can take no more than +80 °C. Air from a compressor without an aftercooler tends to be hotter, so install the vessel downstream of a cooler.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 16 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 2 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 1/2" |
| Thread (5): | 1/2" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
