Vertical low-temperature pressure vessel for fluids 3000 l - 12 bar Ø 1200 × 2990 mm · 594 kg · connections 2" and 1/2"
Code: VVP3000-12-G1 VVG3000-12-G1 VVA3000-12-G1 Choose variant
Related products
Product detailed description
The largest vessel in the G1 series: three cubic metres with a diameter of 1200 mm and a height of almost three metres.

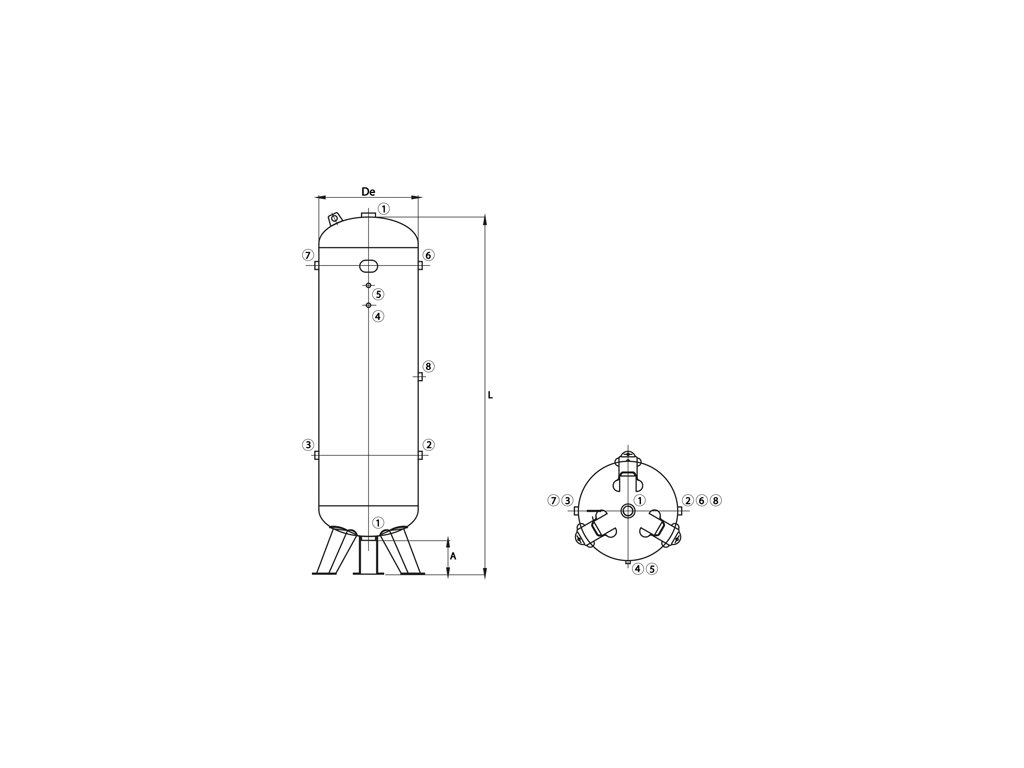

Dimensions and connections
| VVP3000-12-G1 — dimensions and connections | |
|---|---|
| Volume | 3000 l |
| Maximum working pressure | 12 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 1200 mm |
| Height L | 2990 mm |
| Ground clearance A | 140 mm |
| Height of connections 2 and 3 (B) | 830 mm |
| Height of connections 6 and 7 (C) | 2250 mm |
| Weight | 594 kg |
| Transport | lying flat, 3000 × 1200 × 1400 mm, 614 kg |
| Lifting lugs | 1 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 1/2" |
| Connection 5 | 1/2" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP3000-12-G1 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |

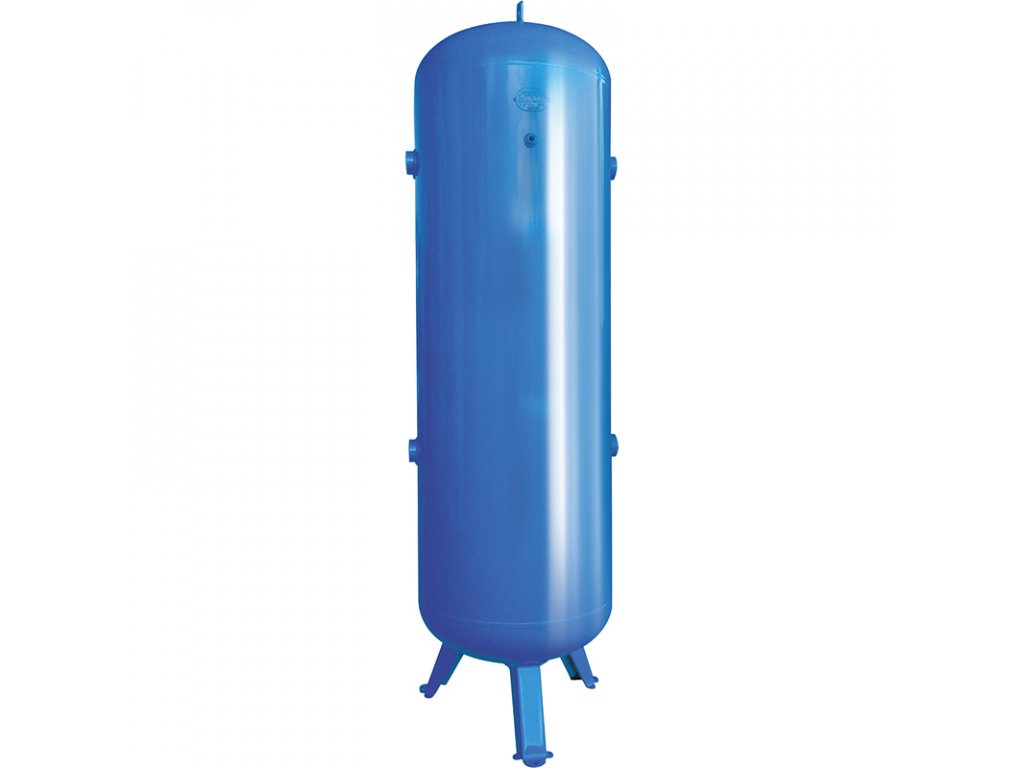

| painted RAL 5015 | VVP3000-12-G1 | 594 kg | – |

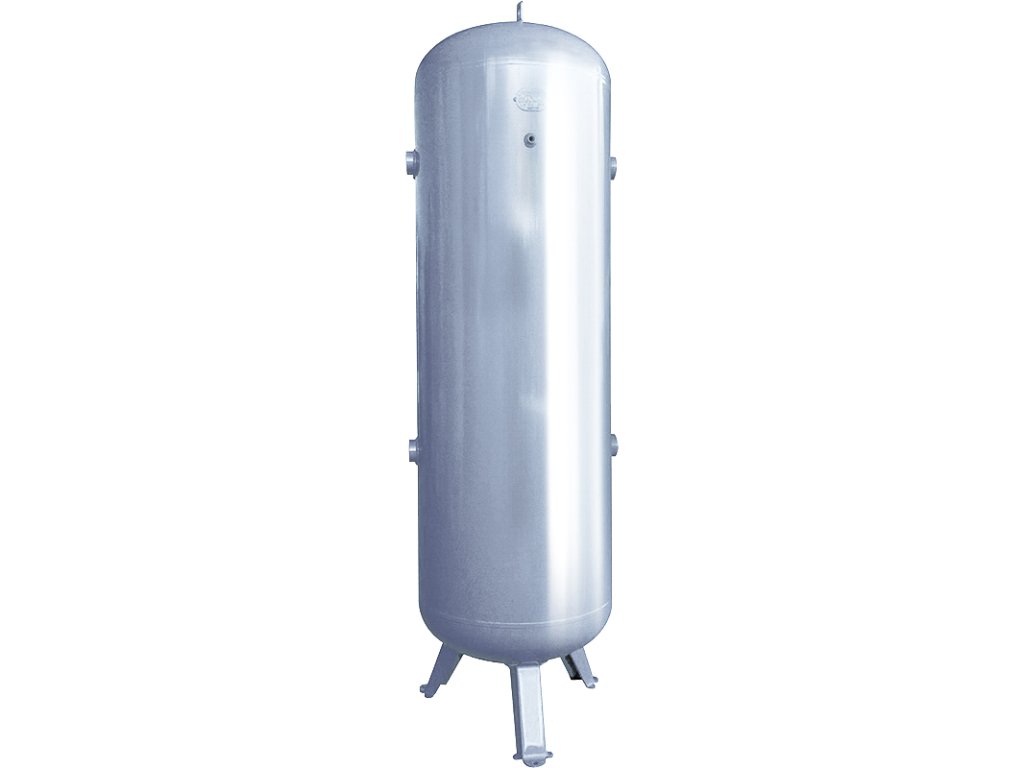

| galvanised | VVG3000-12-G1 | 600 kg | same dimensions and connections |
| with ALM internal coating | VVA3000-12-G1 | 594 kg | same dimensions and connections |
Typical uses
It is suitable as the central reservoir of a compressor station with several compressors, or for storing nitrogen, argon or oxygen. Its 2" connections at two heights on both sides give you freedom when piping the inlet and outlet.
A smaller option is VVP2000-12-G1, and the 16-bar version with the same dimensions is VVP3000-16-G1. An even larger volume is offered by VVP4000-12.
How it is made
Ventilek’s tip
Lift by the lifting lug only. Never lift almost six hundred kilograms by the connections. The lug on the top end is used to suspend the vessel while it is being stood upright.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 3 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 1/2" |
| Thread (5): | 1/2" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
