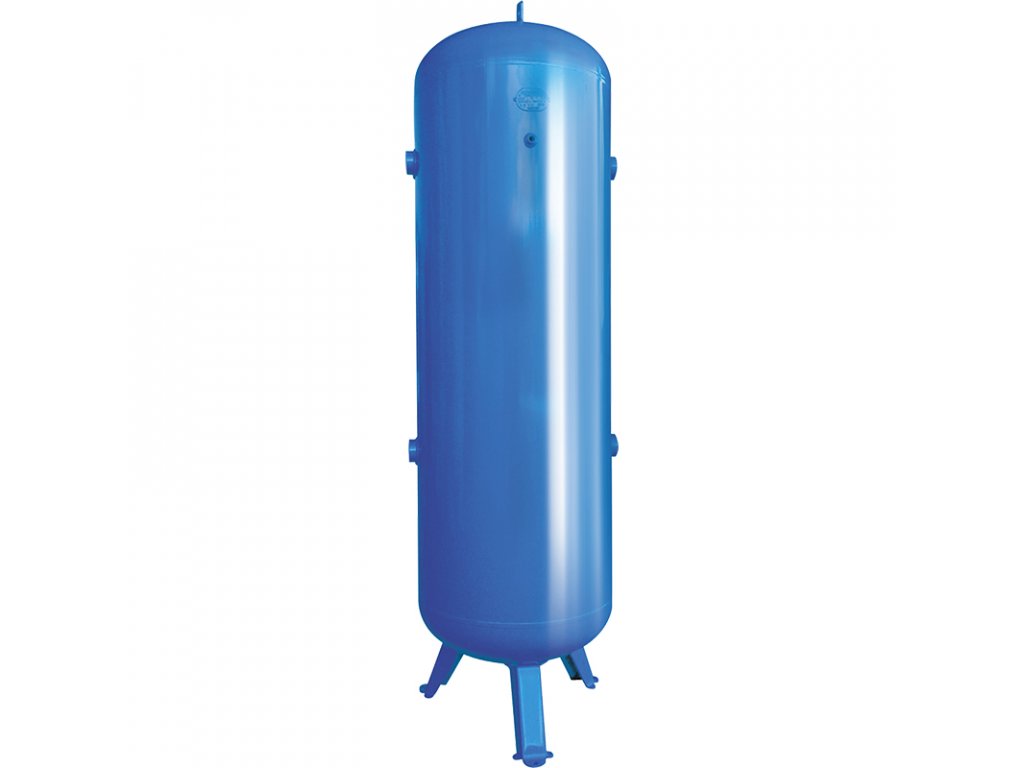

Vertical pressure vessel 3000 l - 12 bar Ø 1200 × 2990 mm · 594 kg · connections 2" and 1/2"
Code: VVP3000-12 VVG3000-12 VVA3000-12 Choose variant
Related products
Product detailed description
The largest vessel in the category: three thousand litres with a diameter of 1200 mm and a height of almost three metres. It is the only size with an additional connection 8 in the middle of the shell.
Dimensions and connections
| VVP3000-12 — dimensions and connections | |
|---|---|
| Volume | 3000 l |
| Maximum working pressure | 12 bar |
| Working temperature | −10 to +50 °C |
| Diameter De | 1200 mm |
| Height L | 2990 mm |
| Ground clearance A | 140 mm |
| Height of connections 2 and 3 (B) | 830 mm |
| Height of connections 6 and 7 (C) | 2250 mm |
| Height of connection 8 (D) | 1540 mm |
| Weight | 594 kg |
| Transport on a pallet | lying flat, 3000 × 1200 × 1400 mm, 614 kg |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 1/2" |
| Connection 5 | 1/2" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Connection 8 | 2" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen |
Versions
| VVP3000-12 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP3000-12 | 594 kg | – |
| galvanised | VVG3000-12 | 600 kg | same dimensions and connections |
| with ALM internal coating | VVA3000-12 | 594 kg | same dimensions and connections |
Typical uses
It is suitable as the central air receiver of a compressor station with several screw compressors, or for operations with large peaks in demand. Its 2" connections at three heights give you freedom when piping the air inlet and outlet.
A smaller option is VVP2000-12, and the 16-bar version with the same dimensions is VVP3000-16. The same volume in a horizontal design is VHP3000-12, and the fittings for the painted version come as KVP3000-12.
How it is made
Ventilek’s tip
Leave space above the vessel. The fittings are mounted on the top end, and the operator must be able to reach them, even though the vessel itself is almost three metres tall.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 3 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 1/2" |
| Thread (5): | 1/2" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | 2" |
