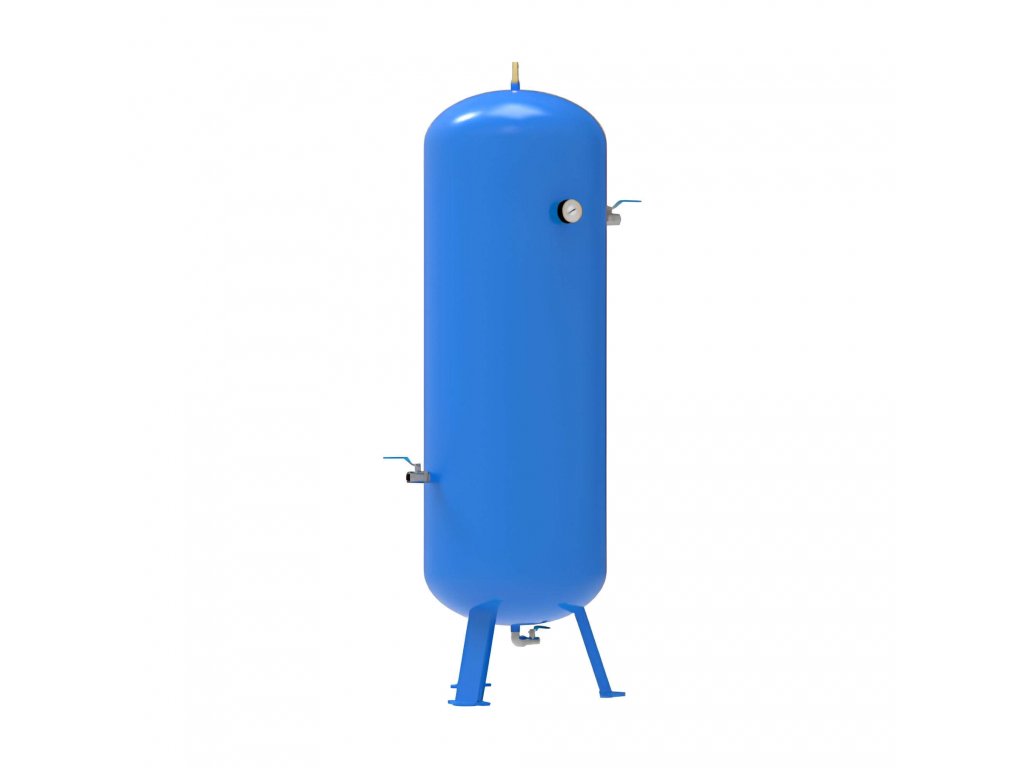

Vertical pressure vessel with fittings 200 l - 11 bar Ø 446 × 1633 mm · 56 kg · ball valves 3/4"
Code: VVP2-200-11A VVG2-200-11A Choose variant
Product detailed description
Two hundred litres with a diameter of 446 mm and a height of 1.63 metres. It takes up only slightly more floor space than the 100-litre vessel, yet has twice the volume.
Dimensions and fittings
| VVP2-200-11A — dimensions and fittings | |
|---|---|
| Volume | 200 l |
| Maximum working pressure of the vessel | 11 bar |
| Safety valve set pressure | 10.5 bar |
| For compressors | cut-out pressure up to 10 bar |
| Working temperature | −10 to +100 °C |
| Vessel diameter | 446 mm |
| Assembly height | 1633 mm |
| Width across valves | 754 mm |
| Weight | 56 kg (painted), 59 kg (galvanised) |
| Ball valves | 2× 3/4", DN 20, PN 25 |
| Condensate drain valve | 1/4" |
| Pressure gauge | Ø 63 mm, 0–16 bar |
| Test cock | no |
| Safety valve | 1/4", 244 Nm³/h |
| Vessel without fittings | VVP2-200-11 (painted), VVG2-200-11 (galvanised) |
| Fittings kit | KVP200-11 (painted), KVG200-11 (galvanised) |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating / hot-dip galvanised inside and out |
| Vessel directive | 2014/29/EU (SPVD) |
| Documentation | TÜV certification of the pressure assembly |
| Medium | compressed air |
Versions
| VVP2-200-11A — versions | ||||
|---|---|---|---|---|
| Version | Order code | Assembly height | Weight | Fittings kit |
| painted RAL 5015 | VVP2-200-11A | 1633 mm | 56 kg | KVP200-11 |
| galvanised | VVG2-200-11A | 1654 mm | 59 kg | KVG200-11 |
Typical uses
It is suitable as the main air reserve for a compressor without its own vessel, or as a second vessel for a piston compressor when the tools draw more air than the compressor can replenish. The compressor then starts less often, and the pressure fluctuates less while you work.
A smaller option is VVP2-100-11A, and a larger one is VVP2-270-11A. The same vessel without fittings is VVP2-200-11.
How it is made
Ventilek’s tip
The safety valve has its own flow capacity. The valve on this vessel discharges 244 Nm³/h, roughly 4000 l/min. The compressor filling the vessel must not deliver more.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 11 bars |
| Documentation: | SPVD 29/2014ES + TÜV |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized |
| Container volume: | 200 l |
| Directive: | SPVD - 29/2014EU |
