Oil-free compressor ABAC Tech - ATFS-3-100CM motor power 3 kW, delivery 245 l/min at 10 bar, intake 430 l/min, tank 100 l, voltage 230/50 V/Hz, 92 dB Lwa / 72 dB at 4 m
Code: ATFS-3-100CM
Product detailed description

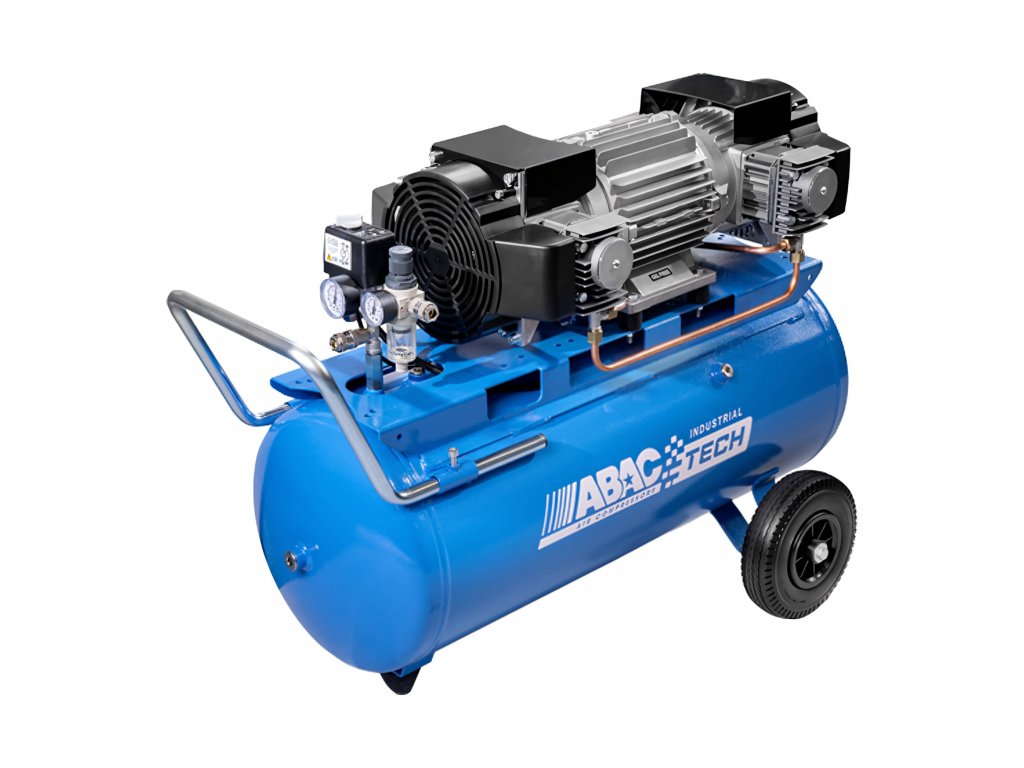

ABAC Tech ATFS · oil-free · 100 lThe largest reserve of air you get in this range. The ATFS-3-100CM stands on a horizontal hundred-litre tank, is driven by two oil-free pump units with four pistons and delivers 245 l/min at 10 bar. It runs on ordinary 230 V and weighs 76 kg — with its large wheels you can move it on the level yourself.
A hundred litres and still a plug socket
A combination found nowhere else in the industrial range: a hundred-litre tank and a single-phase supply. You need no three-phase socket and no electrical inspection — you plug the machine in where the work is. The same machine for 400 V is the ATFS-3-100CT.
A hundred litres also cover a longer draw, but for continuous consumption what counts is still the delivery of 245 l/min. The noise is 92 dB Lwa — 4 dB more than on the two-kilowatt machines, because two pump units are working instead of one.
Equipment and details
What the ATFS-3-100CM does as standard
- two oil-free pump units, four pistons in total, 1,400 rpm
- single-stage compressor — the air is compressed to 10 bar in one step
- PTFE piston rings and a ceramic cylinder surface — no oil can reach the air

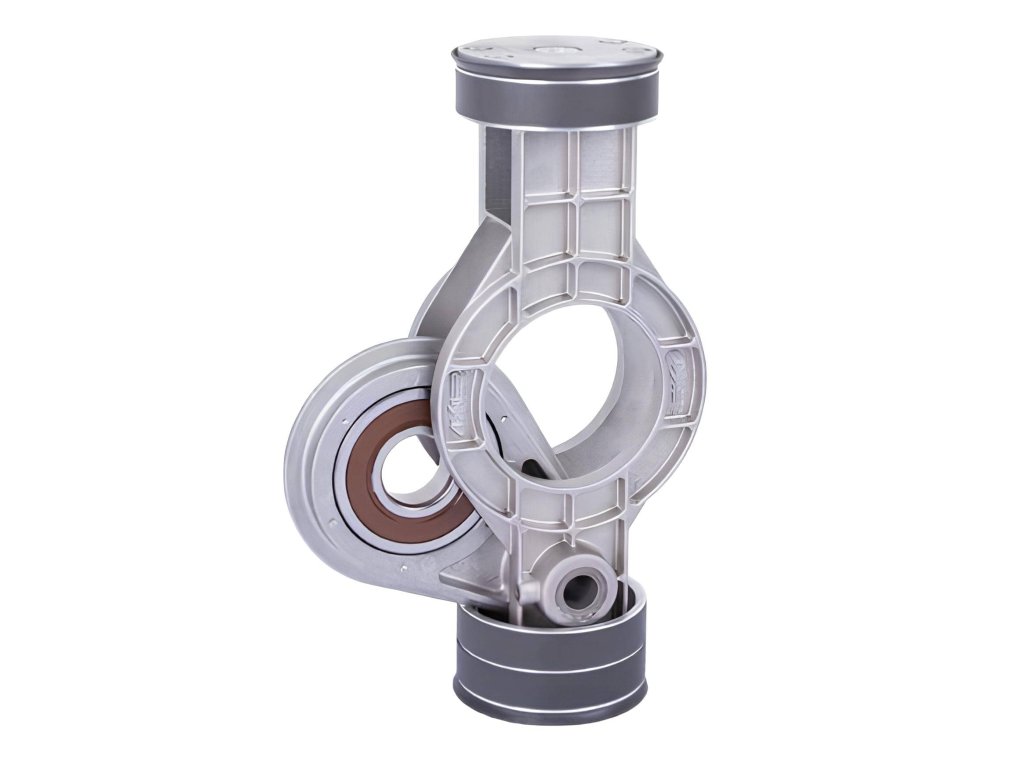

- patented connecting rod with a reinforced bearing carrying both pistons
- 3 kW motor in S1 duty, that is a 100% duty cycle without pauses for cooling
- direct drive without belts — no tensioning and no replacement
- pressure vessel 100 l (ležatá), working pressure 10 bar
- electric motor 230/50 V/Hz, single-phase supply — an ordinary socket
- intake 430 l/min, delivery 245 l/min at a working pressure of 10 bar
- protective tubular frame, wheels and a folding handle
- weight 76 kg, dimensions 1,030 × 530 × 730 mm; noise 92 dB Lwa, at 4 m 72 dB
- two-year warranty
Machine details
Where to go if the ATFS-3-100CM does not fit
The same machine for 400 V is the ATFS-3-100CT, the better rolling one is the ATFS-3-2x5CM. Lighter two-kilowatt machines are the ATFS-2,2-50CM and the ATFS-2,2-24CM. The full overview is in the overview of the whole category.
Delivery is the amount of air the machine supplies at a working pressure of 10 bar; intake is the volume drawn in by the pump units. Noise is stated as the sound power level Lwa from the rating plate and as the sound pressure at 4 m from the machine. Performance data according to ISO 1217, annex C, noise according to ISO 2151.
Ventilek advises
Seventy-six kilos on wheels will go across level ground, but not up stairs. If you are going to carry the machine, take a smaller model — the difference between 32 and 76 kilograms matters in practice.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 430 l/min |
| Air delivery: | 245 l/min |
| Pressure vessel volume: | 100 L |
| Design of pressure vessel: | Lying down |
| Motor power: | 3.0 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 4 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 92 dB - Lwa, 72 dB - Lwp(4m) |
| Dimensions: | 1 030 × 530 × 730 mm |
| Weight: | 76 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Industrial |
| Development: | Mobile |
