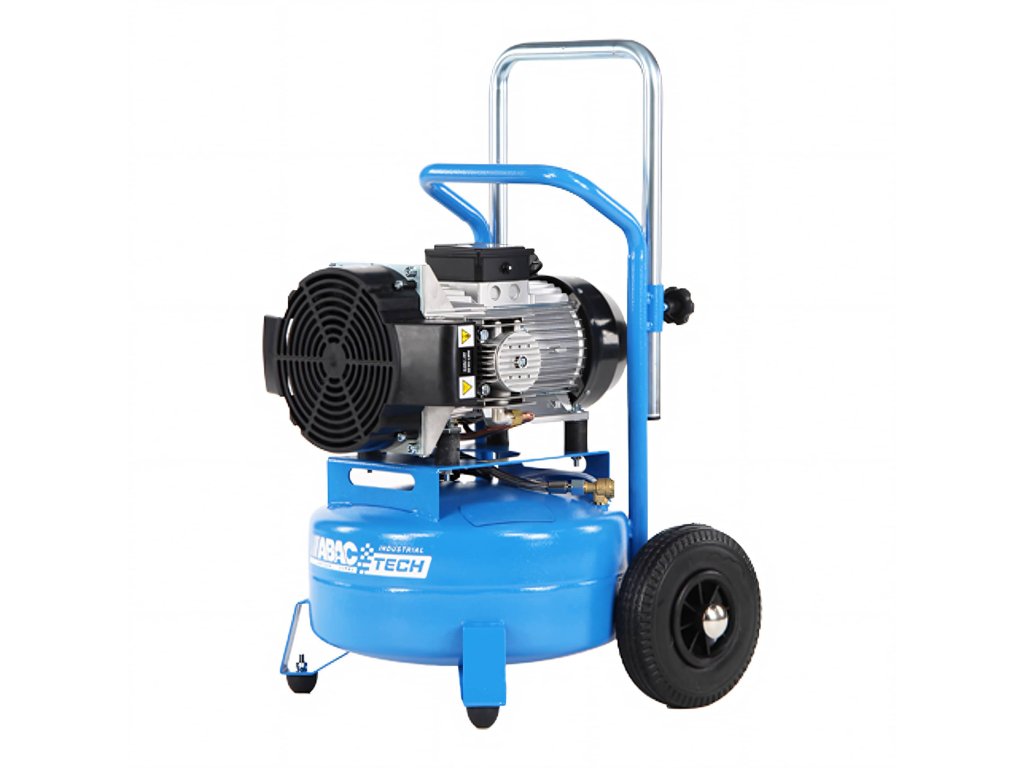

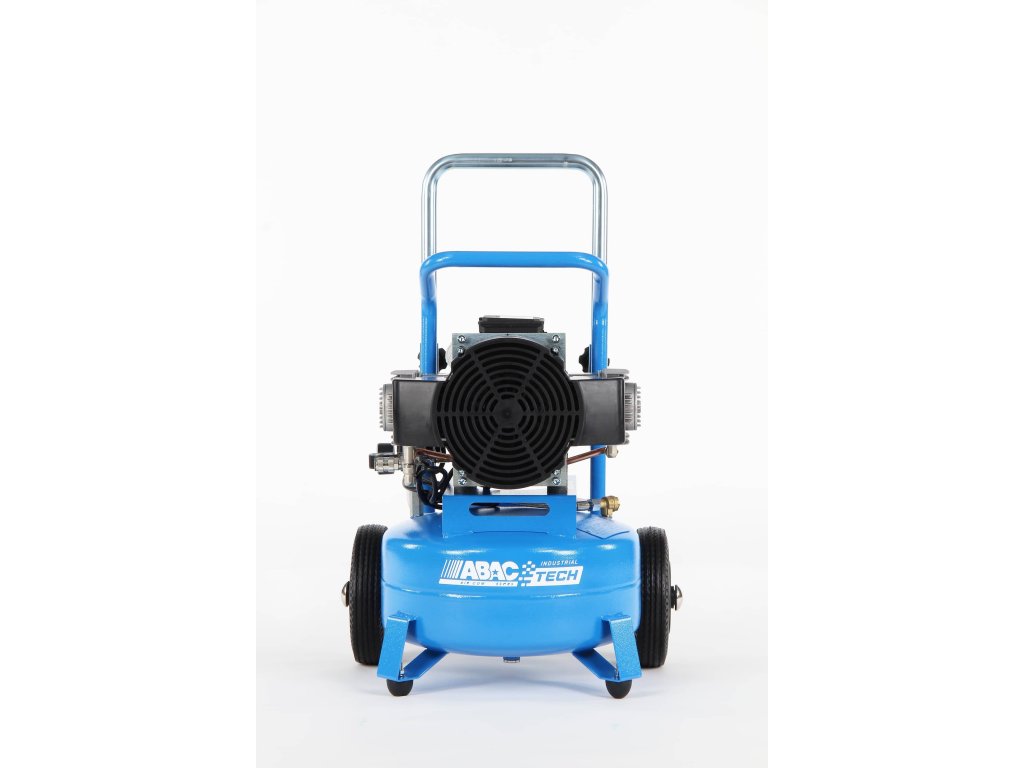

Oil-free compressor ABAC Tech - ATFS-2,2-24CM motor power 2.2 kW, delivery 192 l/min at 10 bar, intake 330 l/min, tank 24 l, voltage 230/50 V/Hz, 88 dB Lwa / 68 dB at 4 m
Code: ATFS-2-2-24CM
Product detailed description
ABAC Tech ATFS · oil-free · 24 lA compromise between portability and reserve. The ATFS-2,2-24CM has a vertical 24 l tank, so it occupies only 550 × 480 mm of floor, and it weighs 36 kg — four kilos more than the smallest model. Oil-free compression, 192 l/min at 10 bar, S1 motor.
Why a vertical tank
The vertical version has a smaller footprint than a horizontal one of the same volume — it fits into the corner of a workshop or beside a workstation. The height is 790 mm, so it still fits under an ordinary workbench.
A tank eight times larger than on the smallest model mainly means fewer motor starts. The amount of air is the same: the pump is identical, 192 l/min.
Equipment and details
What the ATFS-2,2-24CM does as standard
- one oil-free pump unit with two pistons, 1,400 rpm
- single-stage compressor — the air is compressed to 10 bar in one step
- PTFE piston rings and a ceramic cylinder surface — no oil can reach the air
- patented connecting rod with a reinforced bearing carrying both pistons
- 2.2 kW motor in S1 duty, that is a 100% duty cycle without pauses for cooling
- direct drive without belts — no tensioning and no replacement
- pressure vessel 24 l (stojatá), working pressure 10 bar
- electric motor 230/50 V/Hz, single-phase supply — an ordinary socket
- intake 330 l/min, delivery 192 l/min at a working pressure of 10 bar
- protective tubular frame, wheels and a folding handle
- weight 36 kg, dimensions 550 × 480 × 790 mm; noise 88 dB Lwa, at 4 m 68 dB
- two-year warranty
Machine detail

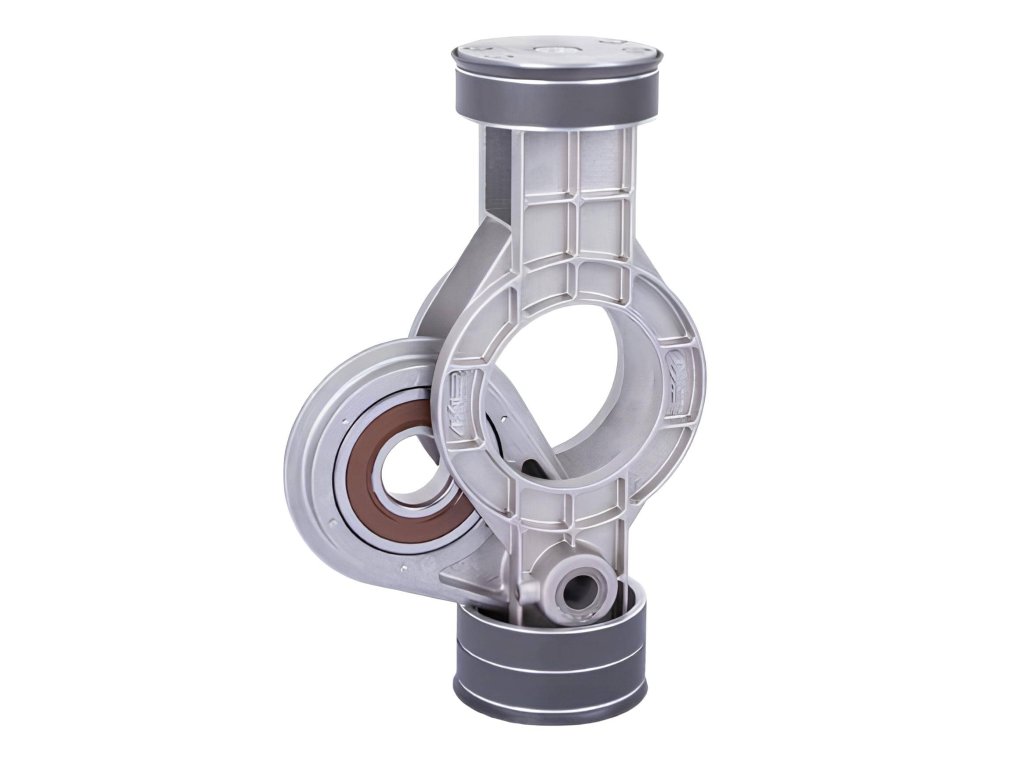

Both pistons of the oil-free pump sit on a single patented connecting rod with a reinforced bearing. Fewer parts mean less play and less wear — which is why the pump takes continuous duty without pauses for cooling.
Where to go if the ATFS-2,2-24CM does not fit
Smaller and lighter is the ATFS-2,2-3CM, twice the tank has the ATFS-2,2-50CM. More air comes from the three-kilowatt ATFS-3-2x5CM and ATFS-3-100CM. The full overview is in the overview of the whole category.
Delivery is the amount of air the machine supplies at a working pressure of 10 bar; intake is the volume drawn in by the pump units. Noise is stated as the sound power level Lwa from the rating plate and as the sound pressure at 4 m from the machine. Performance data according to ISO 1217, annex C, noise according to ISO 2151.
Ventilek advises
A vertical tank saves floor space but passes through doorways less easily — it is taller. Measure the route along which you will be moving the machine.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 330 l/min |
| Air delivery: | 192 l/min |
| Pressure vessel volume: | 24L |
| Design of pressure vessel: | Standing |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 88 dB - Lwa, 68 dB - Lwp(4m) |
| Dimensions: | 550 × 480 × 790 mm |
| Weight: | 36 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Industrial |
| Development: | Mobile |
