Mobile compressor ABAC V30-2.2-20CM motor power 2.2 kW, air intake 330 l/min, pressure 10 bar, air receiver 20 l, voltage 230/50 V/Hz
Code: V30-2-2-20CM
Related products
Product detailed description
20 l · 1,450 rpm · 43 kgTwenty litres in a cage. The V30-2.2-20CM is the smallest low-speed V-twin in the range: a horizontal 20 l tank sits in a tubular frame that protects the pump and the panel in transit, and on top sits the same V30 pump at 1,450 rpm as on the ninety — 330 l/min and 10 bar from an ordinary socket. At 43 kg it is the lightest V30; two wheels, two rubber feet and an extended handle let you wheel it about like a sack truck.
Why such a strong pump on a twenty
A small tank does not reduce the output — the pump still delivers 330 l/min, only the reserve for a sudden draw is smaller. For a nailer, a stapler, blowing off or inflating, 20 l is plenty: the tank refills in half a minute or so and the low-speed pump does that all day without overheating. The frame around the machine is what you are paying for on the 20CM: in the van a crate can lean against it, on site it shields the gauges and the switch from a falling length of pipe. If you need a longer reserve for a sander or a spray gun, reach for the fifty.
Equipment and details
What the V30-2.2-20CM has from the factory

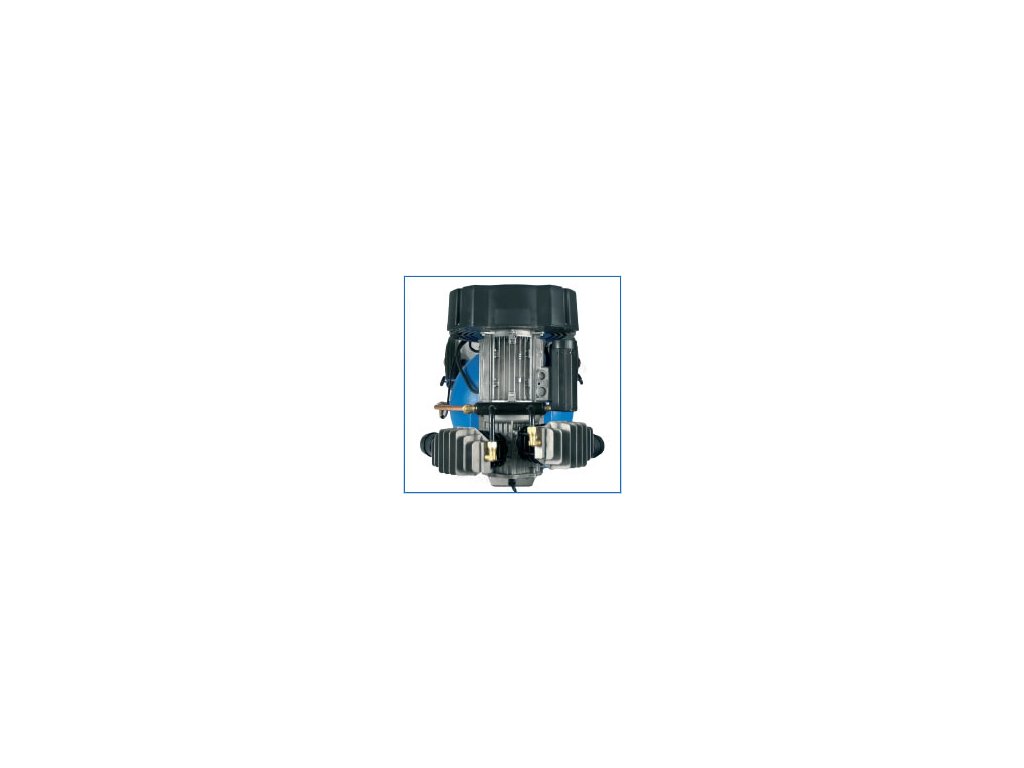

- oil-lubricated direct-drive V-twin V30 pump, 2.2 kW / 3 HP, 1,450 rpm
- four-pole single-phase 230 V / 50 Hz motor, thermal overload protection, large fan
- horizontal 20 l tank in a protective tubular frame, 10 bar, condensate drain valve underneath
- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling
- two wheels, two rubber feet, extended double handle
- oil sight glass on the outside, capacity roughly a quarter of a litre
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank
Machine details
Where next if the V30-2.2-20CM is not the right fit
The same pump with a bigger reserve is the V30-2.2-50CM — 17 kg heavier, but with a swivel castor and fifty litres for a sander. All five tanks side by side are on the V30 range page. If you want a light machine on wheels but do not need a low-speed V-twin, you will save money with the lighter L20N range. For the first service, add ALTAIR oil in a one-litre bottle.
Values apply to a 230 V / 50 Hz supply. The 97 dB Lwa noise figure is the sound power level, roughly 77 dB at 4 m from the machine. The machine is built for intermittent duty, not for continuous operation; the lead time is shown in the Availability line.
Ventilek advises
Twenty litres and a cage around them — this is the V30 for someone who carries it about, not for someone who sands next to it.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8020119133606 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 330 l/min |
| Air delivery: | 257 l/min |
| Pressure vessel volume: | 20 L |
| Design of pressure vessel: | Integrated |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1450 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 520 × 430 × 790 mm |
| Weight: | 43 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
