Mobile compressor ABAC V30-2.2-2x11CM motor power 2.2 kW, air intake 330 l/min, pressure 10 bar, air receiver 2 × 11 l, voltage 230/50 V/Hz
Code: V30-2-2-2X11CM
Related products
Product detailed description
2 × 11 l · 1,450 rpm · 50 kgTwo tanks, a low centre of gravity and wheels that never puncture. The V30-2.2-2x11CM is the V30 for the building site: two eleven-litre tanks side by side keep the machine low and steady, a tubular frame with a tray protects the pump and the panel, and big PU foam wheels roll over gravel and cables. On top sits the same low-speed V-twin — 330 l/min, 10 bar, 1,450 rpm — and the air leaves through two quick couplings for two hoses at once.
Why two tanks instead of one
A single twenty-two-litre tank would stand tall; two elevens lie side by side under the motor and the centre of gravity is so low that the machine stays put on a slope or a pick-up bed. The frame around it protects the pump and the panel in transit and when a crate leans on it, and the tray on top carries the nailer with its hose, so you turn up on site with one thing to carry. Two outlets serve two workers with no splitter needed. The 22 l reserve is meant for burst draws — nailers, staplers, impact wrenches — not for a sander.
Equipment and details
What the V30-2.2-2x11CM has from the factory

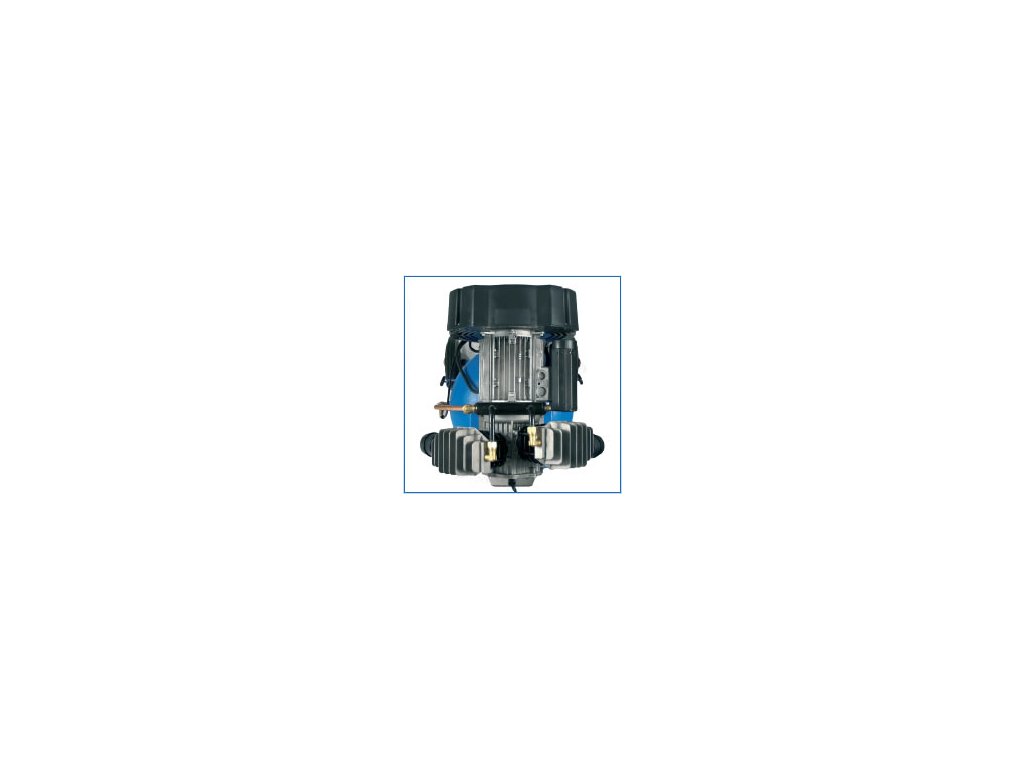

- oil-lubricated direct-drive V-twin V30 pump, 2.2 kW / 3 HP, 1,450 rpm
- four-pole single-phase 230 V / 50 Hz motor, thermal overload protection, large fan
- twin horizontal tanks, 2 × 11 l, side by side, 10 bar, condensate drain valve underneath
- automatic stop/start Condor pressure switch, pressure regulator, two gauges, two DN 7.2 outlets
- tubular frame around the whole machine with a tray on top
- big puncture-proof PU foam rear wheels, rubber feet at the front, rubber-gripped handle
- oil sight glass on the outside, capacity roughly a quarter of a litre
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank
Machine details
Where next if the V30-2.2-2x11CM is not the right fit
If you are after a machine for the workshop rather than the site, take the V30-2.2-50CM — it has a bigger reserve for a sander. All five versions in the range are on the V30 range page; V-twins from other brands are among twin-cylinder compressors of all brands. Two outlets call for two spiral hoses, and a wheel change calls for an impact wrench.
Values apply to a 230 V / 50 Hz supply. The 97 dB Lwa noise figure is the sound power level, roughly 77 dB at 4 m from the machine. The machine is built for intermittent duty, not for continuous operation; the lead time is shown in the Availability line.
Ventilek advises
Two tanks are not about the litres — they are there so the machine stays upright on a slope where a single tank would be lying on its side.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8020119133620 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 330 l/min |
| Air delivery: | 257 l/min |
| Pressure vessel volume: | 22 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1450 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 770 × 610 × 540 mm |
| Weight: | 50 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna pístu a těsnění
Výměna sacího filtru a údržba zpětného ventilu
