Compact compressor ABAC L30PN-2.2-20RM motor power 2.2 kW, air intake 310 l/min, pressure 10 bar, air receiver 20 l in a frame, voltage 230/50 V/Hz
Code: L30PN-2-2-20RM
Related products
Product detailed description
20 l · 2.2 kW · 35 kgThe L30P pump in a cage. The L30PN-2.2-20RM is the compact version for the building site and for transport: a twenty-litre tank sits in a tubular frame that protects the pump and the pressure gauges between the crates in the van, and you wheel the machine along by the extended handle like a sack truck. On top sits the same pump as on the big ones — 2.2 kW, 310 l/min, 10 bar from an ordinary socket.
Why the frame, and why only twenty litres
The frame is what you are paying for on the 20RM: on site a length of pipe leans against it, in the van a crate, and the pump, the switch and the pressure gauges stay in one piece. Twenty litres is a tank for a nailer and a stapler — tools that take air in bursts and, with 310 l/min of displacement, never wait. The extended handle gives you the right leverage to tilt it like a sack truck, and two rubber feet hold the machine in place. If you want an impact wrench and a sander on site too, take a V-twin with two tanks.
Equipment and details
What the L30PN-2.2-20RM has from the factory
- single-cylinder oil-lubricated L30P pump with direct drive, 2.2 kW, 2,850 rpm
- single-phase 230 V / 50 Hz motor, thermal overload protection, cover with a fan and a recessed intake filter
- horizontal 20 l air receiver in a protective tubular frame, 10 bar, condensate drain valve underneath
- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling

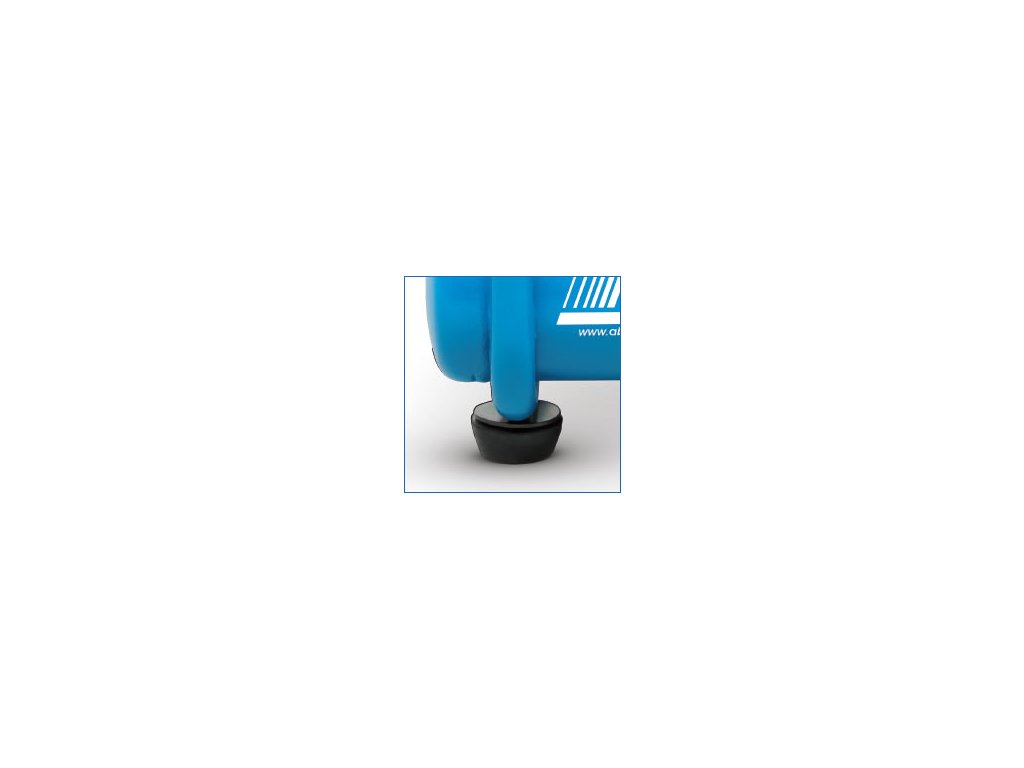

- two wheels, two rubber feet, extended handle
- oil sight glass on the outside, fill volume approximately two decilitres
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the L30PN-2.2-20RM is not the right fit
The same pump without the frame and with a bigger tank is the L30PN-2.2-24CM — six kilos lighter and cheaper. If you need more air and two tanks on site, go for the low-speed V30 range. The other versions are on the L25P and L30P range page. For the wheels, add a tyre inflator with a pressure gauge, and for inflating a spiral hose.
Values apply to a 230 V / 50 Hz supply. The noise figure is the sound power level Lwa; at 4 m from the machine it is roughly 20 dB less. The machine is built for intermittent duty, not for continuous operation.
Tip from Ventilek
A cage around the compressor is no luxury — it is the
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779584 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 310 l/min |
| Air delivery: | 186 l/min |
| Pressure vessel volume: | 20 L |
| Design of pressure vessel: | Integrated |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 520 × 430 × 790 mm |
| Weight: | 35 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | External warehouse |
