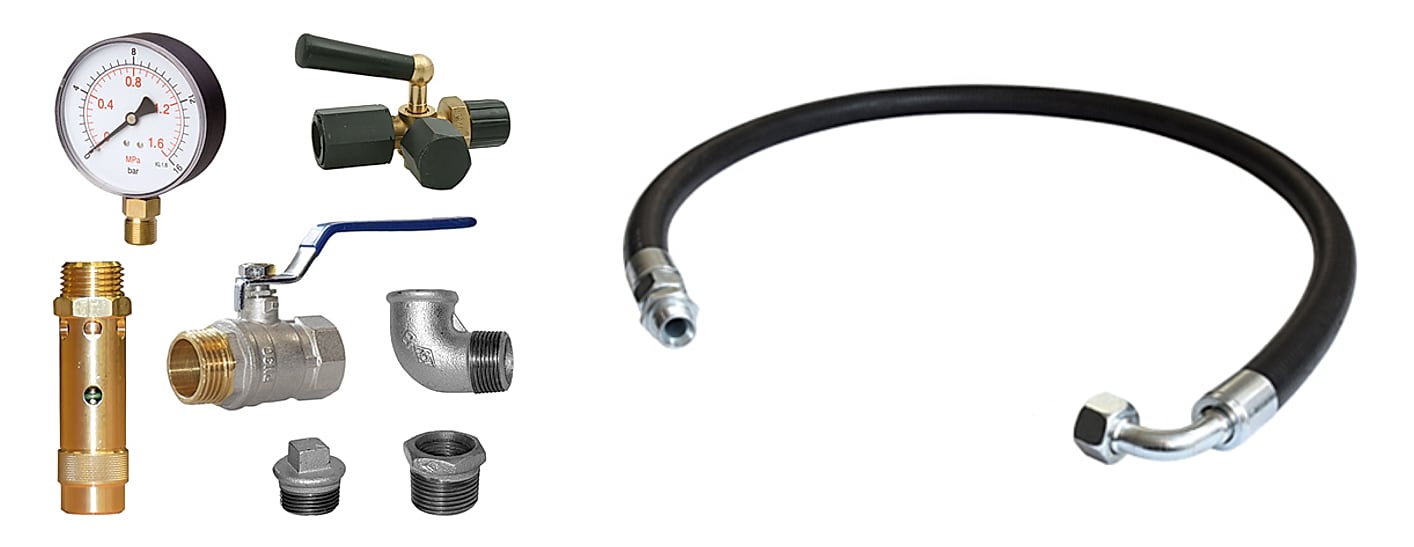

Accessories and kits for compressor air receiver
.jpg) |
The separate pressure vessels and the air line to the compressor must be fitted with fittings and safety valves. For this purpose, our e-shop offers various sets of fittings, such as pressure vessels and air tanks. The fitting kits contain the necessary fittings for the complete fitting of the vessel. |
Fittings kits for stand-alone stand-alone air handlers |
||||||||
| container modification lacquered |
container modification galv. / ALM |
Container volume | Safety valve | Ball cock | Draining rooster |
Manometer |  |
|

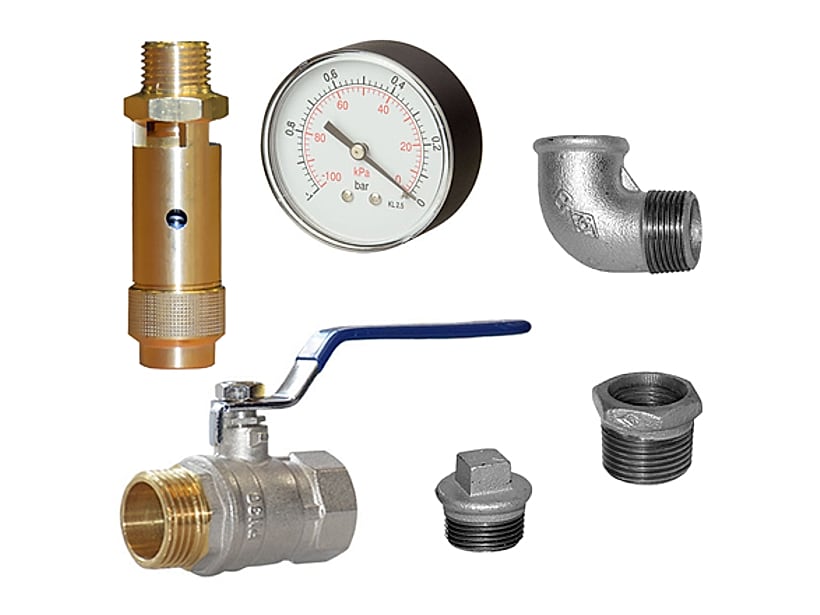

| KVP100-11 | KVG100-11 | 100 liters | 1/4", 10.5 bar, 244 Nm³/h | 2 x 3/4" inner/outer | 1/4" | 63mm (0-16) rear 1/4" |
||
| KVP200-11 | KVG200-11 | 200 liters | 1/4", 10.5 bar, 244 Nm³/h | 2 x 3/4" inner/outer | 1/4" | 63mm (0-16) rear 1/4" |
||
| KVP270-11 | KVG270-11 | 270 l | 1/4", 10.5 bar, 244 Nm³/h | 2 x 3/4" inner/outer | 1/4" | 63mm (0-16) rear 1/4" |
||

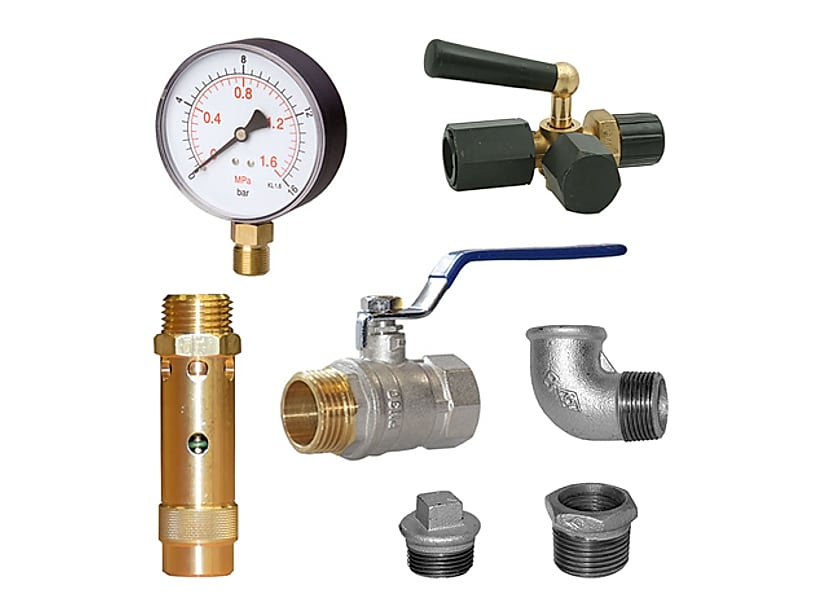

| KVP500-11 | KVG500-11 | 500 liters | 1/2", 10.5 bar, 484 Nm³/h | 2 x 1/2" inner/outer | 1/4" | 100mm (0-16) bottom M20x1.5 |
||
| KVP720-11 | KVG720-11 | 720 l | 1/2", 10.5 bar, 484 Nm³/h | 2 x 1/2" inner/outer | 1/2" | 100mm (0-16) bottom M20x1.5 |
||
| KVP1000-12 | KVG1000-12 | 1,000 liters | 1/2", 10.5 bar, 484 Nm³/h | 2 x 1/2" inner/outer | 1/2" | 100mm (0-16) bottom M20x1.5 |
||

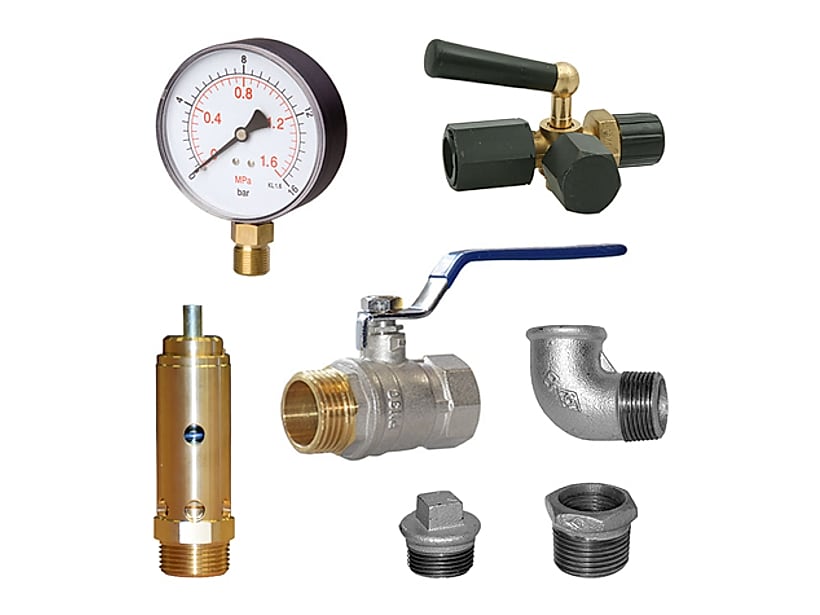

| KVP1500-12 | KVG1500-12 | 1,500 liters | 3/4", 10.5 bar, 1024 Nm³/h | 2 x 3/4" inner/outer | 1/2" | 100mm (0-16) bottom M20x1.5 |
||
| KVP2000-12 | KVG2000-12 | 2,000 liters | 3/4", 10.5 bar, 1024 Nm³/h | 2 x 3/4" inner/outer | 1/2" | 100mm (0-16) bottom M20x1.5 |
||
| KVP3000-12 | KVG3000-12 | 3,000 liters | 3/4", 10.5 bar, 1024 Nm³/h | 2 x 3/4" inner/outer | 1/2" | 100mm (0-16) bottom M20x1.5 |
||

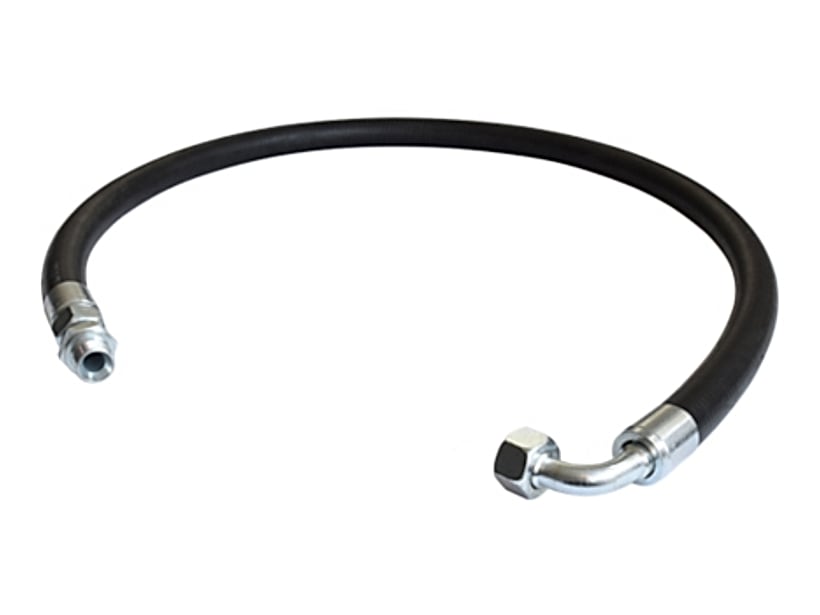

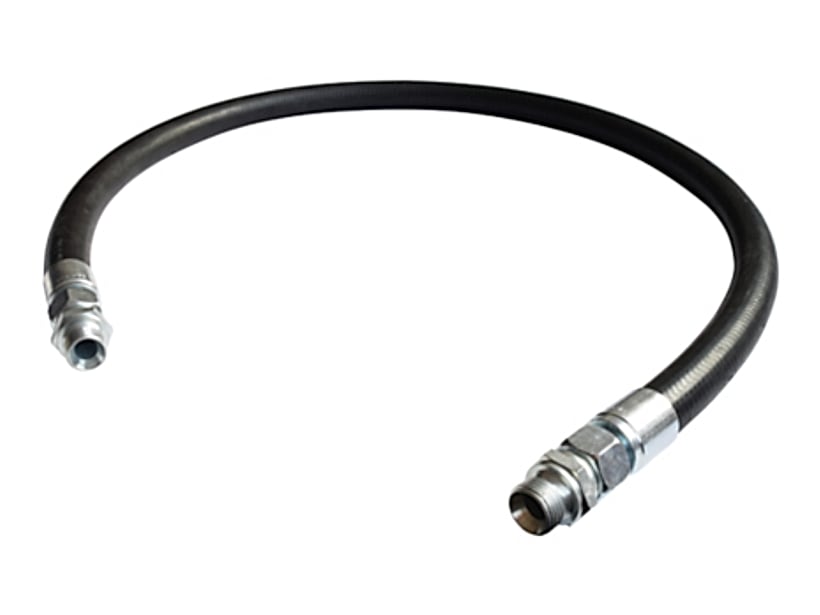

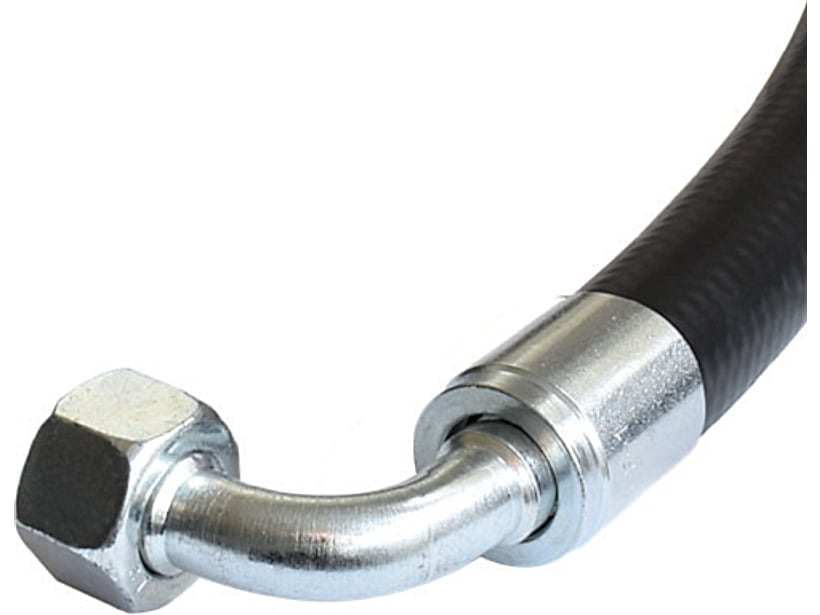

Connecting hoses FP press-fit straight or corner fittings |
||||||
| Order number | Luminosity DN |
Threads " |
Length mm |
Working pressure bar |
Temperature °C |
|
| Direct execution |
Corner implementation |
|||||
| FP12-1.0 | FPL12-1.0 | 12 | 1/2" | 1 000 | 20 | -40/+100 |
| FP12-1.5 | FPL12-1.5 | 12 | 1/2" | 1 500 | 20 | -40/+100 |
| FP12-2.0 | FPL12-2.0 | 12 | 1/2" | 2 000 | 20 | -40/+100 |
| FP12-2.5 | FPL12-2.5 | 12 | 1/2" | 2 500 | 20 | -40/+100 |
| FP34-1.0 | FPL34-1.0 | 20 | 3/4" | 1 000 | 20 | -40/+100 |
| FP34-1.5 | FPL34-1.5 | 20 | 3/4" | 1 500 | 20 | -40/+100 |
| FP34-2.0 | FPL34-2.0 | 20 | 3/4" | 2 000 | 20 | -40/+100 |
| FP34-2.5 | FPL34-2.5 | 20 | 3/4" | 2 500 | 20 | -40/+100 |
| FP10-1.5 | FPL10-1.5 | 25 | 1" | 1 500 | 20 | -40/+100 |
| FP10-2.0 | FPL10-2.0 | 25 | 1" | 2 000 | 20 | -40/+100 |
| FP10-2.5 | FPL10-2.5 | 25 | 1" | 2 500 | 20 | -40/+100 |
| FP54-1.5 | FPL54-1.5 | 25 | 1 1/4" | 1 500 | 20 | -40/+100 |
| FP54-2.0 | FPL54-2.0 | 25 | 1 1/4" | 2 000 | 20 | -40/+100 |
| FP54-2.5 | FPL54-2.5 | 32 | 1 1/4" | 2 500 | 20 | -40/+100 |
| FP15-1.5 | FPL15-1.5 | 40 | 1 1/2" | 1 500 | 20 | -40/+100 |
| FP15-2.0 | FPL15-2.0 | 40 | 1 1/2" | 2 000 | 20 | -40/+100 |
| FP15-2.5 | FPL15-2.5 | 40 | 1 1/2" | 2 500 | 20 | -40/+100 |
| FP20-1.5 | FPL20-1.5 | 50 | 2" | 1 500 | 20 | -40/+100 |
| FP20-2.0 | FPL20-2.0 | 50 | 2" | 2 000 | 20 | -40/+100 |
| FP20-2.5 | FPL20-2.5 | 50 | 2" | 2 500 | 20 | -40/+100 |

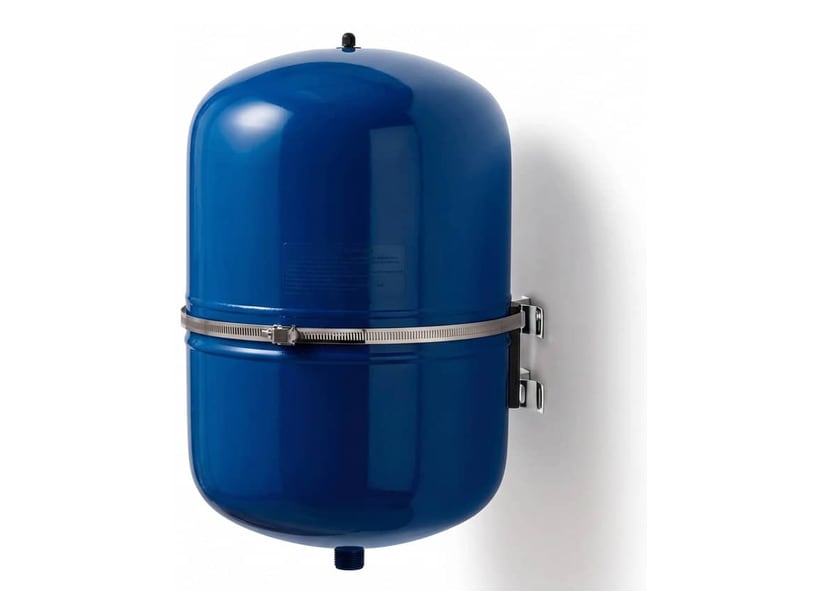

Fastening containers without bases |
|

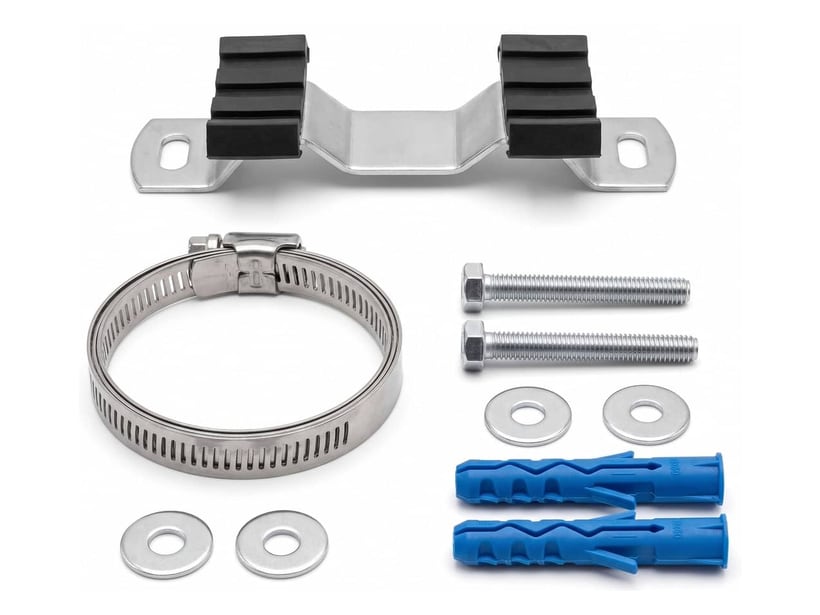

| 88890006 | EXPANSION TANK MOUNTING KIT WITH STAINLESS STEEL TAPE |
Product sorting
List of products
The kit is designed for mounting expansion pressure vessels ∅ 50 mm to ∅ 425 mm. Includes all necessary anchoring material for installation (mounting wrench not included, we...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1/2" in length 1500 mm and straight end...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1/2" in 1000 mm length and straight end...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1/2" in length 2000 mm and straight end...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1/2" in length 2500 mm and straight end...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1/2" in length 1000 mm with straight and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1/2" in length 2000 mm with straight and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 3/4" in length 1000 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 3/4" in length 1500 mm with straight and...
Set of fittings for complete installation of pressure vessel and air tank with volume 270 L. The set includes the following products including all settings and documentation :...
Set of fittings for complete installation of pressure vessel and air tank with volume 500 L. The set includes the following products including all settings and documentation :...
Set of fittings for complete installation of pressure vessel and air tank with volume of 1 000 L. The set includes the following products including all settings and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. 1" threaded version in 1500 mm length and straight end caps.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 3/4" in length 2500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1" in length 1500 mm with straight and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 3/4" in length 2000 mm with straight and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/2" in length 1500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/2" in length 2000 mm and straight...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/2" in length 2500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/4" in length 1500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/4" in length 2000 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/4" in length 2500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. 1" threaded version in 2000 mm length and straight end caps.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1" in length 2500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 3/4" in length 1500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1" in length 2000 mm with straight and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 3/4" in length 2500 mm with straight and...
Set of fittings for complete installation of pressure vessel and air tank with volume of 100 L. The set includes the following products including all settings and documentation...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1/2" in length 1500 mm with straight and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 3/4" in length 2000 mm and straight end...
Set of fittings for complete installation of pressure vessel and air tank with volume of 1 500 L. The set includes the following products including all settings and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 2" in length 2500 mm with straight and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/2" in length 1500 mm with straight...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/2" in length 2000 mm with straight...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/2" in length 2500 mm with straight...
Set of fittings for complete fitting of pressure vessel and air tank with volume 100 L in galvanized finish. The set includes the following products including all settings and...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/4" in length 1500 mm with straight...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 1 1/4" in length 2000 mm with straight...
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 2" in length 1500 mm and straight ends.
Fused hoses with reinforced end caps for connecting the pressure vessel to the compressor and air line. Maximum 20 bar. Threaded version 2" in length 2500 mm and straight ends.
