Silenced piston compressor ABAC - A29B-1,5-90CMS motor 1,5 kW, suction capacity 255 l/min, pressure 10 bar, receiver 90 l, voltage 230/50 V/Hz, 89 dB Lwa / 69 dB at 4 m
Code: A29B-1-5-90CMS
Related products
Product detailed description

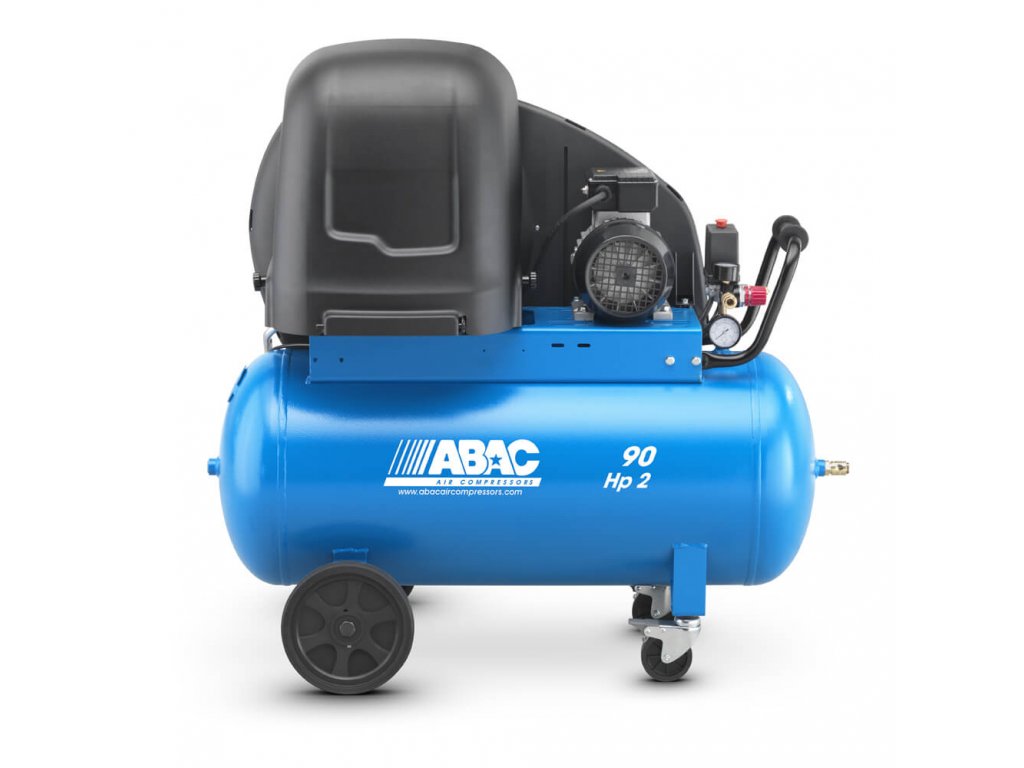

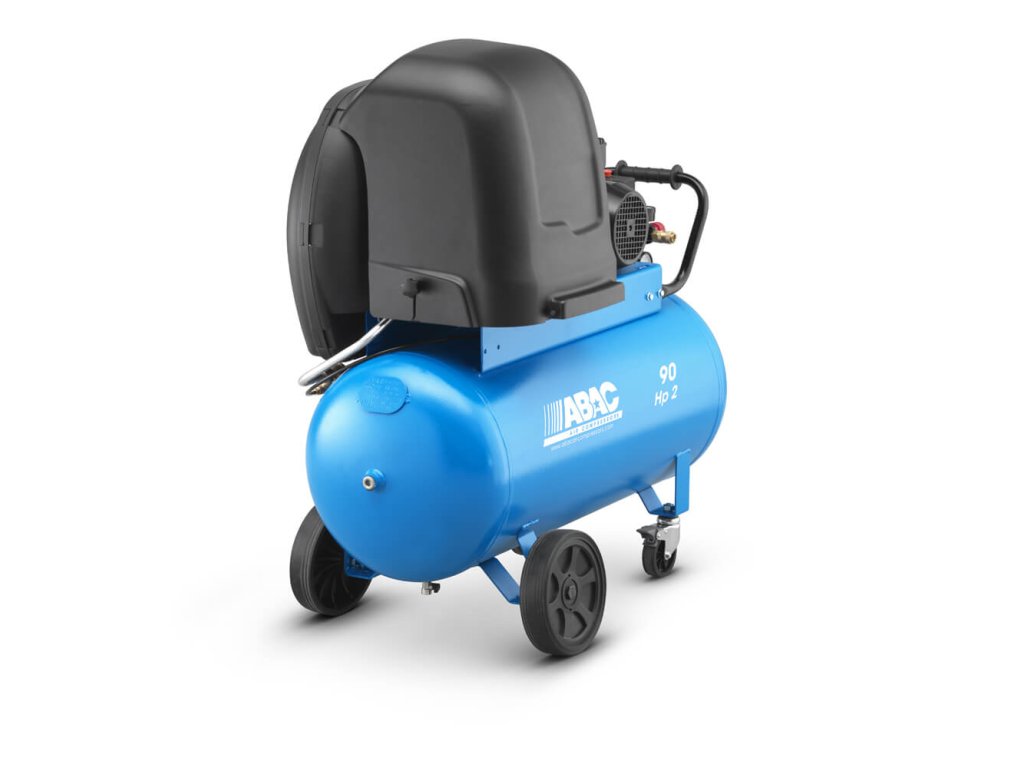

ABAC soundproof reciprocating compressor - A29B-1,5-90CMS
Single stage compressor from the Silent Line series in oil lubricated design with electric motor and A29B compressor unit connected by V-belts. The unique soundproof plastic cover allows a 4 dB(A) reduction in sound intensity level while providing good protection of the compressor unit from dust. The compressor also has the following benefits and standard equipment:
- patented belt gear cover with aerodynamically shaped grooves and sound-deadening foam significantly reduces the air outlet temperature and ensures an extreme increase in compressor lifetime

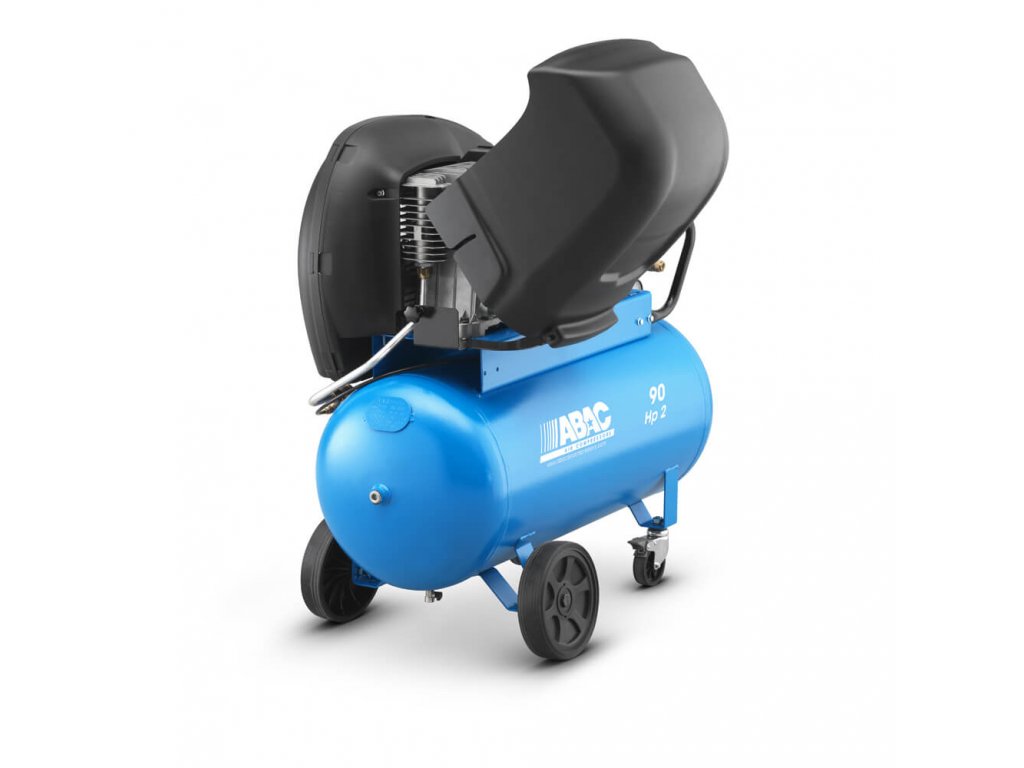

- easy opening of the cover for maintenance
- aftercooler at the outlet of the compressor unit
- oil reservoir equipped with oil sight glass for easy reading of oil level
- automatic operation control by means of a high-end Condor pressure switch
- electric motor equipped with temperature protection
- 2 outlets via standard DN7.2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 90-litre aerator with ball valve for convenient condensate drainage
- two front wheels with brakes significantly increase the stability of the machine and improve handling
- rubberised handle for perfect user comfort
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty against rust-through of the pressure vessel.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900524147 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 255 l/min |
| Air delivery: | 184 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1075 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 89 dB - Lwa, 69 dB - Lwp(4m) |
| Dimensions: | 1 010 × 415 × 980 mm |
| Weight: | 59 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Cover |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna řemenu
