Vertical low-temperature pressure vessel for fluids 2000 l - 12 bar Ø 1100 × 2490 mm · 388 kg · connections 2" and 1/2"
Code: VVP2000-12-G1 VVG2000-12-G1 VVA2000-12-G1 Choose variant
Related products
Product detailed description
Twice the volume of the 1000-litre vessel, yet only 14 centimetres taller. It stands 2.49 metres tall with a diameter of 1100 mm.

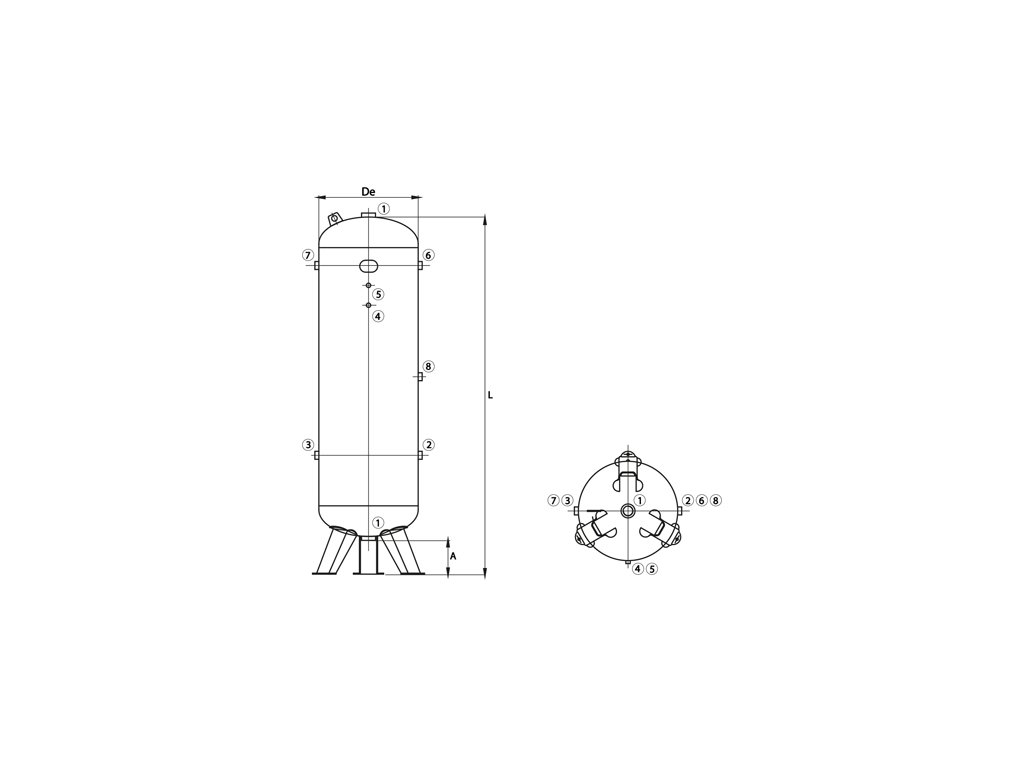

Dimensions and connections
| VVP2000-12-G1 — dimensions and connections | |
|---|---|
| Volume | 2000 l |
| Maximum working pressure | 12 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 1100 mm |
| Height L | 2490 mm |
| Ground clearance A | 200 mm |
| Height of connections 2 and 3 (B) | 770 mm |
| Height of connections 6 and 7 (C) | 1970 mm |
| Weight | 388 kg |
| Transport | lying flat, 2500 × 1200 × 1300 mm, 408 kg |
| Lifting lugs | 1 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 1/2" |
| Connection 5 | 1/2" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP2000-12-G1 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |

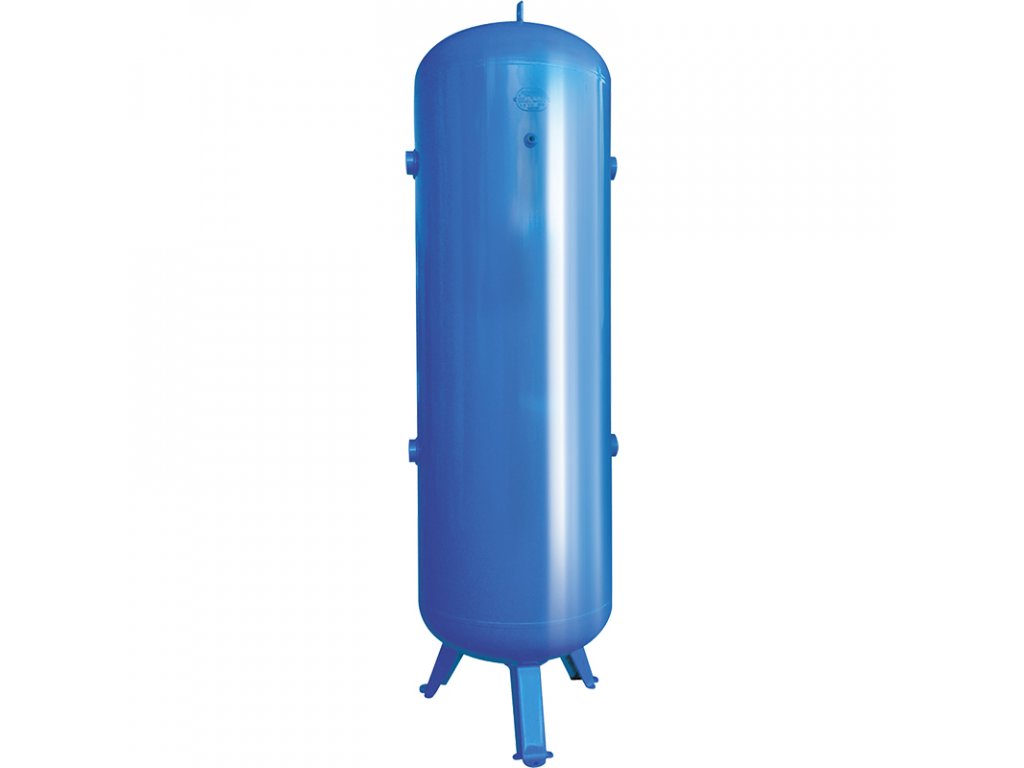

| painted RAL 5015 | VVP2000-12-G1 | 388 kg | – |
| galvanised | VVG2000-12-G1 | 394 kg | same dimensions and connections |
| with ALM internal coating | VVA2000-12-G1 | 388 kg | same dimensions and connections |
Typical uses
It serves as the main air receiver in production with a larger screw compressor, or as a nitrogen reservoir downstream of a generator. The large volume keeps the pressure stable even when several consumers draw from it at once.
A smaller option is VVP1500-12-G1, and a larger one is VVP3000-12-G1. The 16-bar version is VVP2000-16-G1.
How it is made
Ventilek’s tip
Outdoors, zinc pays off. A galvanised vessel has a protective layer inside and out, so damp and rain bother it less. With a painted vessel outdoors, make sure that the paint does not get damaged.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 2 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 1/2" |
| Thread (5): | 1/2" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
