Filtration, regulation and treatment of compressed air
Compressed air treatment is an indispensable part of the compressor system. You need to treat compressed air because it naturally has dust particles, oil and, last but not least, condensate. This combination is very damaging to any device you connect to the compressor. Corrosion, clogging and sticking of moving parts shorten the life of valves, pneumatic tools and automated line components. That's why we bring you a comprehensive air treatment program that includes air dryers, filters, pressure regulators, separators and cyclone separators. With our air treatment program , you can extend the life of your entire compressor system many times over and avoid expensive service or line downtime. More on how to filter and condition air in the sequel.
#ShowMore#
Basic principles of air treatment:
- drying - air dryers(condensation dryers, adsorption dryers, membrane dryers)
- filtration - air filters according to ISO 8573(air filtration, high pressure filters, process filters, vacuum filters)
- regulation - air pressure regulators on the distribution lines before the application itself
- getting rid of condensate and oil(cyclone separators, water-oil separation)
What to follow - Compressed air quality classes according to ISO 8573-1
How do you know what quality of compressed air to have for your application? The ISO 8573-1 standard is the guideline. The quality of the produced air is described in the standard by seven classes, from 0 to 6. Each class has a prescribed maximum content of solids, water and oil. Different purity classes are therefore required for different applications and flow rates. For example, for workshop air, the standard prescribes a quality of 4-4-5. The three numbers indicate the three prescribed quality classes in the order - solids quality class, water quality class, oil quality class. The highest demands are of course in the pharmaceutical, chemical and food industries.
We talk in detail about the quality classes in our article from the advisory board: How to filter compressed air
Step-by-step air treatment

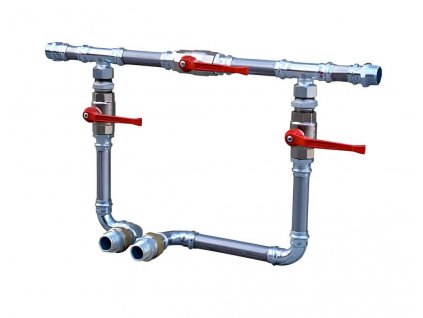

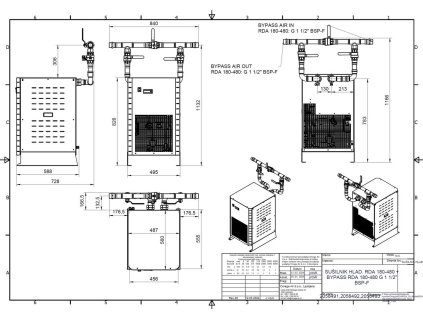

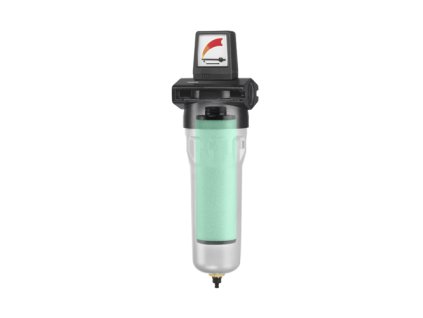

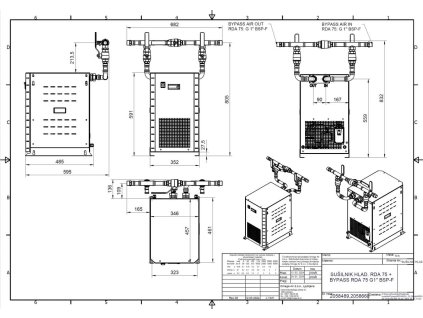

It is best to use an air dryerbehind the compressor to ensure that the condensate is removed. It is recommended to use a pre-filter between the air dryer and the compressor. There are different requirements for artisans and different requirements in a medical environment. Therefore, the purity of the air in microns needs to be determined. This filtration is then placed behind the dryer. Finally, we can regulate the compressed air to the desired pressure (atmospheres). All the accessories that we use to treat the air will wear out over time and the filter cartridges or granulate will need to be replaced. We use clogging indicators or differential pressure gauges to measure filter wear. This accessory can only be found on better filters for compressed air treatment.
More articles about air conditioning from our advice section:
-hankison-susicka-vzduch-kompresor-tllak-kondenzace-rosny-bod.jpg)
Product sorting
List of products
Replacement filter insert 5 um for compact filters 1/8" - 1/4" as replacement insert for FDM and FWA air filters.
Fixing angle for air treatment units A2R-14, A2S-14. Attachment by means of a lock nut on the pressure regulator.
Replacement oil seal for METAL WORK compact filters size 1/8" - 1/4".
Size 1 mounting nut for FUTURA air treatment units such as pressure regulator or pressure regulator with filter. For mounting the angle for fixing the unit.
Connection kit allowing the connection of two components from the B2 series of treatment units such as regulator, filter, lubricator of size 1.
Accessories and spare parts for METAL WORK air treatment units. Replacement filter insert 20 um for filter size 3/4"-1" as replacement insert for FDM and FWA air filters.
Accessories and spare parts for METAL WORK air treatment units. Replacement filter insert 5 um for filter size 3/4"-1" as replacement insert for FDM and FWA air filters.
Pressure regulator with 5 um air filtration for compressed air with or without oil and for neutral gases up to 16 bar. Design according to ATEX II 2G2D. The adjusting pin can be...
Replacement container for lubrication unit A2 - A2NL-14. Simple container change with lock on the following units: A2L-14, A2U-14.
Fixing angle for air treatment units A2R-12, A2S-12. Attachment by means of a lock nut on the pressure regulator.
Replacement diaphragm for A2 - A2MR-12 pressure regulators. Simple diaphragm exchange for re-adjusting the air pressure from 0.5 - 8 bar. Suitable for the following units :...
Standard connection set for FUTURA size 1 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...
Compressed air treatment units in metal design up to 18 bar. Compressed air control with a flow rate of 650 l/min in 1/4" size. Application mainly in industry, laboratory,...
Mounting angle for mounting miniature compressed air treatment units P2 and B2 in 1/4" size. INmade of black painted steel.
Replacement diaphragm for A2 - A2MR-38 pressure regulators. Simple diaphragm exchange for re-adjusting the air pressure from 0.5 - 8 bar. Suitable for the following units :...
Fixing angle for air handling units A2F-14, A2L-14. Attachment of filters and lubricator of A2F units to the unit body.
Connection kit allowing the connection of two components from the B2 series of treatment units such as regulator, filter, lubricator of size 2.
Complete air treatment units are used wherever compressed air needs to be regulated, filtered and lubricated. With the complete units, we get treated compressed air that can be...
Mounting angle for mounting 1/4" size units. Accessories and spare parts for METAL WORK air treatment units.
Replacement container for METAL WORK compact grease guns size 1/8" - 1/4".

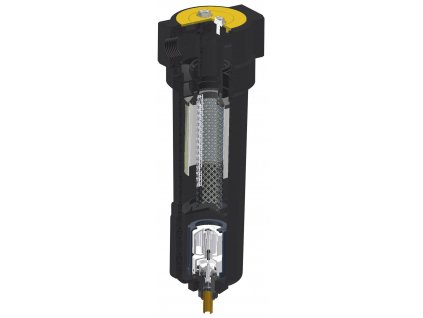

AAFC 2" cyclone separator with a flow rate of 16,667 l/min for partial removal of condensate from compressed air. Here the flow changes to rotational and due to the rotation and...
