Oil-lubricated compressor BL-1.5-24CM motor power 1.5 kW, air intake 200 l/min, pressure 8 bar, air receiver 24 l, voltage 230/50 V/Hz
Code: BL-1-5-24CM
Related products
Product detailed description
200 l/min · 230 VThe cheapest oil-lubricated compressor in the range: 1.5 kW, 200 l/min and 24 litres on wheels. The oil-lubricated single cylinder withstands longer work than an oil-free machine of the same power and per litre of air comes out the cheapest in the whole range.
What you get for the oil-lubricated version
An oil-lubricated cylinder wears less and overheats less easily — that is why oil-lubricated machines withstand more work per hour. The price is maintenance: the sight glass on the crankcase shows the level without unscrewing anything, a change once a season. The finned discharge pipe carries heat away from the head, the paper intake filter protects the cylinder from workshop dust.
Equipment and details
What the BL-1.5-24CM has from the factory

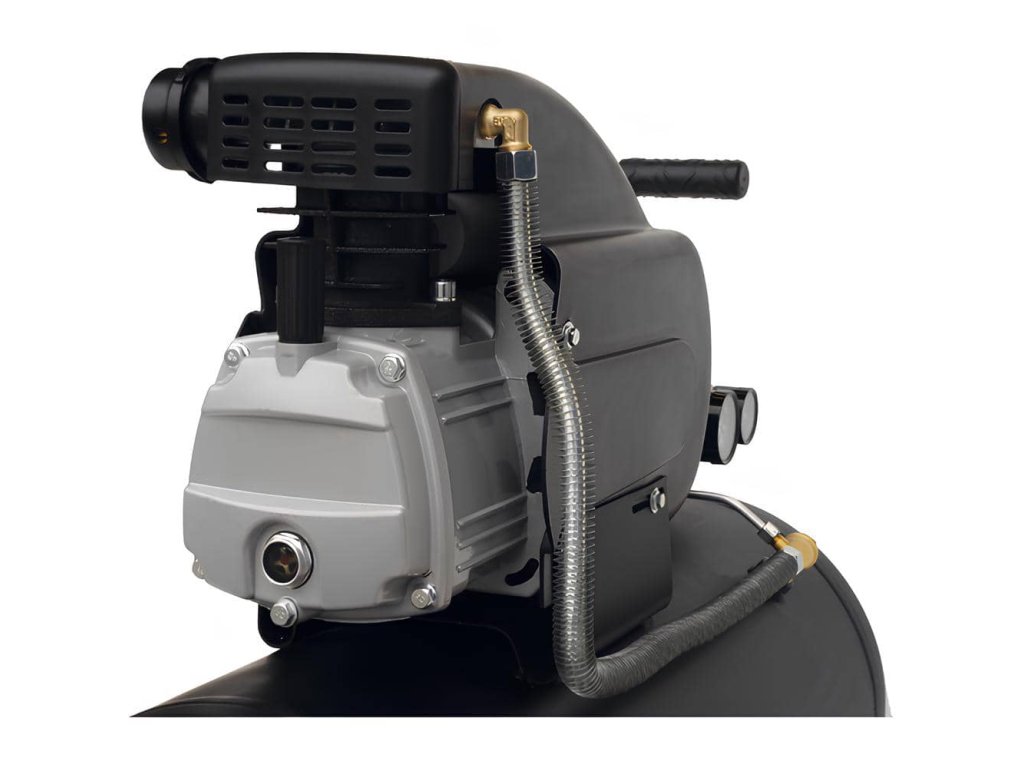

- oil-lubricated single cylinder with sight glass
- finned discharge pipe

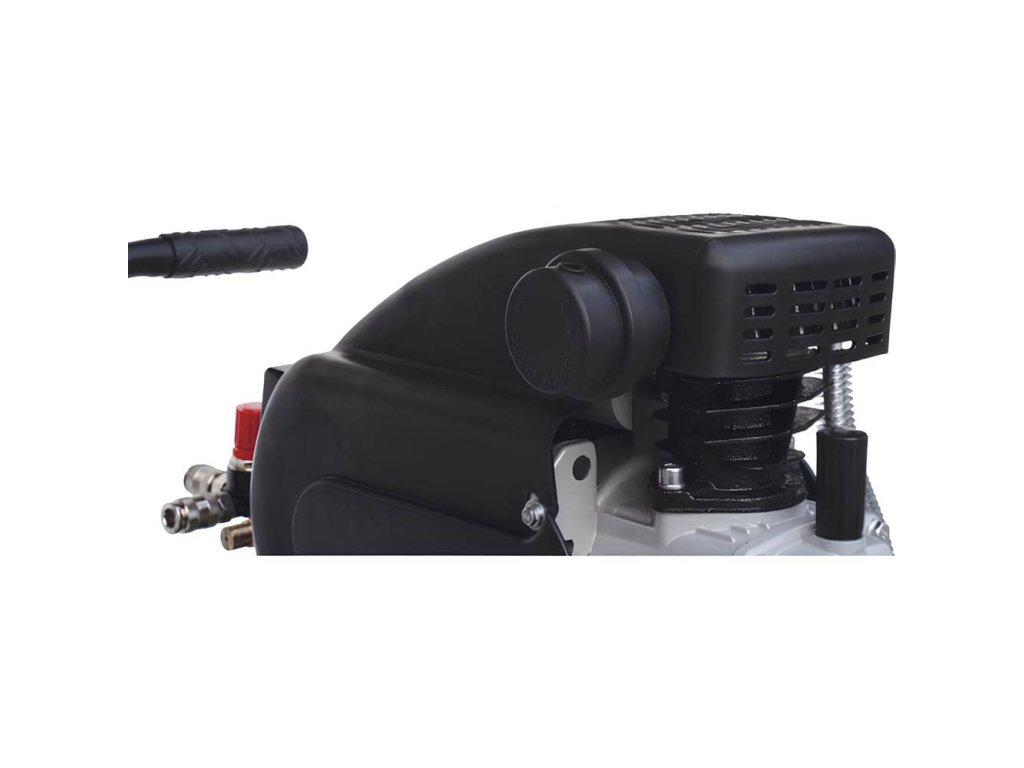

- pleated paper intake filter

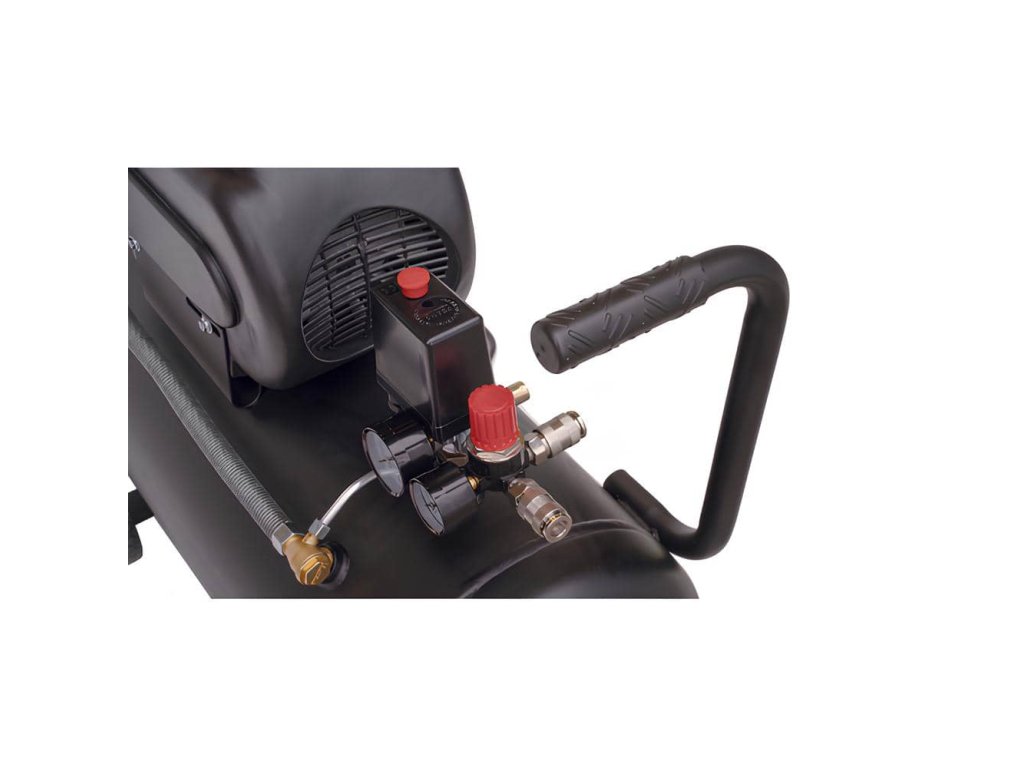

- outlet pressure regulator
- automatic operation with pressure switch
- DN 7.2 quick coupling
- rubber grip and handle
- intermittent duty S3 25 %
- 10-year warranty against tank rust-through
Machine details
Where next if the BL-1.5-24CM does not fit
The same pump with a twice larger tank is the BL-1.5-50CM — a little dearer, and the machine starts half as often. Whoever does not want to deal with oil has the oil-free BO-1.5-24CM. For the oil change the original BWL-1 oil is enough, and for maintenance the BW-0010 intake filter; the overview of the range is in the overview of the whole Black Wind range.
Air intake is the manufacturer's figure (09/2025 catalogue). Noise Lwp is the sound pressure at 4 m, Lwa the sound power. The machine is intended for intermittent duty S3 25 %.
Ventilek advises
For the price of a better drill you have an oil-lubricated compressor with a tank. Just change its oil once a year.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 8 bar |
| Suction power: | 200 l/min |
| Air delivery: | 121 l/min |
| Pressure vessel volume: | 24L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Weight: | 25 kg |
| Accessories: | Silent blocks, Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Occasional |
| Development: | Mobile |
| In stock: | In store, External warehouse |
| Dimensions: | 600 × 255 × 600 mm |
| Weight: | 25 kg |
