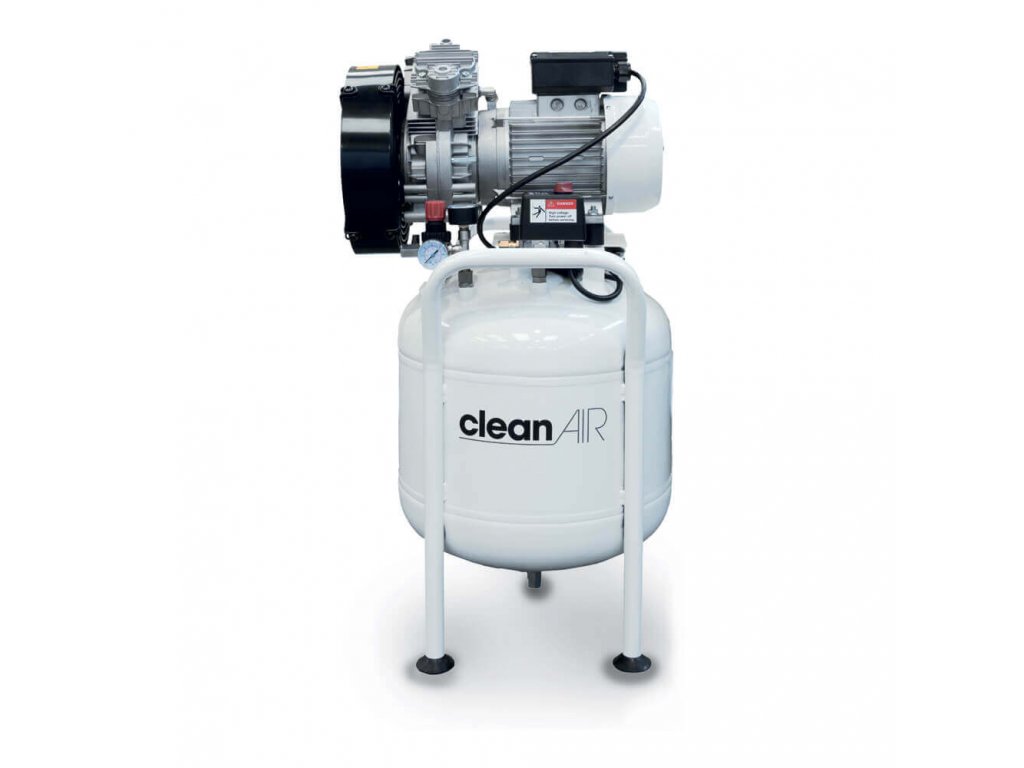

Clean Air CLR-1,5-50MD dental compressor motor power 1.5 kW, intake 350 l/min, delivery 155 l/min at 5 bar, pressure 8 bar, receiver 50 l, voltage 230/50 V/Hz
Code: CLR-1-5-50MD
Related products
Product detailed description
Clean Air CLR · dryer · 50 lThe most common set-up for a two-chair surgery. The CLR-1,5-50MD has a fifty-litre receiver, an adsorption dryer at a −40 °C dew point and delivers 155 l/min at 5 bar for two to three chairs. Weight 54 kg, noise 74 dB(A) at one metre.
Why this combination comes out on top
It brings together the three things dentistry needs: air without oil, air without water and a reserve for peaks. Nothing to add, nothing to solve separately — the machine is put in place and plugged into an ordinary socket.
A noise level of 74 dB(A) means the machine belongs in a plant room or in a canopy. If you have no such place, the 30MDS version with a sound canopy runs at 64 dB(A).
Equipment and details
What the CLR-1,5-50MD does as standard

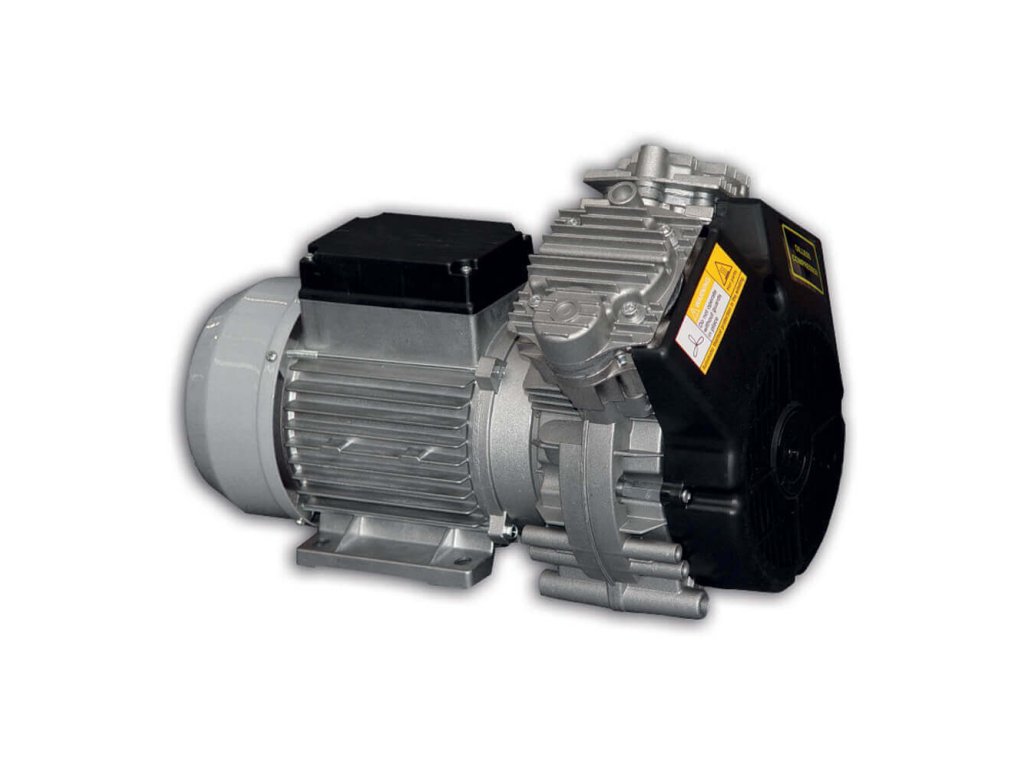

- oil-free pump unit — no oil can reach the air
- single-stage compressor, direct drive without belts, 1400 rpm
- 50 l pressure vessel with an epoxy coating inside, working pressure 8 bar

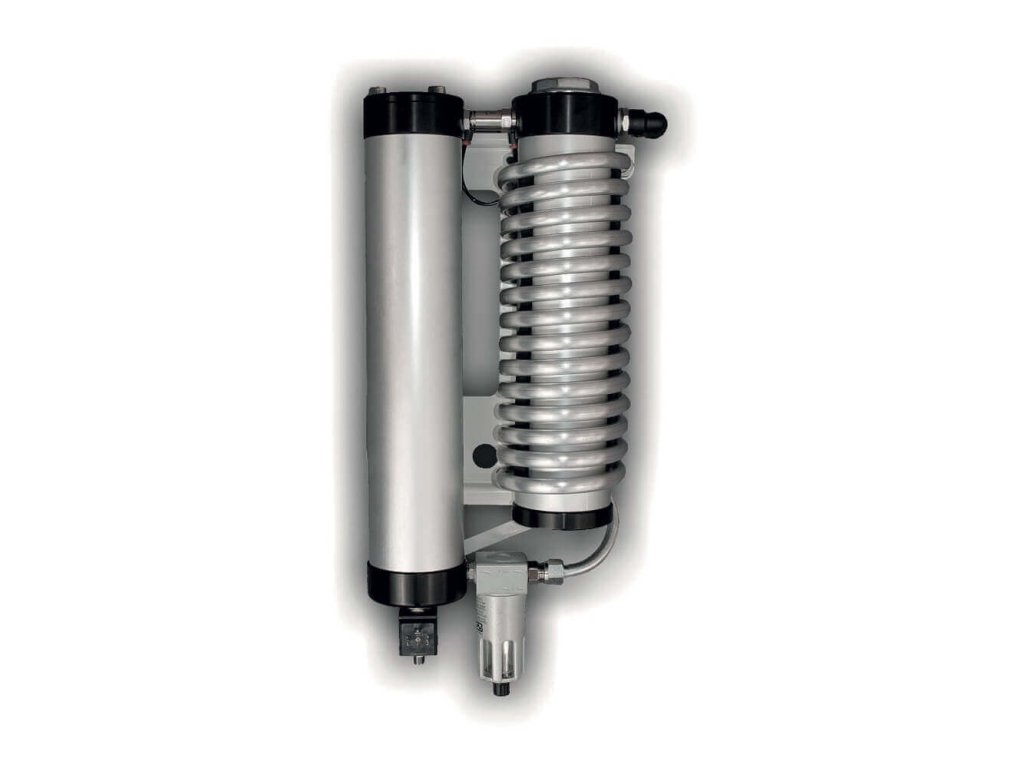

- adsorption dryer with silica gel — −40 °C dew point, automatic regeneration after every cycle
- open design — 74 dB(A) at one metre
- intake 350 l/min, delivery 155 l/min at 5 bar
- capacity of 2–3 dental chairs per the manufacturer (50 l/min at 5 bar per chair)

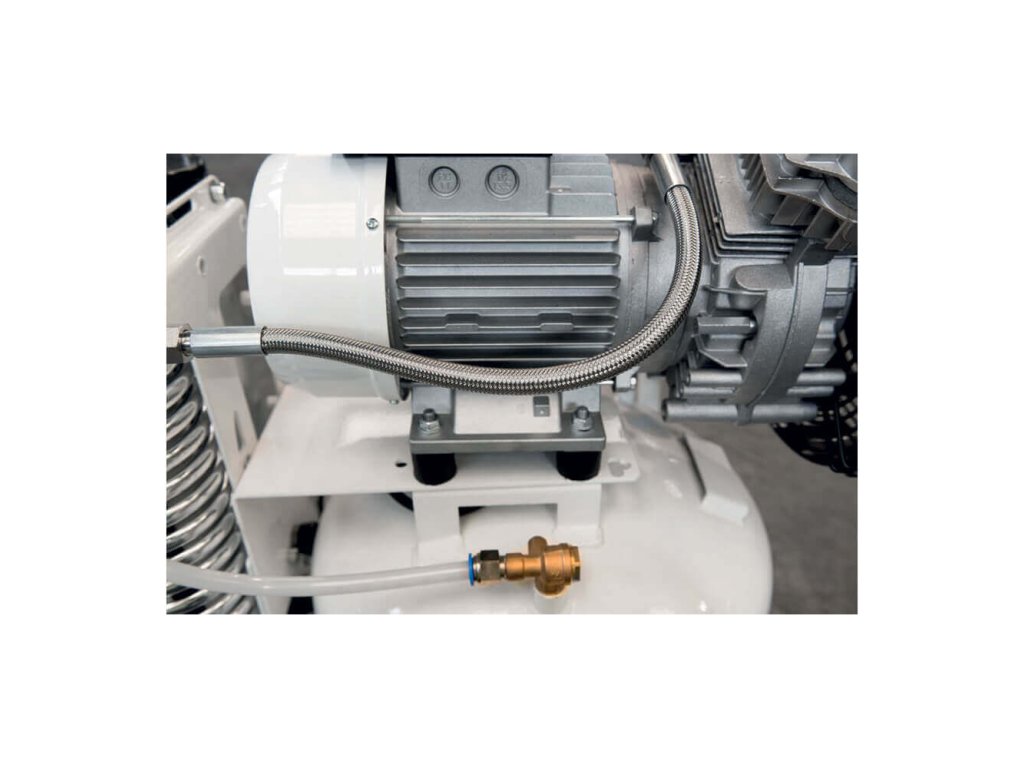

- 1.5 kW motor on four anti-vibration mounts, electric motor 230/50 V/Hz — an ordinary socket
- DN 7.2 quick coupling, weight 54 kg, dimensions 600 × 470 × 850 mm
- two-year warranty
Machine details
Where to go if the CLR-1,5-50MD does not fit
In a canopy it is the CLR-1,5-30MDS, without a dryer the CLR-1,5-50M. A stronger machine with a dryer is the CLR-2,0-50MD. The full overview is in the overview of the whole category.
Delivery is the amount of air the machine supplies at 5 bar (FAD per the manufacturer leaflet); intake is the volume drawn in by the pump unit. The noise figure is the sound pressure at one metre from the machine; the sound power level Lwa is in the parameters. The capacity in chairs is calculated on 50 l/min at 5 bar per chair.
Ventilek advises
This version covers most two-chair surgeries. If you are planning a third chair, look at the two-kilowatt machine — the difference in delivery is 85 l/min, almost another chair.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 8 bar |
| Suction power: | 350 l/min |
| Air delivery: | 155 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Standing |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 94 dB - Lwa, 74 dB - Lwp(4m) |
| Dimensions: | 600 X 470 X 850 mm |
| Weight: | 54 kg |
| Accessories: | Silent blocks, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | Yes |
| Retrieved from: | Professional |
| Development: | Stationary |
