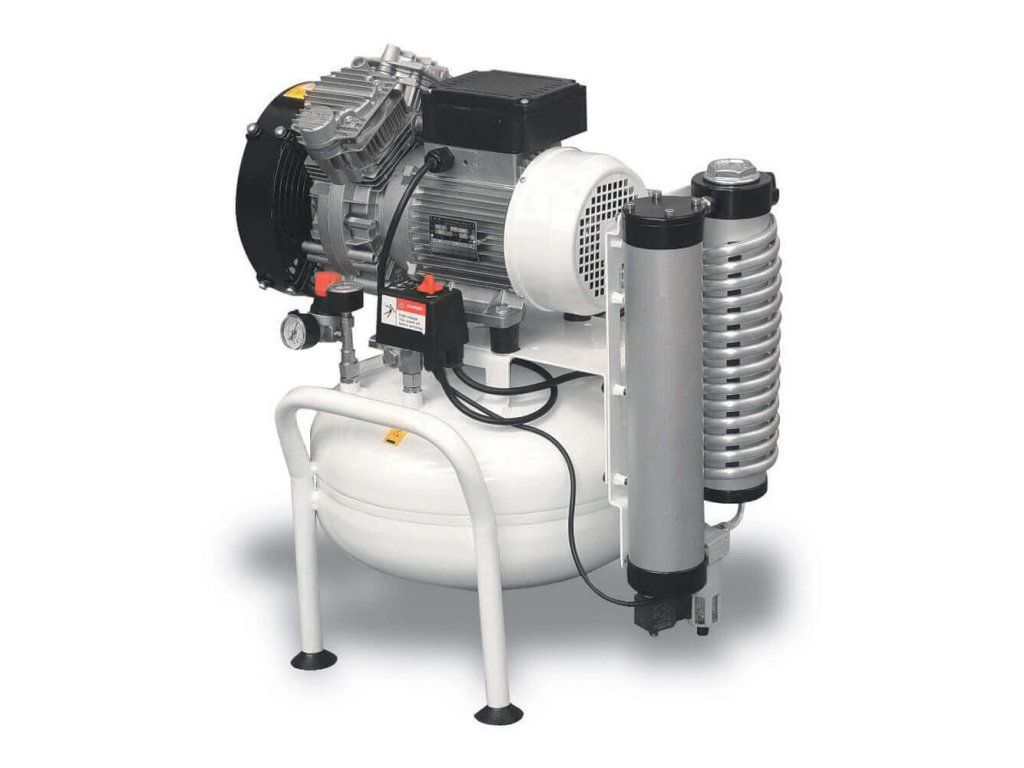

Clean Air CLR-1,5-25MD dental compressor motor power 1.5 kW, intake 350 l/min, delivery 155 l/min at 5 bar, pressure 8 bar, receiver 25 l, voltage 230/50 V/Hz
Code: CLR-1-5-25MD
Related products
Product detailed description
Clean Air CLR · dryer · 25 lDry air for two chairs in the smallest possible package. The CLR-1,5-25MD has an adsorption dryer at a −40 °C dew point and delivers 155 l/min at 5 bar — enough for two to three chairs. The receiver holds only 25 l, so the machine takes 550 × 470 mm of floor. Weight 50 kg.
A small receiver and a big pump
This combination makes sense where space is tight. The twenty-five-litre receiver is 18 cm lower than the fifty-litre one, and because the pump delivers 155 l/min, the receiver refills even under frequent draw.
When you draw in bursts and a lot — longer sandblasting, drying canals — the fifty-litre version makes more sense. The output is the same, but the reserve lasts longer and the motor starts less often.
Equipment and details
What the CLR-1,5-25MD does as standard
- oil-free pump unit — no oil can reach the air
- single-stage compressor, direct drive without belts, 1400 rpm
- 25 l pressure vessel with an epoxy coating inside, working pressure 8 bar
- adsorption dryer with silica gel — −40 °C dew point, automatic regeneration after every cycle
- open design — 74 dB(A) at one metre
- intake 350 l/min, delivery 155 l/min at 5 bar
- capacity of 2–3 dental chairs per the manufacturer (50 l/min at 5 bar per chair)
- 1.5 kW motor on four anti-vibration mounts, electric motor 230/50 V/Hz — an ordinary socket
- DN 7.2 quick coupling, weight 50 kg, dimensions 550 × 470 × 700 mm
- two-year warranty
Machine details
Where to go if the CLR-1,5-25MD does not fit
Without a dryer it is the CLR-1,5-25M, with a fifty-litre receiver the CLR-1,5-50MD. The quietest is the CLR-1,5-30MDS. The full overview is in the overview of the whole category.
Delivery is the amount of air the machine supplies at 5 bar (FAD per the manufacturer leaflet); intake is the volume drawn in by the pump unit. The noise figure is the sound pressure at one metre from the machine; the sound power level Lwa is in the parameters. The capacity in chairs is calculated on 50 l/min at 5 bar per chair.
Ventilek advises
The dryer takes space beside the receiver, not above it — the machine is eight centimetres wider than the version without it, but just as tall. When measuring the spot, think width, not height.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 8 bar |
| Suction power: | 350 l/min |
| Displacement: | 155 l/min |
| Pressure vessel volume: | 25 L |
| Design of pressure vessel: | Standing |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 94 dB - Lwa, 74 dB - Lwp(4m) |
| Dimensions: | 550 X 470 X 700 mm |
| Weight: | 50 kg |
| Accessories: | Silent blocks, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | Yes |
| Retrieved from: | Professional |
| Development: | Stationary |
