Oil-lubricated compressor ABAC L30PN-2.2-24CM motor power 2.2 kW, air intake 310 l/min, pressure 10 bar, horizontal air receiver 24 l, voltage 230/50 V/Hz
Code: L30PN-2-2-24CM
Related products
Product detailed description
24 l · 2.2 kW · 29 kgThe stronger pump on the smallest tank. The L30PN-2.2-24CM gives 310 l/min from 2.2 kW and fills the 24 l tank faster than its weaker twin — for the tradesman who now and then hooks up a ratchet wrench or a blow gun alongside the nailer and does not want to wait for pressure. Twenty-nine kilos, two wheels, an ordinary socket, 10 bar.
Small tank, fast filling
With 310 l/min the L30P pump fills the twenty-four noticeably faster than the L25P and, between bursts of air, holds the pressure closer to the top limit. In practice that means the nailer fires evenly even in quick succession, the ratchet wrench does not flag and the blow gun does not stutter. The price is just one kilo more weight and two decibels more noise. The tank stays small on purpose: the machine is meant to be light for the van, not a reservoir for a sander.
Equipment and details
What the L30PN-2.2-24CM has from the factory
- single-cylinder oil-lubricated L30P pump with direct drive, 2.2 kW, 2,850 rpm
- single-phase 230 V / 50 Hz motor, thermal overload protection, cover with a fan and a recessed intake filter
- horizontal 24 l tank, 10 bar, condensate drain valve underneath
- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling

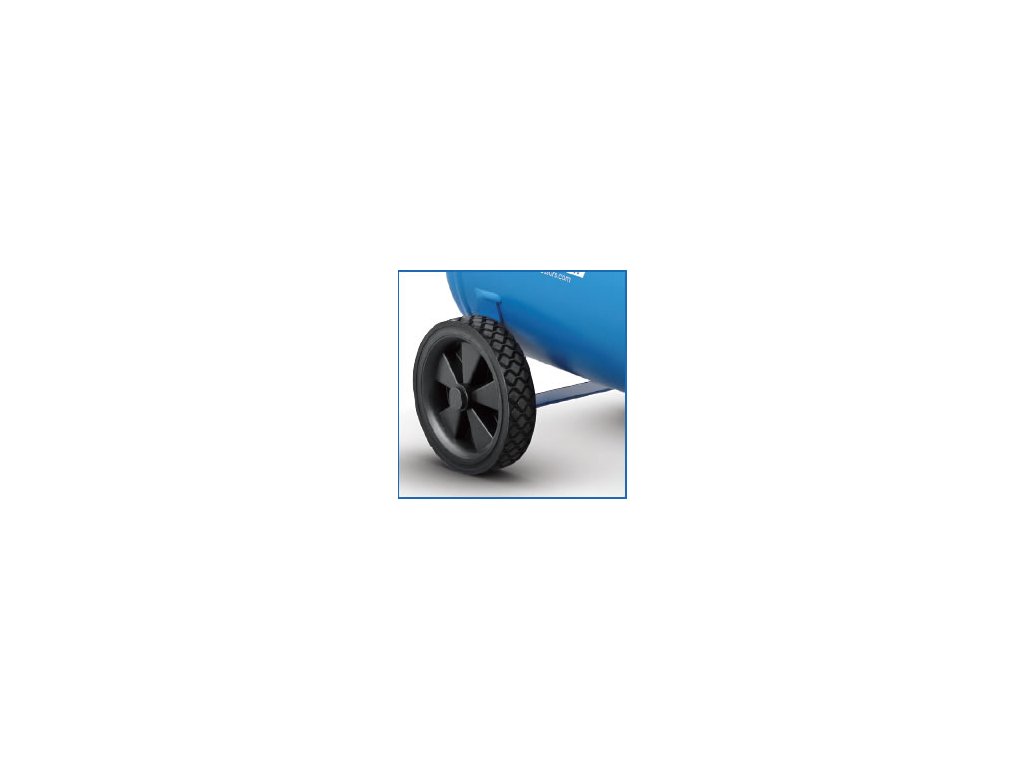

- two wheels, rubber foot, short rubber-gripped handle
- oil sight glass on the outside, fill volume approximately two deciliters
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the L30PN-2.2-24CM is not the right fit
If less air will do, you save with the L25P-1.8-24CM — same tank, 1.8 kW. If you need a tank in a frame for the site, take the L30PN-2.2-20RM. All six versions are compared on the L25P and L30P range page; for even lighter machines, look at the lighter L20N range. For the hose to the tool, add a spiral hose.
Values apply to a 230 V / 50 Hz supply. The noise figure is the sound power level Lwa; at 4 m from the machine it is roughly 20 dB less. The machine is built for intermittent duty, not for continuous operation.
Ventilek advises
Twenty-four litres and 2.2 kW — the fastest-filling compressor in the range, and one you can still lift into the van on your own.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779164 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 310 l/min |
| Air delivery: | 186 l/min |
| Pressure vessel volume: | 24L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 630 × 320 × 620 mm |
| Weight: | 29 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | External warehouse |
