Oil-lubricated compressor ABAC L25P-1.8-24CM motor power 1.8 kW, air intake 270 l/min, pressure 10 bar, horizontal air receiver 24 l, voltage 230/50 V/Hz
Code: L25P-1-8-24CM
Related products
Product detailed description
24 l · 1.8 kW · 28 kgThe smallest and lightest oil-lubricated compressor in the range. The L25P-1.8-24CM weighs 28 kg, the L25P pump with 1.8 kW draws in 270 l/min and the 24 l tank on wheels fills to 10 bar in a few tens of seconds. For a stapler, a nailer, a tyre inflator and blowing off it is everything a workshop or a van needs — from an ordinary socket, with a regulator and two gauges from the factory.
Why a twenty-four with 1.8 kW
A small tank and the weaker pump are no compromise when the tools take air in bursts. The stapler fires, the tank drops by a few tenths of a bar and the pump tops it up before you pull the trigger again; the motor cycles calmly and cools down in between. Twenty-eight kilos you lift into the van in one go, and in the workshop the machine slides under the bench. If you want an impact wrench or short spraying jobs, reach for the fifty; if all you want is more air from the same tank, reach for the L30PN-2.2-24CM.
Equipment and details
What the L25P-1.8-24CM has from the factory

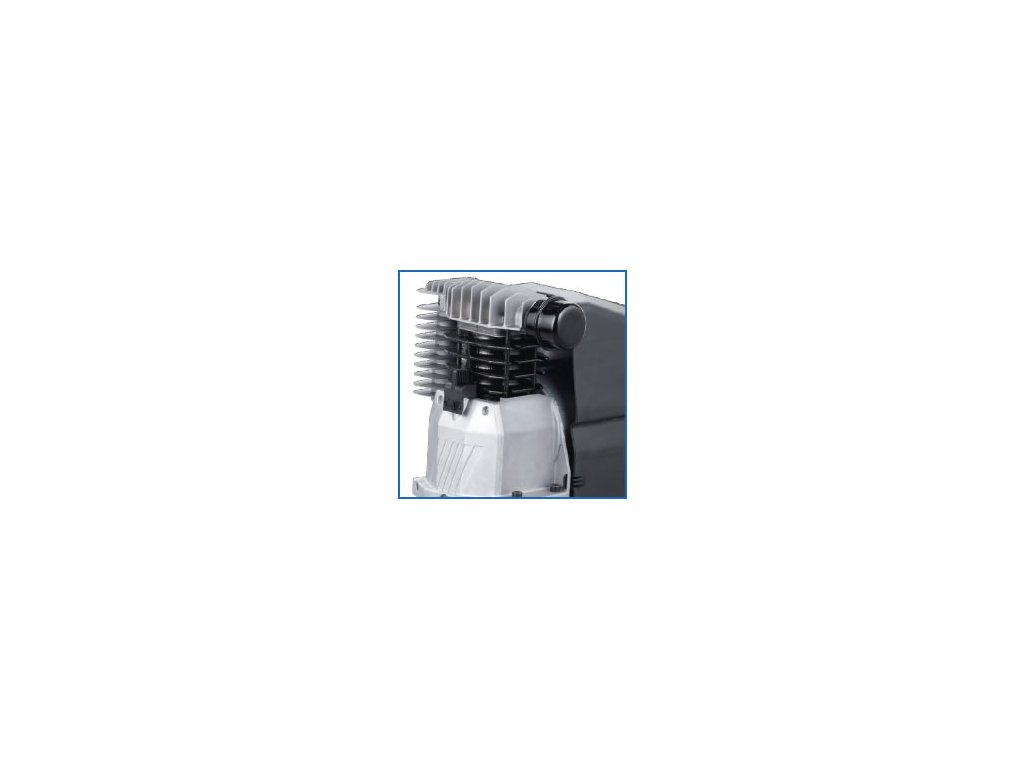

- single-cylinder oil-lubricated L25P pump with direct drive, 1.8 kW, 2,850 rpm
- single-phase 230 V / 50 Hz motor, thermal overload protection, cover with a fan and a recessed intake filter
- horizontal 24 l tank, 10 bar, condensate drain valve underneath

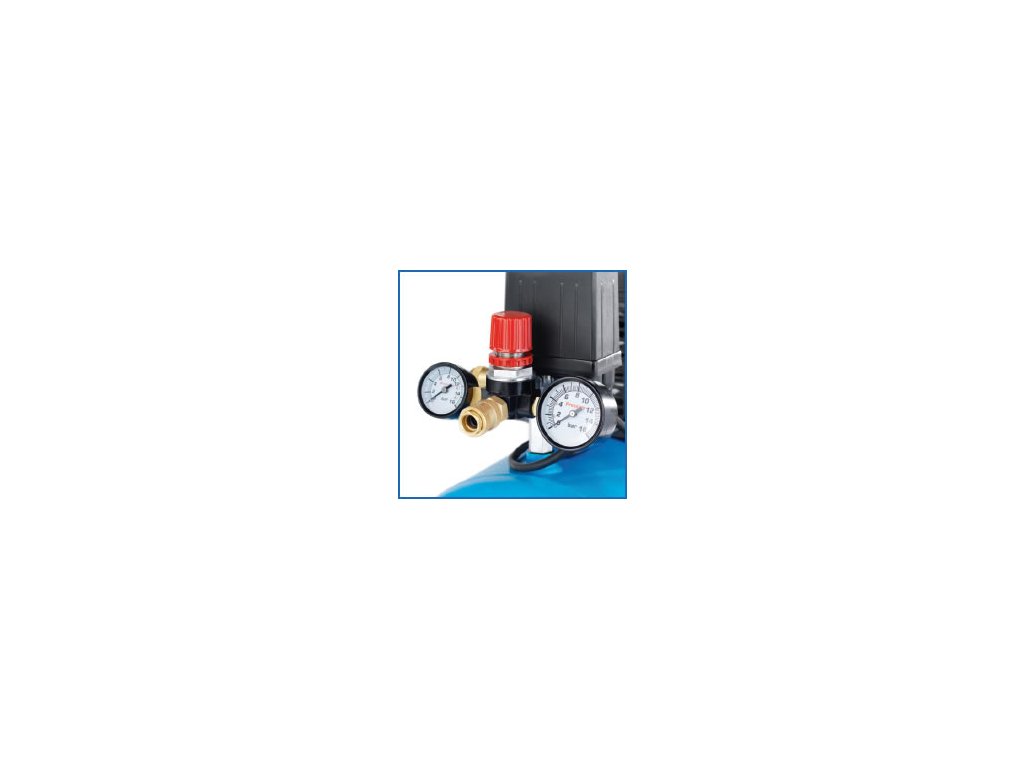

- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling

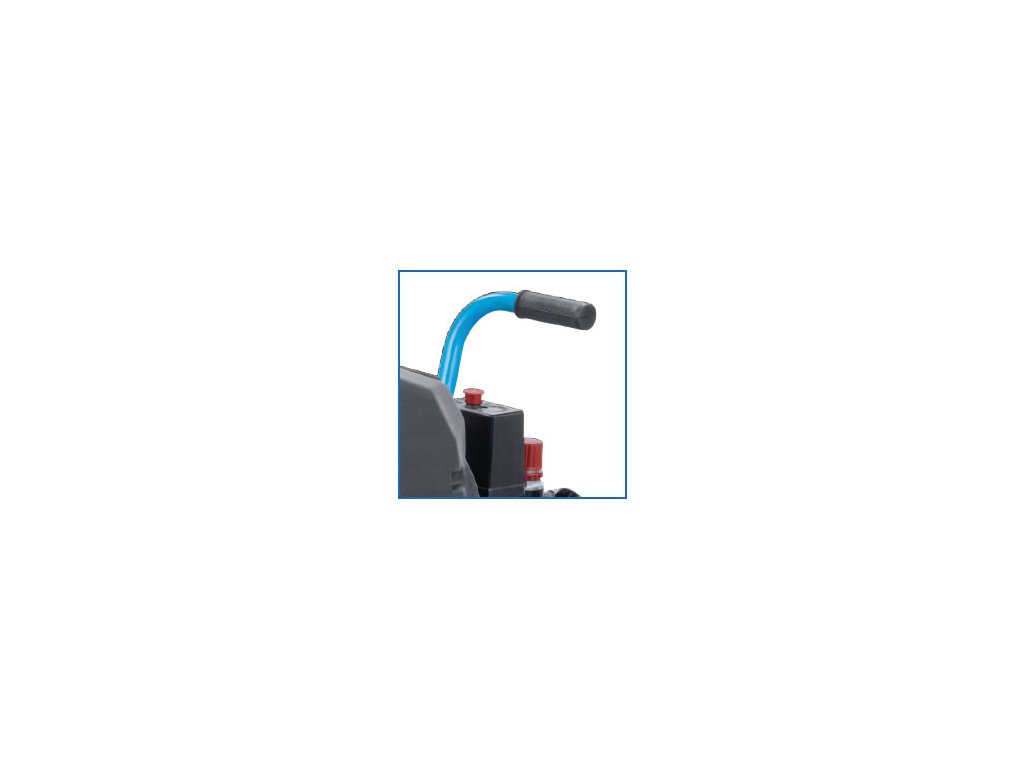

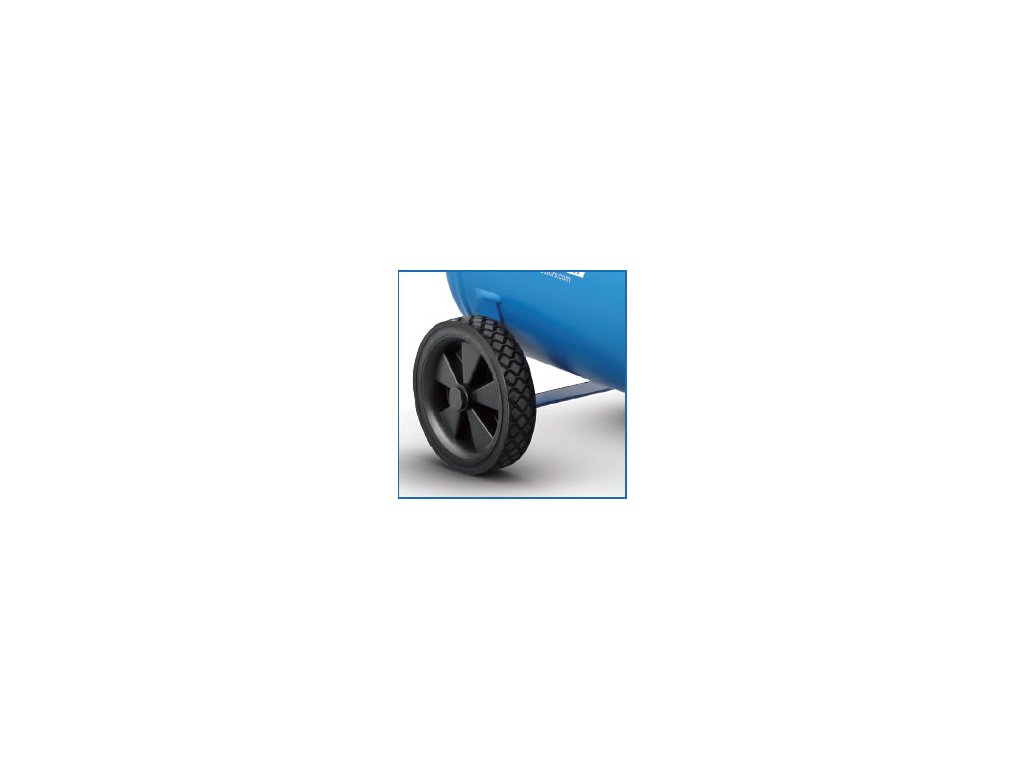

- two wheels, rubber foot, short rubber-gripped handle
- oil sight glass on the outside, fill volume approximately two decilitres
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the L25P-1.8-24CM is not the right fit
The same tank with the stronger pump is the L30PN-2.2-24CM — 310 l/min for one kilo more. A longer reserve for an impact wrench comes with the L25P-1.8-50CM. All six versions side by side are on the L25P and L30P range page; twenty-four-litre machines from other brands are among compressors with a 24 l tank. For the first service, add ALTAIR oil for one change.
Values apply to a 230 V / 50 Hz supply. The noise figure is the sound power level Lwa; at 4 m from the machine it is roughly 20 dB less. The machine is built for intermittent duty, not for continuous operation.
Ventilek advises
Twenty-eight kilos and 24 litres — a compressor that rides in the van with the joiner, not one you walk over to.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779140 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 270 l/min |
| Air delivery: | 162 l/min |
| Pressure vessel volume: | 24L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.8 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Dimensions: | 630 × 320 × 620 mm |
| Weight: | 28 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | External warehouse |
