Oil-lubricated compressor ABAC L25P-1.8-50CM motor power 1.8 kW, air intake 270 l/min, pressure 10 bar, horizontal air receiver 50 l, voltage 230/50 V/Hz
Code: L25P-1-8-50CM
Related products
Product detailed description
50 l · 1.8 kW · 36 kgFifty litres of reserve and 36 kg — the L25P-1.8-50CM is an oil-lubricated compressor for the garage and the smaller workshop, where an impact wrench, a tyre inflator, blowing off and now and then a spray gun take turns. The L25P pump with 1.8 kW draws in 270 l/min, the horizontal tank evens out a burst draw and the switch cuts out at 10 bar. An ordinary socket, two wheels, a rubber-gripped handle.
What fifty litres do for the smaller pump
The tank does not increase the intake, but it gives the pump time: an impact wrench gets several bursts out of fifty litres before the pressure drops to the switch threshold, and the motor starts less often. That is exactly what a single cylinder with 1.8 kW needs — to work in cycles with a pause, not in one stretch. It handles short spraying jobs or blowing off a whole engine without waiting; a random orbital sander will get ahead of it. Against the twenty-four it is eight kilos heavier and thirty centimetres longer.
Equipment and details
What the L25P-1.8-50CM has from the factory

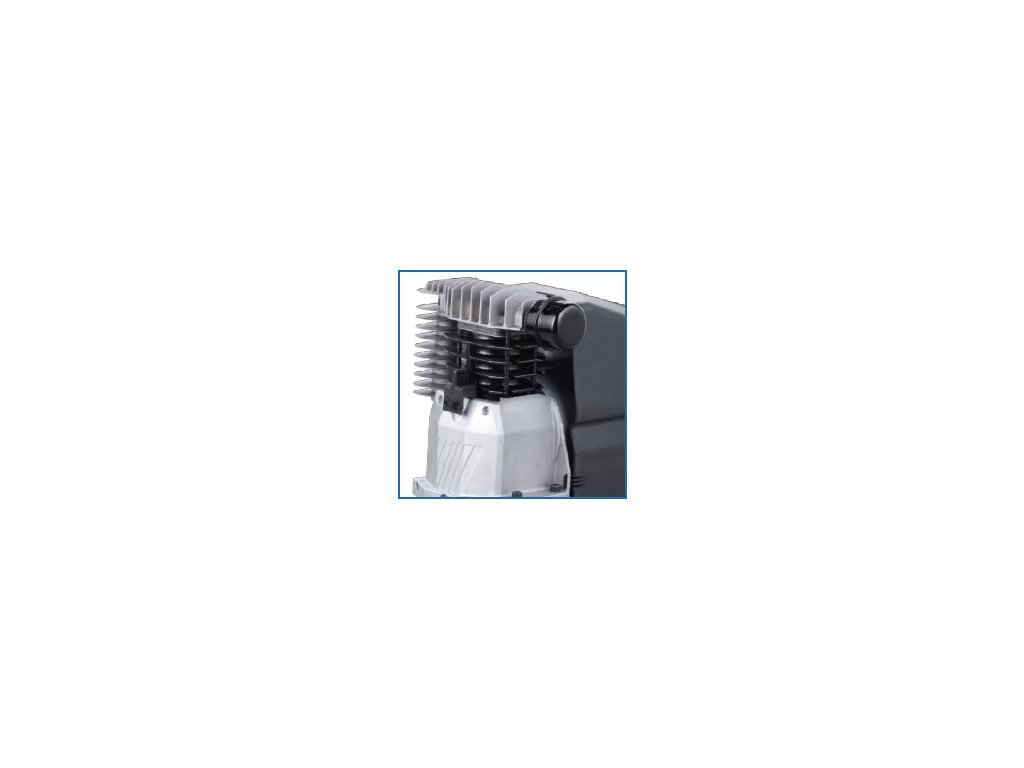

- single-cylinder oil-lubricated L25P pump with direct drive, 1.8 kW, 2,850 rpm
- single-phase 230 V / 50 Hz motor, thermal overload protection, cover with a fan and a recessed intake filter
- horizontal 50 l tank, 10 bar, condensate drain valve underneath

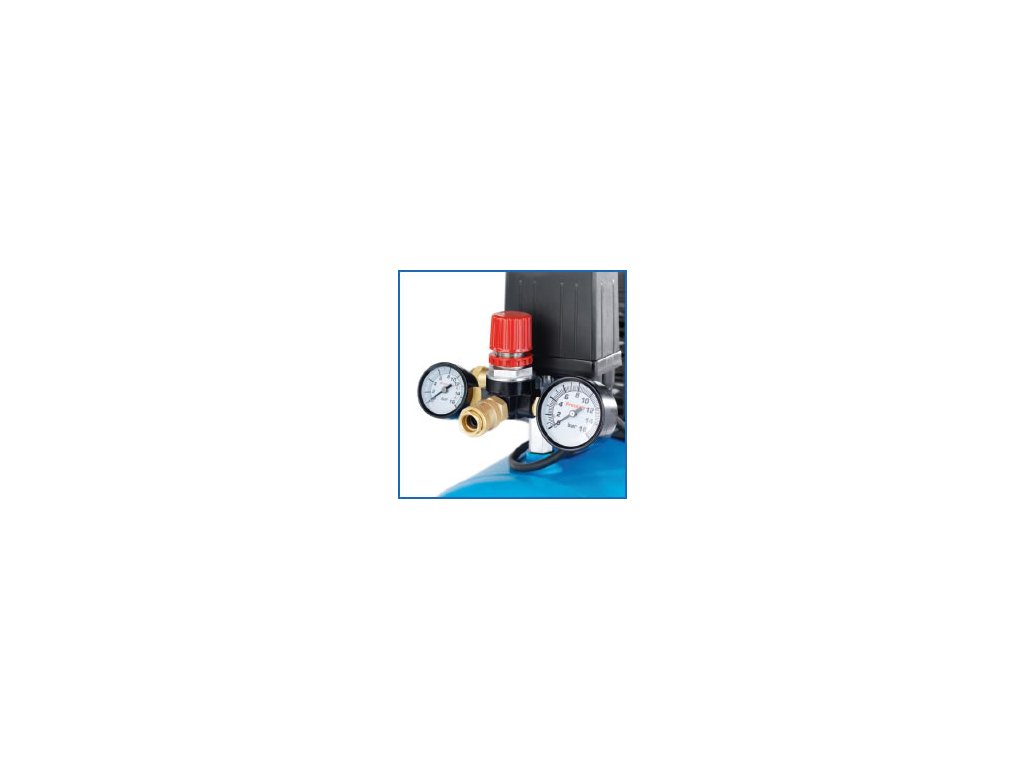

- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling

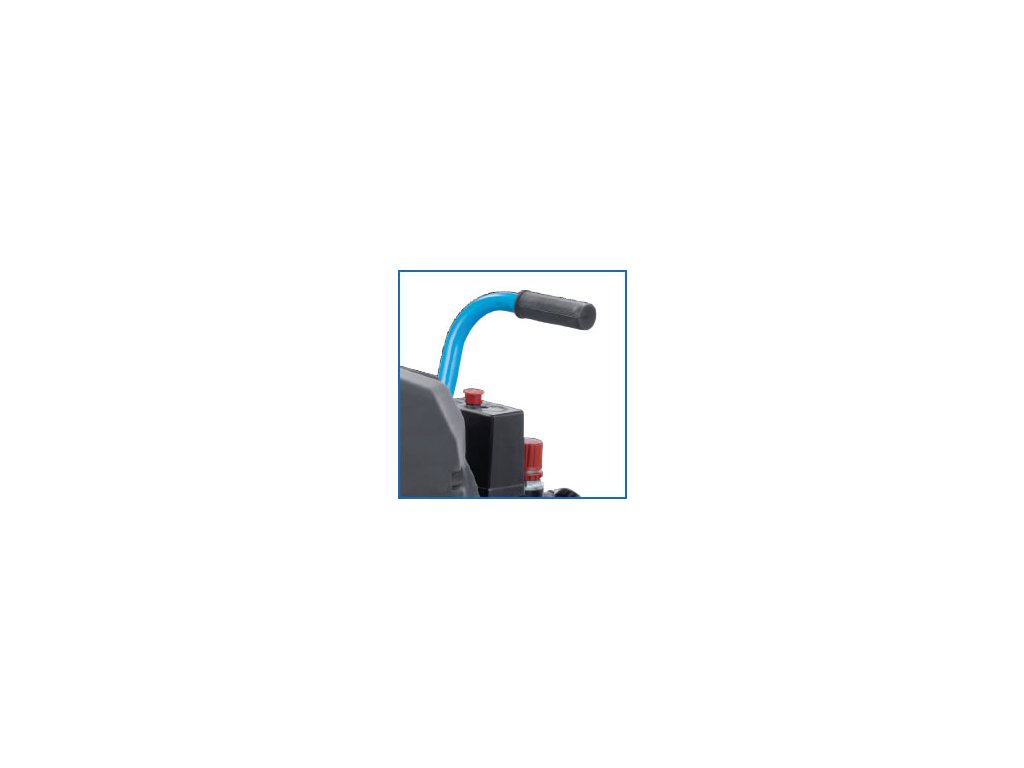

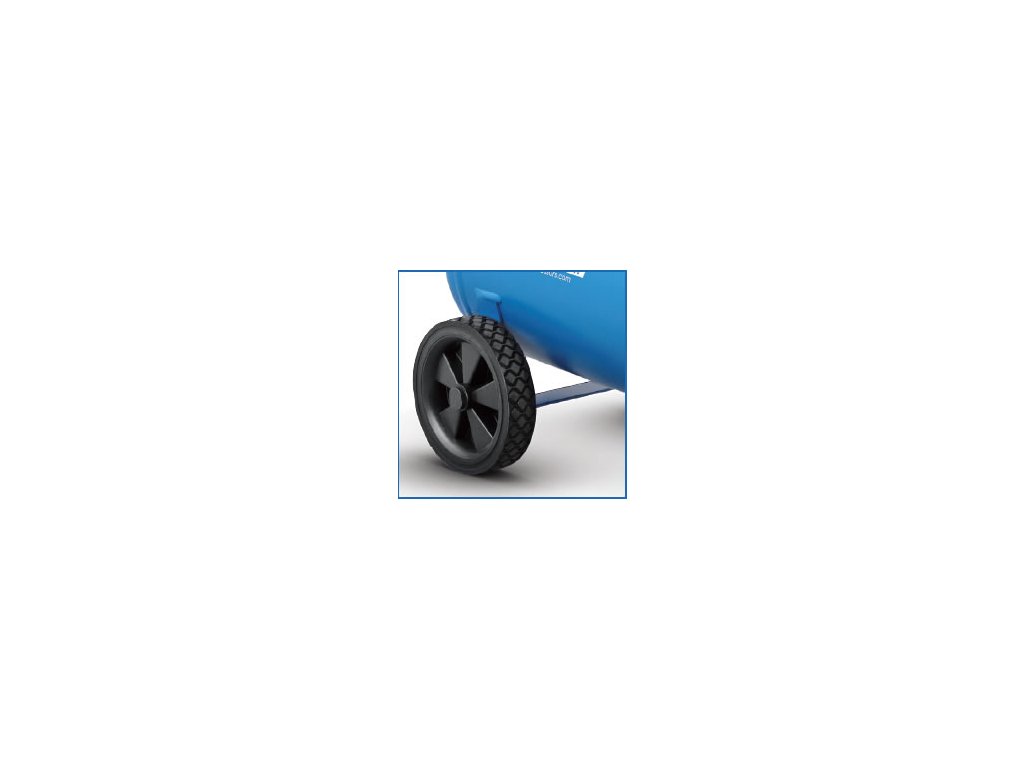

- two wheels, rubber foot, short rubber-gripped handle
- oil sight glass on the outside, fill volume approximately two decilitres
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the L25P-1.8-50CM is not the right fit
If you want more air from the same fifty litres, take the L30PN-2.2-50CM — 310 l/min, otherwise the same machine. If you want double, go for a V-twin: the V-twin V36-2.2-50CM. A comparison of all six versions is on the L25P and L30P range page; fifty-litre machines from other brands are among compressors with a 50 l tank. For wheel changes, add an impact wrench.
Values apply to a 230 V / 50 Hz supply. The noise figure is the sound power level Lwa; at 4 m from the machine it is roughly 20 dB less. The machine is built for intermittent duty, not for continuous operation.
Ventilek advises
A fifty with 1.8 kW is a machine for ‘do the job and switch off’ — and for that it is the most sensible compressor for the money in the garage.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779157 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 270 l/min |
| Air delivery: | 162 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.8 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Dimensions: | 940 × 320 × 700 mm |
| Weight: | 36 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | External warehouse |
