Oil-lubricated compressor ABAC L30PN-2.2-50CM motor power 2.2 kW, air intake 310 l/min, pressure 10 bar, horizontal air receiver 50 l, voltage 230/50 V/Hz
Code: L30PN-2-2-50CM
Related products
Product detailed description
50 l · 2.2 kW · 37 kgThe sensible middle ground of the whole range. The L30PN-2.2-50CM pairs the L30P pump with 310 l/min and a fifty-litre tank: enough displacement for an impact wrench and enough reserve for short spraying jobs or sanding with breaks. Thirty-seven kilos on two wheels, an ordinary socket, 10 bar, a regulator and two gauges from the factory.
Why this particular combination
The stronger pump fills the tank faster and the tank gives it time between cycles — so the L30PN-2.2-50CM covers more tools than any other machine in the range without weighing over forty kilos. An impact wrench on wheel nuts, a ratchet, a nailer, blowing off, inflating, a quick spray of a door or a frame: all without waiting. A random orbital sander or a spray gun on a whole car body is a job for the ninety or a V-twin.
Equipment and details
What the L30PN-2.2-50CM has from the factory

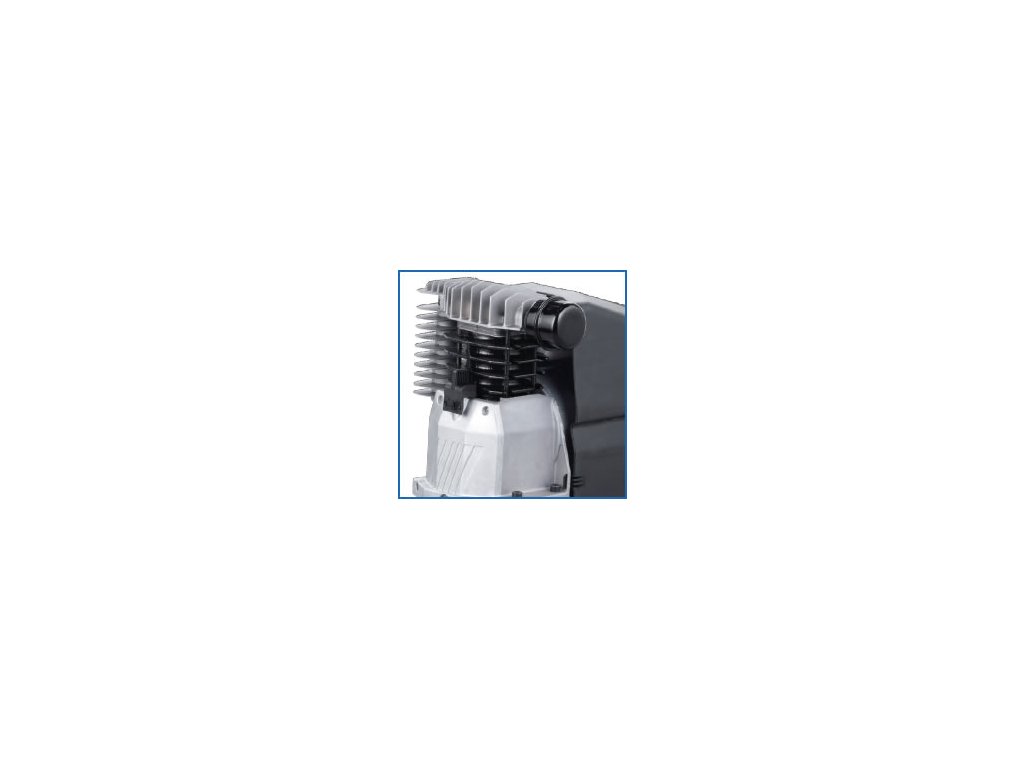

- single-cylinder oil-lubricated L30P pump with direct drive, 2.2 kW, 2,850 rpm
- single-phase 230 V / 50 Hz motor, thermal overload protection, cover with a fan and a recessed intake filter
- horizontal 50 l tank, 10 bar, condensate drain valve underneath

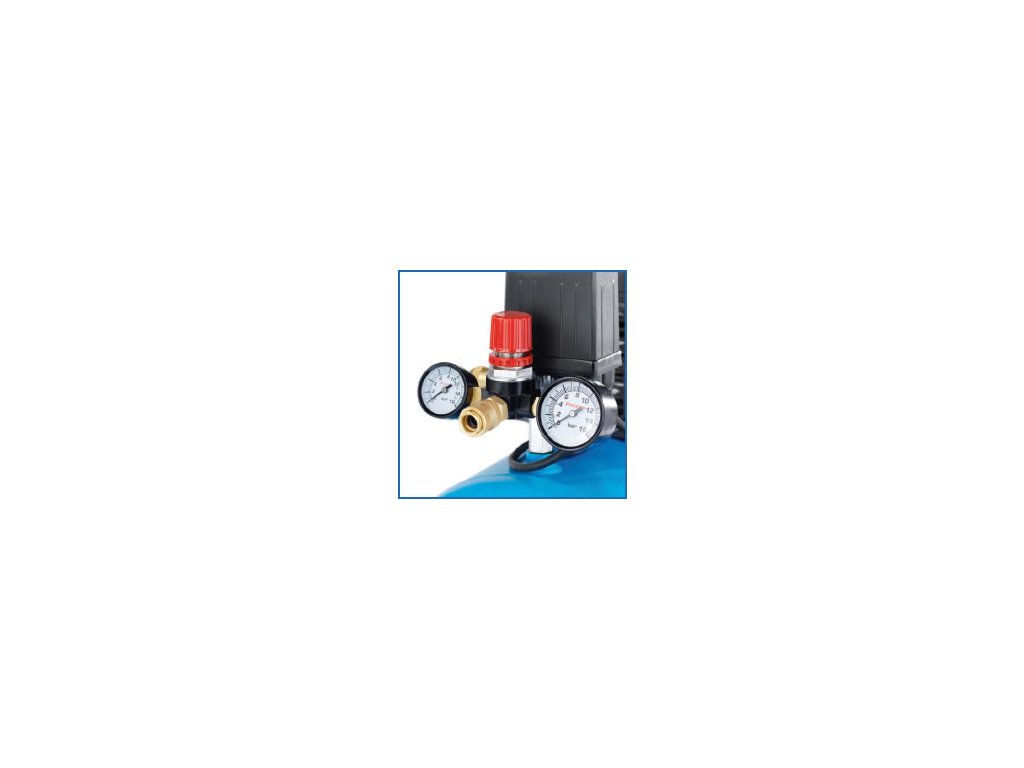

- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling

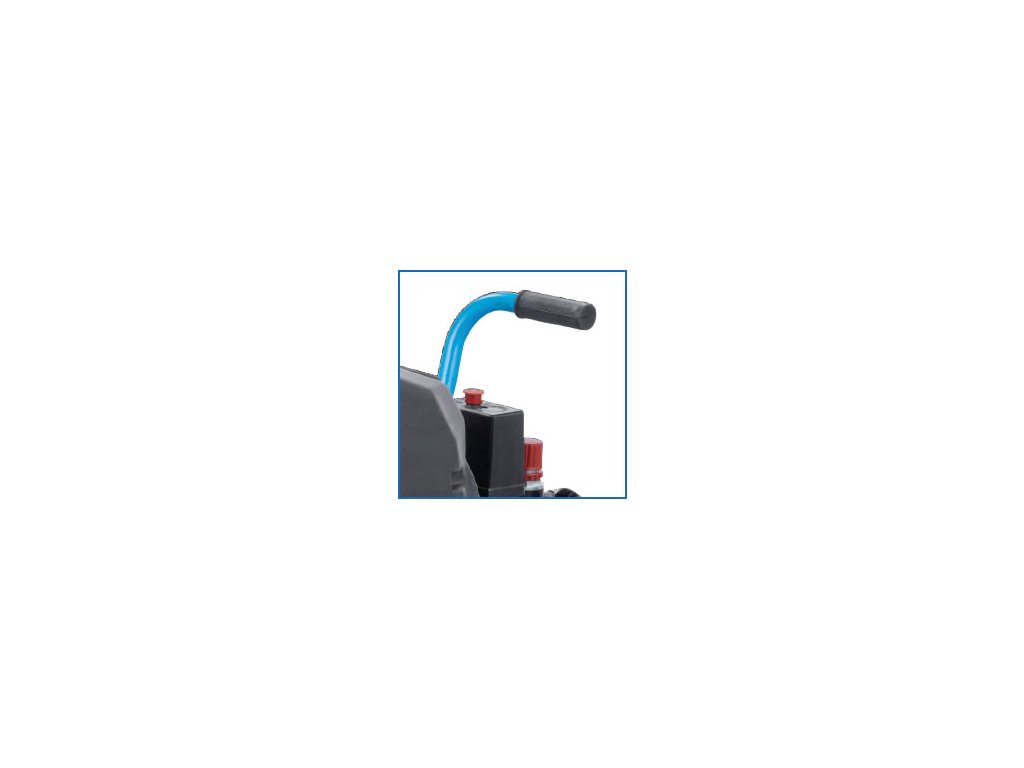

- two wheels, rubber foot, short rubber-gripped handle
- oil sight glass on the outside, fill volume approximately two decilitres
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the L30PN-2.2-50CM is not the right fit
If you sand or spray for longer, take the forty extra litres of the L30PN-2.2-90CM; if tools in bursts are all you need, you save with the L25P-1.8-50CM. All six versions are on the L25P and L30P range page. Before you put it to work spraying, read what that involves in the article on spray painting with a compressor; and ahead of the gun, fit a regulator with a filter.
Values apply to a 230 V / 50 Hz supply. The noise figure is the sound power level Lwa; at 4 m from the machine it is roughly 20 dB less. The machine is built for intermittent duty, not for continuous operation.
Ventilek’s tip
If you do not know which fifty, take this one — 310 l/min and 50 l cover most workshops, and two of you can still lift it.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779171 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 310 l/min |
| Air delivery: | 186 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 940 × 320 × 700 mm |
| Weight: | 37 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | External warehouse |
