Oil-lubricated compressor ABAC L30PN-2.2-90CM motor power 2.2 kW, air intake 310 l/min, pressure 10 bar, horizontal air receiver 90 l, voltage 230/50 V/Hz
Code: L30PN-2-2-90CM
Related products
Product detailed description
90 l · 2.2 kW · 63 kgThe biggest reserve a single cylinder in the range gets. The L30PN-2.2-90CM has a ninety-litre tank, so a spray gun or a random orbital sander runs for minutes at a stretch and the L30P unit with 310 l/min seldom cuts in. Sixty-three kilos on two wheels, 1.2 m long — a machine with a permanent spot in the workshop that will still wheel out to the car.
When ninety litres makes sense on a single cylinder
Tools with a continuous draw — a gun, a sander, longer blowing off — empty a small tank in seconds, and a single cylinder then runs without a pause. Ninety litres turns that around: the tool draws on the reserve, the motor tops up in cycles and cools down in between, as it should. The price is a machine 1.2 m long that weighs 63 kg and wants a permanent spot in the workshop; on a flat floor you wheel it by the handle, but into the van it takes two of you. If you spray all day, you need a two-cylinder compressor.
Equipment and details
What the L30PN-2.2-90CM has from the factory
- single-cylinder oil-lubricated L30P pump with direct drive, 2.2 kW, 2,850 rpm
- single-phase 230 V / 50 Hz motor, thermal overload protection, cover with a fan and a recessed intake filter
- horizontal 90 l tank, 10 bar, condensate drain valve underneath

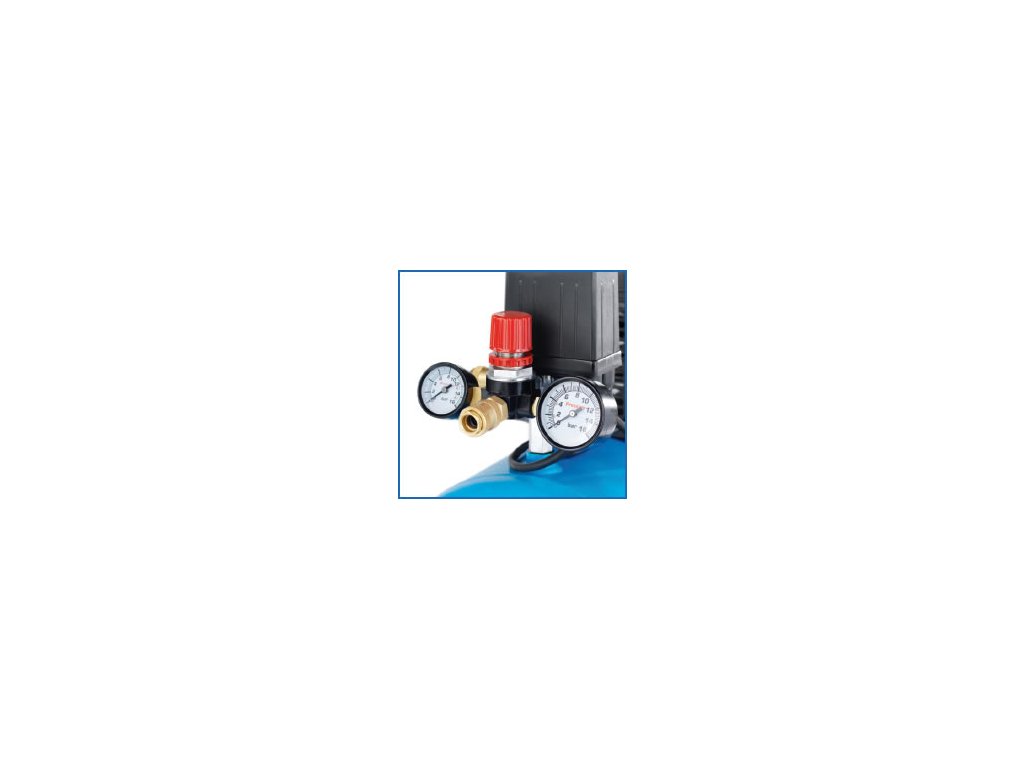

- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling

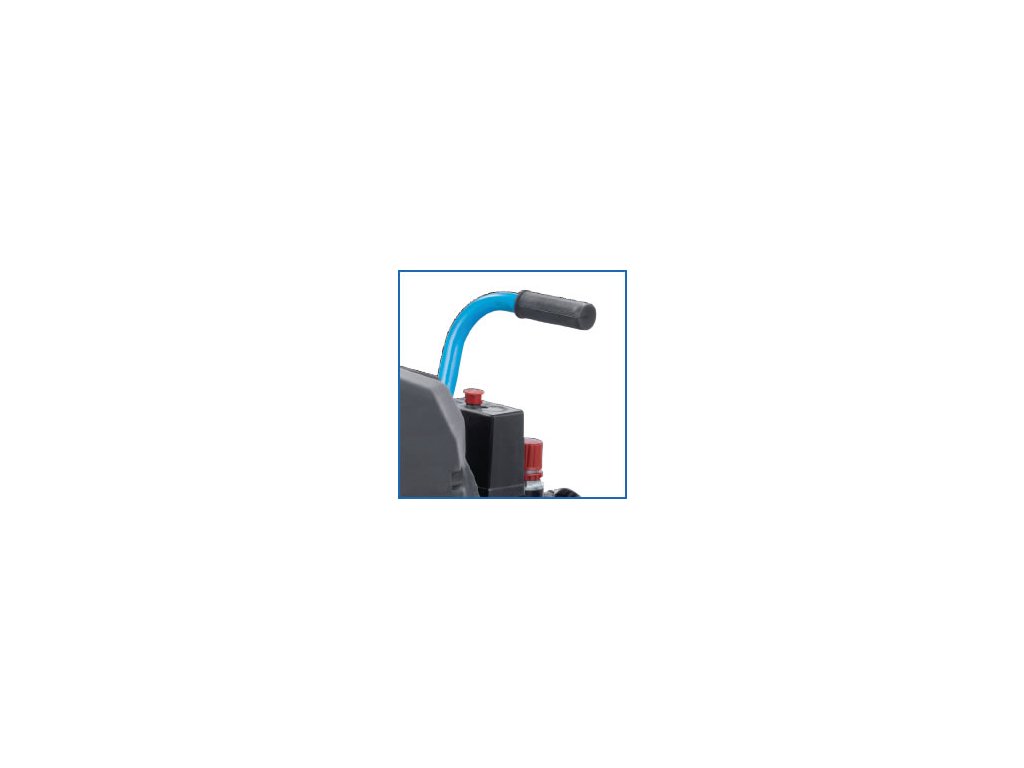

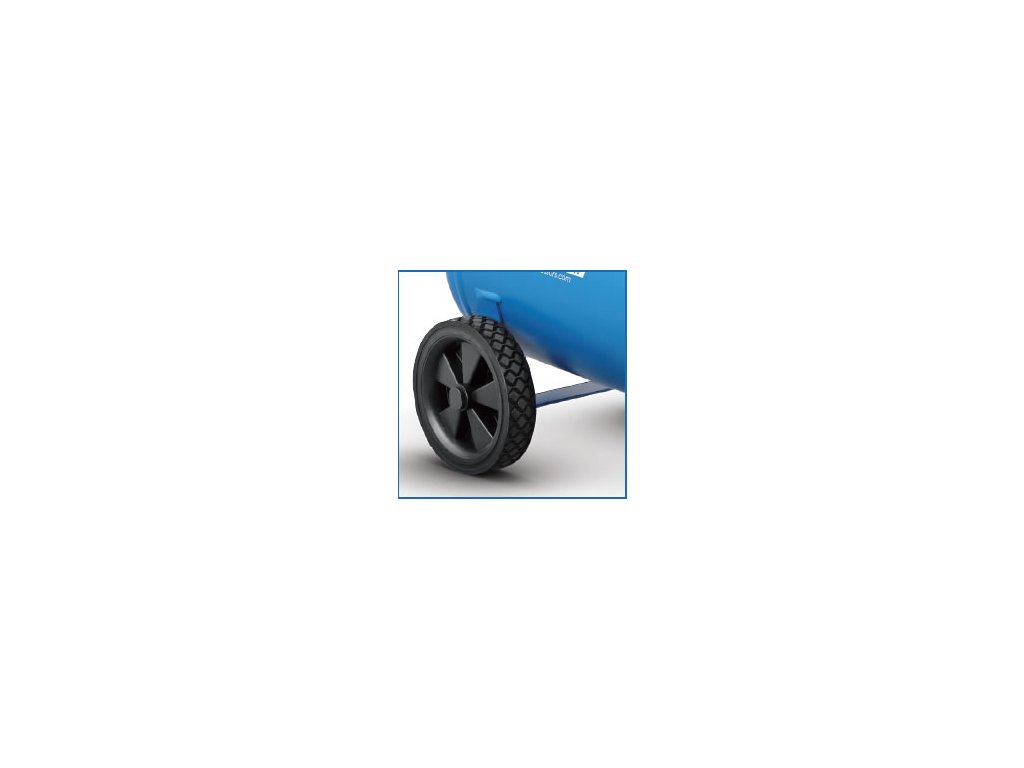

- two wheels, two rubber feet, short rubber-gripped handle
- oil sight glass on the outside, fill volume approximately two decilitres
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the L30PN-2.2-90CM is not the right fit
If half the reserve is enough and you want to save twenty-six kilos, take the L30PN-2.2-50CM. If you want a ninety that runs all day, go for the low-speed V30 range. All six versions are on the L25P and L30P range page; ninety-litre machines from other brands are among compressors with a 90 l tank. For smooth sanding, add a random orbital sander.
Values apply to a 230 V / 50 Hz supply. The noise figure is the sound power level Lwa; at 4 m from the machine it is roughly 20 dB less. The machine is built for intermittent duty, not for continuous operation.
Ventilek recommends
Ninety litres turns a single cylinder into a machine for the spray gun — as long as you are spraying a door and not a lorry.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779188 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 310 l/min |
| Air delivery: | 186 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 1 200 × 400 × 850 mm |
| Weight: | 63 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | External warehouse |
