Vertical compressor ABAC V30-2.2-50VM motor power 2.2 kW, air displacement 330 l/min, pressure 10 bar, vertical air receiver 50 l, voltage 230/50 V/Hz
Code: V30-2-2-50VM
Related products
Product detailed description
50 l · 1,450 rpm · 62 kgFifty litres standing up. The V30-2.2-50VM is a vertical compressor that takes up 52 × 41 cm of floor and yet has the same V30 pump as the horizontal machines: two pistons in a V, 1,450 rpm, 330 l/min and 10 bar from an ordinary socket. The vertical tank stands against a wall or in the corner of the van, the long locking handle tilts it onto its wheels and you wheel 62 kg about like a sack truck.
What a vertical tank gives you, and what it costs you
A footprint a third smaller than the horizontal fifty and a height of 1.1 m — a vertical compressor fits where a horizontal one would be in the way: between the bench and the wall, in the corner of the van, under the stairs. Capacity, pump, panel and output are the same as on the 50CM, so a sander and a spray gun run just as smoothly. What the height costs you is the centre of gravity: on an uneven floor it stands less steadily than a horizontal tank, and you cannot work over the machine. The handle adjusts and comes off once the machine has a permanent spot.
Equipment and details
What the V30-2.2-50VM has from the factory

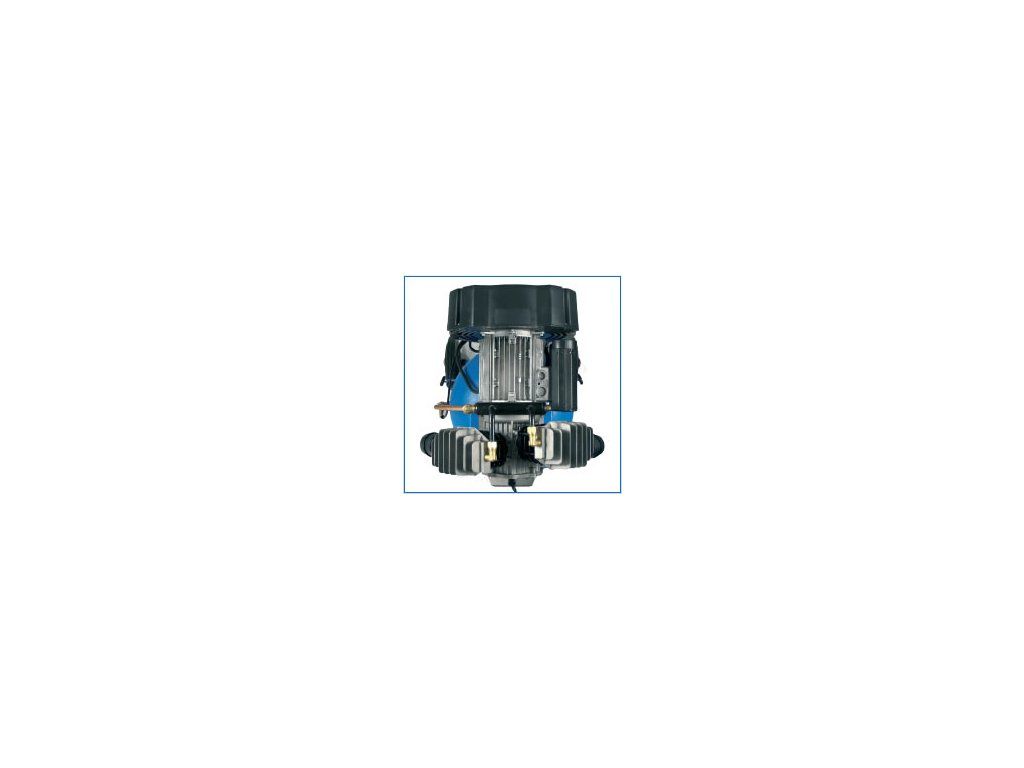

- oil-lubricated direct-drive V-twin V30 pump, 2.2 kW / 3 HP, 1,450 rpm
- four-pole single-phase 230 V / 50 Hz motor, thermal overload protection, large fan
- vertical 50 l tank, 10 bar, condensate drain valve underneath, footprint 520 × 410 mm
- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling
- two wheels, two rubber feet, long adjustable locking handle
- oil sight glass on the outside, capacity roughly a quarter of a litre
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank
Machine details
Where next if the V30-2.2-50VM is not the right fit
The same fifty lying down is the V30-2.2-50CM — steadier on an uneven floor, with a swivel castor. The other tanks in the range are on the V30 range page. Vertical tanks of all brands, from piston to screw, are among compressors with a vertical tank. Before you put it to work spraying, read what that involves in the article on spray painting with a compressor.
Values apply to a 230 V / 50 Hz supply. The 97 dB Lwa noise figure is the sound power level, roughly 77 dB at 4 m from the machine. The machine is built for intermittent duty, not for continuous operation; the lead time is shown in the Availability line.
Ventilek advises
A vertical tank is not for show — it is half a bench of floor space that stays free in your workshop.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900701616 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 330 l/min |
| Displacement: | 257 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Standing |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1450 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 520 × 410 × 1 100 mm |
| Weight: | 62 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
