Mobile compressor ABAC V36-2.2-50CM motor power 2.2 kW, air displacement 355 l/min, pressure 10 bar, air receiver 50 l, voltage 230/50 V/Hz
Code: V36-2-2-50CM
Related products
Product detailed description

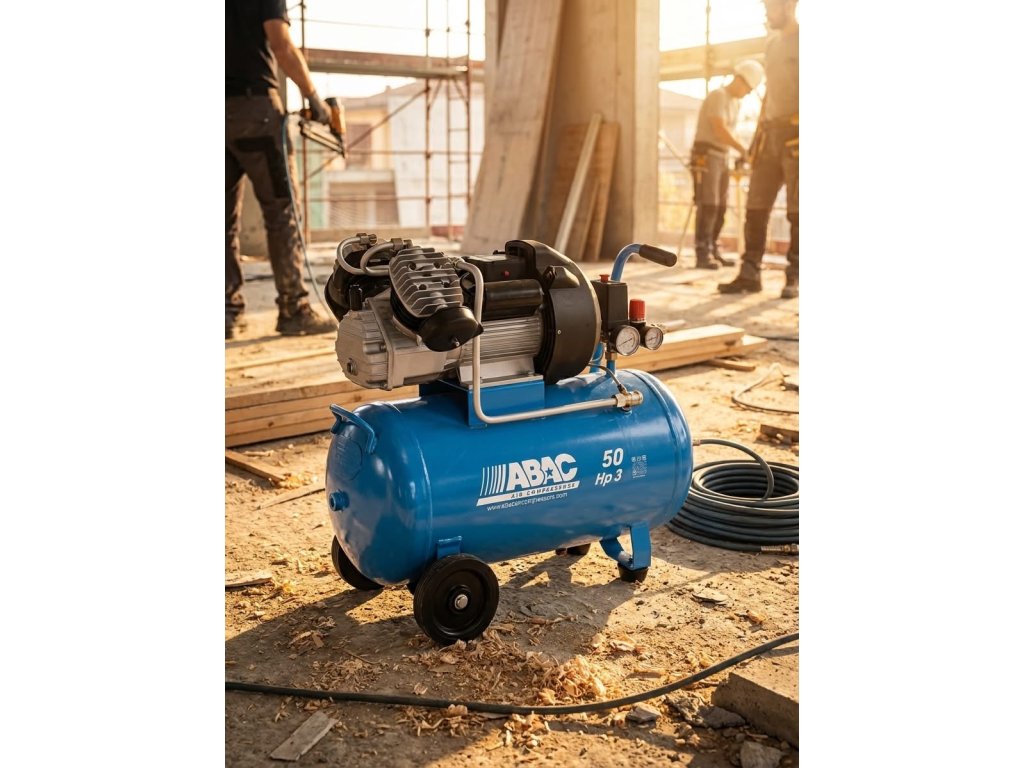

355 l/min · 50 l · 42 kgTwo cylinders, one socket. The V36-2.2-50CM is a twin-cylinder direct-drive compressor that pulls 355 l/min displacement and 277 l/min FAD at 10 bar out of a 230 V supply — the most air from single-phase in the whole ABAC Line range. The 50-litre horizontal tank sits on two rubber-tyred wheels; the machine weighs 42 kg and has a tubular handle and a lifting eye on the tank for a two-person lift. Pressure switch, regulator and two gauges are fitted as standard.
What two cylinders do for you
The V36 pump has two finned cylinders in a V with 47 mm pistons, each with its own intake filter, and sits directly on the motor shaft — no belt and nothing to tension. At 2,850 rpm it draws in 355 l/min, roughly 15% more than a single-cylinder pump on the same 2.2 kW motor. In practice that means the impact wrench hits just as hard on the tenth nut in a row and the nailer is not waiting for the tank to rebuild pressure. The 50 l tank evens out the bursts and the switch cuts out at 10 bar; the machine is built for intermittent duty S3 50%, meaning at most five minutes in every ten.
Equipment and details
What the V36-2.2-50CM has from the factory
- oil-lubricated direct-drive V-twin V36 pump, 2.2 kW / 3 HP, 2,850 rpm
- single-phase 230 V / 50 Hz motor, 9 A, thermal overload protection, IP 32
- 50 l tank, 10 bar, automatic stop/start pressure switch with on/off knob

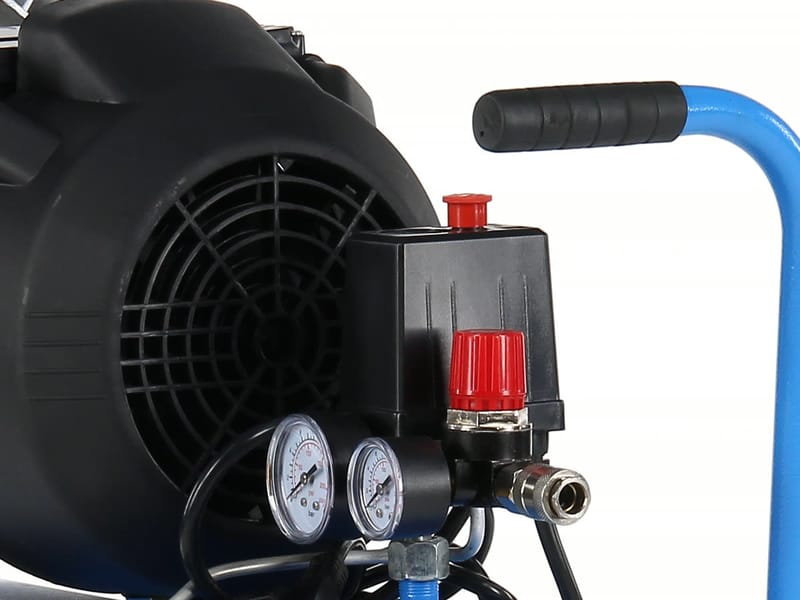

- outlet pressure regulator, two gauges (tank / outlet), DN 7.2 quick coupling
- two rubber-tyred wheels, rubber foot, tubular handle with rubber grip, lifting eye on the front of the tank
- oil sight glass on the crankcase, condensate drain valve under the tank
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank
Machine details
Where next if the V36-2.2-50CM is not the right fit
If you need a machine for more hours a day, reach for the low-speed V30-2.2-50CM — the same output, half the speed, 18 kg more metal. A comparison of both with the single-cylinder L30PN, the construction and frequently asked questions are on the V36 range page. Fifty-litre machines from other brands are among compressors with a 50 l tank. For the first service, add ALTAIR oil in a one-litre bottle; if you want the V36 for spraying, first read what goes with it in the article on spray painting with a compressor.
Values apply to a 230 V / 50 Hz supply. The 97 dB Lwa noise figure is the sound power level — roughly 77 dB at 4 m from the machine. The machine is built for intermittent duty S3 50%, not for continuous operation.
Ventilek advises
Two cylinders from one socket — this is the machine for anyone who wants air right now, and on wheels.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779195 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 355 l/min |
| Displacement: | 277 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 710 × 330 × 620 mm |
| Weight: | 42 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | In store, External warehouse |
