Oil-free compressor ABAC A29B0-2.2-50CT, 50 l, 400 V — clearance motor power 2.2 kW, air intake 320 l/min, pressure 10 bar, air receiver 50 l, voltage 400/50 V/Hz, 97 dB Lwa / 77 dB at 4 m
Code: A29B0-2-2-50CT
Related products
Product detailed description

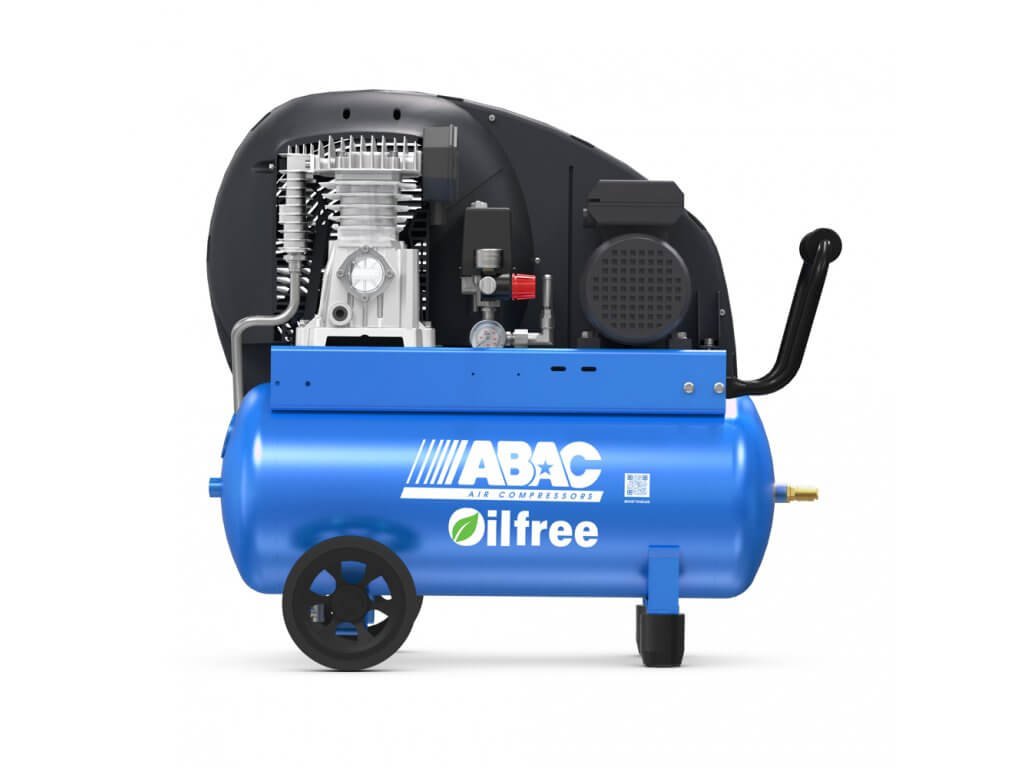

50 l · 400 V · 320 l/minThe last two units of the previous generation. The A29B0-2.2-50CT is an oil-free fifty with a 2.2 kW motor on 400 V: the A29B0 pump draws in 320 l/min at 1,300 rpm, fills 50 l to 10 bar and weighs 58 kg. On the outlet it has a filter-regulator with a gauge and two DN 7.2 quick couplings, so two tools take oil-free air at once — the machine is in stock while stocks last.
What you get extra compared to the new generation, and what you do not
The A29B0 pump, the 2.2 kW motor, 320 l/min and 10 bar are the same as on today's fifty, the A29B0P-2.2-50CT; this generation has a filter-regulator with two quick couplings on the outlet instead of one, four kilos more and noise of 97 dB Lwa, 77 dB at 4 m. If you want two tools on one machine and have 400 V at the workstation, take it straight from stock; if you want a machine four kilos lighter and a decibel quieter, wait 14 days for the new generation.
Equipment and details
What the A29B0-2.2-50CT has from the factory

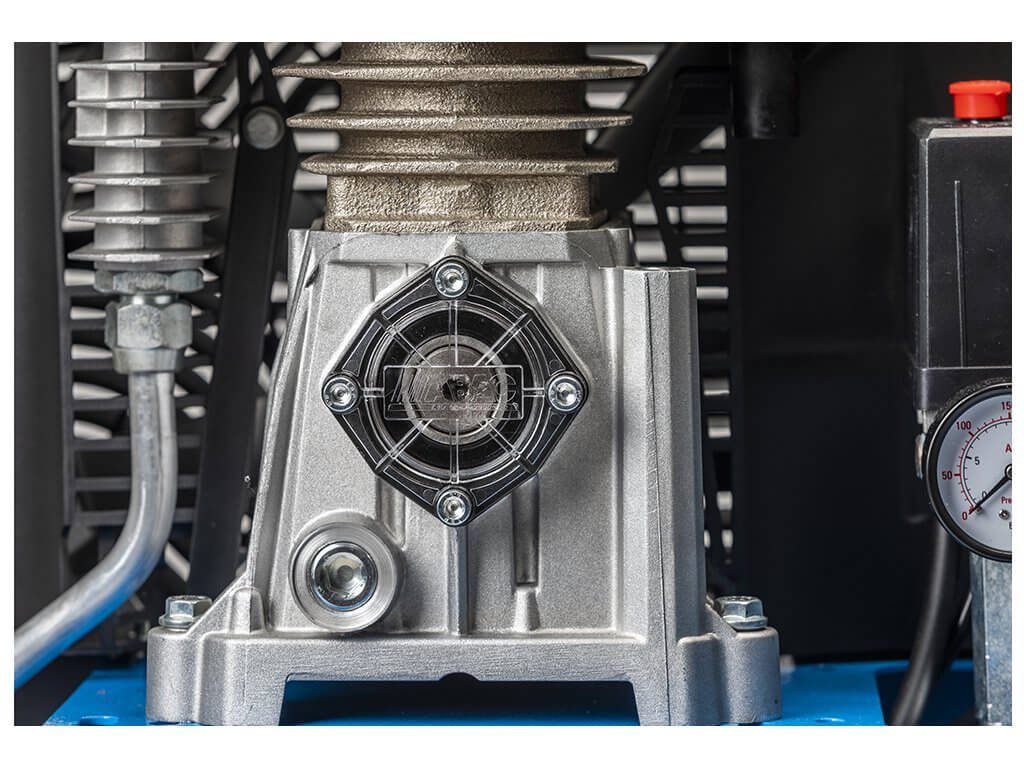

- oil-free single-stage A29B0 pump with PTFE-coated cylinders, V-belt drive, 1,300 rpm
- 2.2 kW electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 320 l/min, 10 bar, belt guard guiding the cooling air over the pump
- horizontal air receiver 50 l, ball valve for draining condensate
- filter-regulator with a gauge and two DN 7.2 quick couplings on the outlet
- two wheels at the rear, handle with a rubber grip
- noise 97 dB Lwa, 77 dB at 4 m
- QR code on the tank opens service videos in the AirTube app; 2-year warranty, 10 years on the air receiver against rust-through
Machine details
Where next if the A29B0-2.2-50CT is not the right fit
The successor, four kilos lighter and with one quick coupling on the outlet, is the A29B0P-2.2-50CT; the single-phase version of the new generation comes as the A29B0P-2.2-50CM. Today's range with twenty machines is on the Expert Zero range page; other fifties regardless of brand can be compared among compressors with a 50 l tank.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
The last two units of the old generation: the same oil-free pump, two quick couplings and a machine straight from stock.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 320 l/min |
| Air delivery: | 230 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 863 × 410 × 776 mm |
| Weight: | 58 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| In stock: | In store, External warehouse |

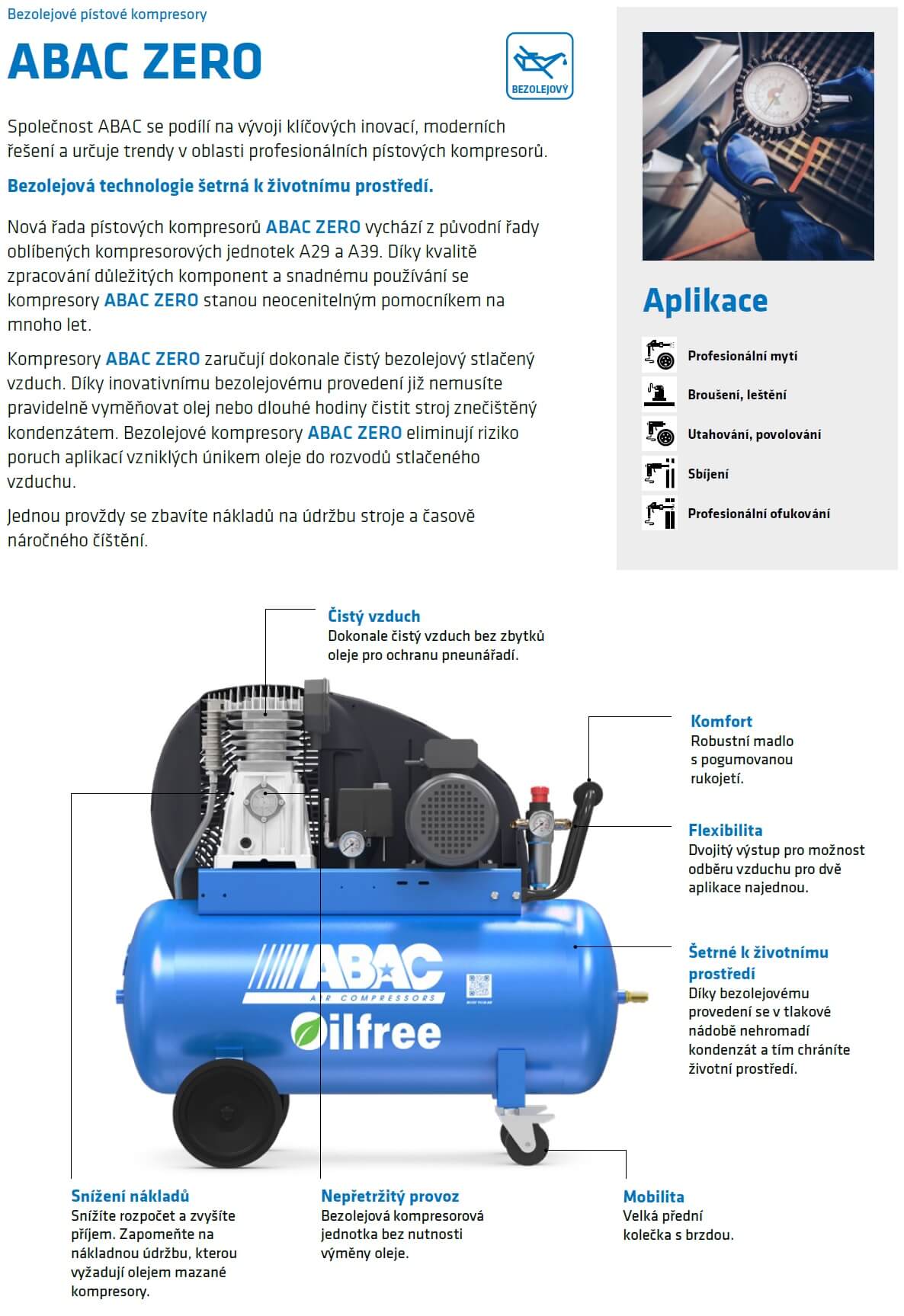

ABAC ZERO - Ekologicky šetrné bezolejové kompresory
