Compressor Pro Line Extensive A29BT-2.2-50CT, 50 l, 400 V Extensive, motor power 2.2 kW, air intake 320 l/min, pressure 10 bar, air receiver 50 l, voltage 400/50 V/Hz, 95 dB Lwa / 75 dB at 4 m
Code: A29BT-2-2-50CT
Related products
Product detailed description
Extensive · 50 l · 400 V · 320 l/minThe smallest tank with a stronger motor. A29BT-2,2-50CT is Extensive: unit A29B with a 2.2 kW motor at 400 V and a 50 l air receiver — intake 320 l/min at 1,300 rpm, 10 bar, 54 kg. A fifty-litre tank that refills faster than with the weaker motor, so tools wait less time; for a workshop with a three-phase socket where there's no room for a larger tank.
Why a fifty-litre with 2.2 kW instead of 1.5 kW
The tank is the same, the motor stronger: the unit runs at 1,300 rpm instead of 1,075 and draws in 320 l/min instead of 255. After a draw-down, the fifty-litre refills noticeably sooner, so an impact wrench or ratchet doesn't wait as long for pressure — and the motor spends less time running for the same work. The cost is higher noise, 95 dB Lwa, 75 dB at 4 m, and two kilograms more. Extensive means one front swivel castor with brake and an open handle; the three-phase supply must be connected by a qualified electrician.
Equipment and details
What the A29BT-2,2-50CT comes with from the factory

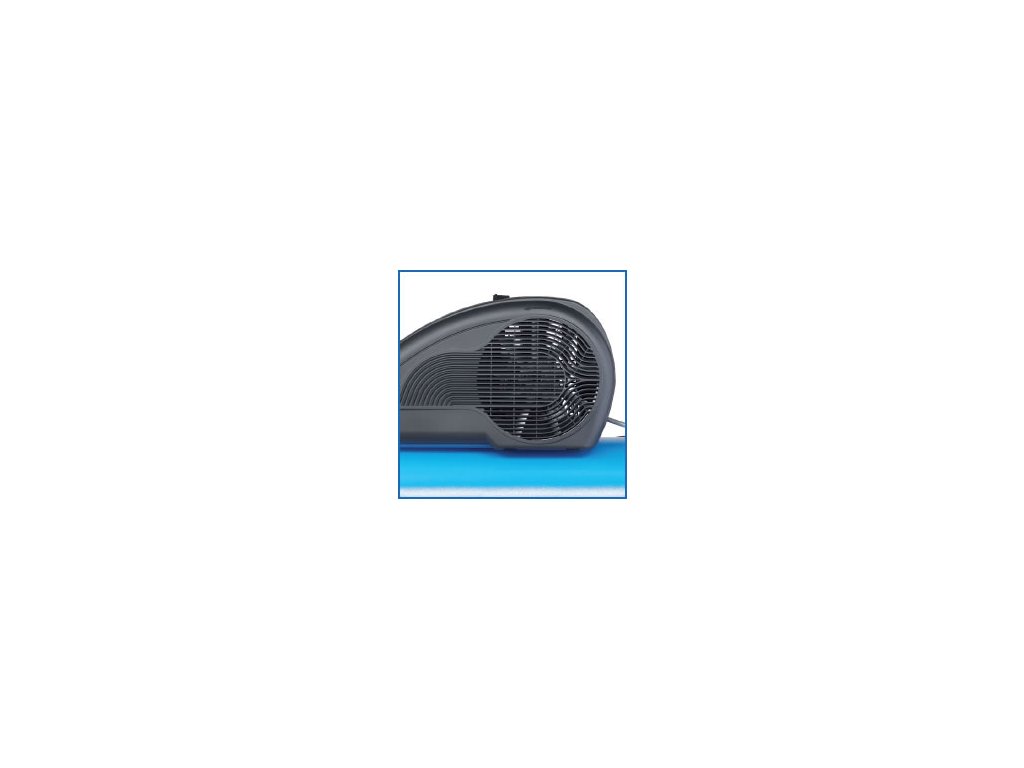

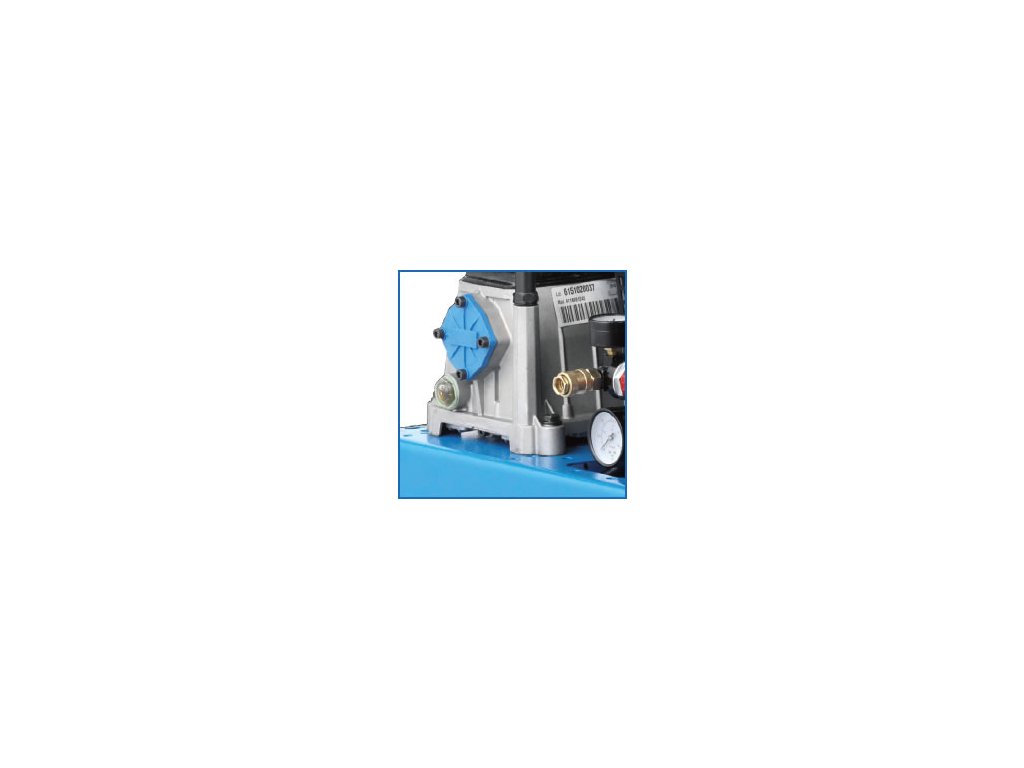

- single-stage twin-cylinder oil-lubricated A29B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,300 rpm
- three-phase 2.2 kW (3 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 320 l/min, 10 bar, aftercooler on the pump outlet

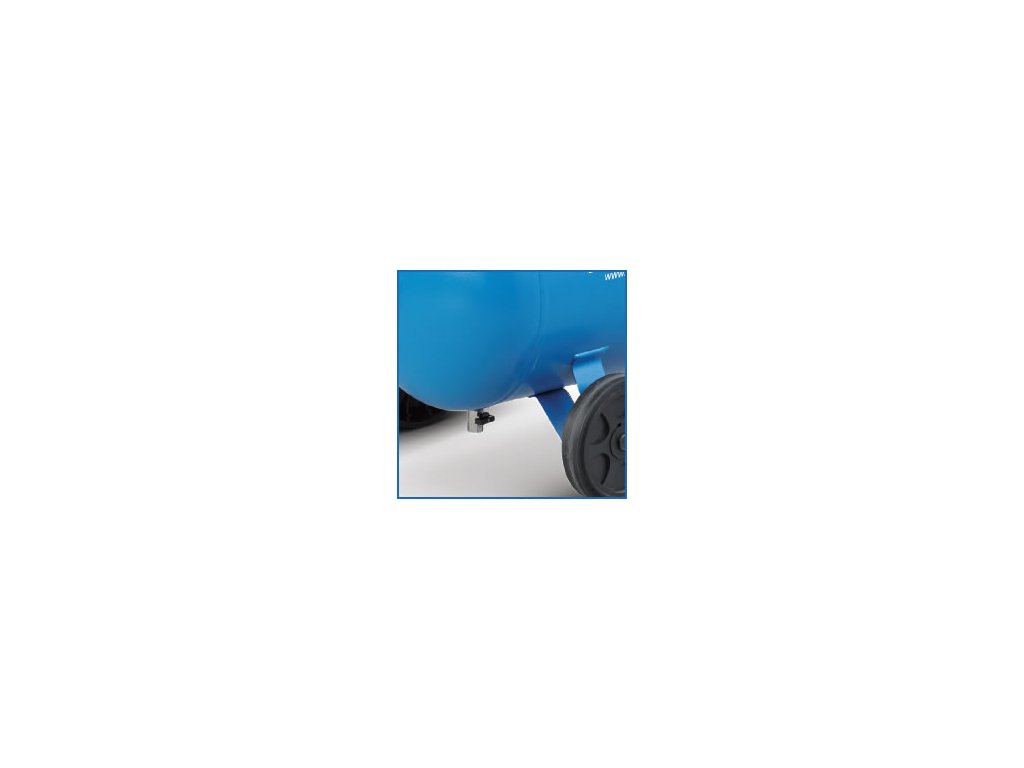

- horizontal air receiver 50 l with a ball valve for draining condensate

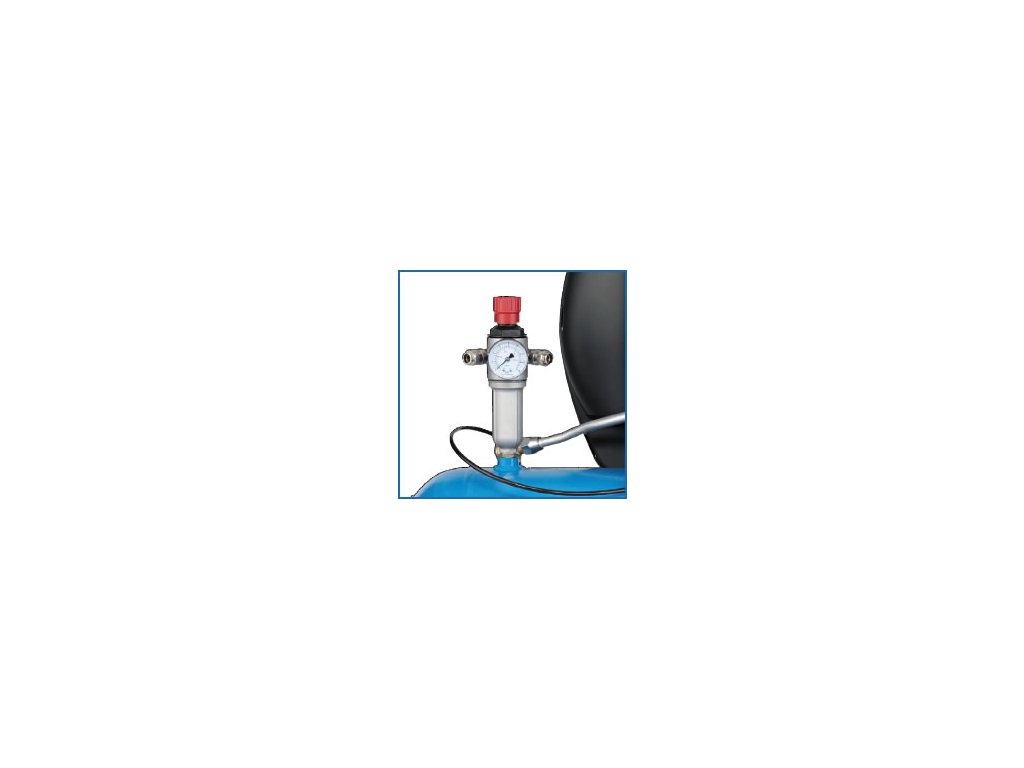

- pressure regulator, two pressure gauges (tank and outlet) and a DN 7.2 quick coupling
- one front swivel castor with a brake, two 200 mm rear wheels, open tubular handle
- noise 95 dB Lwa, 75 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where to go next if the A29BT-2,2-50CT isn't the right fit
The same fifty-litre tank with a quieter 1.5 kW motor is available as A29BT-1,5-50CT, while the same motor with a larger air supply is A29BT-2,2-90CT with a ninety-litre tank. Those who want a handle, two front castors and an outlet filter on the fifty-litre version should choose the Expert A29BP-1,5-50CT. All machines in the series are listed together in the overview of the A29B series, and fifty-litre units across brands are gathered among compressors with a 50 l air receiver.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek’s advice
A fifty-litre tank with 2.2 kW: the same air receiver as the weaker version, but it refills faster — a good choice where tools work in shorter bursts.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 320 l/min |
| Air delivery: | 230 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Weight: | 54 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Dimensions: | 870 x 420 x 827 mm |
