Set compressor + dryer + filtration - SAP4/270 Input power 4.0 kW, output 650 l/min, 10 bar, air receiver 270 l, dryer, filtration
Code: SAP4/270
Related products
Product detailed description
ATMOS Perfect 3/100 series compressor and its advantages
- Highly efficient cast iron aggregate
- Fully automated operation
- Overcurrent protection
- Equipped with safety fittings
- Compressed air aftercooler
- Manometer for air reservoir pressure
- Air outlet - ball valve
- Condensate relief and drain valve and pressure gauge
- Part of the aerator : 2 x wheels, silent blocks, handle
- Relief valve
- Low speed V-belt drive
- Optimal cooling thanks to large fan
- stable compressor base
- simple handling
Perfect series compressors and their designs
Basic data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Piston unit | LB 50 | |||||||||
| Number and arrangement of cylinders | 4 W | |||||||||
| The number of degrees of compression | single stage | |||||||||
| Intake amount | 0.810 (m³/min) | |||||||||
| Performance in relation to suction conditions | 0.650 (m³/min) | |||||||||
| Nominal revolutions of the piston unit | 1100 rpm | |||||||||
| Cut-off pressure | 10 bars | |||||||||
| Switching pressure | 8 bar | |||||||||
| Pressure vessel (air tank) | 270 l | |||||||||
| Design of the air tank | horizontal | |||||||||
Drive | ||||||||||
| Drive type | electric motor | |||||||||
| Rated power | 4kW | |||||||||
| Rated voltage | 400/50 V/Hz | |||||||||
| Rated speed | 2,872 min | |||||||||
| Machine design | IP54 | |||||||||
Other compressor parameters | ||||||||||
| Sound pressure emission level A LpA (Compressor) | 73 dB(A) | |||||||||
| Compressor oil fill volume | 1.5 liters | |||||||||
| Air tank volume | 270 L | |||||||||
| Dimensions | 1 600 x 650 x 1 100 mm | |||||||||
| Weight | 150 kg | |||||||||
| Compressed air outlet | G 1/2" | |||||||||
| Cable cross-section | 5 x 1.5 YSLY | |||||||||
| Type of work environment | ČSN 33 2000-3 | |||||||||
| The temperature of the working environment | +5 to +45 °C | |||||||||
| Hedging | 20A tripping characteristic D | |||||||||
Compressor assembly equipment | ||||||||||
| Air filter | Yes | |||||||||
| Manometer for air reservoir pressure | Yes | |||||||||
| Safety valve | Yes | |||||||||
| Condensate drain valve from the air handler | Yes | |||||||||
| Electric cable with fork | Yes | |||||||||
| Pressure switch with overcurrent protection | Yes | |||||||||
| Cooling fins for increased cooling | Yes | |||||||||
| Dew point of dried air | +3°C | |||||||||
| ISO particulate quality | 1 | |||||||||
| ISO quality residual oil | 1 | |||||||||
| Maximum particle size (µm) | 0,01 | |||||||||
| Residual oil (mg/m³) | less than 0.01 | |||||||||
| Capture and filtration efficiency | 99,999+% | |||||||||

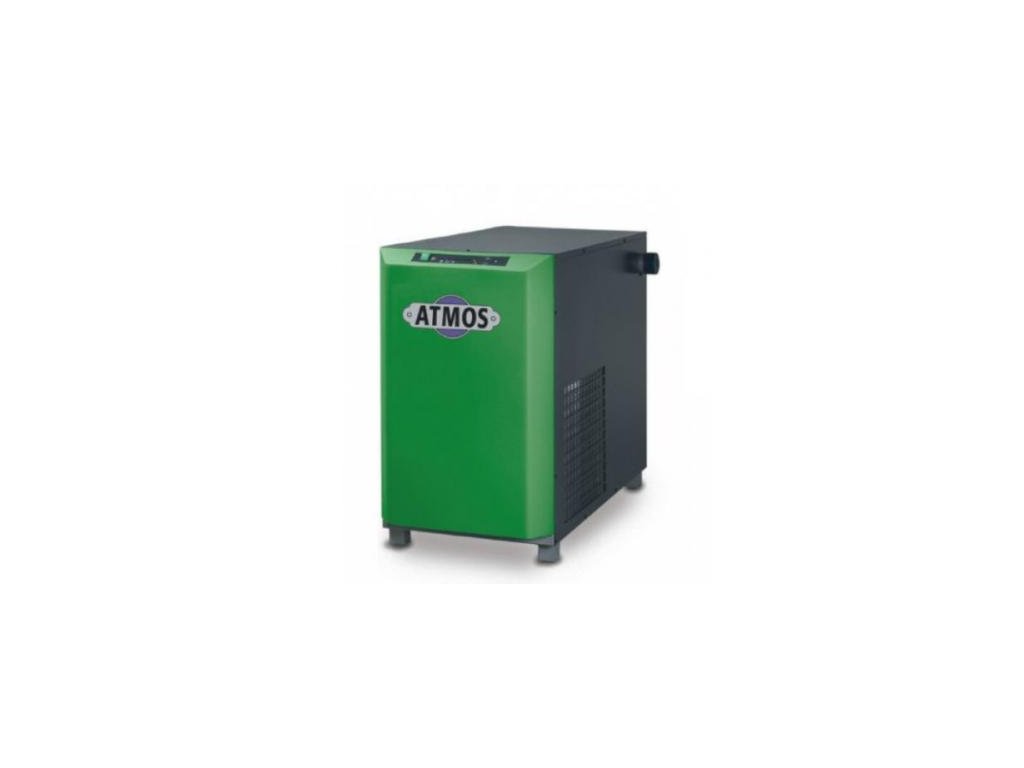

AHD Series Condensing Compressed Air Dryer
Modern technically advanced air dryers of the AHD series, with a tradition since 1948, are among the top products in their category on the world market.
With their capacity range, advanced design and reliable solution, they are predestined for a wide range of applications in all industrial areas.
| Characteristic features of the AHD series | Limiting operating conditions |
|---|---|
| powerful and efficient performance in a compact size significantly reduced operating and service costs minimal maintenance requirements high reliability simple installation extremely quiet operation | Max. inlet pressure : 16 bar Min. inlet pressure : 3 bar Max. inlet air temperature : +49°C Min. inlet air temperature : +4.4°C Max. ambient temperature : +43°C Min. ambient temperature : +4.4°C |
Correction factors for different operating conditions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Temperature Supply air °C | Working pressure (Bar) | |||||||||||
| 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||||||
| 25 | 1,50 | 1,57 | 1,63 | 1,67 | 1,72 | 1,76 | 1,81 | |||||
| 30 | 1,08 | 1,13 | 1,18 | 1,22 | 1,25 | 1,29 | 1,33 | |||||
| 35 | 0,87 | 0,92 | 0,96 | 1,0 | 1,03 | 1,07 | 0,93 | |||||
| 40 | 0,72 | 0,77 | 0,81 | 0,84 | 0,87 | 0,91 | 0,93 | |||||
| 45 | 0,60 | 0,62 | 0,68 | 0,71 | 0,74 | 0,78 | 0,80 | |||||
NGF FILTER ELEMENTS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| color inserts | advice | type | quality class ISO solid ones substances | class quality ISO oil | size solids µm | efficiency capture particles | residual content oil mg/m³ | max. Δp dry filter bar | max. Δp wet filter bar | |||

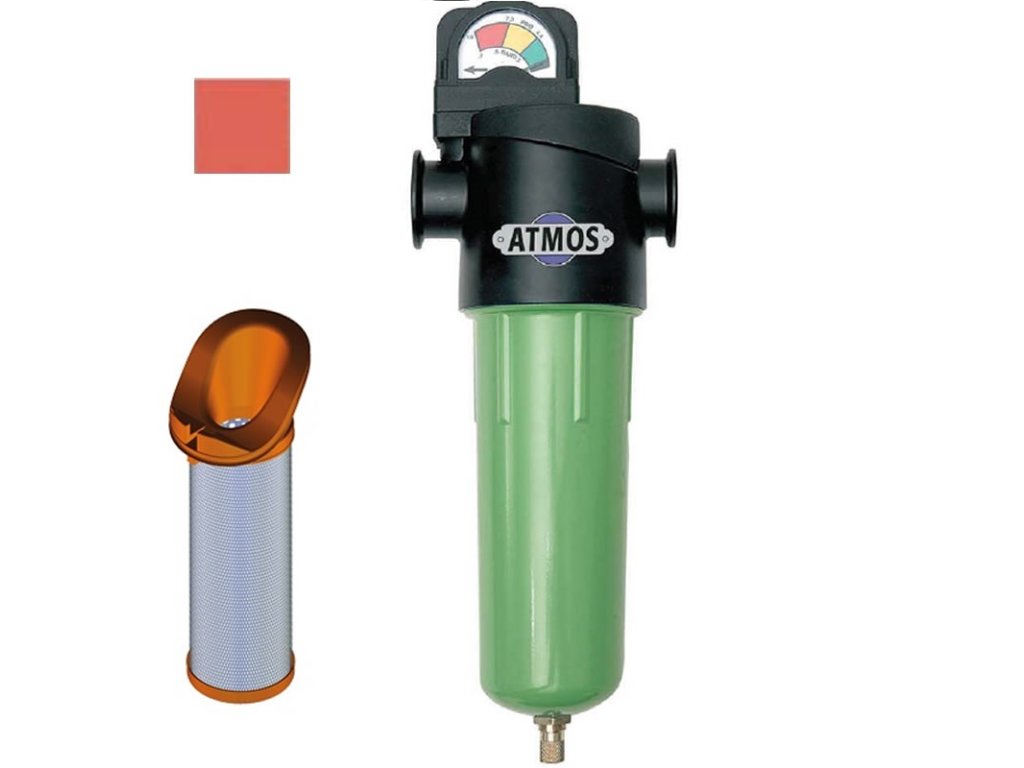

 | SF | Centriflex | 3 | 5 | 3 | - | 5 | 0,06 | 0,07 | |||
 | PF | Universal filter | 2 | 4 | 1 | 99,999+% | 2 | 0,04 | 0,1 | |||

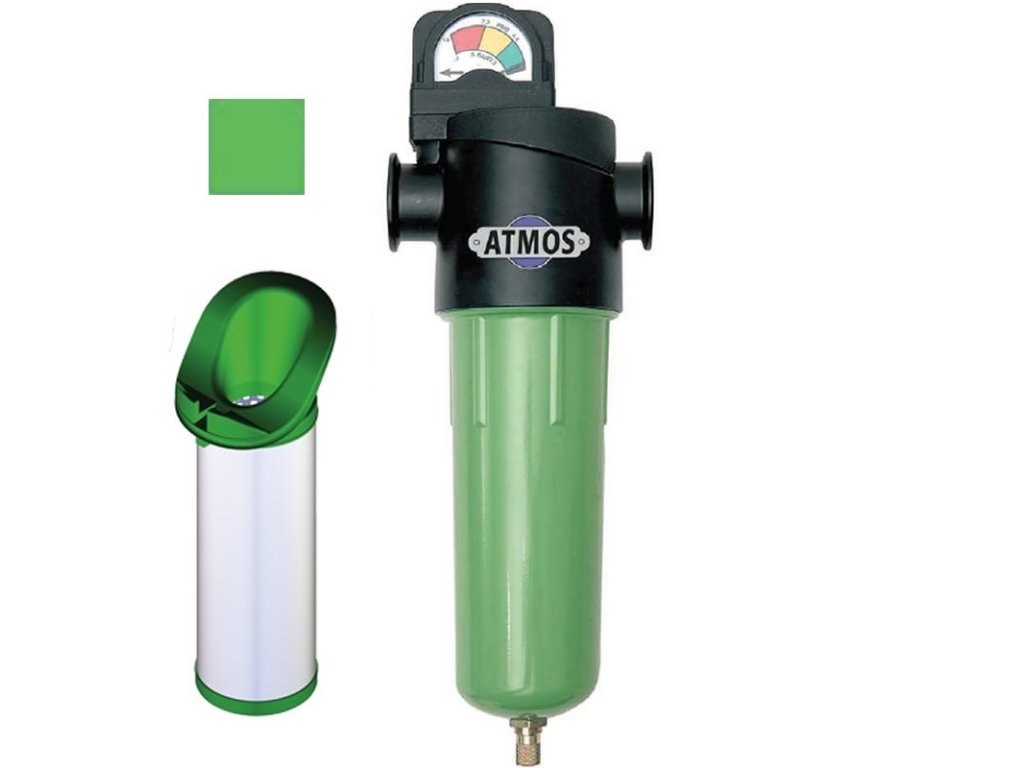

 | HF | High performance fine filter | 1 | 1 | 0,01 | 99,999+% | less than 0.01 | 0,04 | 0,12 | |||
 | UF | High-performance ultra-fine filter | 1 | 1 | 0,01 | 99,999+% | less than 0.0013 | 0,6 | 0,14 | |||
 | CF | Activated carbon filter | 1 | 1 | 0,01 | 99,999+% | less than 0.0044 | 0,07 | - | |||
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 810 l/min |
| Air delivery: | 650 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | 1/2" |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1100 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 76 dB(A) |
| Dimensions: | 1 600 × 650 × 1 100 mm |
| Weight: | 165 kg |
| Accessories: | Wheels, Handle |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | Yes |
| Retrieved from: | Professional |
| Development: | Mobile |
