Low-speed compressor Pro Line B60-4-270CT, 270 l, 400 V On castors, low-speed version, 4 kW motor, air intake 660 l/min at 1,100 rpm, 11 bar, 270 l tank, 400 V, 97 dB Lwa / 77 dB at 4 m
Code: B60-4-270CT
Related products
Product detailed description
B60 · on castors · 270 l · 660 l/min · 1,100 rpmThe smallest machine in the low-speed range and one of the three B60-4s with the lowest noise in it. The B60-4-270CT has the cast-iron two-stage B60 pump with a 4 kW motor at 1,100 rpm: it draws in 660 l/min into a 270 l tank at 11 bar and has 97 dB Lwa, 77 dB at 4 m — 5 dB less than the same pump with 5.5 kW at 1,400 rpm. On castors with a handle and a regulator with two quick couplings, for a tyre shop or a workshop where the compressor cuts in all day long.
Why a B60 with 4 kW instead of 5.5 kW
The pump is the same as on the standard B60-5.5, only it is driven by a motor one size smaller through a greater reduction: 1,100 rpm instead of 1,400. The pistons do fewer strokes per minute, the pump runs cooler and the noise drops from 102 dB Lwa and 82 dB at 4 m to 97 and 77 dB. You pay for it with displacement — 660 l/min instead of 827 — which does not matter with an impact wrench, a ratchet and blowing off at two lifts, but does with two people sandblasting. On the tank there is a regulator with two DN 7.2 quick couplings and two gauges; at the front are swivel castors with brakes, at the rear big wheels.
Equipment and details
What the B60-4-270CT has from the factory

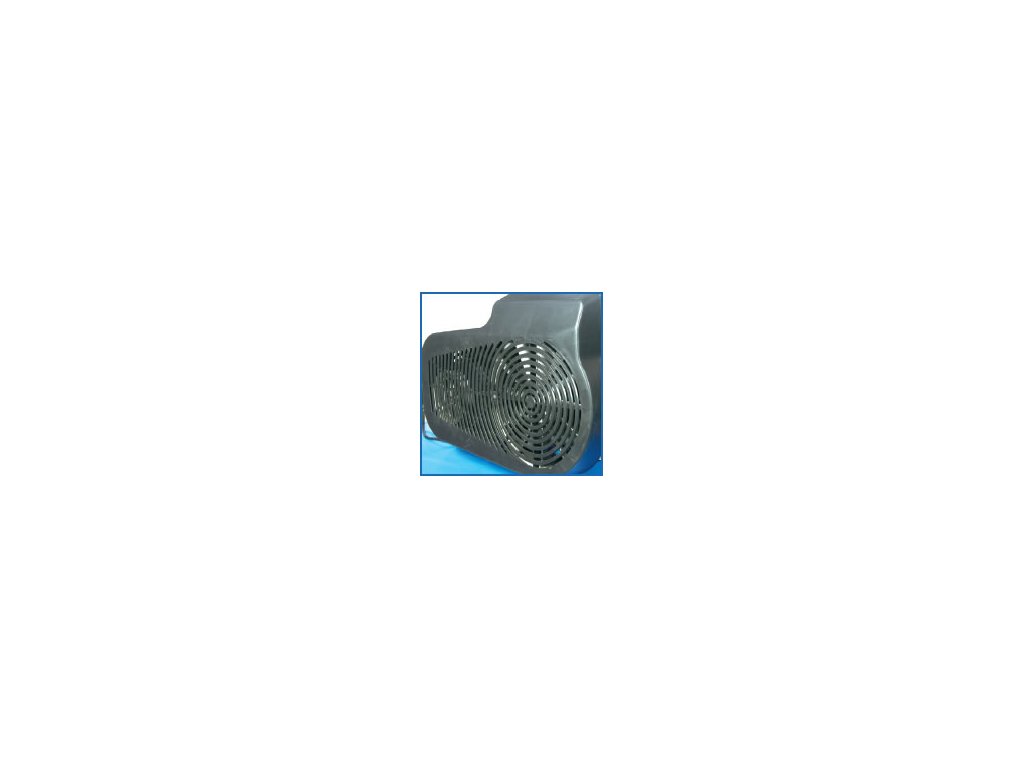

- two-stage twin-cylinder B60 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive geared down to 1,100 rpm, moulded plastic belt guard

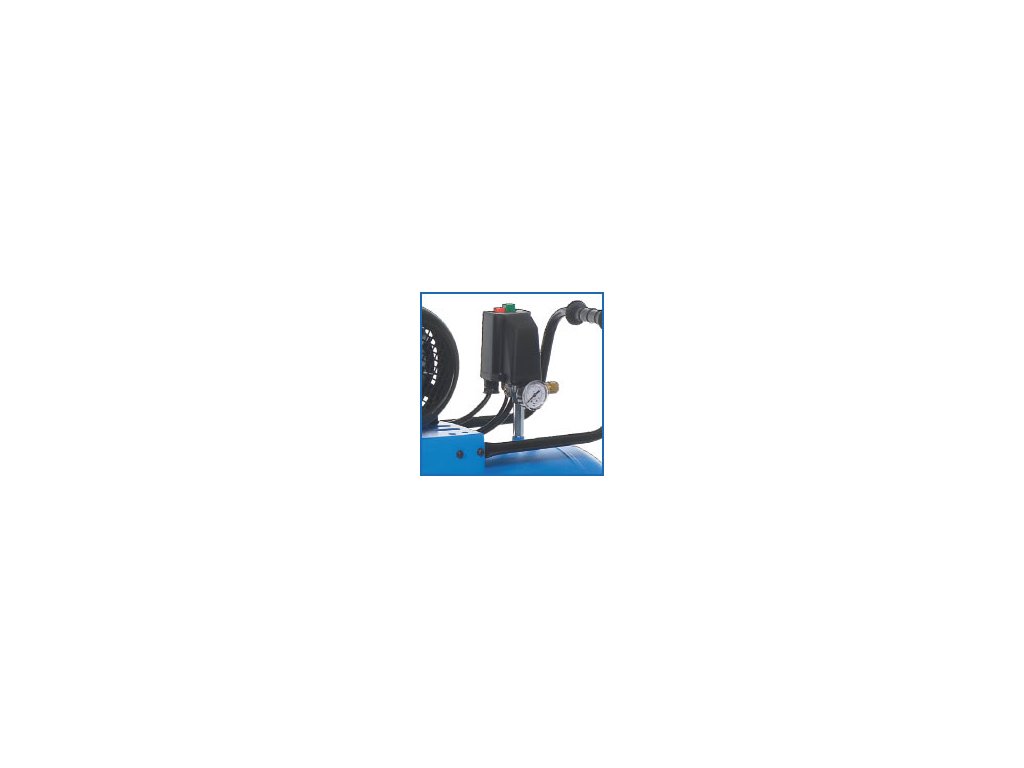

- three-phase 4 kW (5.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge
- air intake 660 l/min, pressure 11 bar, aftercooler on the pump outlet
- horizontal 270 l tank with a ball valve for draining condensate; pressure regulator with two DN 7.2 quick couplings and a second gauge for the outlet pressure

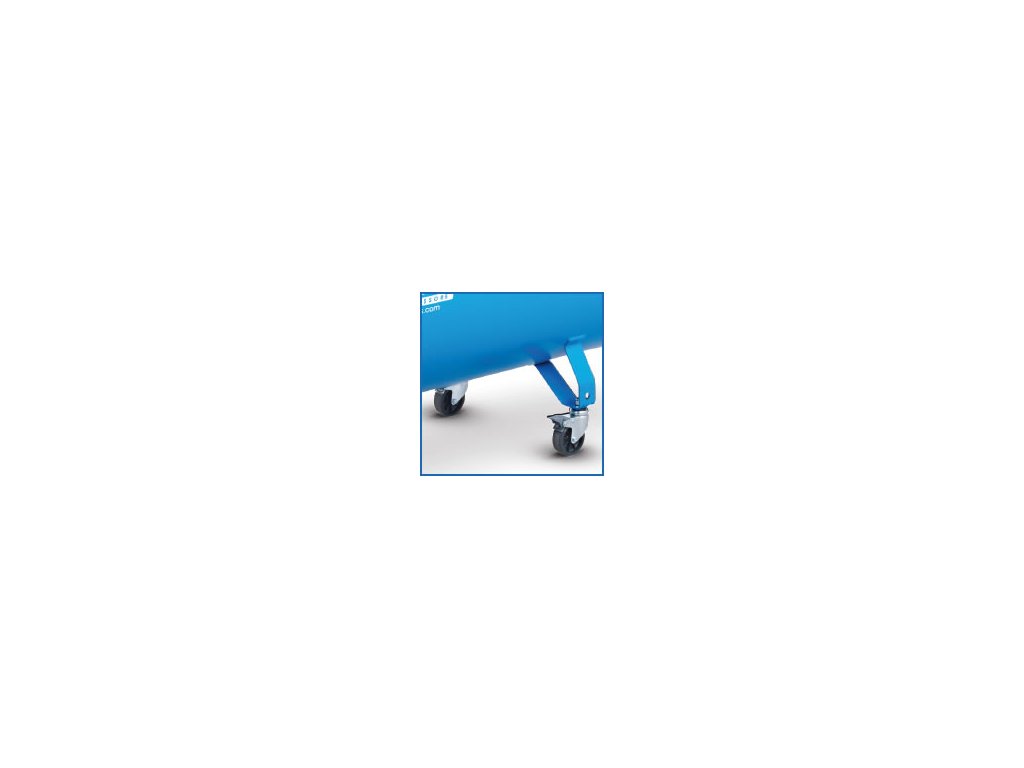

- two front swivel castors with brakes, two rear wheels, tubular handle with a rubber grip
- noise 97 dB Lwa, 77 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-4-270CT is not the right fit
If you want the full 827 l/min from the B60 pump, take the standard B60-5.5-270CT; a bigger reserve with the same low-speed motor is held by the B60-4-500CT. The siblings with the B70 and B79 pumps are compared on the low-speed range page; 270-litre machines of all brands are grouped together among compressors with a 270 l tank. Both lifts call for an impact wrench.
Values apply to a 400 V / 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
For a tyre shop with two lifts I take this one: 660 l/min is enough, 97 dB Lwa (77 dB at 4 m) is 5 dB less than on the B70 and B79 pumps, and the machine goes wherever you pull it.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900536782 |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 660 l/min |
| Air delivery: | 508 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1100 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Weight: | 171 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Dimensions: | 1 520 × 600 × 1 250 mm |
