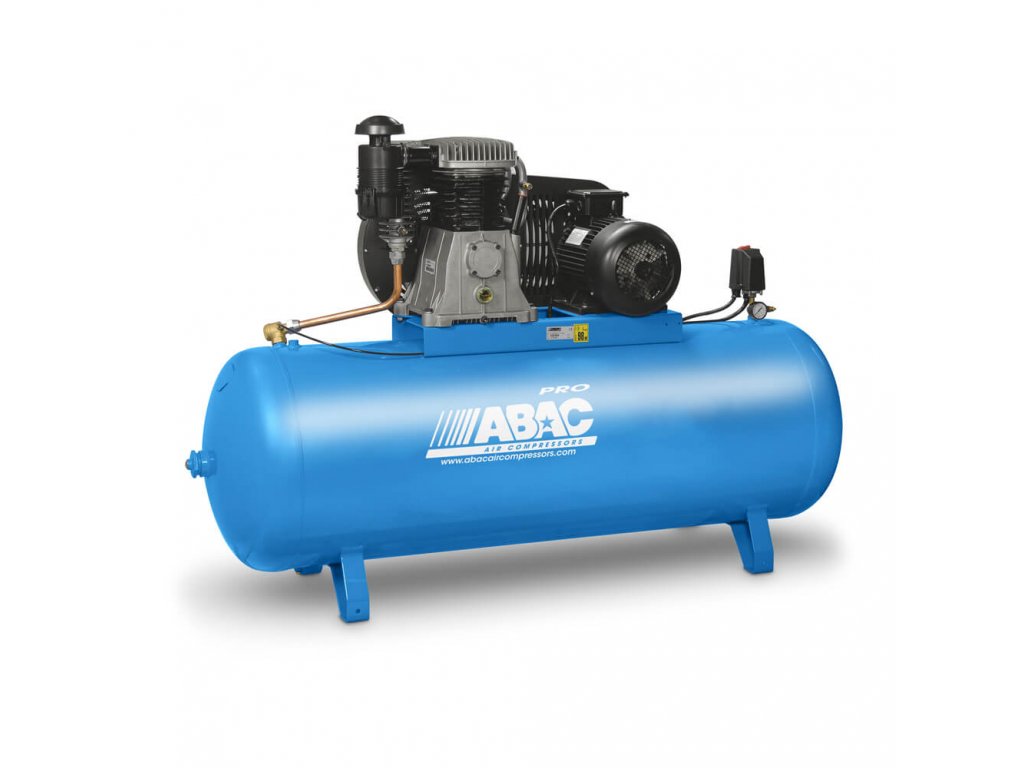

Low-speed compressor Pro Line B70-5.5-270FT, 270 l, 400 V Stationary, low-speed version, 5.5 kW motor, air intake 1,023 l/min at 1,100 rpm, 11 bar, 270 l tank, 400 V, 102 dB Lwa / 82 dB at 4 m
Code: B70-5-5-270FT
Related products
Product detailed description
B70 · stationary · 270 l · 1,023 l/min · 1,100 rpmA machine on feet with the B70 pump and the smallest tank we carry with it. The B70-5.5-270FT draws in 1,023 l/min at 1,100 rpm into a 270 l tank on feet and sends the air through a 1/2" ball valve into the pipework. For a compressor room with no room for a 500, where the bursts in the draw are evened out by the displacement of the pump rather than by the reserve.
Why 270 l on feet
The 270 is a small tank for this pump: the 5.5 kW motor fills it to 11 bar quickly, and the B70 pump with 1,023 l/min then holds the pressure in the pipework by displacement rather than by reserve. It suits a compressor room that is half a metre too short for a 500. A machine on feet has no castors, no handle and no regulator — the pressure switch with a gauge watches the tank, and a regulator with a filter belongs at every workstation downstream of the pipework. The low-speed drive at 1,100 rpm means fewer piston strokes per minute and a cooler pump; the noise of 102 dB Lwa, 82 dB at 4 m, is the same as on the standard B70-7.5.
Equipment and details
What the B70-5.5-270FT has from the factory

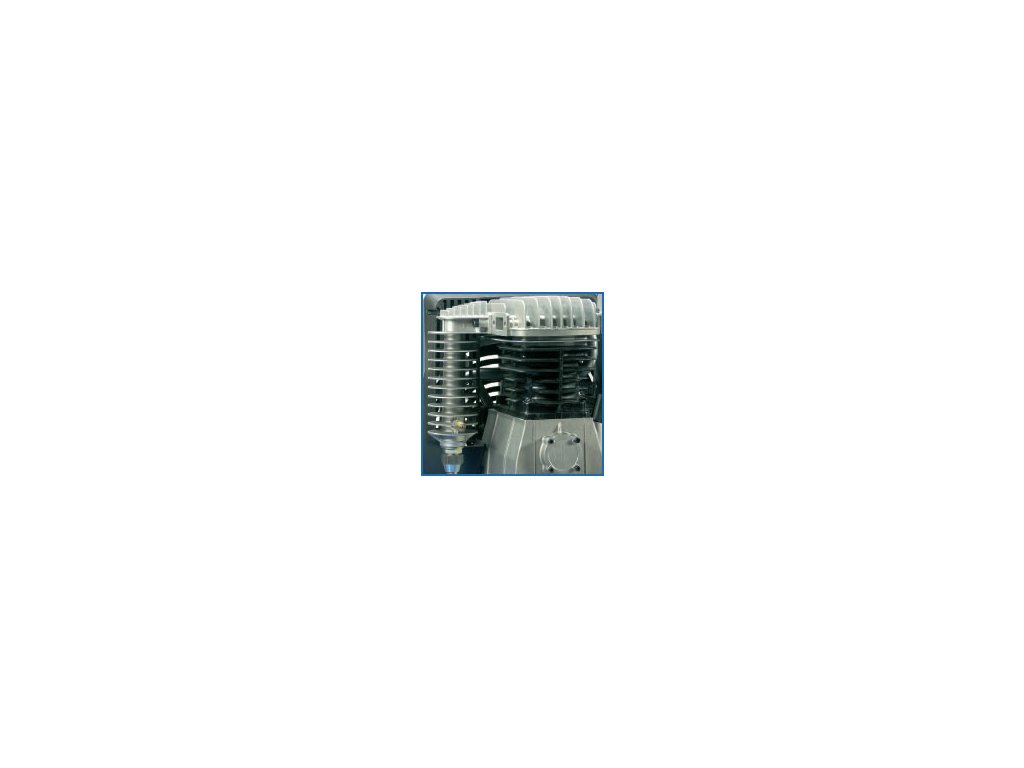

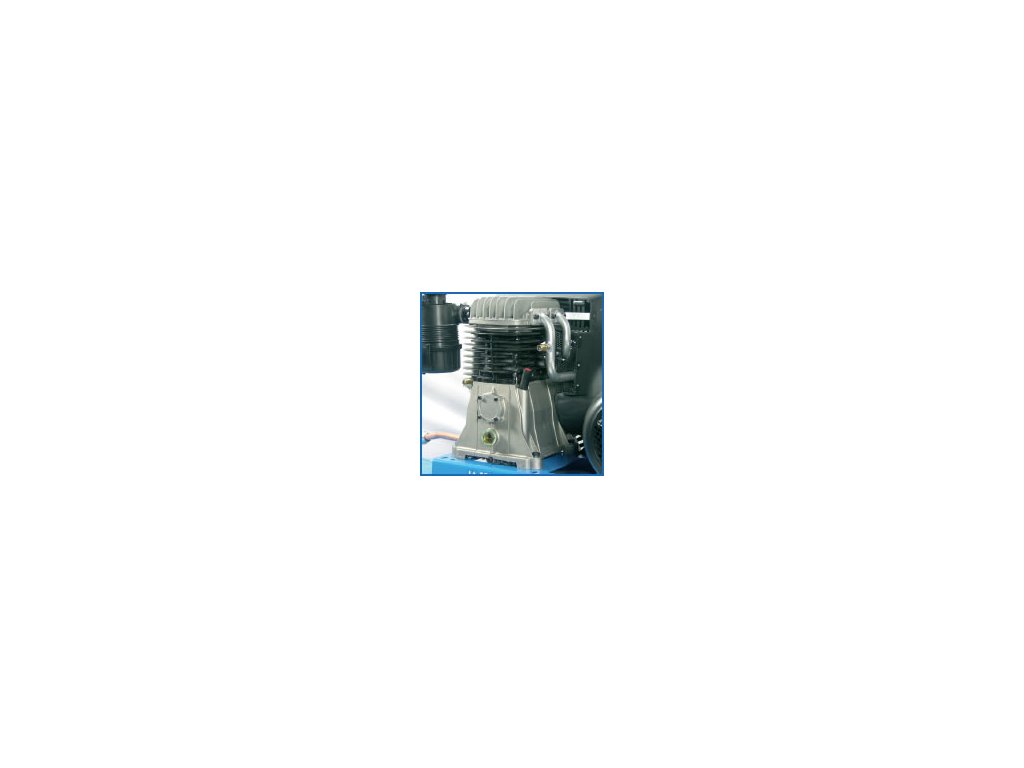

- two-stage twin-cylinder B70 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive geared down to 1,100 rpm, moulded plastic belt guard
- three-phase 5.5 kW (7.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge
- air intake 1,023 l/min, pressure 11 bar, aftercooler on the pump outlet
- horizontal 270 l tank on feet with a valve for draining condensate; 1/2" ball valve outlet into the pipework (regulator, filter and quick couplings at the workstation)
- stationary version without castors or a handle — for a fixed spot in the compressor room
- noise 102 dB Lwa, 82 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B70-5.5-270FT is not the right fit
A bigger reserve with the same pump on feet is held by the B70-5.5-500FT; the same tank with the pump on castors is the B70-5.5-270CT. You choose a regulator and filter for every workstation among pressure regulators with a filter; if you want to see machines on feet from other brands too, you will find them among stationary compressors. Where the low-speed B70-5.5 stands among the others is shown on the low-speed range page.
Values apply to a 400 V / 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
A compressor room too short for a 500? The 270 with the B70 pump holds the pressure by displacement and saves half a metre.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900505498 |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 1023 l/min |
| Air delivery: | 788 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Ball valve 1/2" |
| Motor power: | 5.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1100 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 102 dB - Lwa, 82 dB - Lwp(4m) |
| Weight: | 191 kg |
| Accessories: | Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| In stock: | External warehouse |
| Dimensions: | 1 520 × 600 × 1 250 mm |
