Vertical compressor Pro Line B60-5.5-270VT, 270 l, 400 V Vertical 270 l tank, 400 V, 5.5 kW motor, air intake 827 l/min at 1,400 rpm, 11 bar, 102 dB Lwa / 82 dB at 4 m
Code: B60-5-5-270VT
Related products
Product detailed description
B60 · vertical 270 l · 827 l/min · 11 bar · 400 VThe biggest pump ABAC puts on a vertical tank. The B60-5.5-270VT fills a vertical 270 l tank to 11 bar with the cast-iron two-stage B60 pump: a 5.5 kW motor, 1,400 rpm, displacement 827 l/min; noise 102 dB Lwa and 82 dB at 4 m, the highest in the range. For a tyre shop with several lifts or a body shop where the grinder runs all afternoon and the compressor has to stand in a corner.
Why the B60 and not the B70 on end
The B60 pump gives 174 l/min more than the B59B from the same 850 × 970 mm footprint and the same 2,100 mm height — air for a grinder and an impact wrench at once, or for three lifts. ABAC does not put the bigger B70 pump with 1,210 l/min on a vertical tank; if you need it, you go to the horizontal machines on 270 or 500 l. The B60-5.5-270VT is also the loudest machine of the range, 102 dB Lwa and 82 dB at 4 m — it belongs in the compressor room or in the corner of the hall, not by the bench. Outlet through a ball valve on the side of the tank, condensate through a valve in the bottom, regulators at the workstations.
Equipment and details
What the B60-5.5-270VT has from the factory

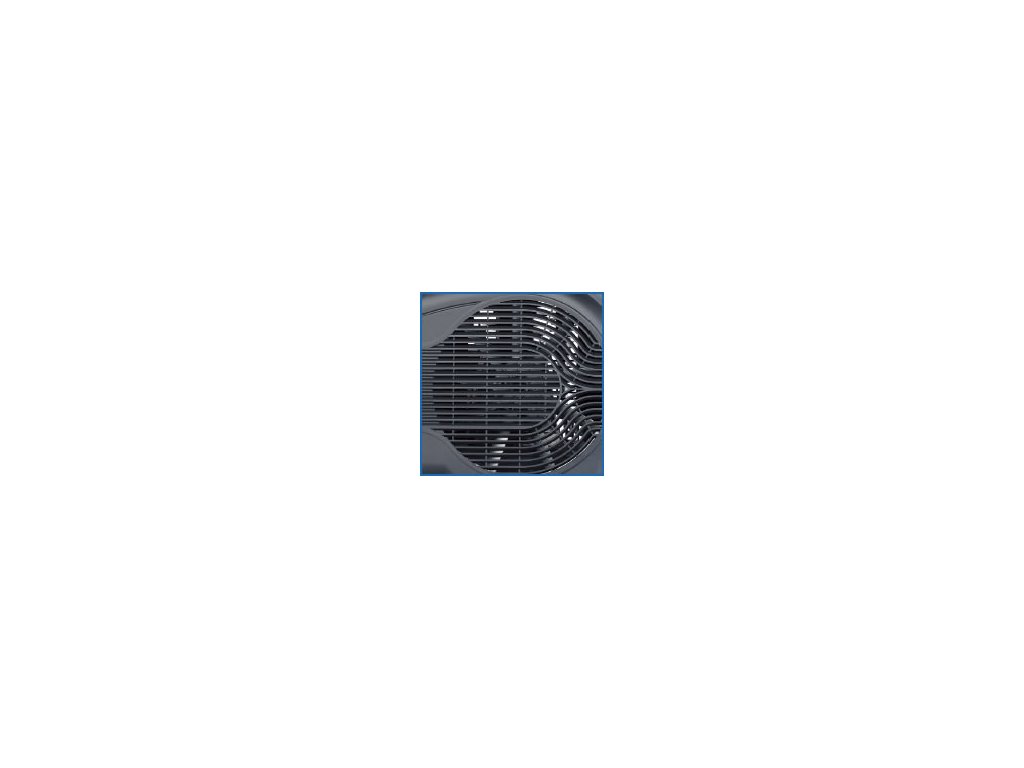

- two-stage B60 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive geared down to 1,400 rpm, belt guard
- three-phase 5.5 kW (7.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge
- air intake 827 l/min, pressure 11 bar, aftercooler on the pump outlet

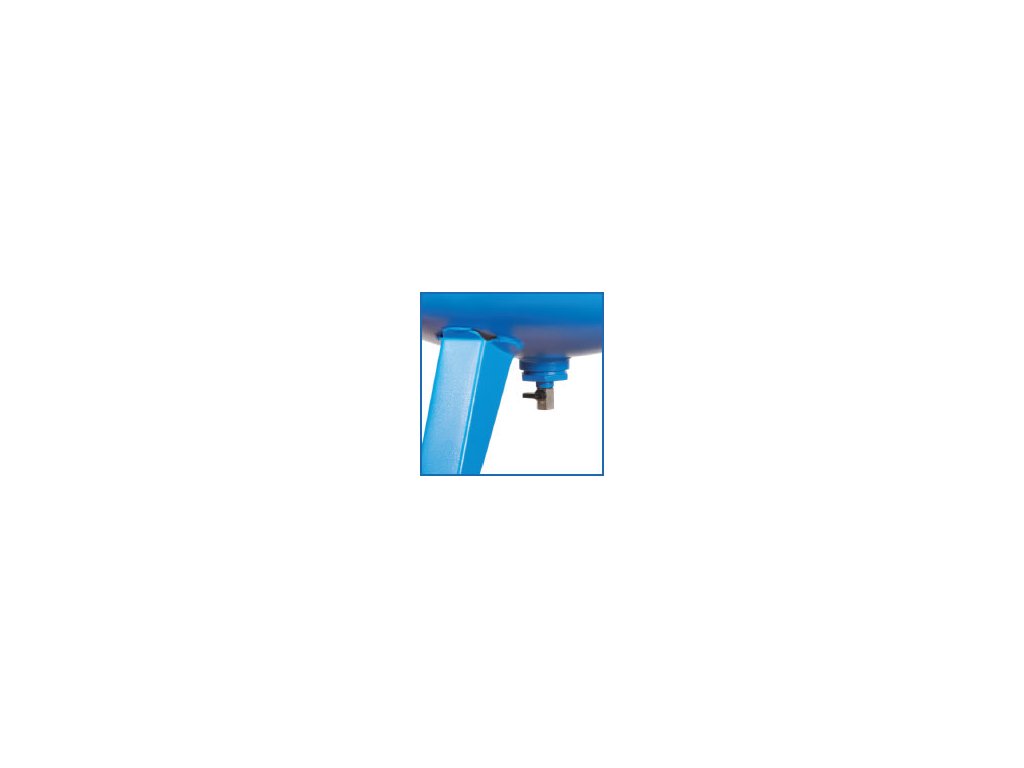

- vertical 270 l tank on three legs with holes for bolting down, condensate drain valve in the bottom; air outlet through a ball valve on the side of the tank (regulator, filter and quick couplings at the workstation)
- noise 102 dB Lwa, 82 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-5.5-270VT is not the right fit
The smaller cast-iron B59B pump with 653 l/min on the same vertical tank is on the B59B-4-270VT; the same B60 pump with the same 270 l we also carry as the horizontal B60-5.5-270FT on feet. If you compare by motor, machines with 5.5 kW of all brands are among compressors with a 5.5 kW motor; if you draw air without pauses for the whole hall, you move on to a screw compressor. Where it ranks among the vertical machines is shown by the overview of the vertical machines.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. The dimensions are those of the machine without packaging. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
The biggest vertical machine: 827 l/min from the cast-iron B60 pump in the corner of the hall. When even that is not enough, next in line is a horizontal machine with the B70 pump, or a screw compressor.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900524505 |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 827 l/min |
| Air delivery: | 637 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Standing |
| Connecting: | Ball valve 1/2" |
| Motor power: | 5.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 102 dB - Lwa, 82 dB - Lwp(4m) |
| Weight: | 242 kg |
| Accessories: | Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Dimensions: | 850 × 970 × 2 100 mm |
