Compressor with dryer Pro Line B60-5.5-270FTXD, 270 l, 400 V Stationary with a dryer (+3 °C), star-delta start, 5.5 kW motor, displacement 827 l/min, 11 bar, 270 l tank, 400 V, 102 dB Lwa / 82 dB at 4 m
Code: B60-5-5-270FTXD
Related products
Product detailed description
B60 · dryer +3 °C · 270 l · 827 l/min · star-delta startThe only machine of the range that pairs the B60 pump with a star-delta start, and the only one with a starter panel on a 270 l tank. The B60-5.5-270FTXD puts 827 l/min from the B60 pump with a 5.5 kW motor into a 270 l tank at 11 bar, the dryer on the tank dries the air to +3 °C and the starter panel starts the motor in star with a lower current. At 4 m from the machine you measure 82 dB; the sound power level is 102 dB Lwa. For a body shop or a workshop where the air is drawn in bursts, the machine starts often and the supply has no headroom for a direct-on-line start.
Why star-delta with the smaller tank
A smaller tank means more frequent starts: 270 l at 11 bar runs down faster with a grinder and a riveter than the 500, and the 5.5 kW motor cuts in many times an hour. The starter panel with the star-delta switch starts it in star connection every time, with roughly a third of the starting current, and switches over to delta once up to speed — the breaker on the supply never sees the current surge of a direct-on-line start. The dryer on the bracket above the tank does the same as on the 500s: +3 °C, an electronic drain, a bypass line. If you draw air for long stretches, take the same unit with a dryer on the larger tank with direct-on-line start.
Equipment and details
What the B60-5.5-270FTXD has from the factory
- two-stage twin-cylinder B60 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive geared down to 1,400 rpm, moulded belt guard

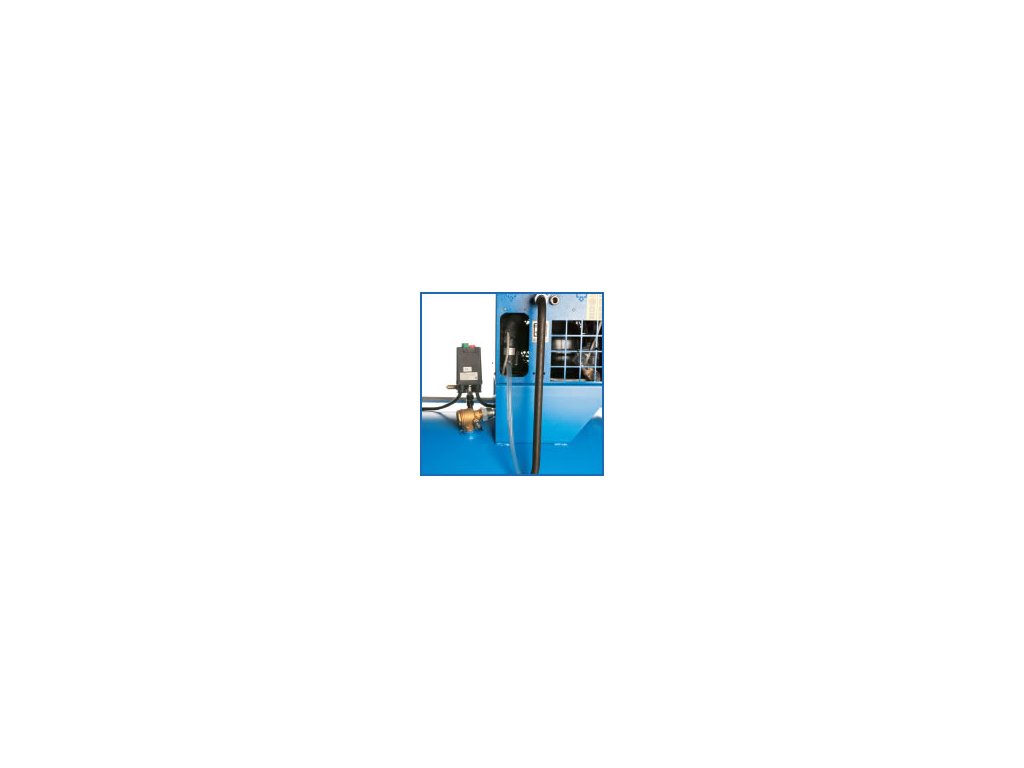

- three-phase 5.5 kW (7.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge; starter panel with a star-delta switch for a lower starting current
- air intake 827 l/min, pressure 11 bar, aftercooler on the pump outlet
- refrigerant dryer on the tank: pressure dew point +3 °C, electronic condensate drain, bypass line; piped up and wired at the factory

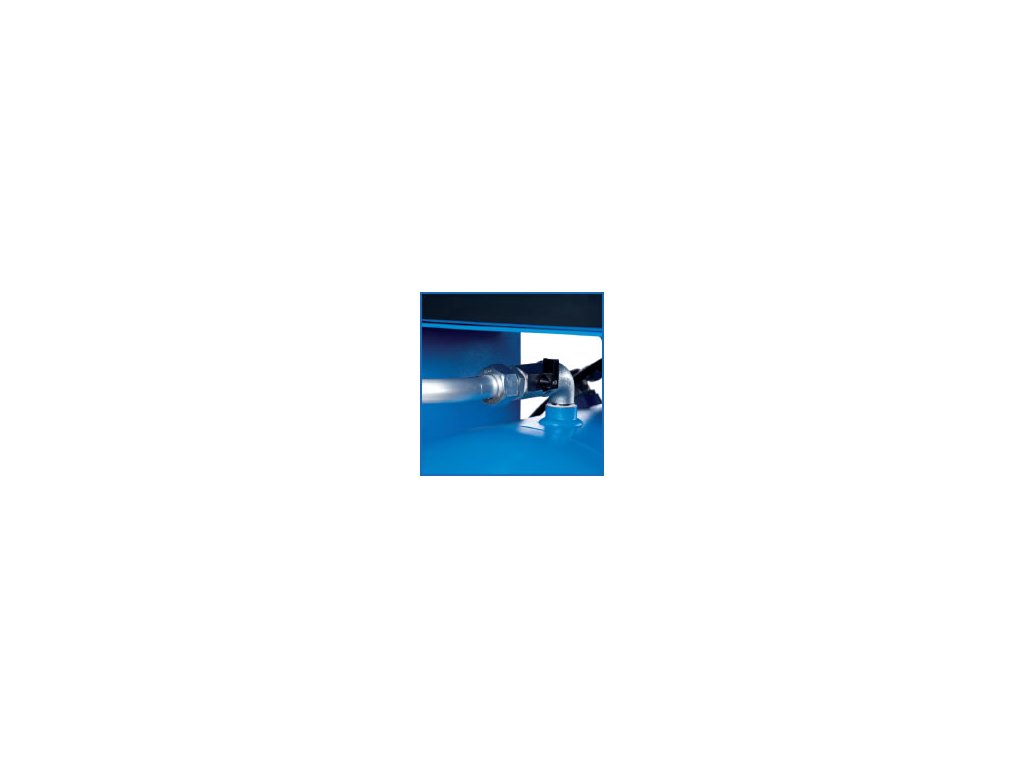

- horizontal 270 l tank on feet with a valve for draining condensate; outlet to the pipework downstream of the dryer (regulator, filter and quick couplings at the workstation)
- noise 102 dB Lwa, 82 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-5.5-270FTXD is not the right fit
The same pump with a dryer on the 500, but with a direct-on-line start, is on the B60-5.5-500FTD; if you want the B60 pump on 270 l without a dryer or on castors, you will find it in the basic B59B to B70 range. The siblings with a dryer are compared on the range page for the machines with a dryer; 270-litre machines of all brands are shown among compressors with a 270 l tank. For body shop work, the tools to hang on the pipework are impact wrenches.
Values apply to a 400 V / 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. The pressure dew point of +3 °C applies at the working pressure of the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
A body shop with a grinder, a riveter and the occasional spraying job: the machine starts all the time, so let it start in star — and let the water stay in the drain, not in the tools.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900537437 |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 827 l/min |
| Air delivery: | 637 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Ball valve 1/2" |
| Motor power: | 5.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 102 dB - Lwa, 82 dB - Lwp(4m) |
| Weight: | 207 kg |
| Accessories: | Condensation dryer, Star triangle |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | Yes |
| Retrieved from: | Professional |
| Development: | Stationary |
| In stock: | External warehouse |
| Dimensions: | 1 490 × 500 × 1 175 mm |
