Compressor Pro Line B60-5.5-270FT, 270 l, 400 V Stationary, motor power 5.5 kW, air intake 827 l/min, pressure 11 bar, air receiver 270 l, voltage 400/50 V/Hz, 102 dB Lwa / 82 dB at 4 m
Code: B60-5-5-270FT
Related products
Product detailed description
B60 · stationary · 270 l · 827 l/min · 11 barThe B60 pump on feet for pipework with two or three workstations. The B60-5.5-270FT puts 827 l/min into 270 l at 11 bar and sends the air out through a 1/2" ball valve: a 5.5 kW motor on 400 V, 1,400 rpm, 177 kg, no castors and no regulator. For a compressor room where the machine stands and the noise stays behind the door.
Why a stationary B60 with 270 l
In the next room nobody needs a handle or a regulator on the machine: the B60-5.5-270FT has feet, a switch with a gauge, a 1/2" ball valve outlet and a condensate valve under the tank. The B60 pump with 827 l/min tops 270 l up to 11 bar faster than the B59B, so three workstations on the pipes can draw at once. The noise of 102 dB Lwa (82 dB at 4 m) is the reason this machine belongs behind a door. The regulators and filters go at the workstations.
Equipment and details
What the B60-5.5-270FT has from the factory

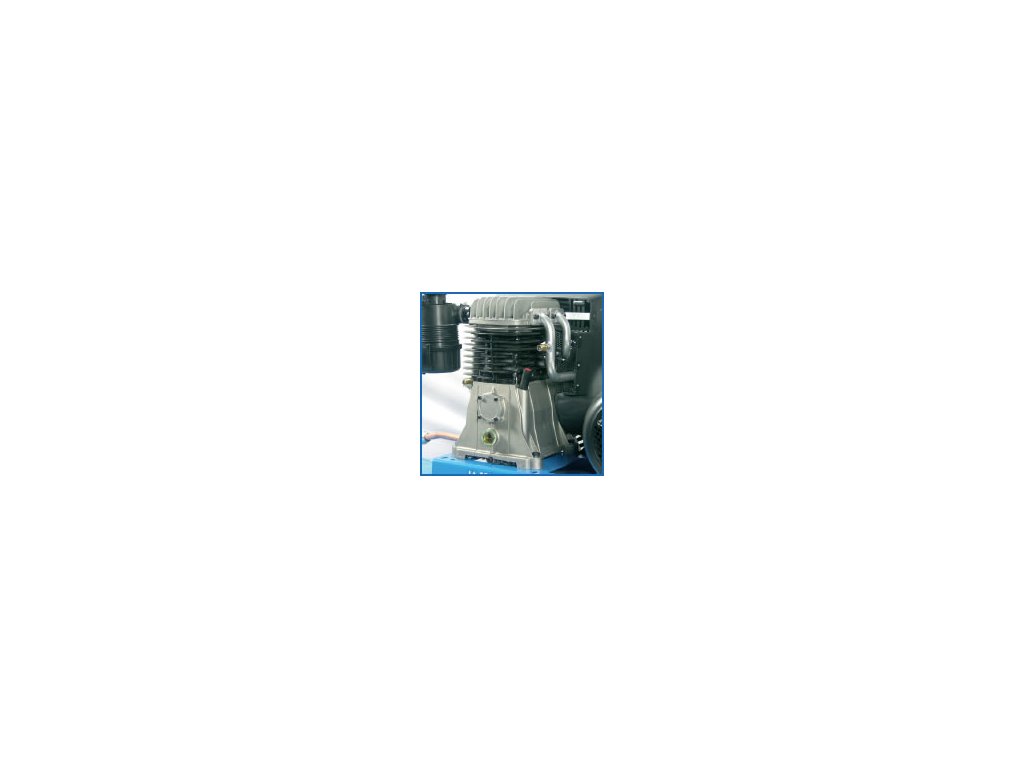

- two-stage twin-cylinder B60 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive under a belt guard, 1,400 rpm
- three-phase 5.5 kW (7.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge
- air intake 827 l/min, pressure 11 bar, aftercooler on the pump outlet
- horizontal 270 l tank on feet with a valve for draining condensate; 1/2" ball valve outlet into the pipework (regulator, filter and quick couplings at the workstation)
- stationary version without castors or a handle — for a fixed spot in the compressor room
- noise 102 dB Lwa, 82 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-5.5-270FT is not the right fit
With castors, a handle and a regulator the same set-up is the B60-5.5-270CT; one step down, the B59B on feet, is the B59B-4-270FT. Where it stands among the fourteen is shown on the B59B to B70 range page; 270-litre machines across brands are grouped together among compressors with a 270 l tank. If you want lower speed and less noise, there are the slow-running B60 and B70 versions.
Values apply to a 400 V / 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
The B60 behind the door of the compressor room: 270 l, a ball valve and 827 l/min into the pipes for three workstations.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 827 l/min |
| Air delivery: | 637 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Ball valve 1/2" |
| Motor power: | 5.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 102 dB - Lwa, 82 dB - Lwp(4m) |
| Weight: | 177 kg |
| Accessories: | Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Dimensions: | 1 520 × 600 × 1 250 mm |
