Compressor Pro Line B60-5.5-500FT, 500 l, 400 V Stationary, motor power 5.5 kW, air intake 827 l/min, pressure 11 bar, air receiver 500 l, voltage 400/50 V/Hz, 102 dB Lwa / 82 dB at 4 m
Code: B60-5-5-500FT
Related products
Product detailed description
B60 · stationary · 500 l · 827 l/min · 11 barFour workstations on one pipe run: the B60 500 on feet. The B60-5.5-500FT pumps 827 l/min into 500 l at 11 bar; from the 1/2" ball valve the pipes run to the workstations: a 5.5 kW motor on 400 V, 1,400 rpm, 260 kg. For a workshop where a piston machine is still enough, but air is drawn from four places.
Why a stationary 500 l with the B60
Four workstations on the pipes draw in bursts and the 500 at 11 bar evens those bursts out; the B60 pump with 827 l/min tops it up before the next one comes. The machine stands on feet in the compressor room, has a switch with a gauge, a 1/2" ball valve on the outlet and a condensate valve; the regulators with filters go at the workstations. With 102 dB Lwa and 82 dB at 4 m the compressor room is the only right place. If you need 15 bar, the B60 with the 500 also comes in a 15 bar version.
Equipment and details
What the B60-5.5-500FT has from the factory

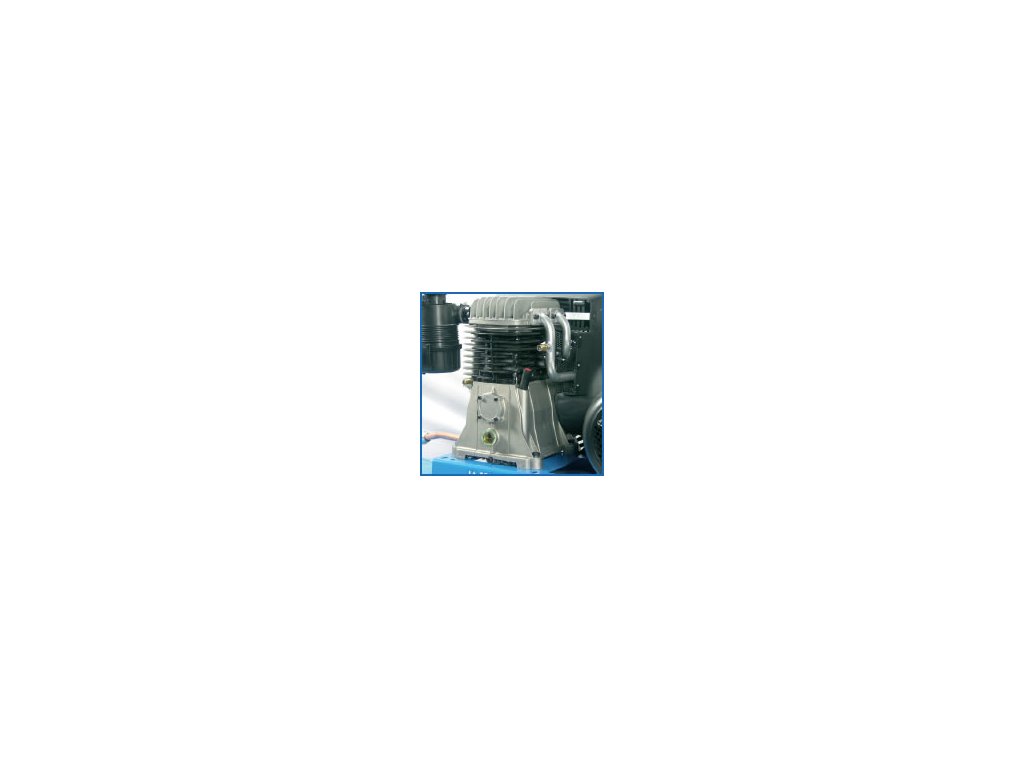

- two-stage twin-cylinder B60 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive under a belt guard, 1,400 rpm
- three-phase 5.5 kW (7.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge
- air intake 827 l/min, pressure 11 bar, aftercooler on the pump outlet
- horizontal 500 l tank on feet with a valve for draining condensate; 1/2" ball valve outlet into the pipework (regulator, filter and quick couplings at the workstation)
- stationary version without castors or a handle — for a fixed spot in the compressor room
- noise 102 dB Lwa, 82 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-5.5-500FT is not the right fit
The mobile version of the same set-up is offered by the B60-5.5-500CT; more air on feet comes from the B70-7.5-500FT. The four 500s of the range are compared on the B59B to B70 range page; siblings on feet from other brands are found among stationary compressors. If you draw air without pauses for the whole hall, you need a screw compressor.
Values apply to a 400 V / 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
Four workstations on the pipes: 500 l on feet and a B60 pump that evens out the bursts.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 827 l/min |
| Air delivery: | 637 l/min |
| Pressure vessel volume: | 500 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Ball valve 1/2" |
| Motor power: | 5.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 102 dB - Lwa, 82 dB - Lwp(4m) |
| Weight: | 260 kg |
| Accessories: | Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Dimensions: | 2 030 × 670 × 1 400 mm |
