Low-speed compressor Pro Line B60-4-500CT, 500 l, 400 V On castors, low-speed version, 4 kW motor, air intake 660 l/min at 1,100 rpm, 11 bar, 500 l tank, 400 V, 97 dB Lwa / 77 dB at 4 m
Code: B60-4-500CT
Related products
Product detailed description
B60 · on castors · 500 l · 660 l/min · 1,100 rpmA big reserve for the smallest motor in the range, on castors. The B60-4-500CT pairs the low-speed B60 pump with 4 kW and 660 l/min with a horizontal 500 l tank at 11 bar: the pump runs at 1,100 rpm with 97 dB Lwa and 77 dB at 4 m, and the big tank does what the smaller displacement cannot — it holds a reserve when several tools draw at once.
Why a small motor and a big tank
With a low-speed pump at 660 l/min the 500 makes even more sense than with the standard version: the 4 kW motor fills 500 l to 11 bar more slowly, but the tank holds a reserve for the moments when a grinder, an impact wrench and blowing off run at the same time, and the motor rests in between. The machine stays on castors — two front swivel ones with brakes, two rear wheels and a tubular handle — so you can move it to another workstation in the hall. The regulator with two DN 7.2 quick couplings serves two hoses, two gauges show the tank pressure and the tool pressure. The noise stays at 97 dB Lwa, 77 dB at 4 m.
Equipment and details
What the B60-4-500CT has from the factory
- two-stage twin-cylinder B60 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive geared down to 1,100 rpm, moulded plastic belt guard

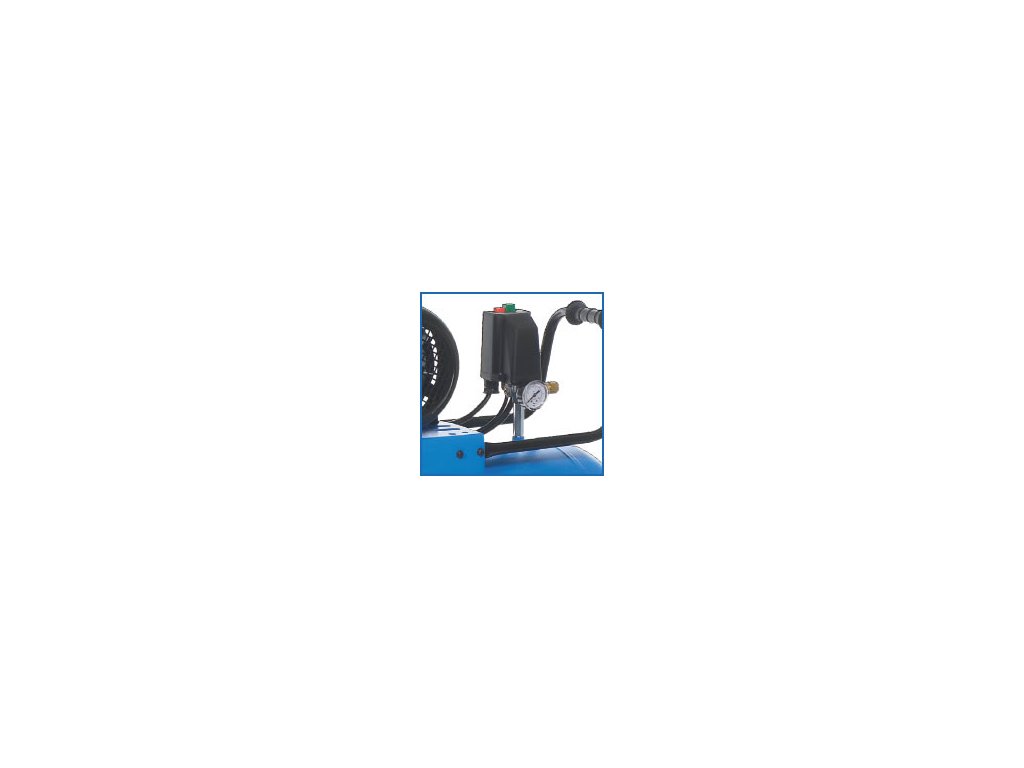

- three-phase 4 kW (5.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge
- air intake 660 l/min, pressure 11 bar, aftercooler on the pump outlet
- horizontal 500 l tank with a ball valve for draining condensate; pressure regulator with two DN 7.2 quick couplings and a second gauge for the outlet pressure
- two front swivel castors with brakes, two rear wheels, tubular handle with a rubber grip
- noise 97 dB Lwa, 77 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-4-500CT is not the right fit
The same pump and motor with a smaller tank is the B60-4-270CT; the same 500 on feet for the compressor room is the B60-4-500FT. If you need more displacement with 500 l, move up to the B70 pump — you will find it in the low-speed range table. Five-hundred-litre machines across brands are compared among compressors with a 500 l tank; for two hoses from the regulator there are two spiral hoses.
Values apply to a 400 V / 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
A 500 for an assembly hall where air is drawn in bursts from several places: the tank holds the reserve and the pump at 1,100 rpm calmly tops it up between the bursts.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900505207 |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 660 l/min |
| Air delivery: | 508 l/min |
| Pressure vessel volume: | 500 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1100 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Weight: | 232 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Dimensions: | 2 030 × 670 × 1 400 mm |
