Low-speed compressor Pro Line B60-4-500FT, 500 l, 400 V Stationary, low-speed version, 4 kW motor, air intake 660 l/min at 1,100 rpm, 11 bar, 500 l tank, 400 V, 97 dB Lwa / 77 dB at 4 m
Code: B60-4-500FT
Related products
Product detailed description
B60 · stationary · 500 l · 660 l/min · 1,100 rpmThe smallest motor in the range on feet, for the compressor room of a smaller workshop. The B60-4-500FT puts 660 l/min from the low-speed B60 pump with 4 kW into a 500 l tank on feet — 1,100 rpm, 97 dB Lwa and 77 dB at 4 m, a 1/2" ball valve outlet into the pipework. For an operation where air is drawn for the whole shift and goes through pipes to the workstations.
Why an FT with 4 kW
A machine on feet stays put, so there is no handle, no castors and no regulator with quick couplings on it — the air leaves through a 1/2" ball valve into the pipework and a regulator with a filter goes at every workstation. The low-speed B60 pump with 4 kW suits a place where the compressor cuts in from morning till evening, but the draw is not at the limit: the pump runs at 1,100 rpm and cooler, and the noise stays at 97 dB Lwa, 77 dB at 4 m, as on the other B60-4s. The pressure switch with a gauge watches the 11 bar in the tank; the condensate is drained by a valve under the tank.
Equipment and details
What the B60-4-500FT has from the factory

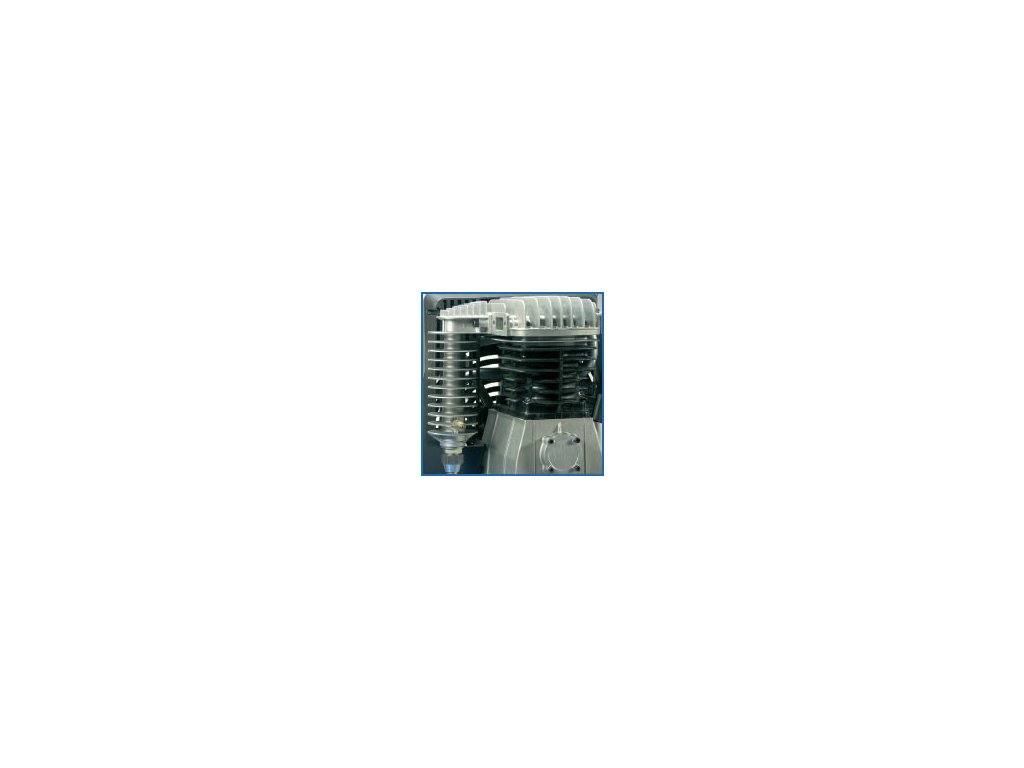

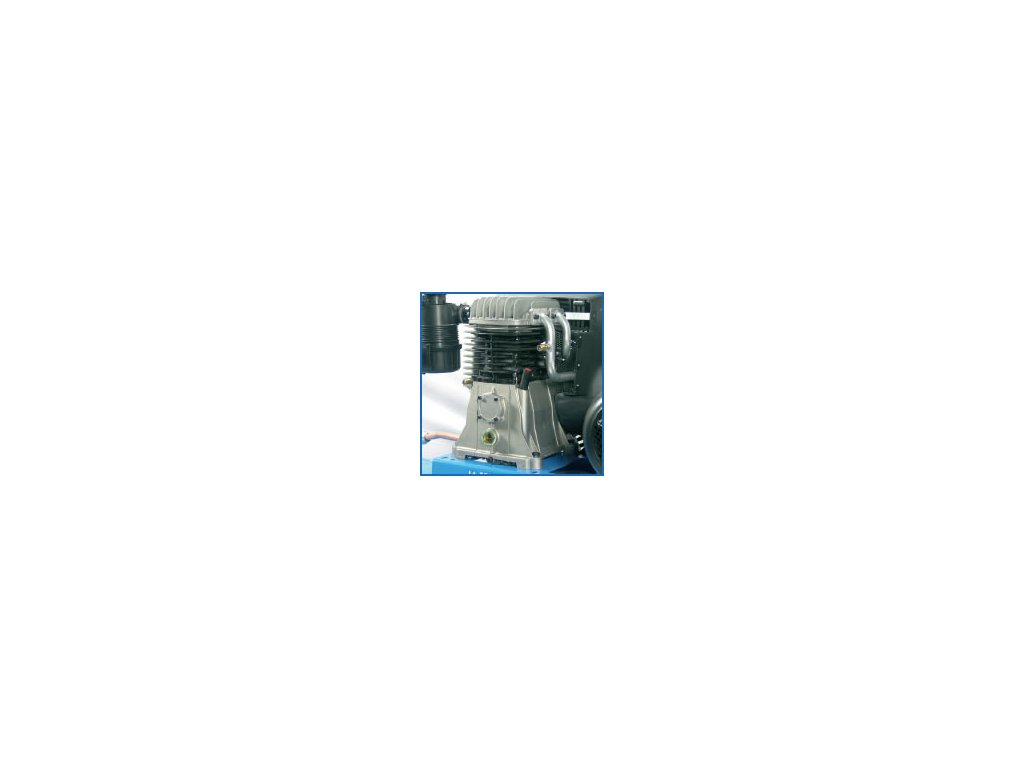

- two-stage twin-cylinder B60 pump with cast-iron cylinders and an intercooler, oil-lubricated, with an oil sight glass; V-belt drive geared down to 1,100 rpm, moulded plastic belt guard
- three-phase 4 kW (5.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch with a gauge
- air intake 660 l/min, pressure 11 bar, aftercooler on the pump outlet
- horizontal 500 l tank on feet with a valve for draining condensate; 1/2" ball valve outlet into the pipework (regulator, filter and quick couplings at the workstation)
- stationary version without castors or a handle — for a fixed spot in the compressor room
- noise 97 dB Lwa, 77 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-4-500FT is not the right fit
The same 500 on castors is the B60-4-500CT; more displacement on feet with the B70 pump comes from the B70-5.5-500FT. Every workstation downstream of the pipework gets a pressure regulator with a filter. How the low-speed machines differ from the standard ones is explained on the low-speed range page; machines on feet of all brands are grouped together among stationary compressors.
Values apply to a 400 V / 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
A compressor room for a smaller workshop: the machine runs slowly and for long spells, the 500 l tank holds the reserve, and at the workstations everybody sets their own pressure on the regulator.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900505221 |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 660 l/min |
| Air delivery: | 508 l/min |
| Pressure vessel volume: | 500 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Ball valve 1/2" |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1100 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Weight: | 229 kg |
| Accessories: | Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Dimensions: | 2 030 × 670 × 1 400 mm |
