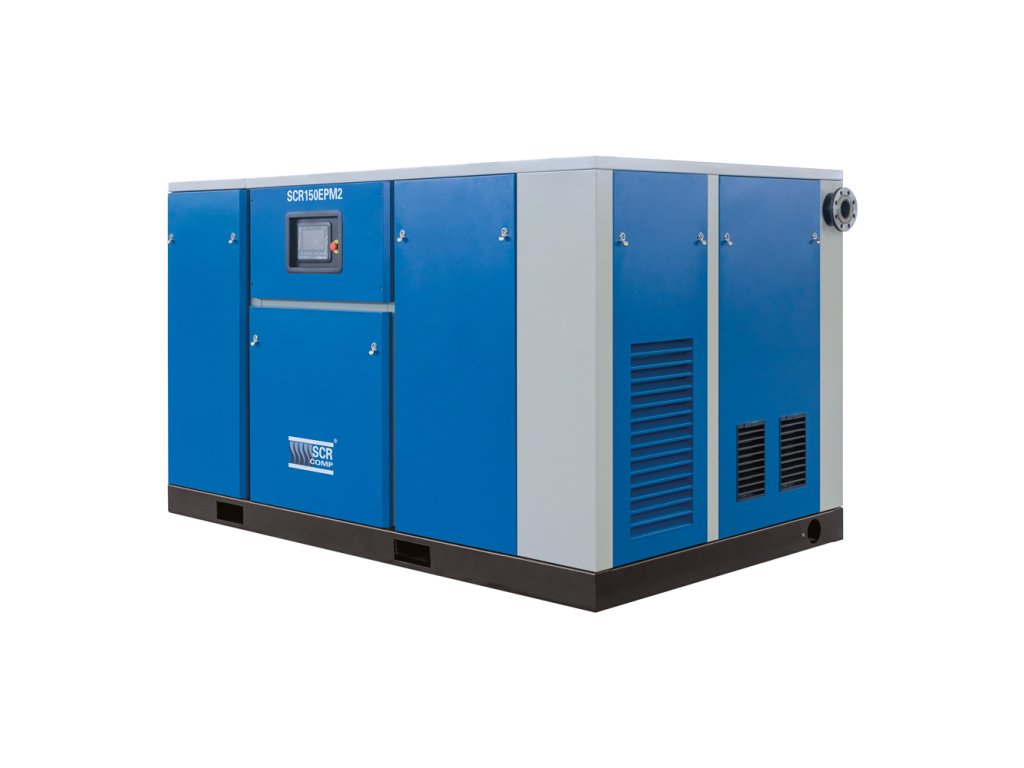

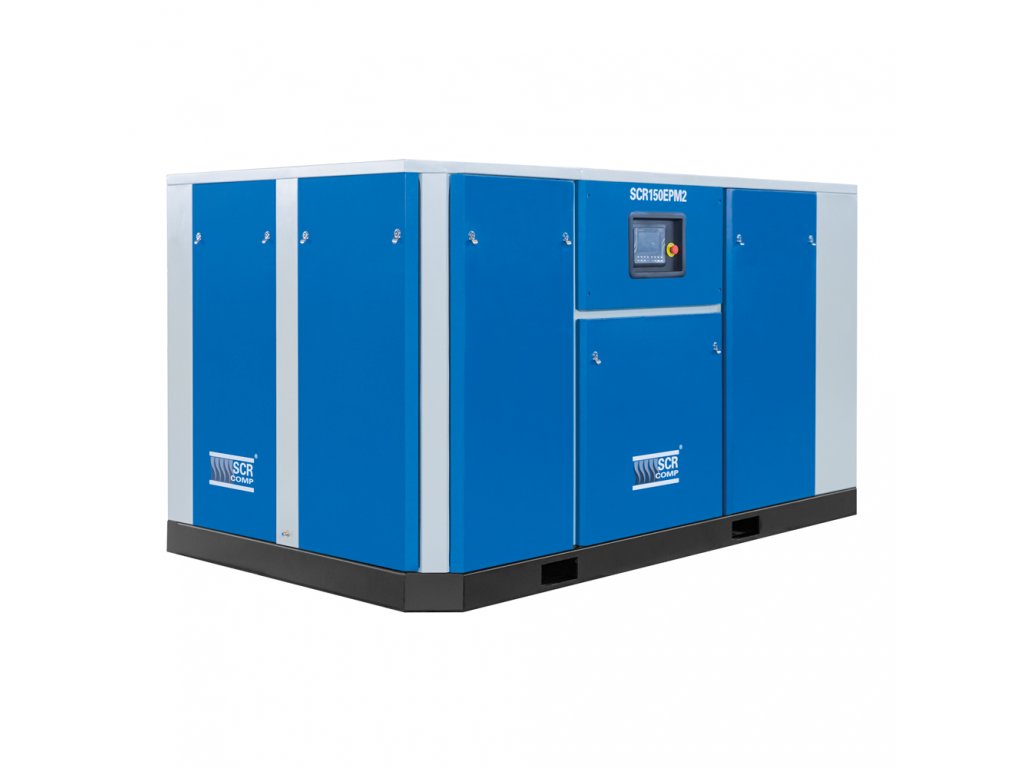

SCR-160/10EPM2 screw compressor motor power input 160 kW, supplied pressure 10 bar, volumetric flow rate 1620 Nm3/h
Code: SCR-160/10EPM2
Related products
Product detailed description
The most powerful machine in the range, set to ten bar: 27,000 l/min. It is the highest output you will get in this range at ten bar — and the machine where it pays most to verify that the pressure is genuinely necessary.
Why 10 bar
Ten bar gives 27,000 l/min against 33,500 at seven, or 19 % less. Regulation goes down to 7,600 l/min, 28 % of output — still usable, but on a machine that never drops below seven and a half cubic metres, steady demand or a substantial receiver is a condition.
| The same 160 kW machine at three pressure settings | |||
|---|---|---|---|
| Order code | Pressure | Free air delivery (l/min) | Loss against 7 bar |
| SCR-160/7EPM2 | 7 bar | 9,300 – 33,500 | 0 % |
| SCR-160/8EPM2 | 8 bar | 8,800 – 31,000 | 7 % |
| SCR-160/10EPM2 — this machine | 10 bar | 7,600 – 27,000 | 19 % |
The dimensions of 2,700 × 1,650 × 2,150 mm, weight of 3,150 kg, DN 80 outlet and noise level of 78 dB(A) are identical across all three settings — it is one and the same machine.
How it differs from its neighbours
The smaller SCR-132/10EPM2 gives 23,000 l/min in an identical frame and asks less of the ventilation — 25,000 rather than 30,000 m³/h. If less pressure would do, the same machine as the SCR-160/7EPM2 adds 6,500 l/min.

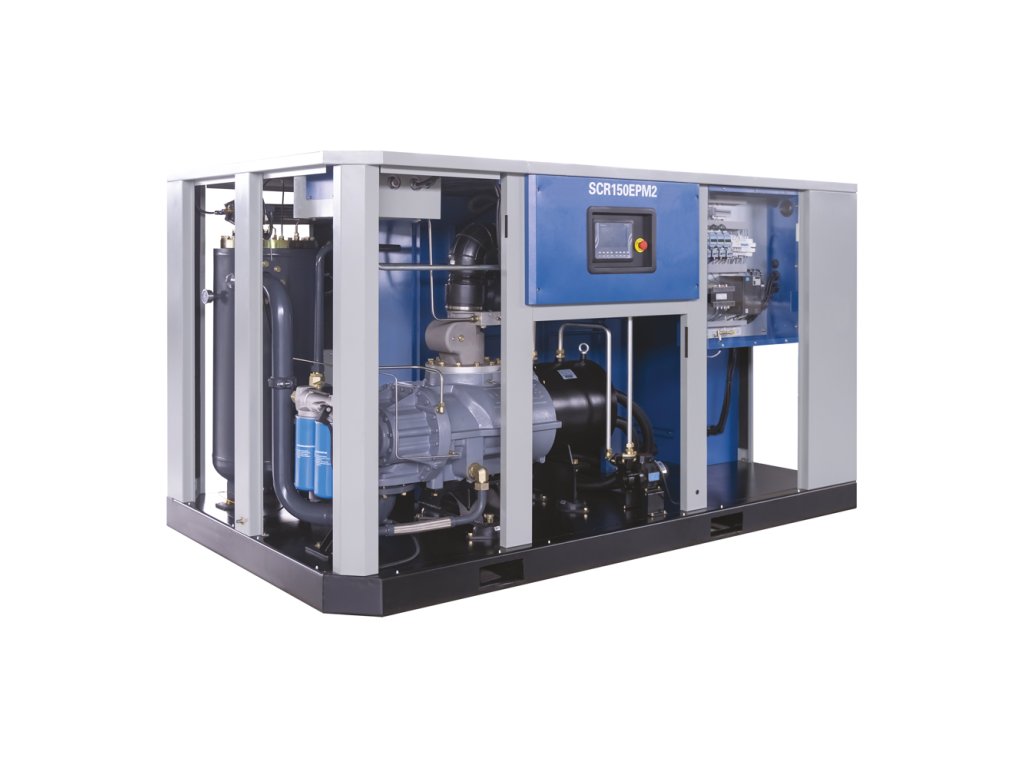

What is inside
Permanent magnet motor
Oil cooling in a closed circuit, IP65 protection, a design with no bearings. On 160 kW a saving of 5–6 % against IE2 is a figure you can see in the budget.
Direct drive through a taper coupling
No belts and no gearbox. On 160 kW a slipping belt would mean a loss of output that nobody notices until the electricity bill arrives.
Frequency inverter
Instead of blowing off the excess it reduces speed: 7,600 to 27,000 l/min steplessly, a floor at 28 % of output, pressure still within ±0.1 bar.
New-generation airend
A reground rotor profile and optimised ports. On a machine giving 27,000 l/min, every percent of efficiency means a different sum than it would on a small compressor.
SCR9000 controller
A graphical schematic of the machine, a service schedule and remote monitoring over RS485. A cascade of sixteen machines with no separate control cabinet.
What the machine needs in the compressor room
Twenty-seven thousand litres a minute at ten bar is 1,620 m³/h. The regulation floor of 7,600 l/min means the machine never comes below seven and a half cubic metres — without steady demand or a large receiver it will cycle. Ventilation 30,000 m³/h.
| SCR-160/10EPM2 — figures for the compressor room design | |
|---|---|
| Free air delivery | 27,000 l/min · 1,620 m³/h |
| Regulation range | 7,600 – 27,000 l/min (down to 28 % of output) |
| Ventilation required | 30,000 m³/h |
| Dimensions L × W × H | 2,700 × 1,650 × 2,150 mm |
| Weight | 3,150 kg |
| Compressed air outlet | DN 80 |
| Noise level at 1 m | 78 dB(A) |
| Voltage | 400 V / 50 Hz |
Equipment
- permanent magnet motor above IE4 level, oil-cooled in a closed circuit, IP65 protection, no bearings
- direct drive through a taper coupling — no belts, gearbox or coupling
- vector-controlled frequency inverter, regulation across 25 to 100 % of speed
- the cooling fan is inverter-driven as well
- new screw airend with a rotor profile developed in Japan, service life over 100,000 hours
- SCR9000 controller with touchscreen, weekly schedule and cascade of up to 16 machines
- intake nanofilter with 99.9 % retention, 0.1 µm oil filter
- oversized separator holding residual oil below 3 ppm
- all-steel internal pipework instead of rubber hoses
- soft start — the current never exceeds the rated value
Six and a half thousand litres a minute is a difference worth walking the installation for, right through to the last point of use. If only part of the plant needs ten bar, splitting it into two pressure circuits is usually cheaper. The material is in the SCR-EPM2 range.
When only part of the production needs that pressure, two circuits work out cheaper than driving the whole plant at ten bar.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 10 bars |
| Displacement: | 27,000 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | DN80 |
| Motor power: | 160 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Noise: | 78 dB(A) |
| Dimensions: | 2 700 × 1 650 × 2 150 mm |
| Weight: | 3,150 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | Yes |
-
