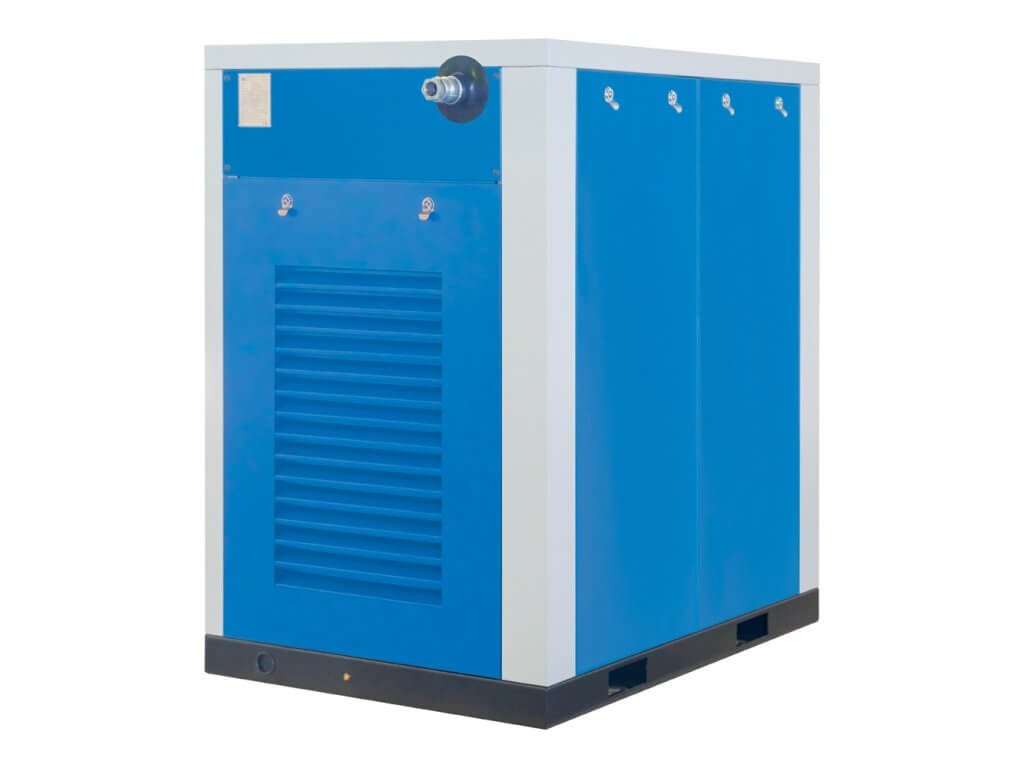

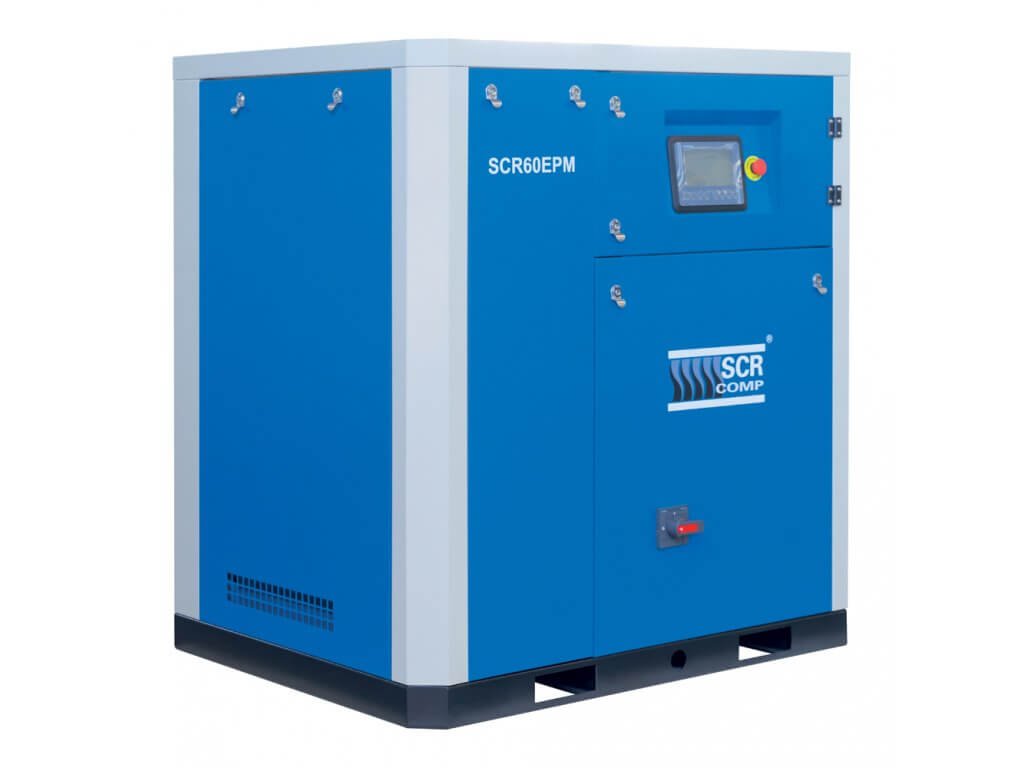

SCR-30/10EPM screw compressor power input 30 kW, discharge rate up to 5,200 l/min, pressure 10 bar, frequency converter, voltage 400/50 V/Hz YD
Code: SCR-30/10EPM
Related products
Product detailed description
The 30 kW machine set to ten bar gives 5,200 l/min. It is the smallest machine in the range that still clears five thousand litres a minute at ten bar — below it, ten-bar settings lose ground sharply.
Why 10 bar
Ten bar brings delivery down to 5,200 l/min against 6,200 at seven, a drop of 16 %. Control goes down to 1,300 l/min, a quarter of output — so the machine copes with very small demand without cycling.
| The same 30 kW machine at three pressure settings | |||
|---|---|---|---|
| Order code | Pressure | Free air delivery (l/min) | Loss against 7 bar |
| SCR-30/7EPM | 7 bar | 1,700 – 6,200 | 0 % |
| SCR-30/8EPM | 8 bar | 1,600 – 6,100 | 2 % |
| SCR-30/10EPM — this machine | 10 bar | 1,300 – 5,200 | 16 % |
Dimensions 1,300 × 1,000 × 1,370 mm, weight 830 kg, outlet R 1½" and noise 68 dB(A) are identical at all three settings — it is one and the same machine.
How it differs from its neighbours
The smaller SCR-22/10EPM gives 3,500 l/min, the larger SCR-37/10EPM 6,500 l/min. On the 37 kW, though, the lower control limit is 2,300 l/min, so at low demand the 30 kW is the more flexible of the two.

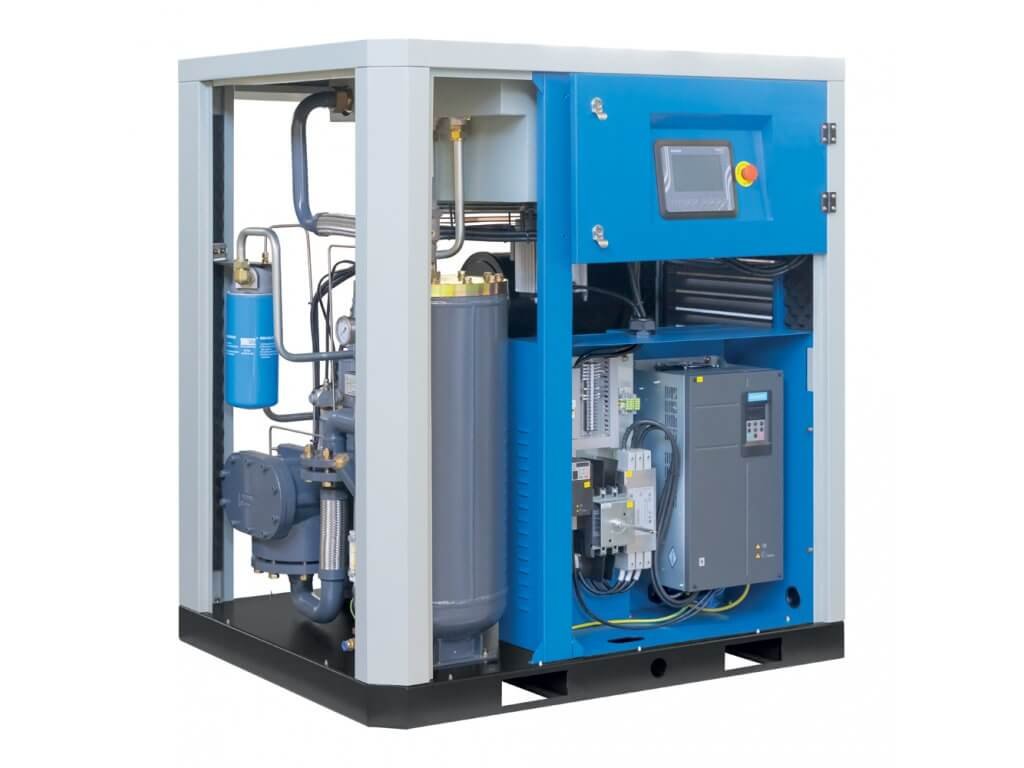

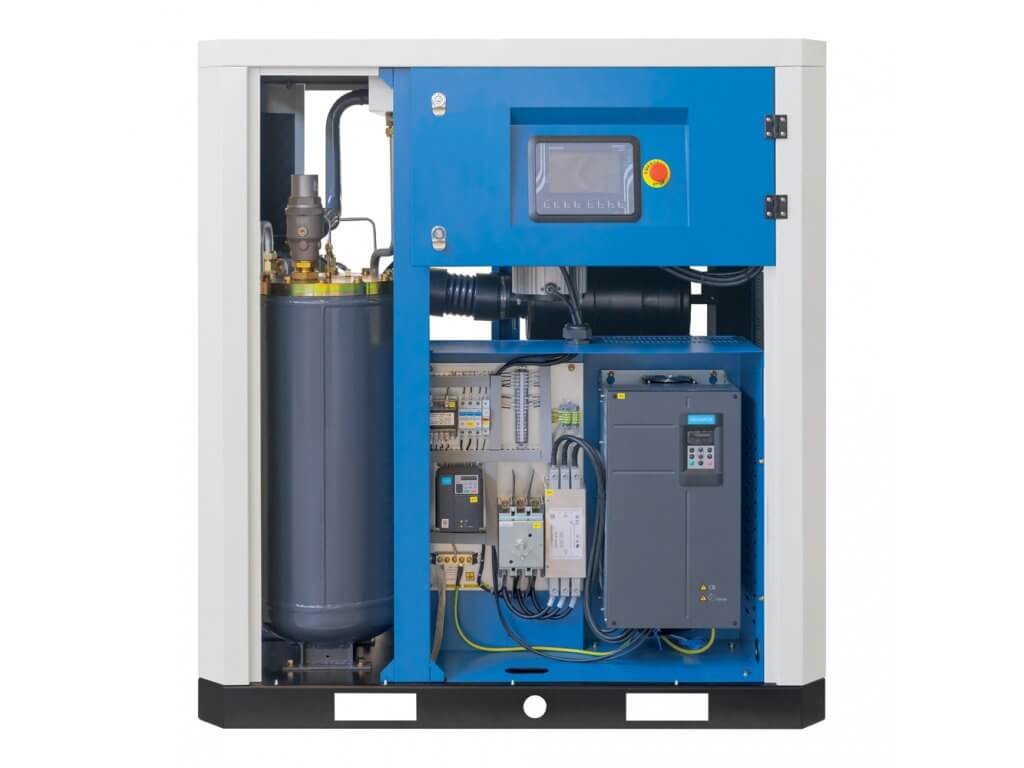

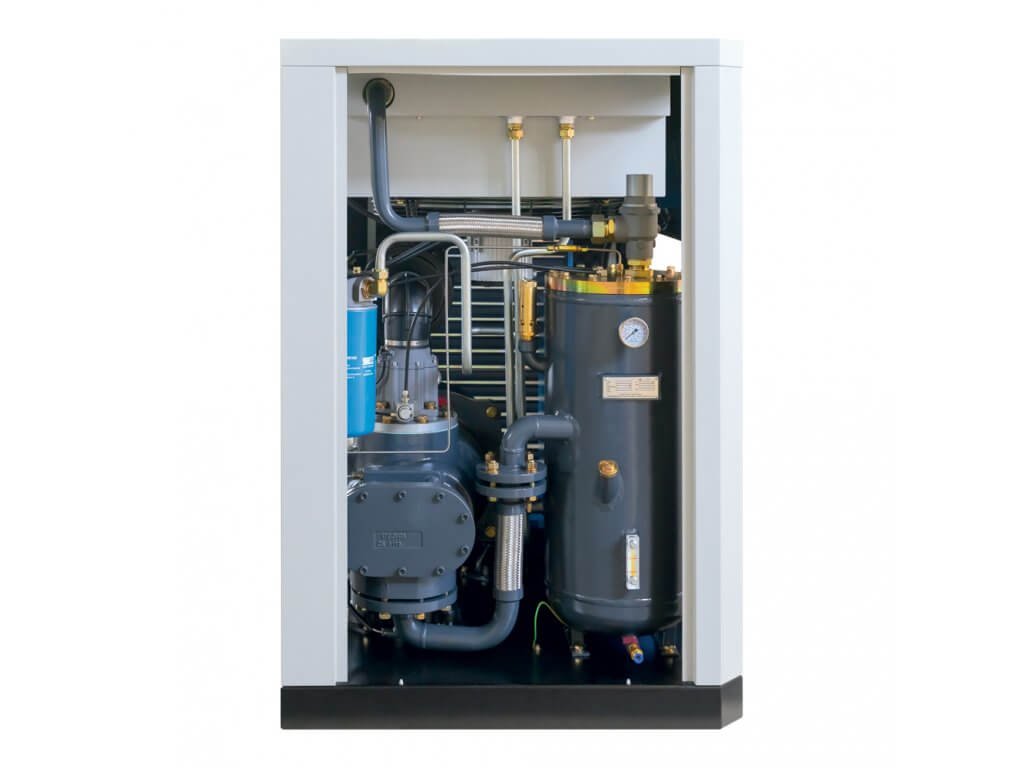

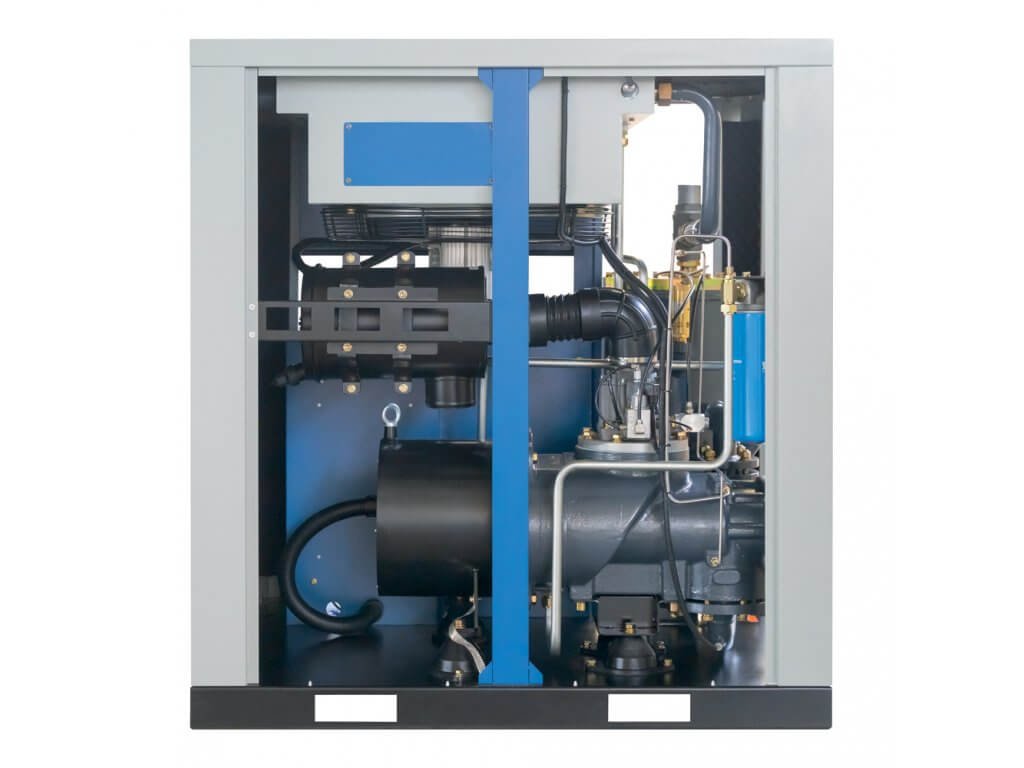

What is inside
Permanent magnet motor
A closed oil circuit and a bearingless design mean one less service item. On 30 kW it adds 5–6 % of saving against an ordinary IE2 motor on top of that.

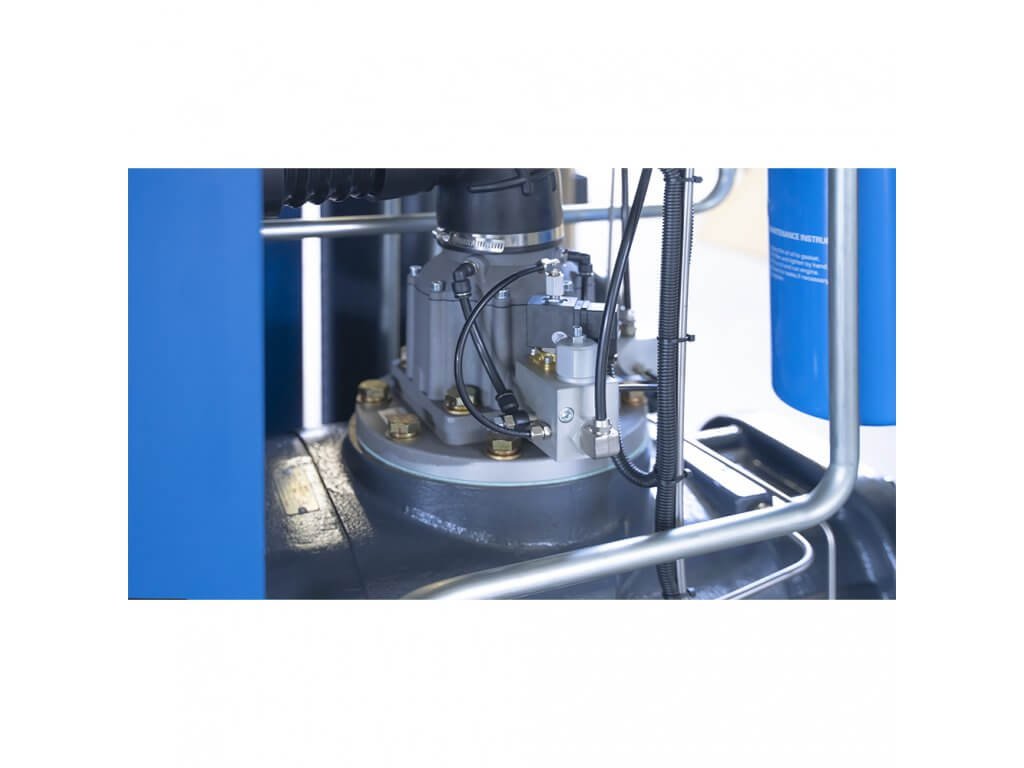

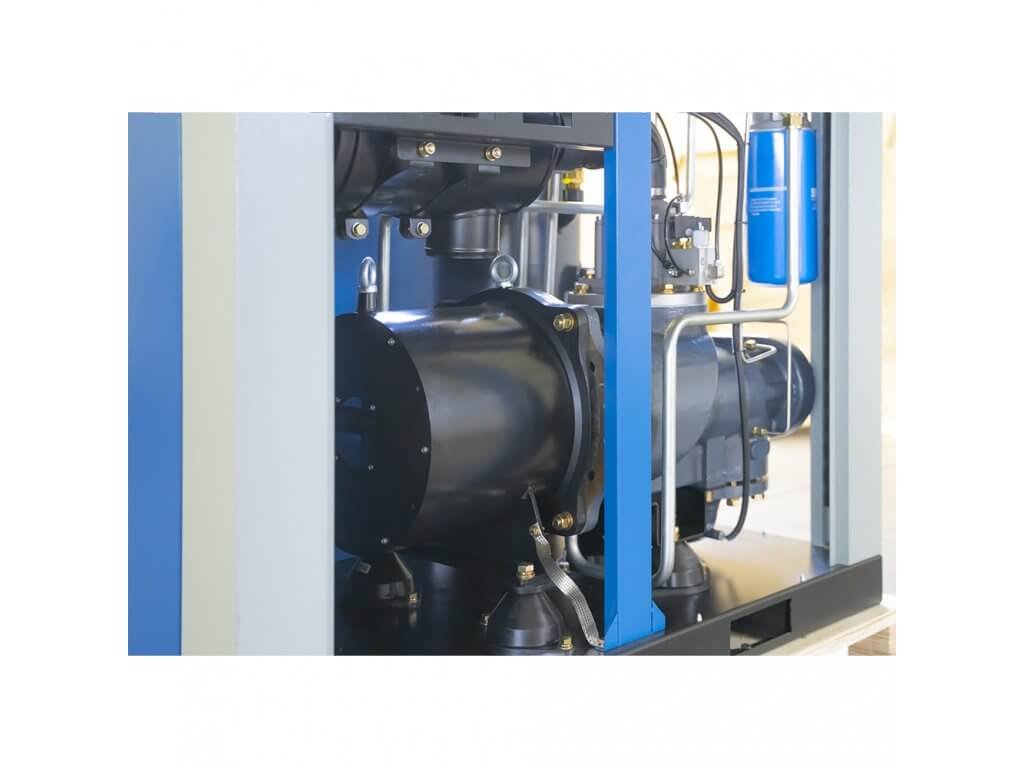

Direct drive through a taper coupling
A taper coupling transmits the power with no belt losses. On a machine meant to run daily, what matters most is what does not need checking.

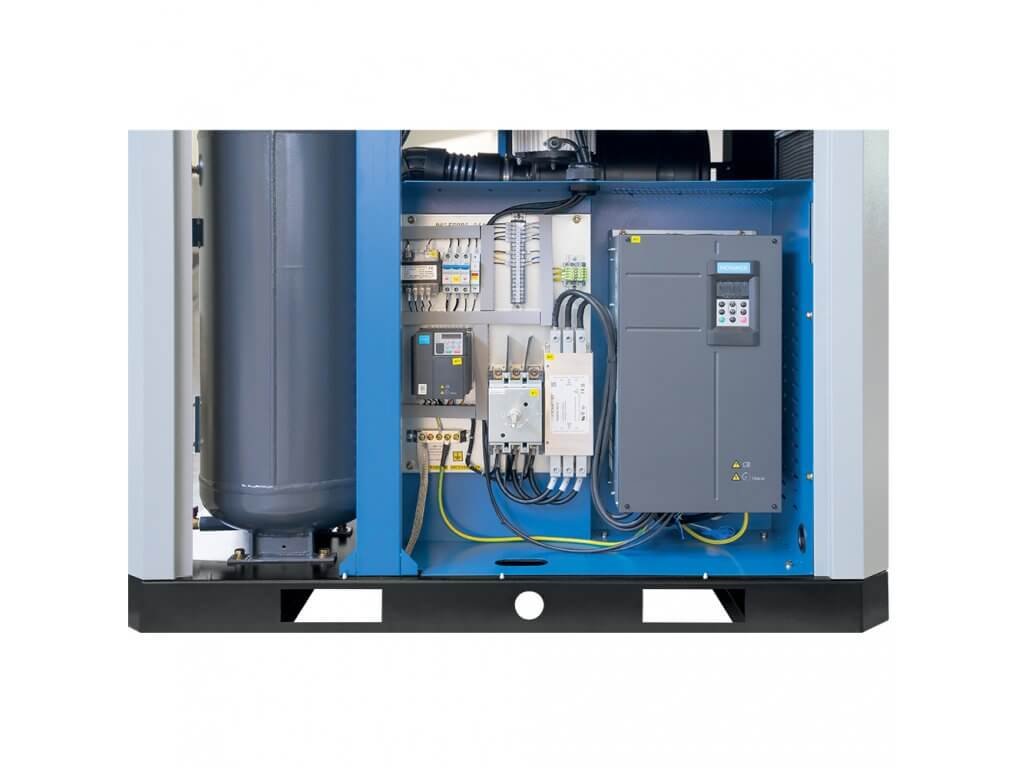

Frequency inverter
It comes down to 25 % of output, that is 1,300 l/min, and does not have to cycle. The soft start puts no more load on the supply than normal running.
Screw airend
A reground profile and optimised ports. On a machine giving 5,200 l/min the airend is the one part that cannot be improved afterwards — which is why it is new.
SCR9000 controller
A graphical schematic shows what is happening inside, the service schedule reminds you about the oil change. It runs a cascade of sixteen compressors with no separate control cabinet.
What the machine needs in the plant room
Five thousand two hundred litres a minute is 312 m³/h. That is the volume the dryer and filtration are sized on, and at ten bar a dryer is practically compulsory. The plant room ventilation has to handle 6,400 m³/h, otherwise the machine will run hotter and trip out sooner than you expect.
| SCR-30/10EPM — figures for the plant room design | |
|---|---|
| Free air delivery | 5,200 l/min · 312 m³/h |
| Speed control range | 1,300 – 5,200 l/min (from 25 % of output) |
| Ventilation required | 6,400 m³/h |
| Dimensions L × W × H | 1,300 × 1,000 × 1,370 mm |
| Weight | 830 kg |
| Compressed air outlet | R 1½" |
| Noise at 1 m distance | 68 dB(A) |
| Supply voltage | 400 V / 50 Hz |
Equipment
- permanent magnet motor above IE4, oil-cooled, IP65 protection, no bearings
- direct drive by taper connection — no belts, gearbox or coupling
- vector-controlled frequency inverter, 25 to 100 % speed range
- the inverter drives the cooling fan as well
- new airend with a rotor profile developed in Japan
- SCR9000 controller with touch display, weekly timer and cascade of up to 16 machines

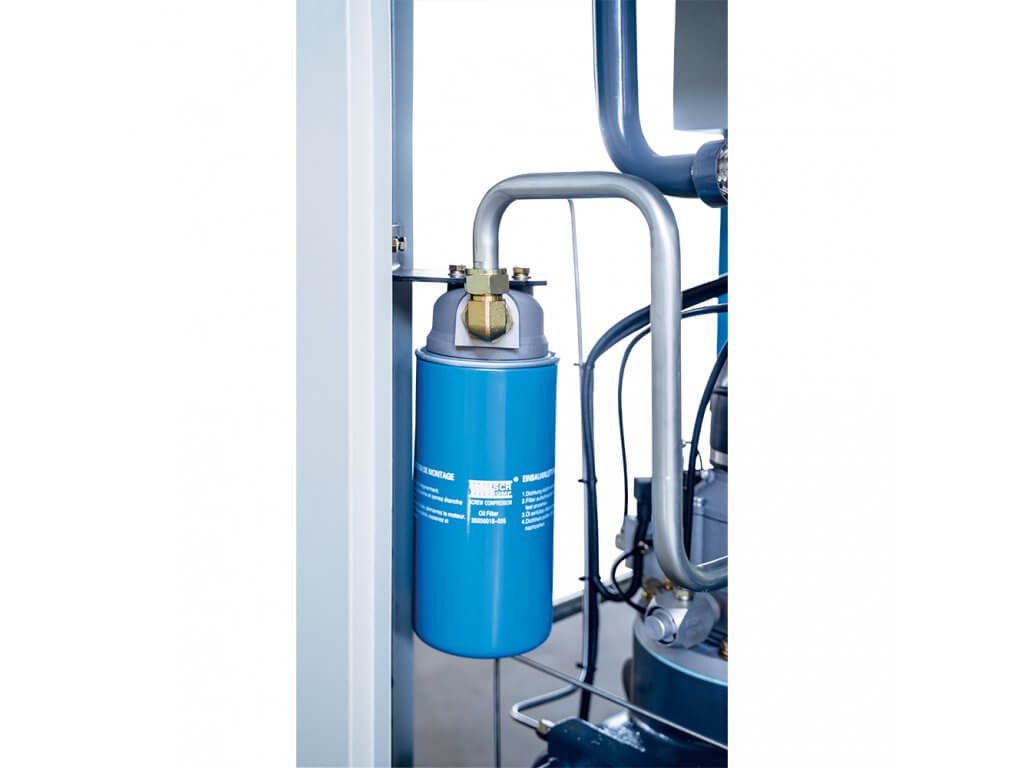

- nano-scale intake filter at 99.9 % efficiency, 0.1 µm oil filter
- separator with oil carry-over below 3 ppm
- all-steel internal pipework instead of rubber hoses
- soft start — the current never exceeds the rated value
Ten bar and more than five thousand litres means a serious distribution system — and a serious receiver, which you will find in air receivers. The condensate from that volume of air is handled by the dryers in compressed air dryers. The whole range is compared in the SCR-EPM range.
It goes down to 1,300 l/min, whereas the 37 kW stops at 2,300. When demand falls to nothing overnight, you notice.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 10 bars |
| Displacement: | 5,200 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | 1 1/2" |
| Motor power: | 30 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Noise: | 68 dB(A) |
| Dimensions: | 1 300 × 1 000 × 1 370 mm |
| Weight: | 830 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | Yes |
-
