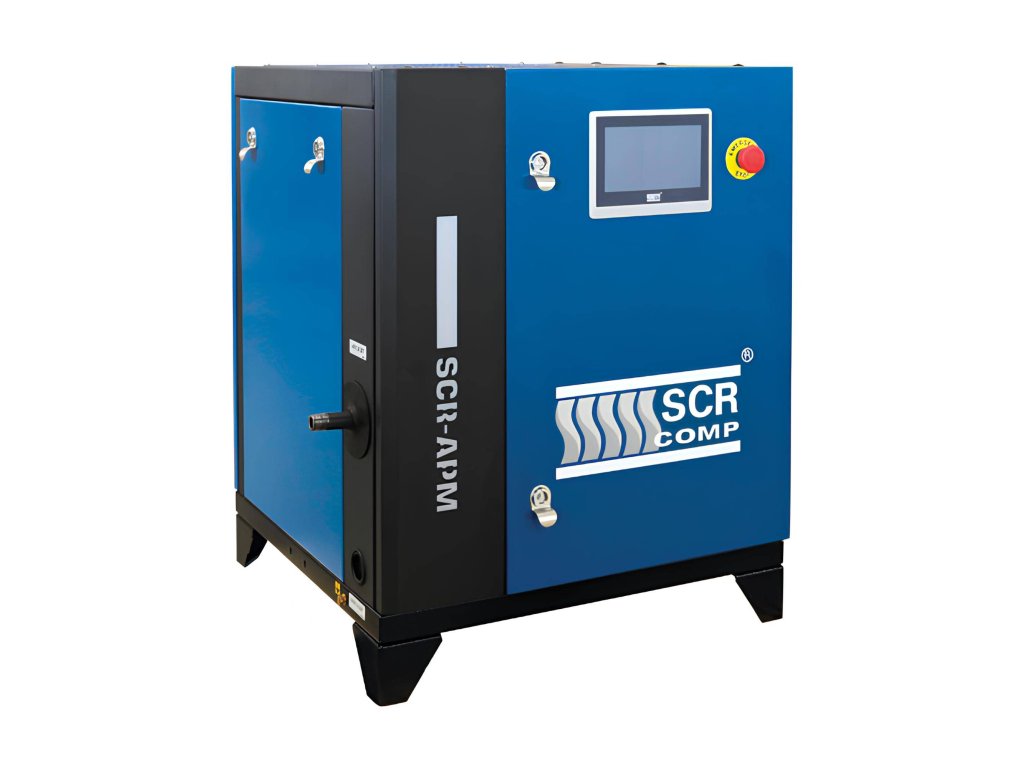

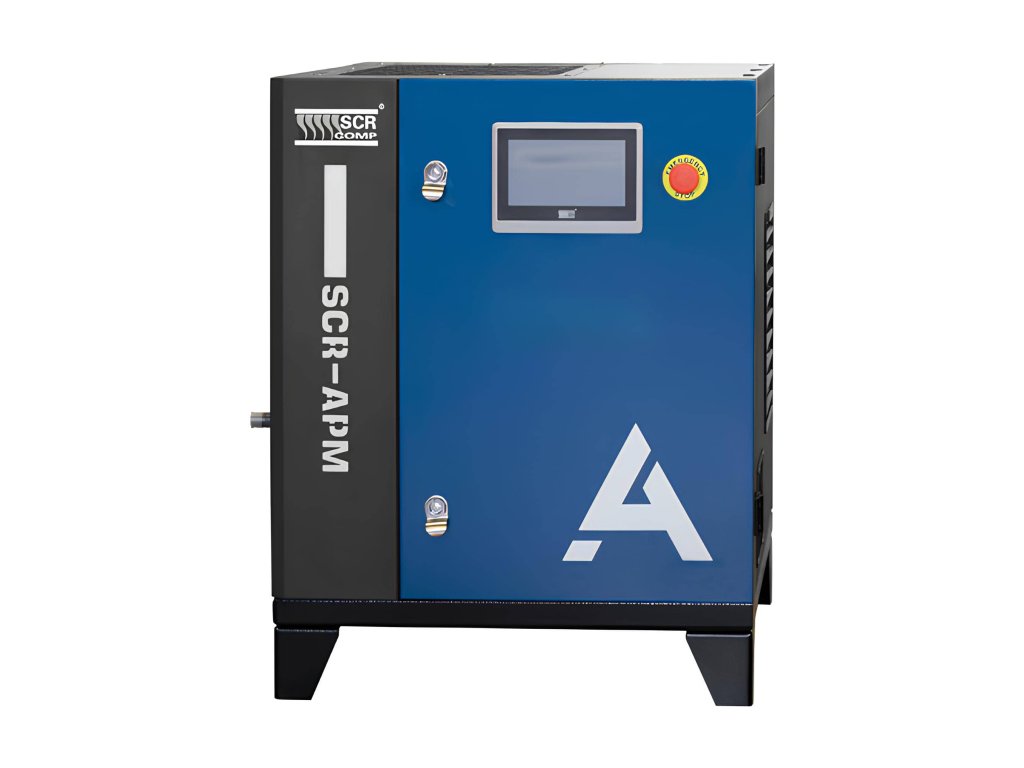

Screw Compressor SCR-3/10APM motor input 3.6 kW, supplied pressure 10 bar, volume flow 19.2 Nm³/h
Code: SCR-3/10APM
Related products
Product detailed description
The smallest rotary screw compressor in the range, meant for a workshop that already has a receiver. It gives 320 l/min at ten bar, weighs 180 kg and takes up 0.39 m² — less floor space than a pallet.
Why 10 bar, and how it is regulated
Ten bar is the ceiling, but you set the pressure on the controller and the inverter then holds it all the way down to four bar. The 3 kW is the most frugal machine in the range in absolute terms, yet the dearest per litre: 86 l/min per kilowatt against 128 on the 4 kW.
| Machines without a receiver — three outputs in an identical enclosure | |||
|---|---|---|---|
| Order code | Motor power | Delivery | Per kilowatt |
| SCR-3/10APM — this machine | 3.7 kW | 320 l/min | 86 l/min |
| SCR-4/10APM | 4 kW | 510 l/min | 128 l/min |
| SCR-5,5/10APM | 5.5 kW | 696 l/min | 127 l/min |
All three outputs share the 650 × 600 × 860 mm enclosure, the weight of 180 kg and the noise level of 65 dB(A) — they differ only in air delivered and energy drawn. The last column shows how many litres you get from each kilowatt of input.
How it differs from its neighbours
And that is the catch. The SCR-4/10APM draws just 8 % more power but delivers 59 % more air — 510 instead of 320 l/min. Unless you are buying for a single air tool, the 4 kW is almost always the better buy. The 3 kW makes sense where demand is genuinely small or the supply is weak.

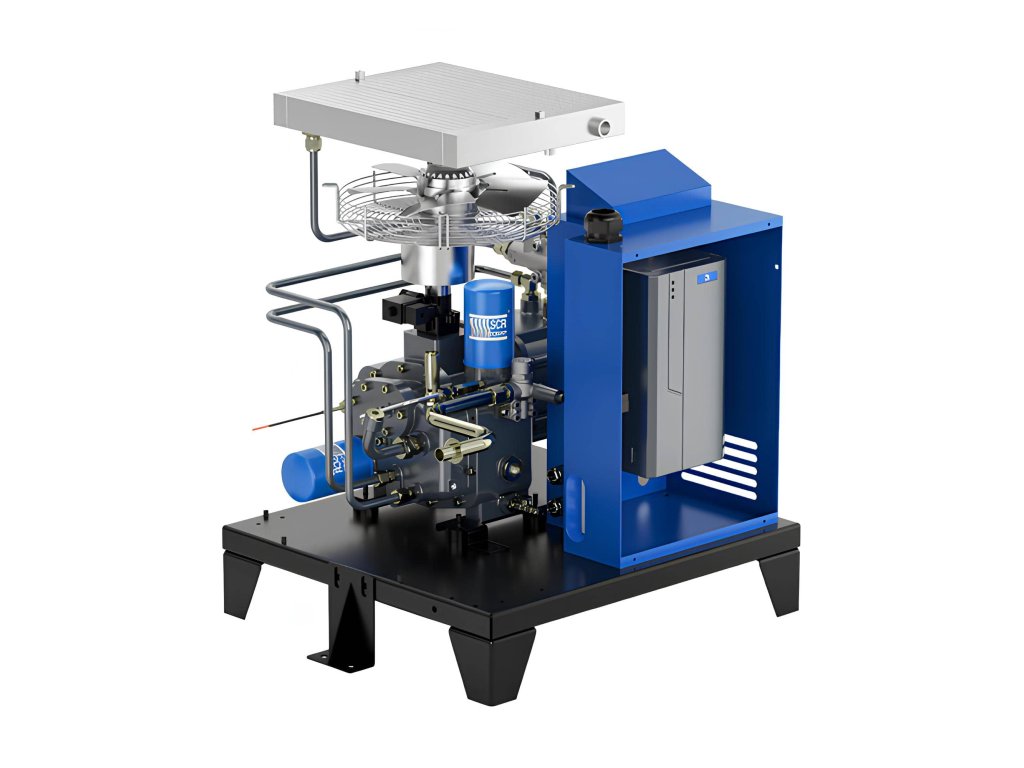

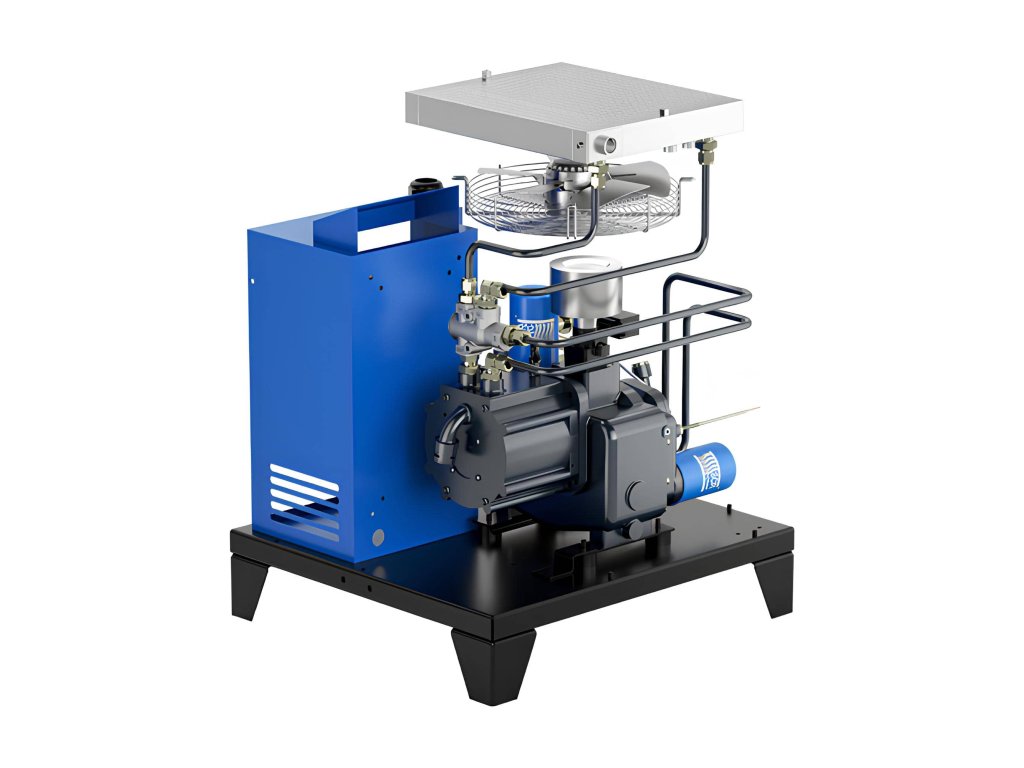

What is inside

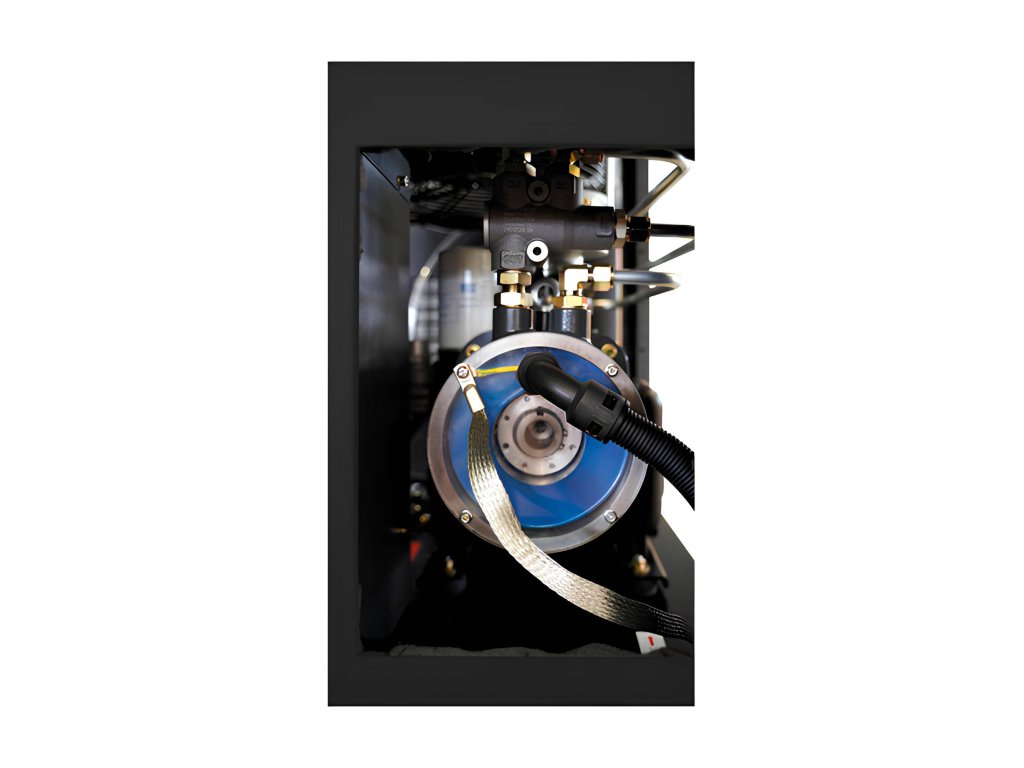

Permanent magnet motor
Cooled by oil straight from the airend, with efficiency above IE4 class. On 3.7 kW that means the motor will not overheat even running continuously.
Direct 1:1 drive
The airend bolts straight onto the motor. No V-belts, no gearbox, no flexible coupling — and so no tensioning, no replacements and no losses eating into 320 l/min.

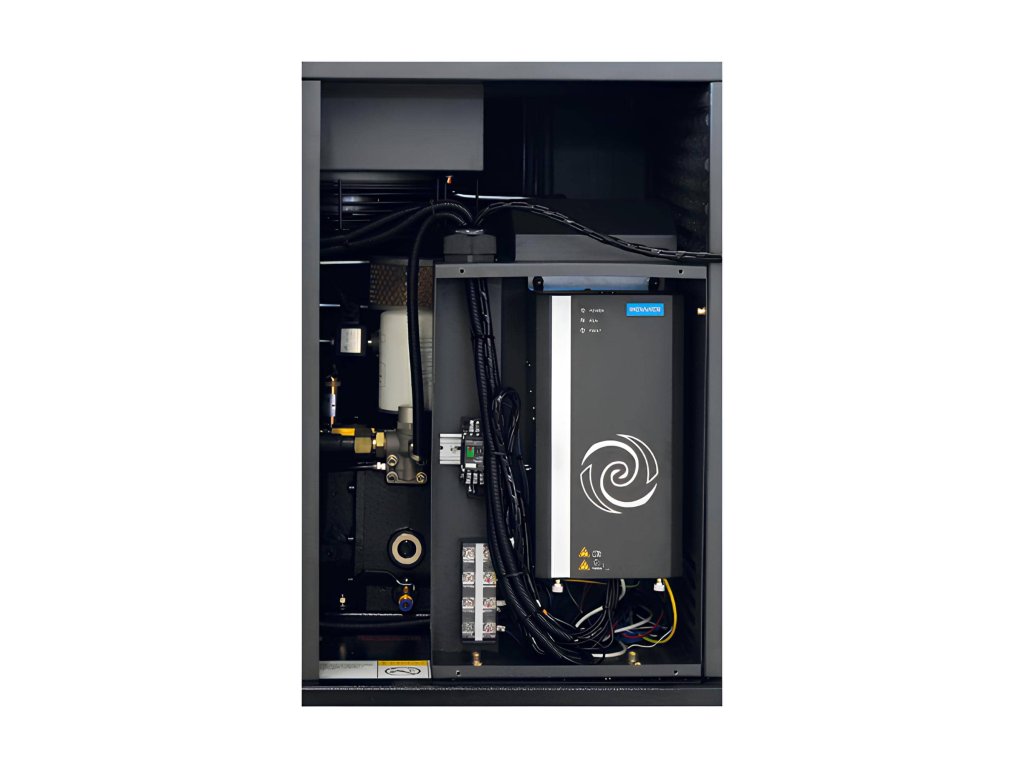

INOVANCE frequency inverter
Vector control developed specifically for screw compressors, with torque from 0.1 Hz. Speed follows demand steplessly, so the machine never idles.
Low-speed screw airend
An in-house airend with a modern rotor profile. Low speed means less wear and a noise level of 65 dB(A) — the level of ordinary conversation.
IT7000 touchscreen controller
A seven-inch colour display, a weekly running schedule, a fault log and automatic restart after a power cut.
Where the machine fits
Without a receiver the machine stands only 860 mm tall, so it will go under a bench or into a cabinet. It does need a receiver, though — without one the inverter would chase every twitch in demand. If you have no receiver, go straight for the SCR-3/10APM-200D package.
| SCR-3/10APM — figures for the installation | |
|---|---|
| Free air delivery | 320 l/min · 19.2 m³/h |
| Pressure range | 4 – 10 bar |
| Dimensions L × W × H | 650 × 600 × 860 mm |
| Floor area | 0.39 m² |
| Weight | 180 kg |
| Connection | 1/2" |
| Noise level | 65 dB(A) |
| Ventilation required | 1,600 m³/h |
| Voltage | 400 V / 50 Hz |
Equipment
An air filter protects the intake; oil and separator filters clean the oil. The combined valve controls intake and unloading, and the cooler keeps oil and air at temperature. Servicing is done from the front — take the cover off and everything is within reach.
- permanent magnet motor above IE4 class, cooled by oil from the screw airend
- direct 1:1 drive — no V-belts, no gearbox, no flexible coupling
- INOVANCE frequency inverter with vector control, torque from 0.1 Hz
- in-house low-speed screw airend with a modern rotor profile
- IT7000 touchscreen controller with a 7" display, weekly schedule and fault log
- automatic restart after a power cut and detailed machine status monitoring
- a backlit front panel signalling the machine state across the whole workshop
- air, oil and separator filters, combined intake valve
- extended 5-year warranty with no running-hour limit and no service contracts
Choose a receiver for this machine from the air receivers and a dryer from the air dryers. The whole range including the packages is compared in the SCR-APM Mini range. We provide service across the country.
The 3 kW is the cheapest machine in the range but the dearest air. Before you buy it, have your actual demand worked out — the price difference comes back within months.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 10 bars |
| Displacement: | 320 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | 1/2" |
| Motor power: | 3,7 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Noise: | 65 dB(A) |
| Weight: | 180 kg |
| Engine: | Electric |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | Yes |
| Length: | 650 mm |
| Width: | 600 mm |
| Height: | 860 mm |
| Minimum pressure: | 4 bars |
| Ventilation: | 1,600 m³/h |
